Eagle Nest Residences - Perspective Rendering

March 10, 2020Page 2841 section

Color-rendered perspective drawings and artistic sketches of the development and public realm.

9.2.3 a) Rezoning - 1449 Burnside Road West (Eagles Nest)

View from Burnside and Helmcken intersection

Eagle Nest Residences

3 Helmcken Road, Victoria, BC

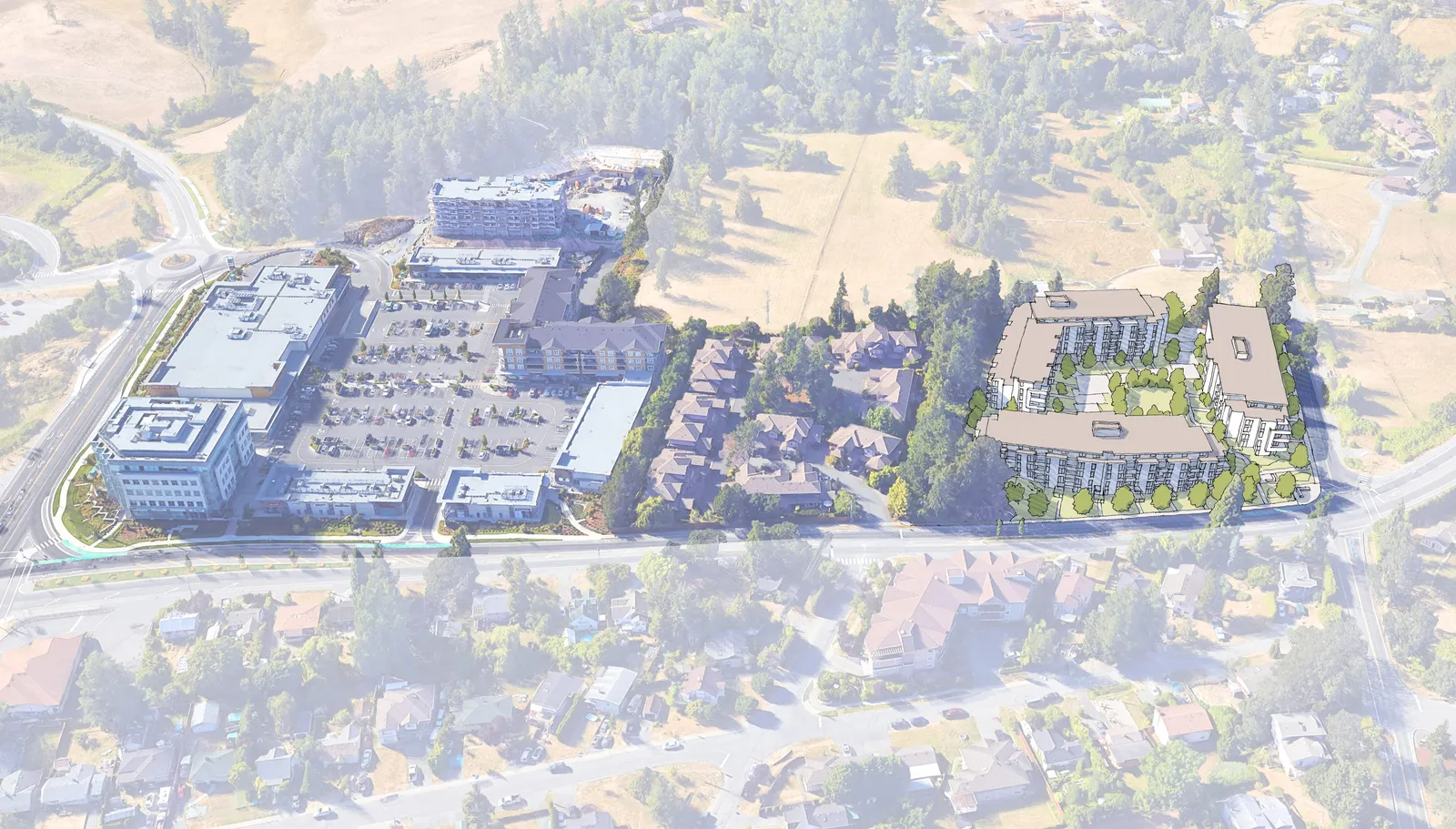

Bird's eye view looking west showing the proposed multi-building residential development and its surrounding urban context.

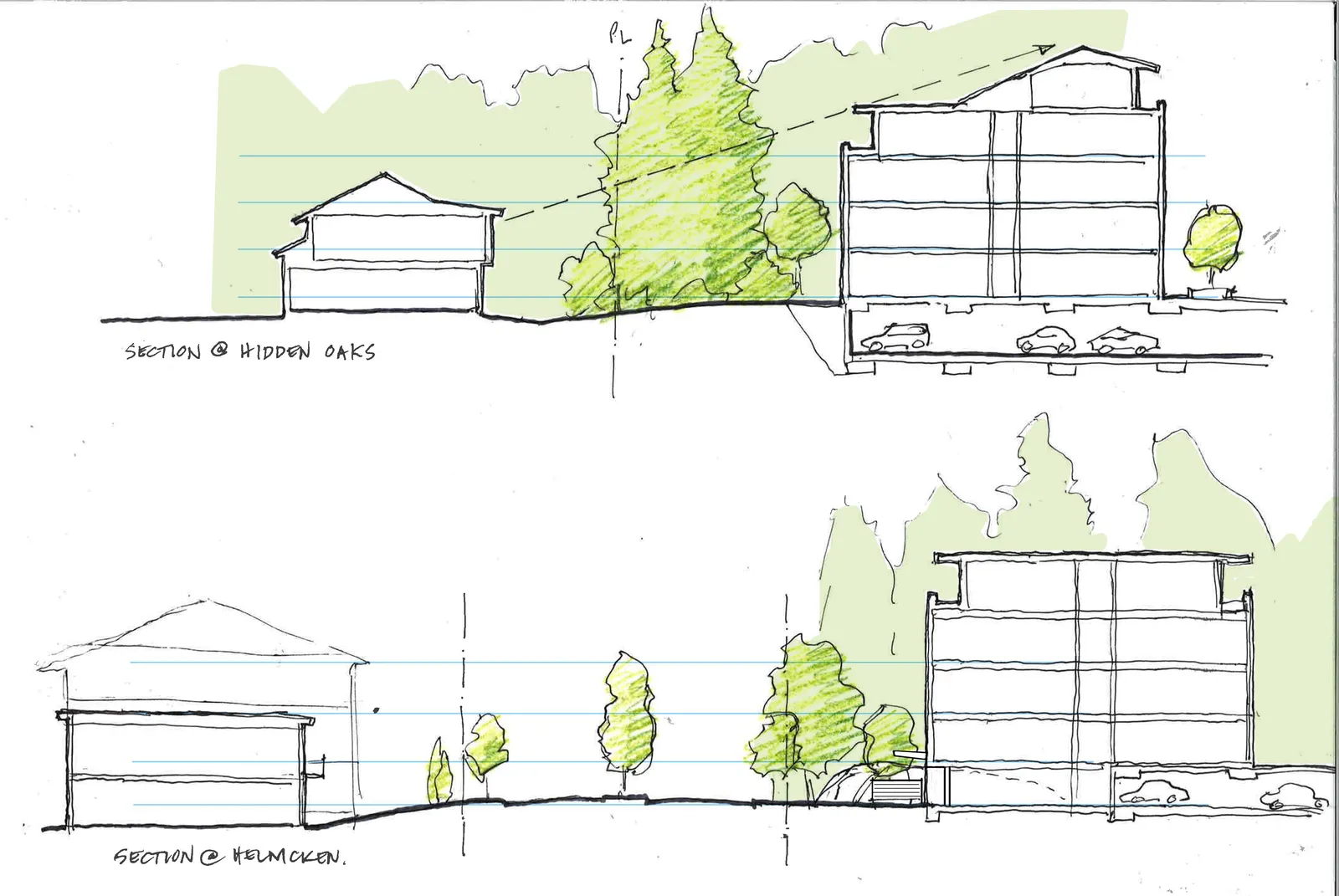

Architectural sections labeled "SECTION @ HELMCKEN" and "SECTION @ HIDDEN OAKS" illustrating building heights and profiles in relation to adjacent properties.

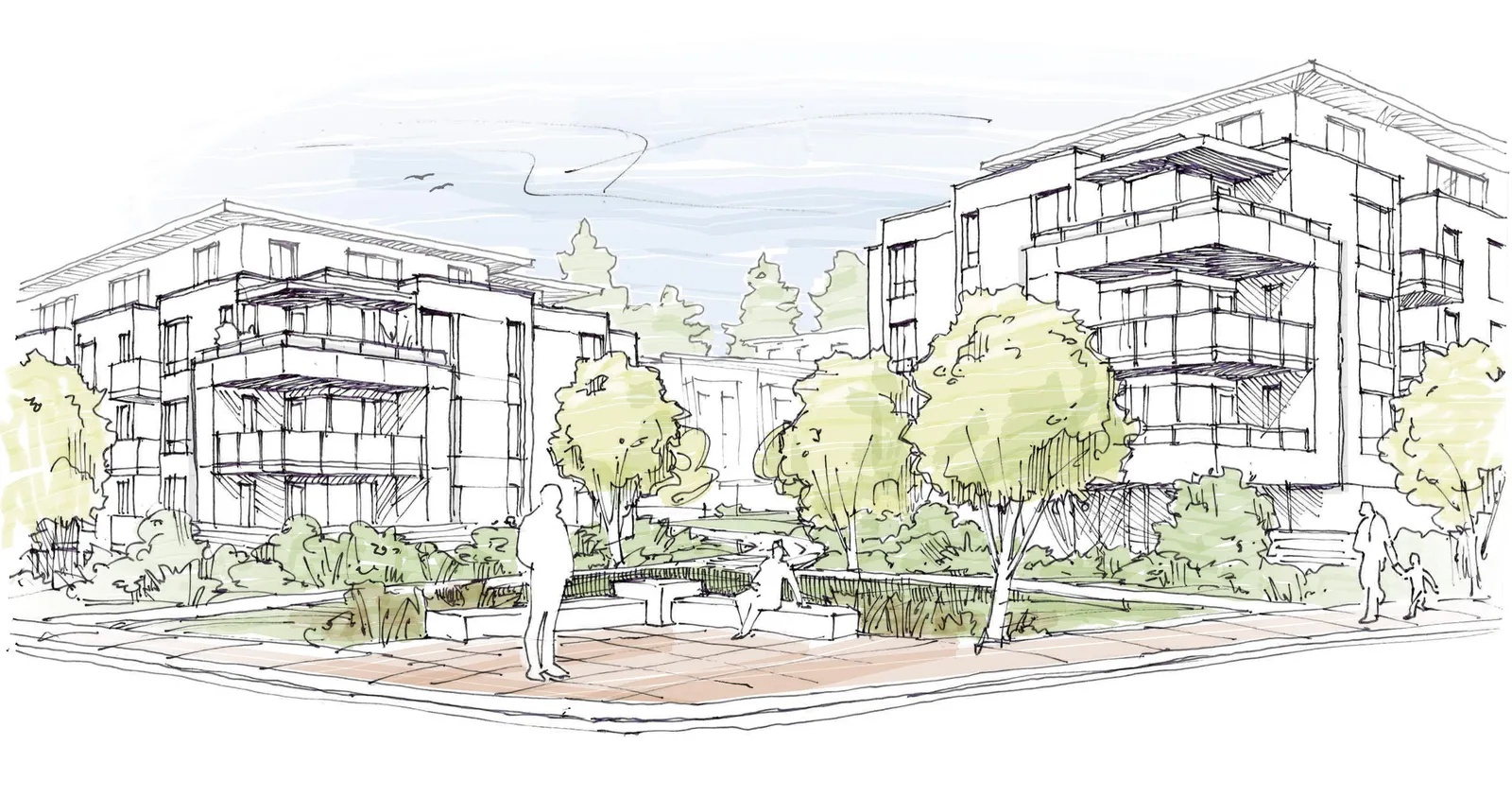

Perspective rendering titled "AT BURNSIDE AND HELMCKEN" showing a ground-level view of the landscaped courtyard and pedestrian areas between the residential buildings.

Drawing Information

Project Name: Eagle Nest Residences
Address: 3 Helmcken Road, Victoria, BC
Drawing Title: Perspective Rendering
Project Number: 1827
Drawing File: 1827 A100 Site Plan.vwx
Plot Date: 27 FEB 2020
Scale: N.T.S.
Drawn by: RAW
Checked by: EDS
Drawing No: A603
Revision No: 2

Revision History

Rev	Date	Description
2	27 FEB 2020	ISSUED FOR REZONING
2	22 JAN 2020	ISSUED FOR REZONING
1	17 SEP 2018	ISSUED FOR REZONING

Notes and Status

All dimensions are shown in millimeters.
ISSUED FOR REZONING

Architect Information

dHKarchitects

Victoria Office: 977 Fort Street, Victoria BC V8V 3K3 | T 1 250 658 3367
Nanaimo Office: 102 - 5190 Dublin Way, Nanaimo BC V9T 0H2 | T 1 250 585 5810
