Detail Drawing: Tree Protection Fencing

March 10, 2020Page 3591 section

Standard technical drawing specifying the requirements for construction of protective fencing around trees during site work.

9.2.3 a) Rezoning - 1449 Burnside Road West (Eagles Nest)
Drawing E105Oct 30/0738 x 89 mm wood frame with orange snow-fencing mesh

TREE PROTECTION FENCING

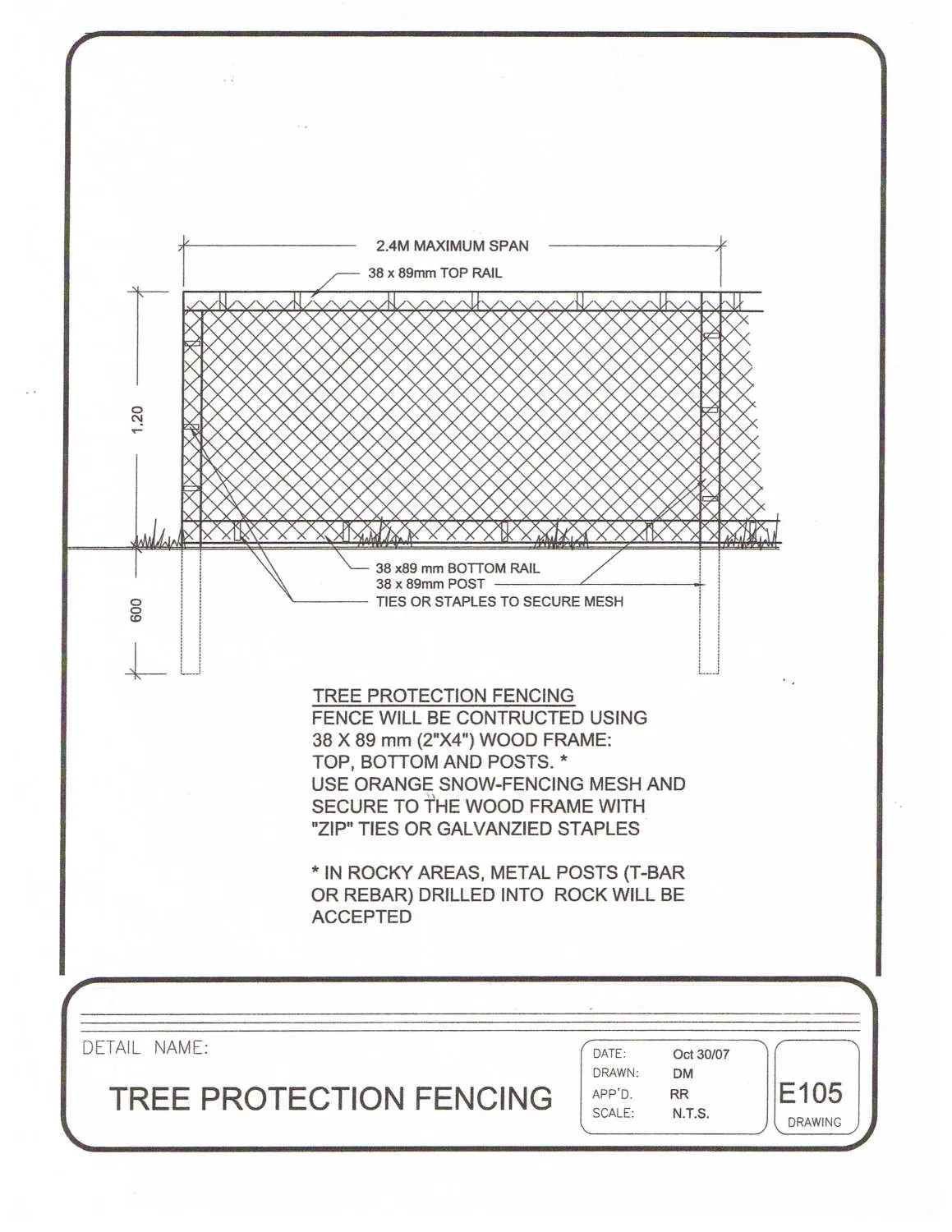

Technical drawing of tree protection fencing showing a 2.4m maximum span, a 1.20m height above ground, and a 600mm post depth below ground. Components labeled include 38 x 89mm top rail, 38 x 89mm bottom rail, 38 x 89mm post, and ties or staples to secure mesh.
Technical drawing of tree protection fencing showing a 2.4m maximum span, a 1.20m height above ground, and a 600mm post depth below ground. Components labeled include 38 x 89mm top rail, 38 x 89mm bottom rail, 38 x 89mm post, and ties or staples to secure mesh.

TREE PROTECTION FENCING

  • FENCE WILL BE CONTRUCTED USING 38 X 89 mm (2"X4") WOOD FRAME: TOP, BOTTOM AND POSTS. *
  • USE ORANGE SNOW-FENCING MESH AND SECURE TO THE WOOD FRAME WITH "ZIP" TIES OR GALVANZIED STAPLES
    • IN ROCKY AREAS, METAL POSTS (T-BAR OR REBAR) DRILLED INTO ROCK WILL BE ACCEPTED
DETAIL NAME: TREE PROTECTION FENCING
DATE: Oct 30/07
DRAWN: DM
APP'D: RR
SCALE: N.T.S.
DRAWING: E105
