Appendix A Select Site Photographs

Select Site Photographs

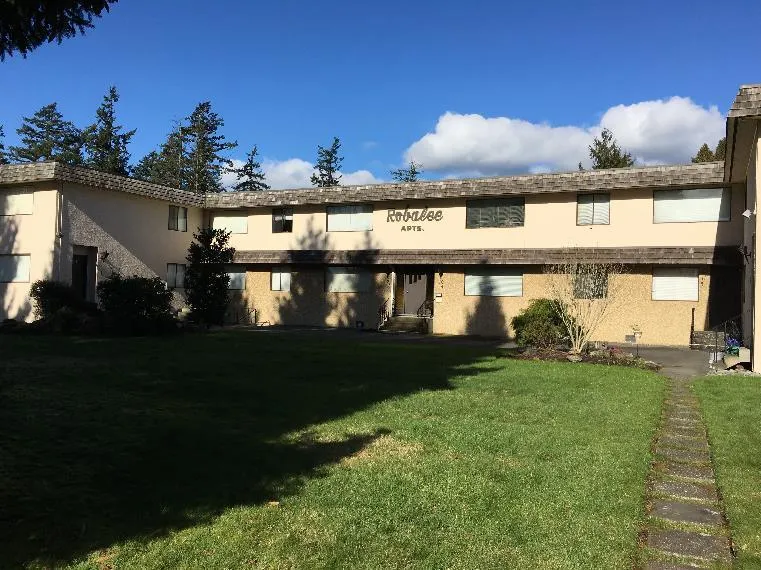

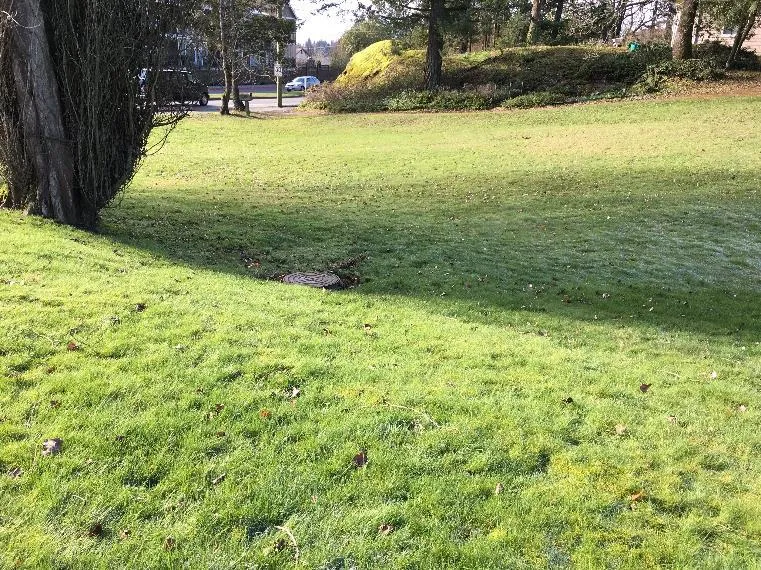

Photograph No.1: The Robalee Apartment Building at #3 Helmcken Rd, lawn in front of building former septic field.

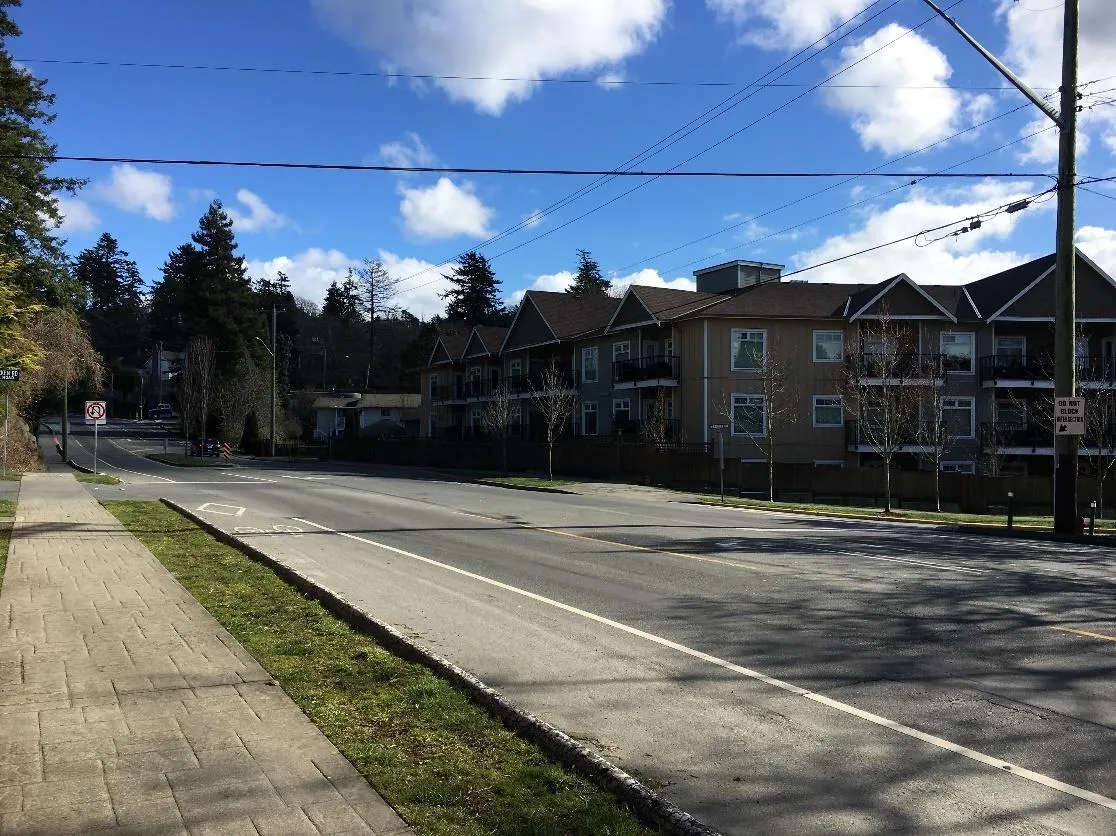

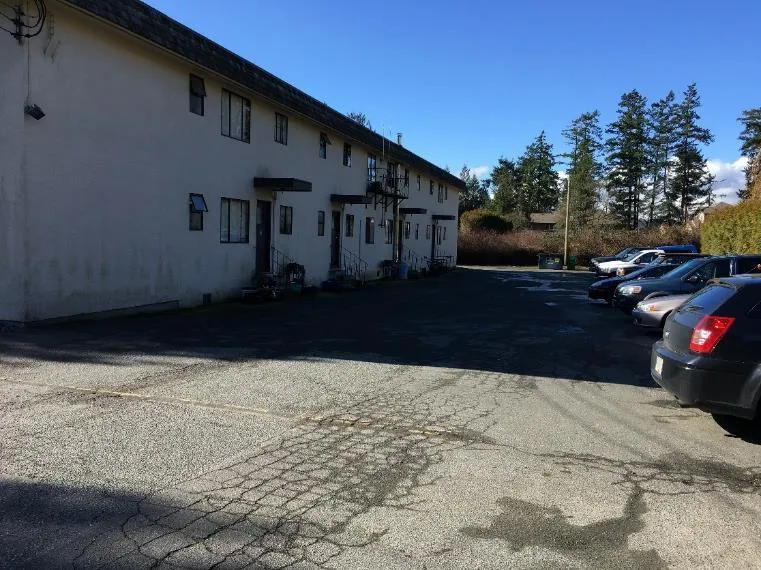

Photograph No.2: The parking lot on the north side of the Robalee Apartment Building at #3 Helmcken Rd.

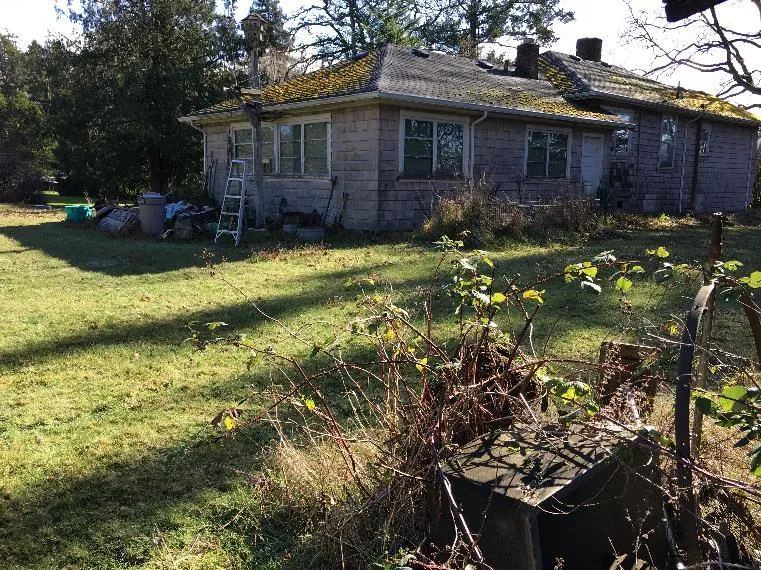

Photograph No.3: View looking east of back yard and house at 1445 Burnside Rd W

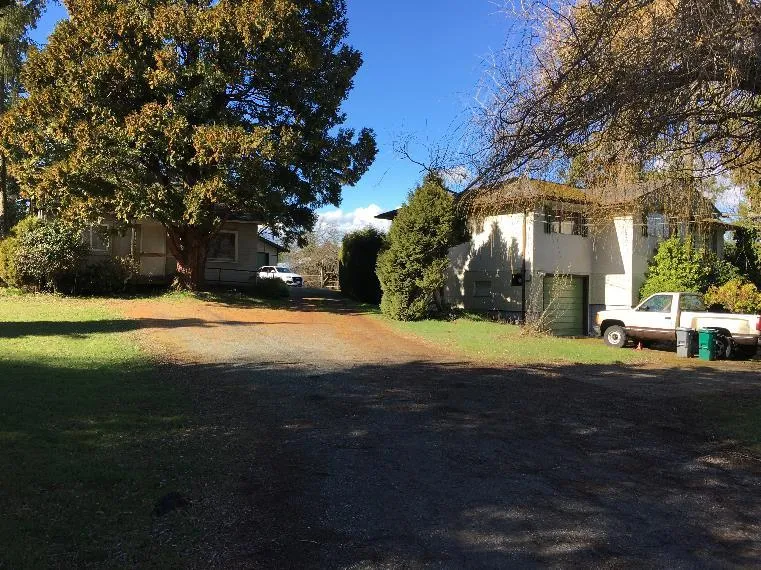

Photograph No.4: View west of 1447 Burnside Rd W (left side of photo) and 1449 Burnside Rd W (right side)

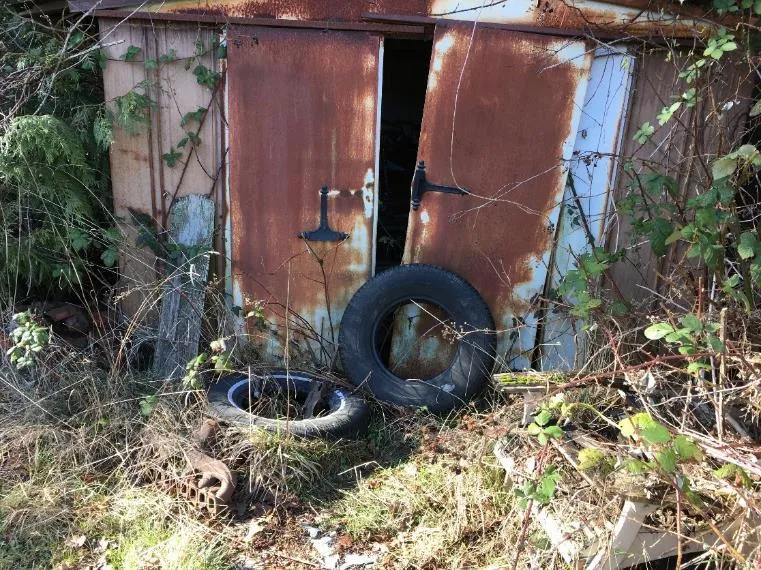

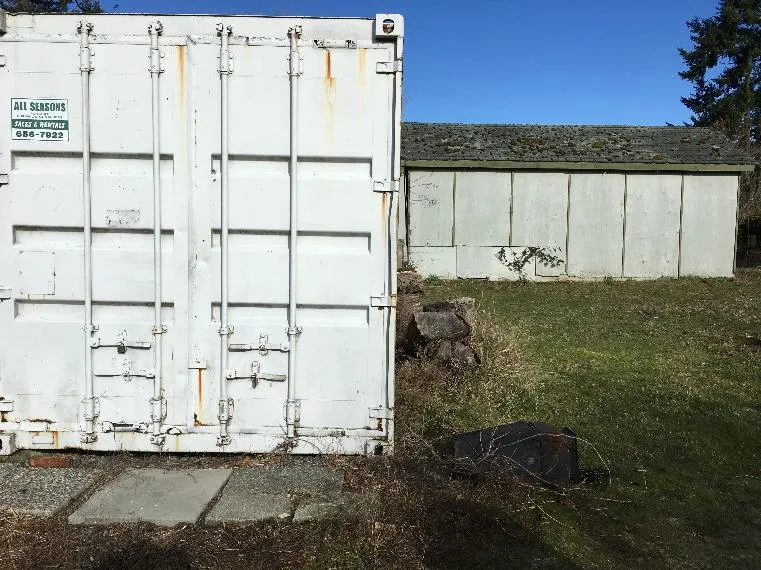

Photograph No.5: Storage shed and container to the west of 1447 Burnside Rd W

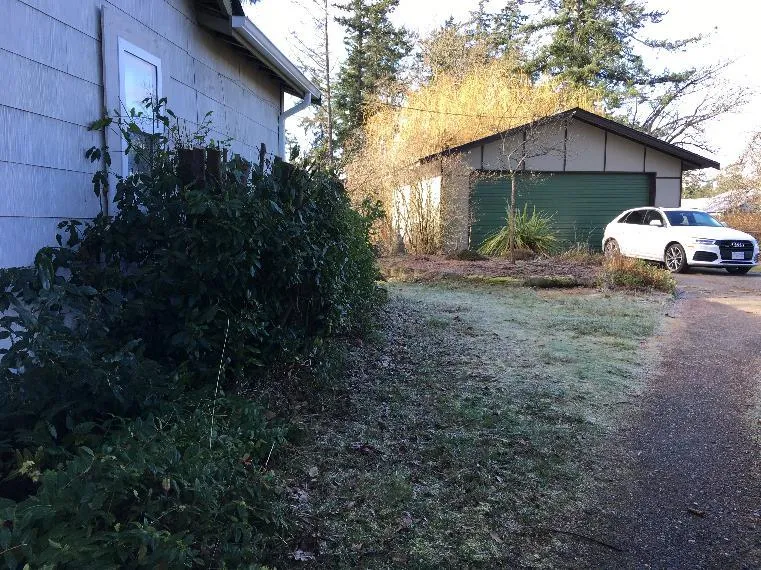

Photograph No.6: The detached garaged on the north boundary of the Site at 1449 Burnside Rd W

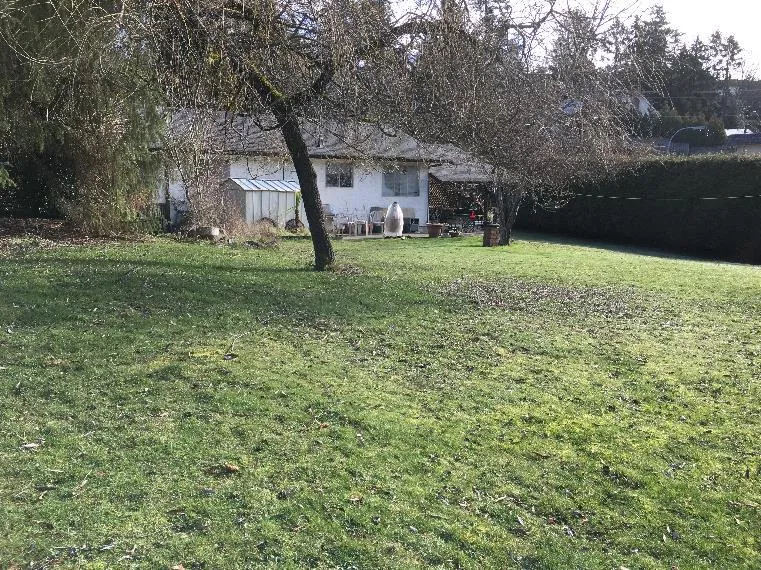

Photograph No.7: View northwest of house on southwest corner of the Site at #5 Helmcken Rd

Photograph No.8: Detached garage/shed along the western boundary of the Site for # 5 Helmcken Rd

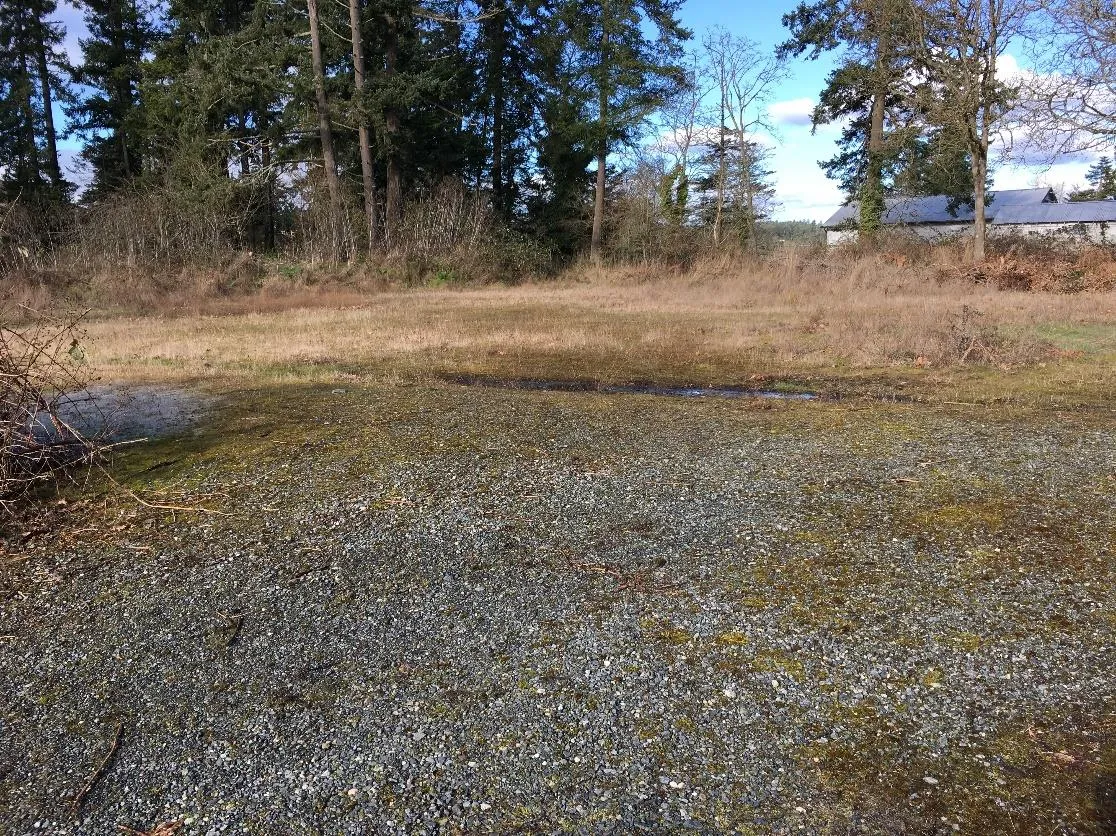

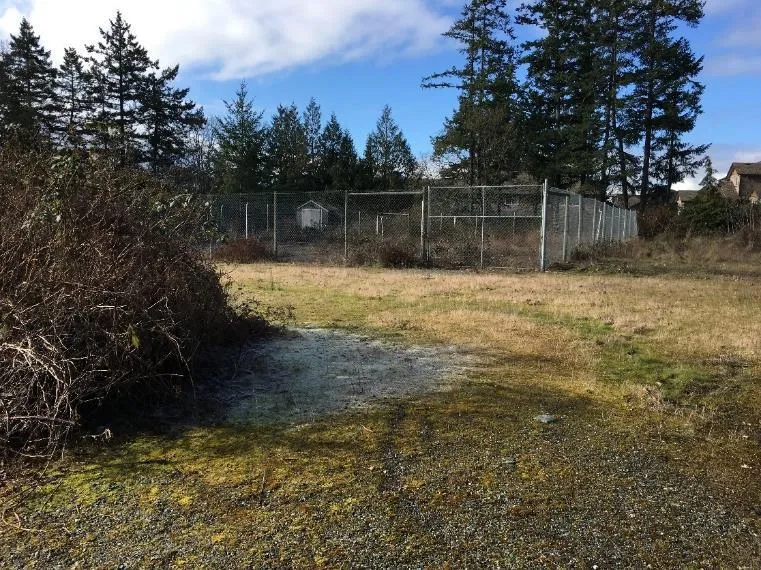

Photograph No.9: View from center of Site looking west at former plant nursery and soil sorting area

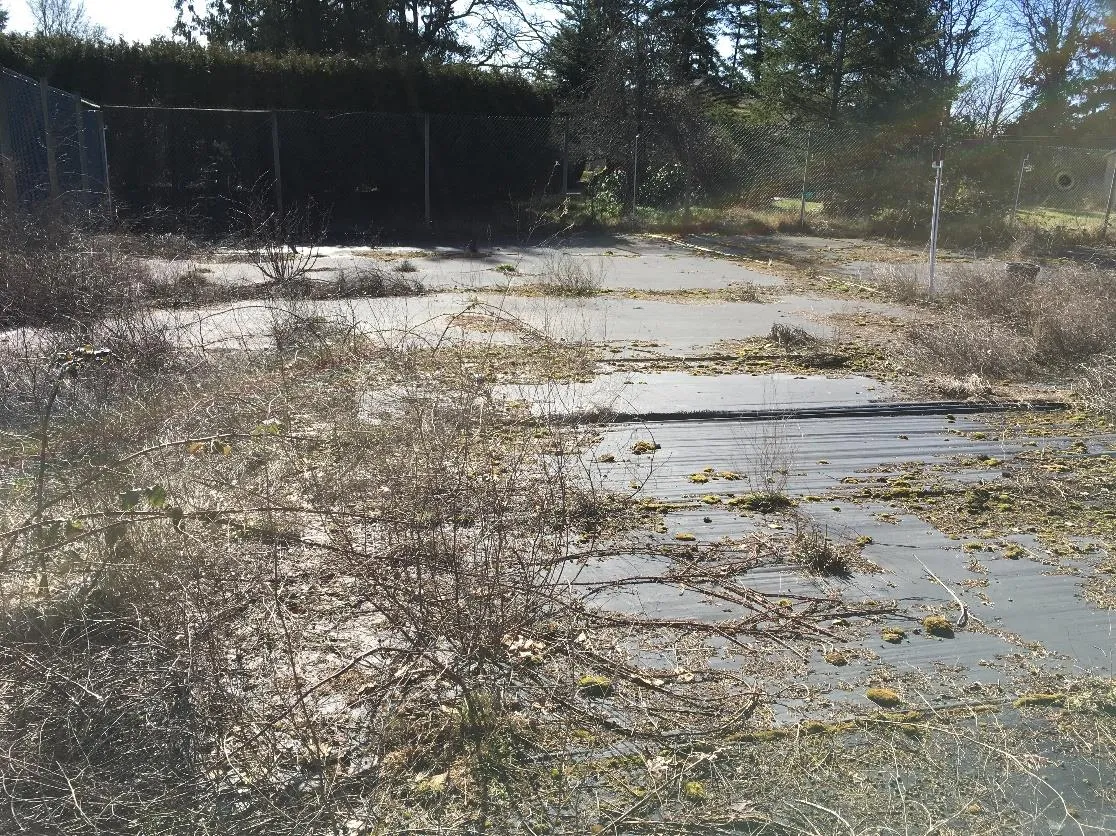

Photograph No.10: Geosynthetic fabric lining the ground surface of the former plant nursery

Photograph No.11: Lawn area along Helmcken Rd, undulating topography with a rocky outcrop in the background

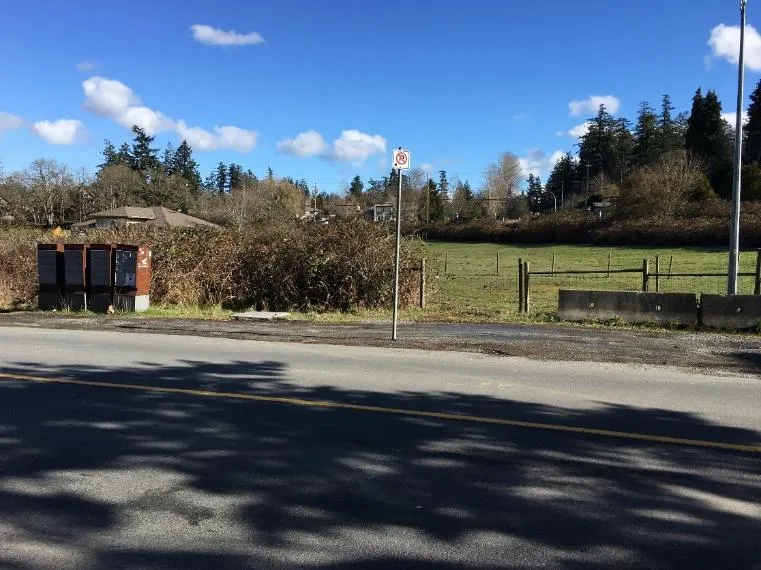

Photograph No.12: Neighbouring cattle pasture and rural residential home to the east

Photograph No.13: Helmcken Road and residential area to the south, view looking east

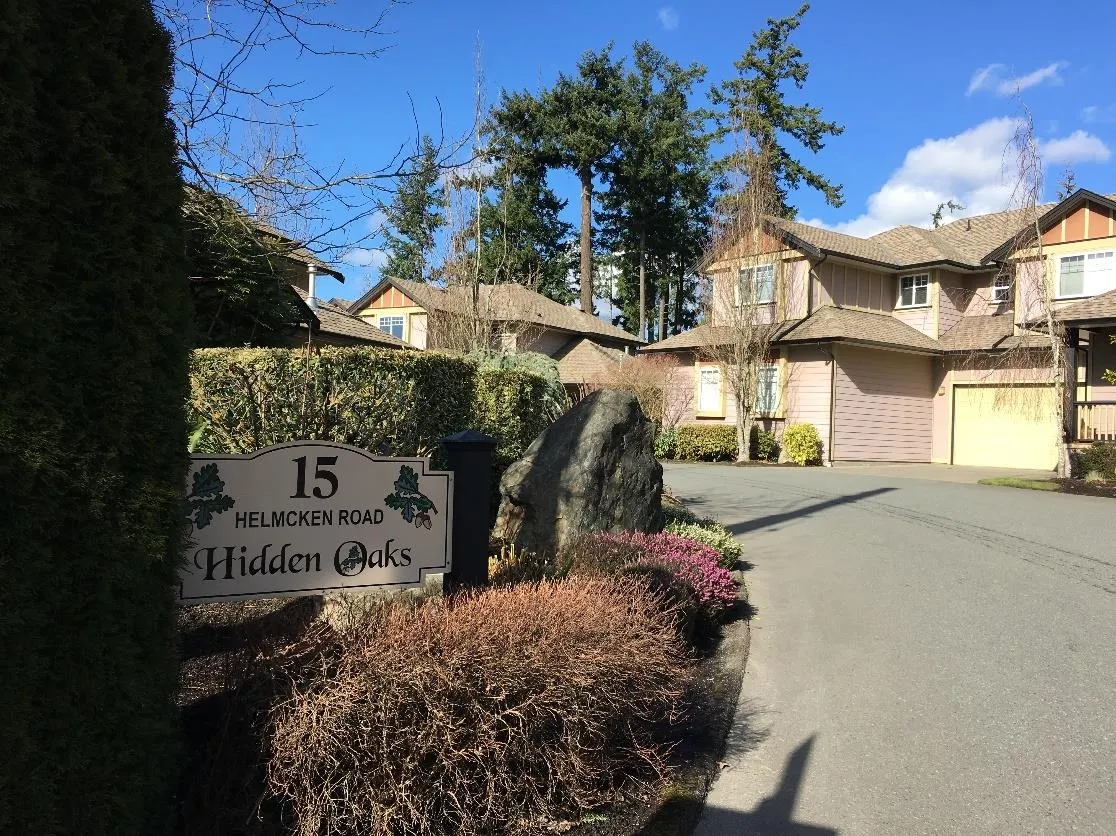

Photograph No.14: Newly constructed townhouses to the west of the Site

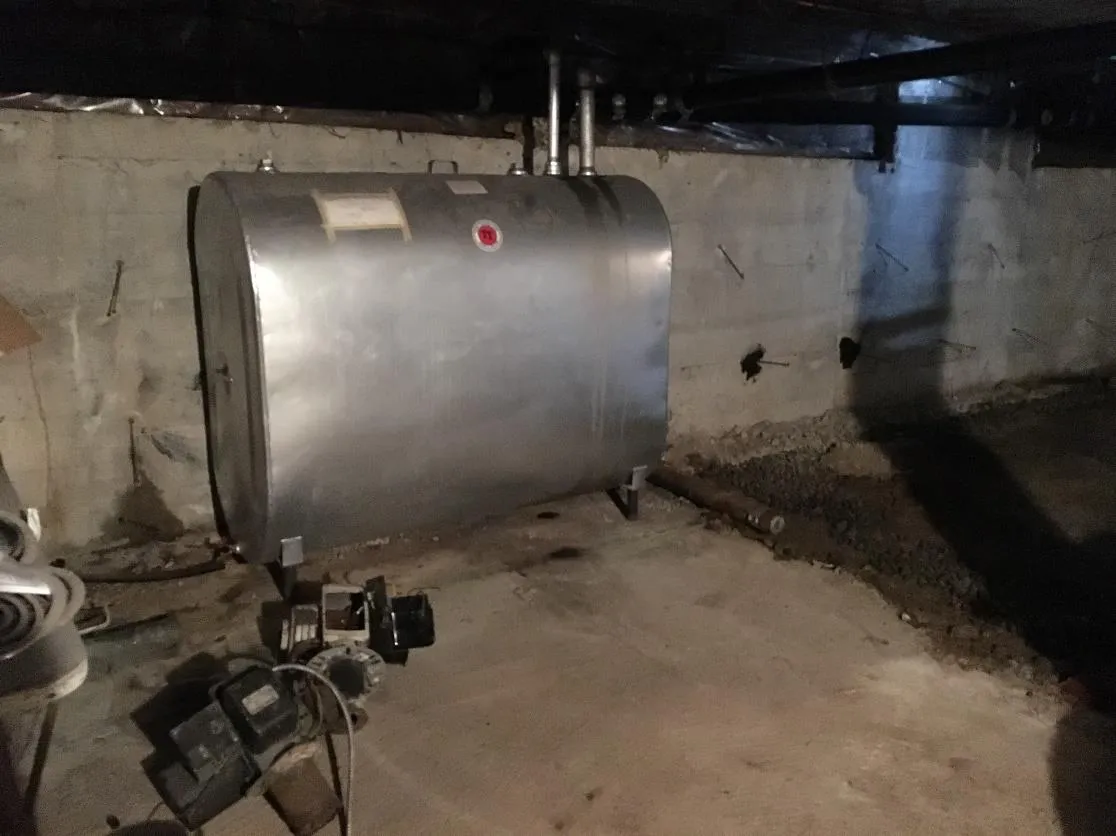

Photograph No.15: Heating oil AST on the ground floor of the apartment building

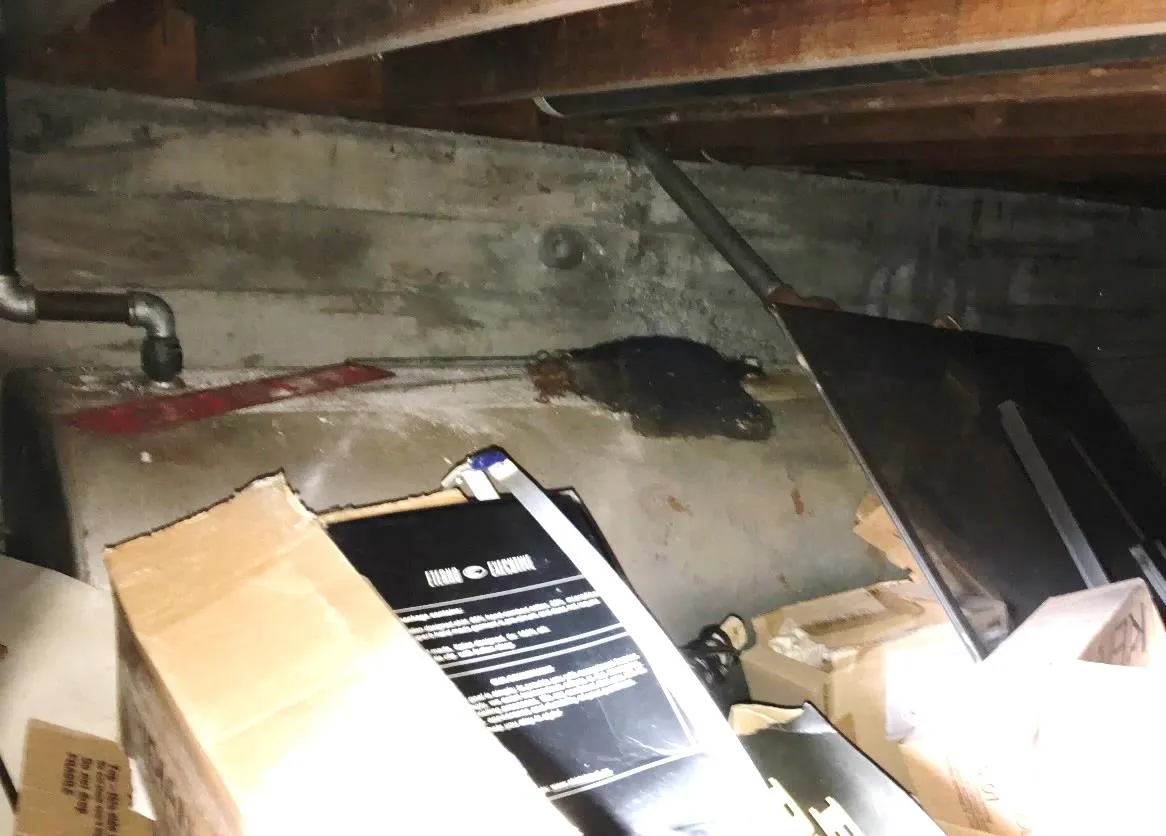

Photograph No.16: abandoned heating oil AST in the crawl space under the house at 1445 Burnside Rd W

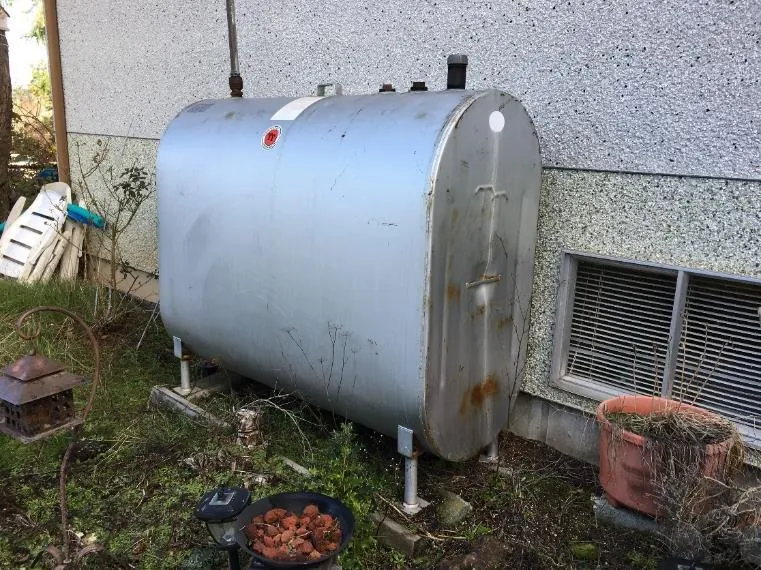

Photograph No.17: Heating oil AST on the west side of the house at 1449 Burnside Rd W

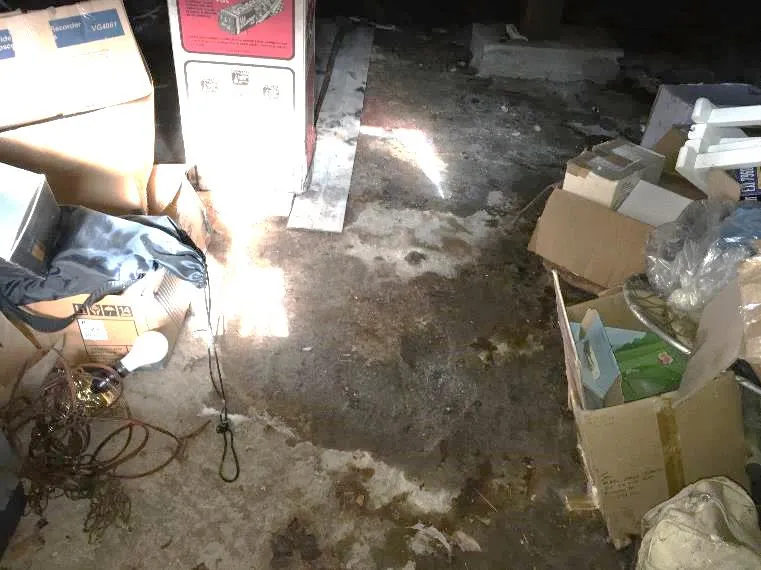

Photograph No.18: Staining on the floor of the crawl space under 1445 Burnside Rd W

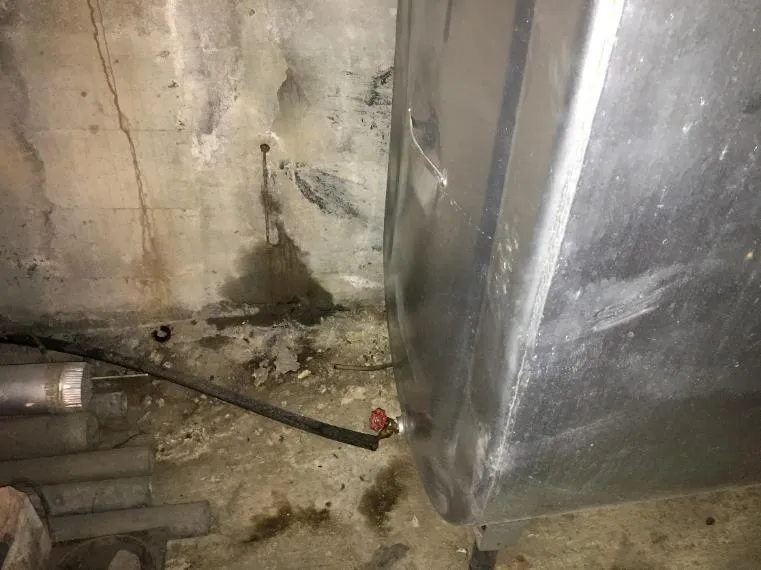

Photograph No.19: Staining under the valve of the AST at #3 Helmcken Rd

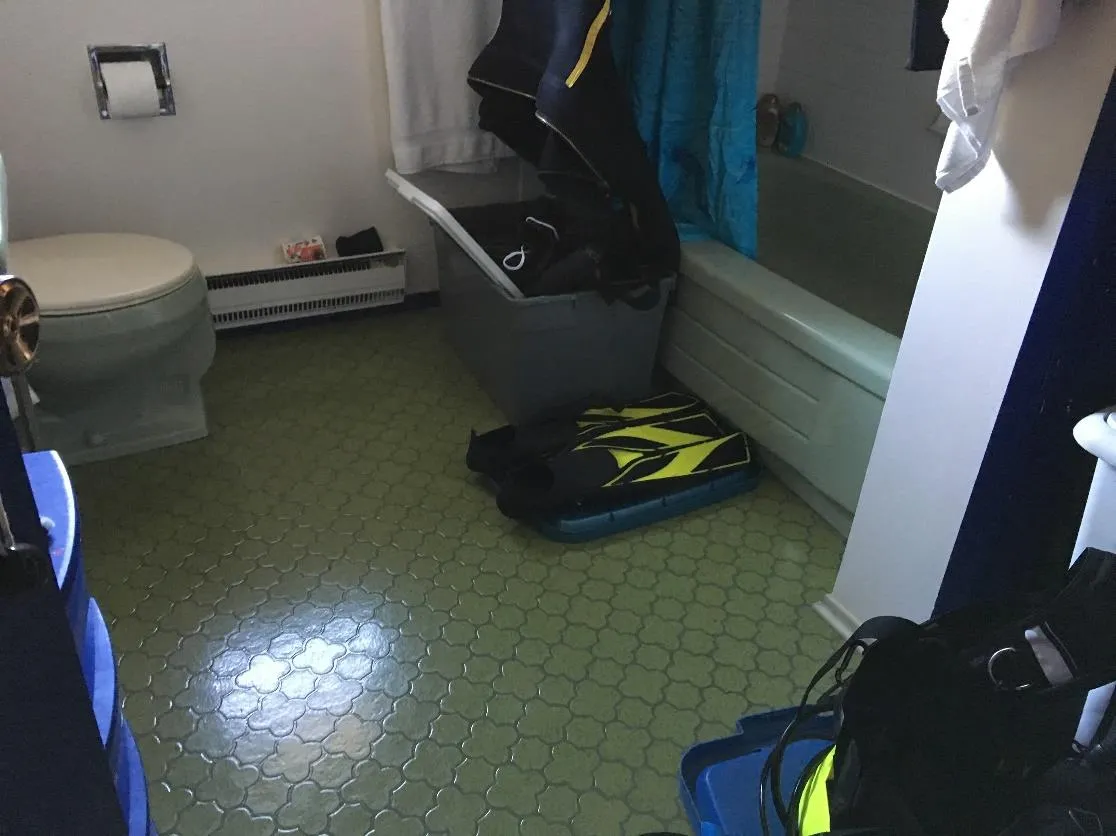

Photograph No.20: Example of linoleum that is suspect for containing asbestos

Photograph No.21: Example of ceiling tile that is suspect of containing asbestos

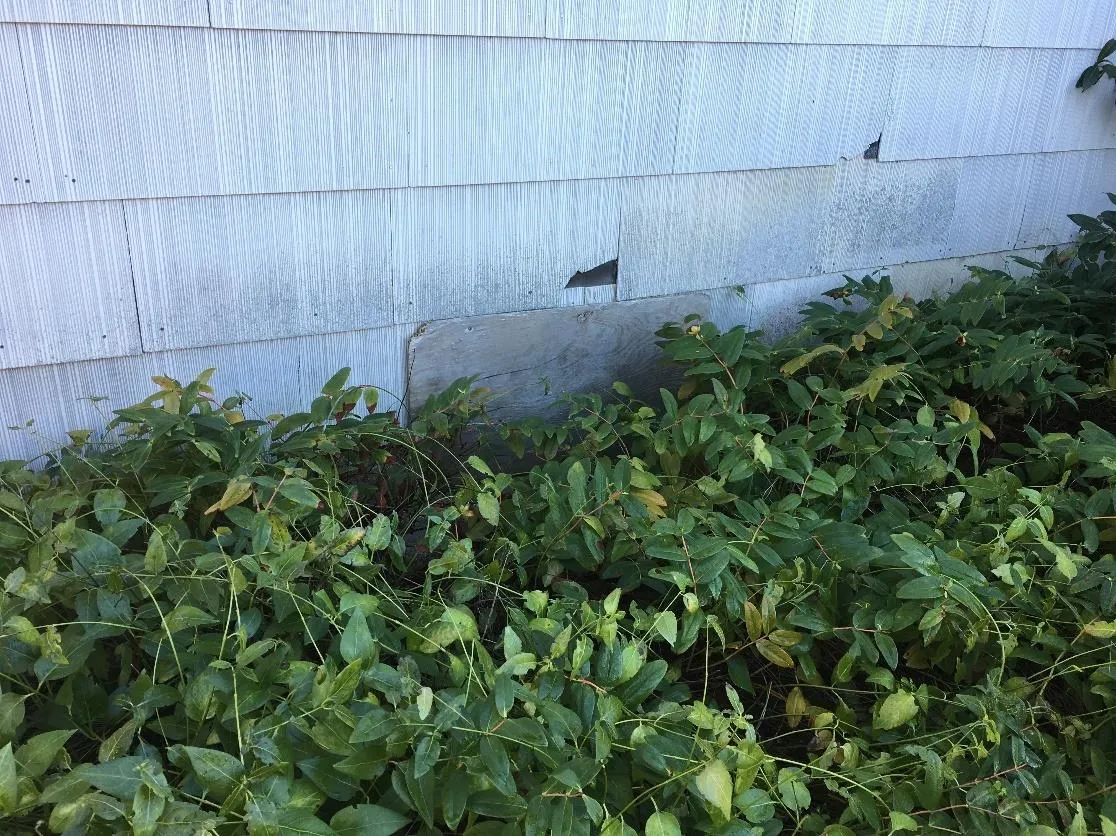

Photograph No.22: Asbestos cement siding on the house at 1447 Burnside Rd W

Photograph No.23: APEC for inappropriately discarded waste containers in the backyard at #5 Helmcken Rd

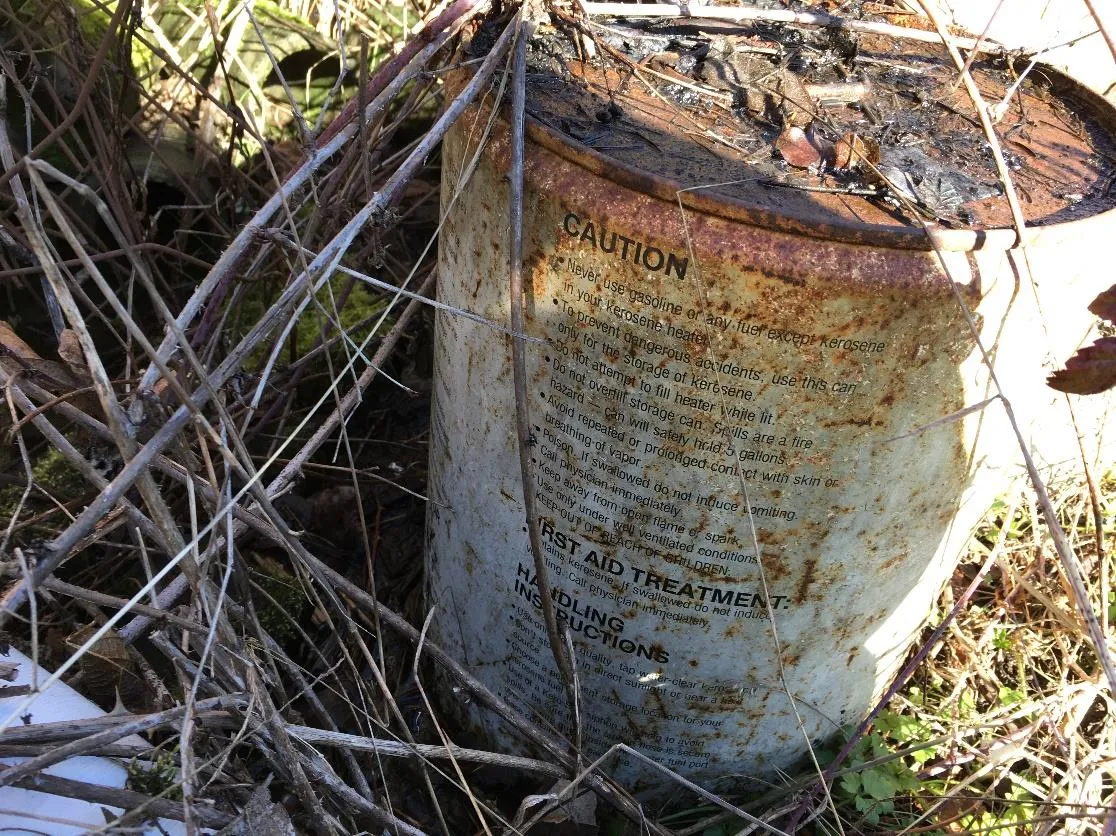

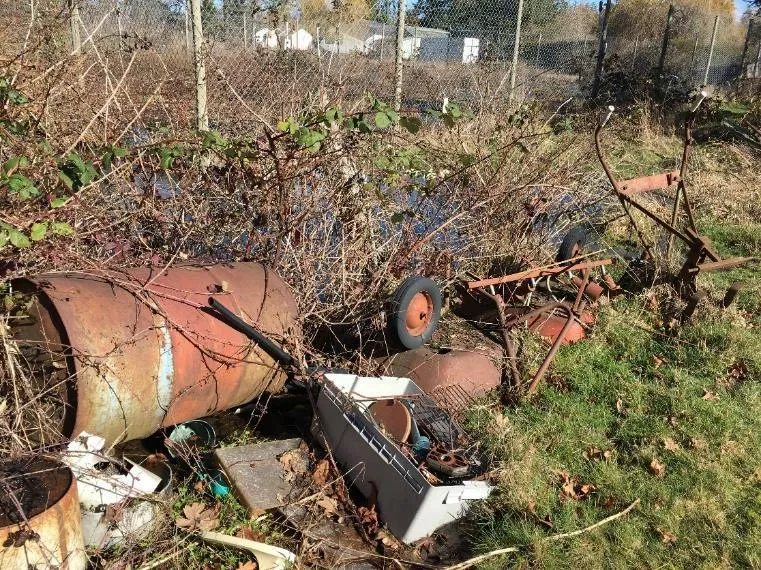

Photograph No.24: Rusted kerosene container in the scrap pile at #5 Helmcken Rd

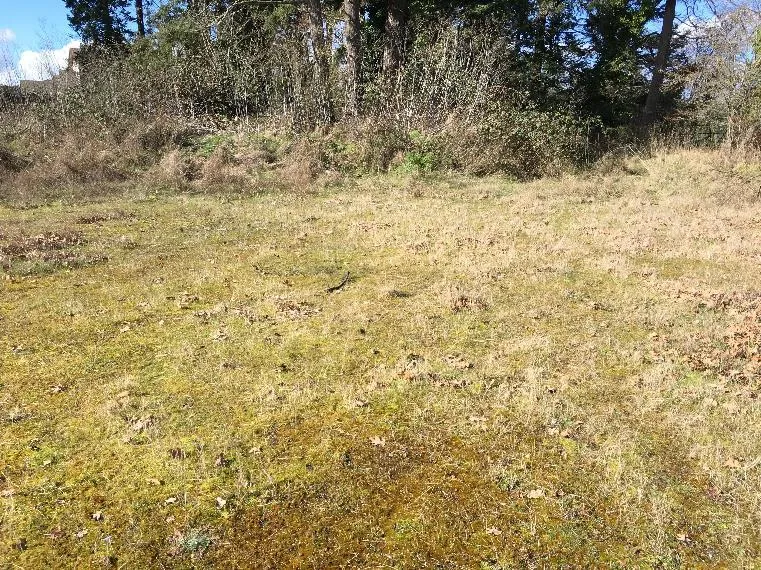

Photograph No.25: Northwest corner of the Site formerly used to sort soil materials, some revegetated mounds of soil visible.

Photograph No.26: Road grade fill placed in the central northern portion of the Site adjacent to the former plant nursery and in the area where soil segregation formerly occured
