Water network mapping and fire underwriter survey (FUS) calculations to determine fire protection water supply requirements for each building on the site.

9.2.3 b) Rezoning Application No. 2020/02 - 9 Erskine Lane
9 Erskine LaneOctober 9, 2019Fire Flow Requirement: 19500 L/min (Building A)Fire Flow Requirement: 22500 L/min (Building C)

APPENDIX B

Page 624–629

WATER NETWORK – FIGURE 2 AND FUS CALCULATIONS

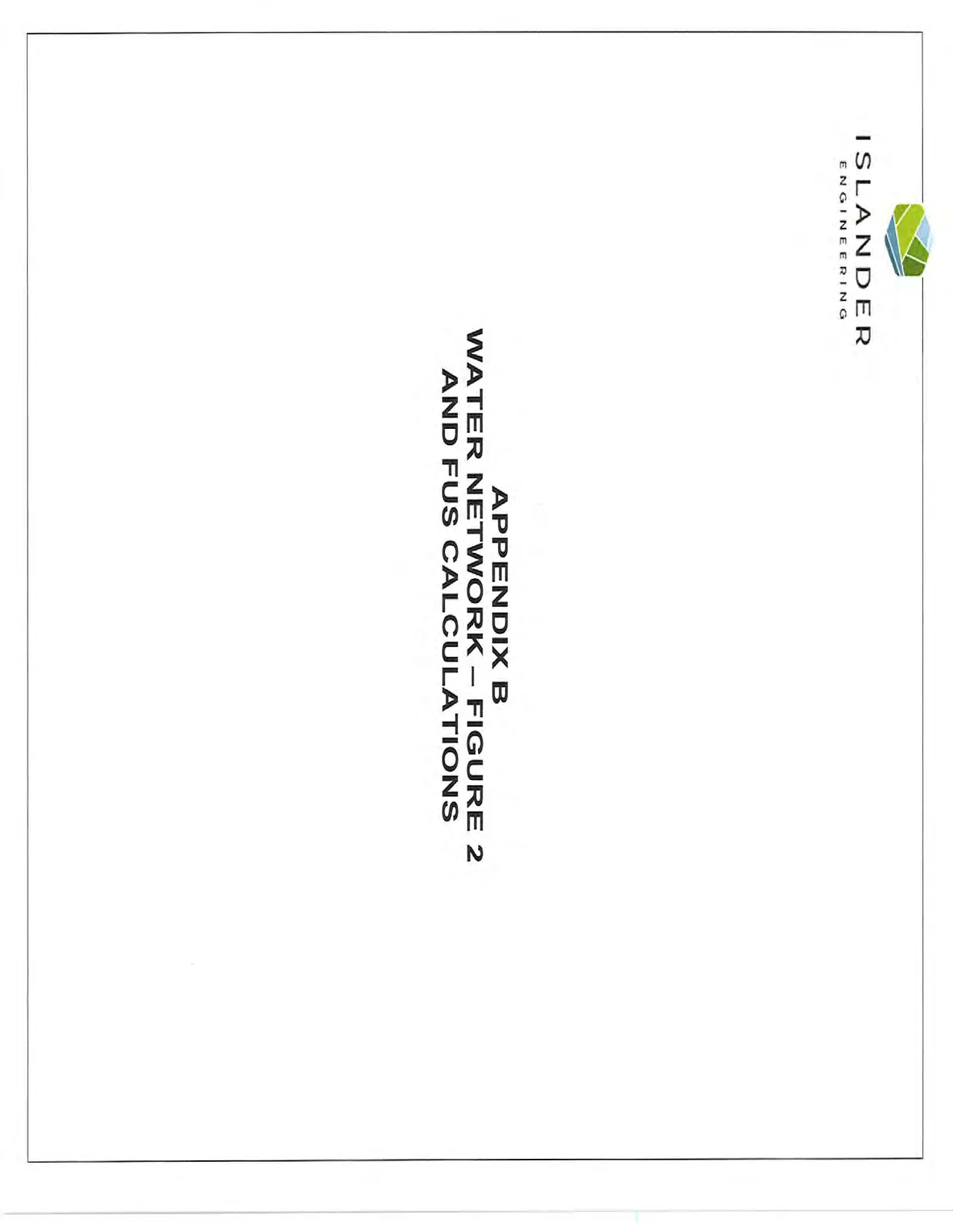

Appendix B cover page for Water Network – Figure 2 and FUS Calculations
Appendix B cover page for Water Network – Figure 2 and FUS Calculations

[Map of 9 Erskine Lane, Town of View Royal, showing Water Network - Figure 2. The plan includes BLDG A (79 units), BLDG B (79 units), BLDG C (107 units), and BLDG D (107 units). It indicates proposed water main upgrades, proposed fire hydrants, and existing twin trunk supply lines.]

Page 624–629

WATER SUPPLY FOR PUBLIC FIRE PROTECTION

Job Name: 9 Erskine Lane
Job #: 2253
Date: 9-Oct-19
Name: K. Krajnc

Building A

A. TYPE OF CONSTRUCTION
Fire-Resistive Construction 0.6
Non-combustible Construction 0.8
Ordinary Construction 1.0
Wood Frame Construction 1.5
C = 1.5
B. GROUND FLOOR AREA
1282 m² 1st
C. HEIGHT OF BUILDING IN STOREYS
Height 5 (Number of floors) *Average
Area Total: 6410 m²
D. FIRE FLOW FORMULA
F = 220 · C √A
C 1.5
A 6410 m²
F 26421 l/min
F (Nearest 1000): 26000 L/min
E. TOTAL DECREASE FOR OCCUPANCY
Non-Combustible -25%
Limited Combustible -15% O = -25 %
Combustible No Change
Free Burning 15%
Rapid Burning 25% T = -6500 L/min
Tt = 19500 L/min
F. DECREASE FOR SPRINKLER PROTECTION
50% for complete automatic protection
30% for adequately designed systems
10% for water supply standard to both domestic and fire department hose lines required
10% for fully supervised system
T = 50 %
T = 9750 L/min
G. TOTAL INCREASE OF EXPOSURES
Seperation Charge Seperation Charge
0 to 3m 25% 20.1 to 30m 10%
3.1 to 10m 20% 30.1 to 40m 5%
10.1 to 20m 15% >45m 0%
N = 0% Total charge: 15%
S = 5%
E = 10% T = 15%
W = 0%
T = 2925 L/min
H. TOTAL FIRE FLOW REQUIREMENT
E = 19500 L/min
F = 9750 L/min Total = 12675 L/min
G = 2925 L/min Total = 13000 L/min
Total = 216.7 L/sec
Total = 3434.2 USgal/min
Total = 2859.6 IGal/min

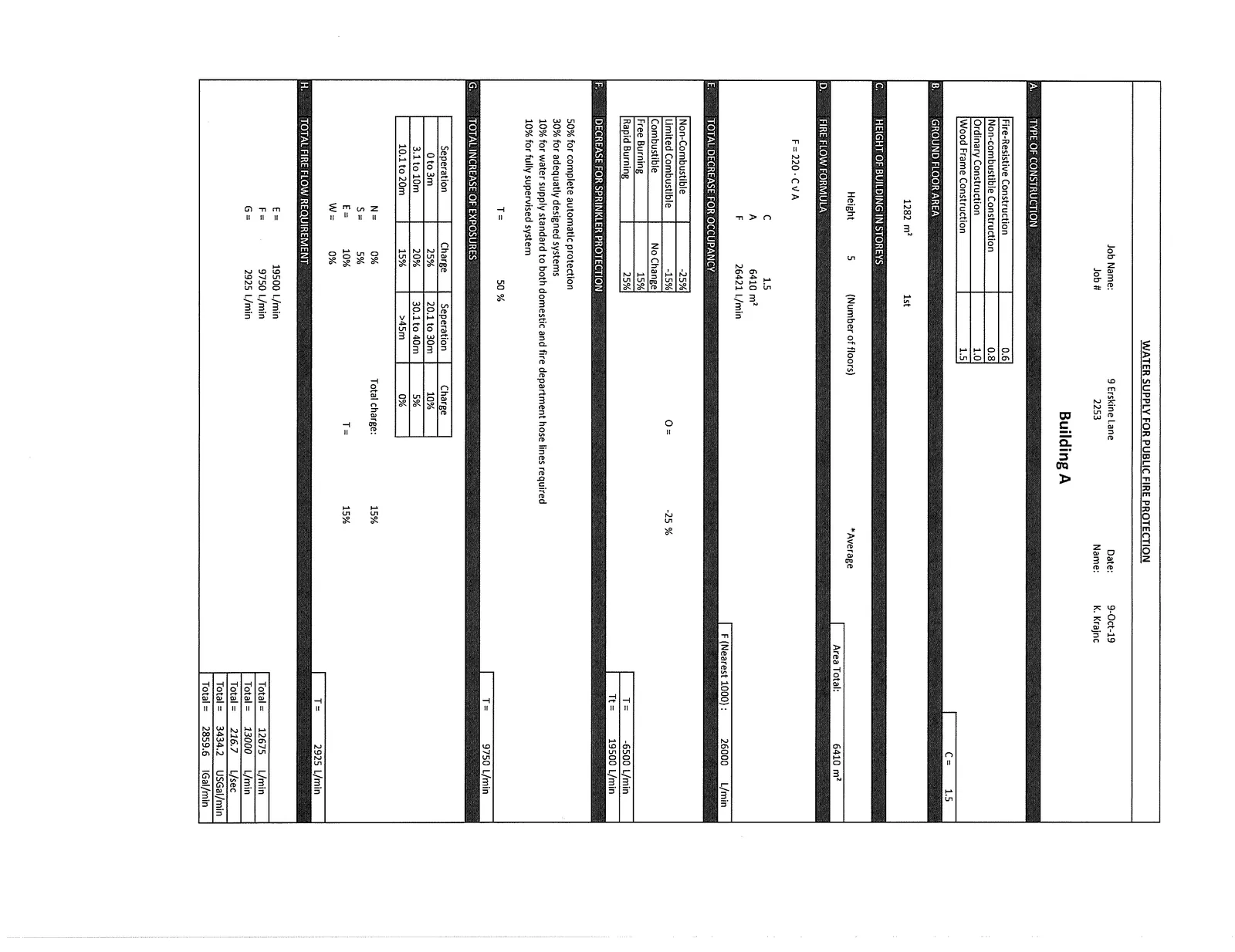

Water Supply for Public Fire Protection calculation sheet for Building A
Water Supply for Public Fire Protection calculation sheet for Building A
Page 624–629

WATER SUPPLY FOR PUBLIC FIRE PROTECTION

Job Name: 9 Erskine Lane
Job #: 2253
Date: 9-Oct-19
Name: K. Krajnc

Building B

A. TYPE OF CONSTRUCTION
Fire-Resistive Construction 0.6
Non-combustible Construction 0.8
Ordinary Construction 1.0
Wood Frame Construction 1.5
C = 1.5
B. GROUND FLOOR AREA
1282 m² 1st
C. HEIGHT OF BUILDING IN STOREYS
Height 5 (Number of floors) *Average
Area Total: 6410 m²
D. FIRE FLOW FORMULA
F = 220 · C √A
C 1.5
A 6410 m²
F 26421 L/min
F (Nearest 1000): 26000 L/min
E. TOTAL DECREASE FOR OCCUPANCY
Non-Combustible -25%
Limited Combustible -15% O = -25 %
Combustible No Change
Free Burning 15%
Rapid Burning 25% T = -6500 L/min
Tt = 19500 L/min
F. DECREASE FOR SPRINKLER PROTECTION
50% for complete automatic protection
30% for adequately designed systems
10% for water supply standard to both domestic and fire department hose lines required
10% for fully supervised system
T = 50 %
T = 9750 L/min
G. TOTAL INCREASE OF EXPOSURES
Seperation Charge Seperation Charge
0 to 3m 25% 20.1 to 30m 10%
3.1 to 10m 20% 30.1 to 40m 5%
10.1 to 20m 15% >45m 0%
N = 0% Total charge: 20%
S = 0%
E = 10% T = 20%
W = 10%
T = 3900 L/min
H. TOTAL FIRE FLOW REQUIREMENT
E = 19500 L/min
F = 9750 L/min Total = 13650 L/min
G = 3900 L/min Total = 14000 L/min
Total = 233.3 L/sec
Total = 3698.4 USGal/min
Total = 3079.6 IGal/min

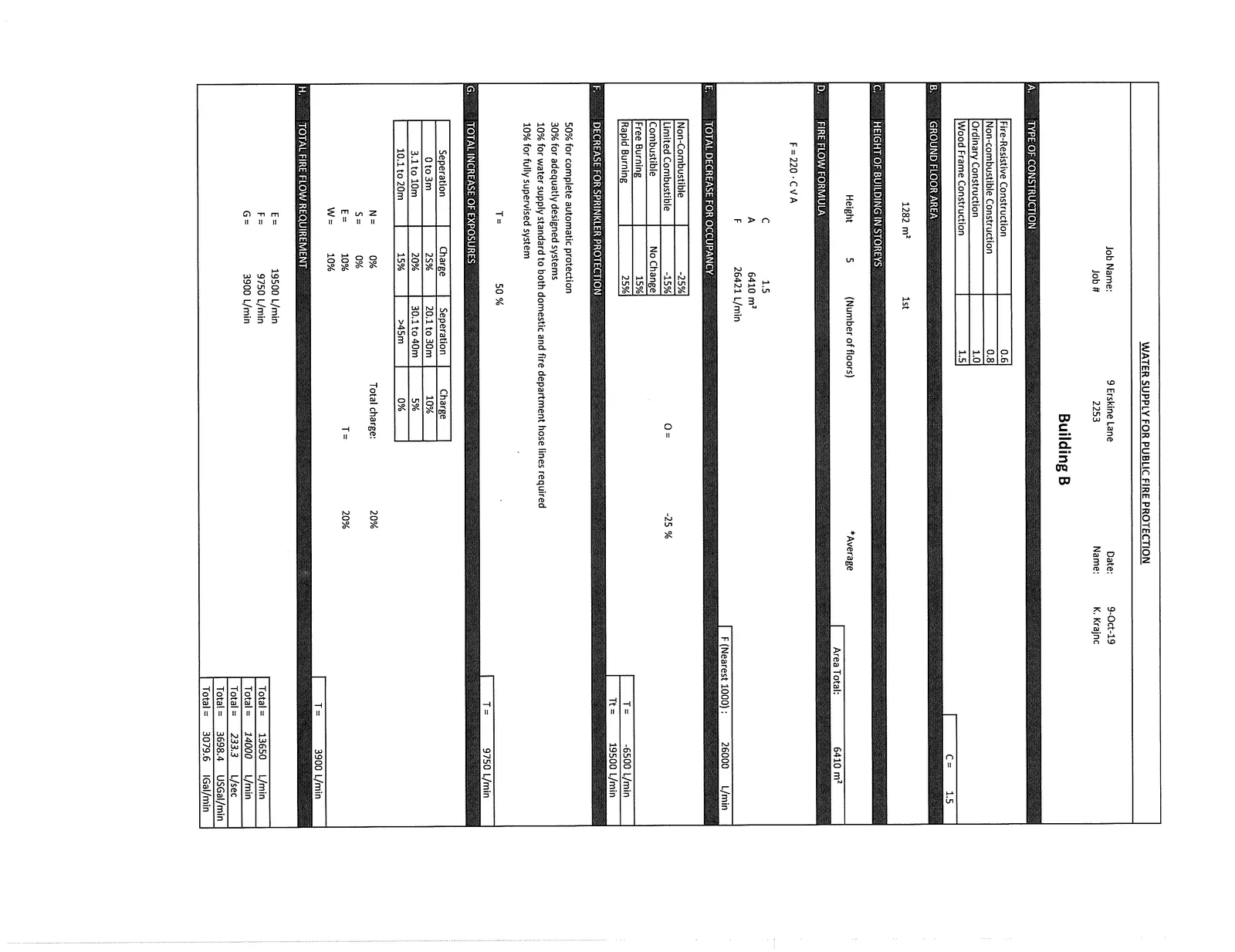

Water Supply for Public Fire Protection calculation sheet for Building B
Water Supply for Public Fire Protection calculation sheet for Building B
Page 624–629

WATER SUPPLY FOR PUBLIC FIRE PROTECTION

Job Name: 9 Erskine Lane
Job #: 2253
Date: 9-Oct-19
Name: K. Krajnc

Building C

A. TYPE OF CONSTRUCTION
Fire-Resistive Construction 0.6
Non-combustible Construction 0.8
Ordinary Construction 1.0
Wood Frame Construction 1.5
C = 1.5
B. GROUND FLOOR AREA
1414 m² 1st
C. HEIGHT OF BUILDING IN STOREYS
Height 6 (Number of floors) *Average
Area Total: 8484 m²
D. FIRE FLOW FORMULA
F = 220 · C √A
C 1.5
A 8484 m²
F 30396 L/min
F (Nearest 1000): 30000 L/min
E. TOTAL DECREASE FOR OCCUPANCY
Non-Combustible -25%
Limited Combustible -15% O = -25 %
Combustible No Change
Free Burning 15%
Rapid Burning 25% T = -7500 L/min
Tt = 22500 L/min
F. DECREASE FOR SPRINKLER PROTECTION
50% for complete automatic protection
30% for adequately designed systems
10% for water supply standard to both domestic and fire department hose lines required
10% for fully supervised system
T = 50 %
T = 11250 L/min
G. TOTAL INCREASE OF EXPOSURES
Seperation Charge Seperation Charge
0 to 3m 25% 20.1 to 30m 10%
3.1 to 10m 20% 30.1 to 40m 5%
10.1 to 20m 15% >45m 0%
N = 0% Total charge: 15%
S = 5%
E = 0% T = 15%
W = 10%
T = 3375 L/min
H. TOTAL FIRE FLOW REQUIREMENT
E = 22500 L/min
F = 11250 L/min Total = 14625 L/min
G = 3375 L/min Total = 15000 L/min
Total = 250.0 L/sec
Total = 3962.6 USGal/min
Total = 3299.5 IGal/min
Water Supply for Public Fire Protection calculation sheet for Building C
Water Supply for Public Fire Protection calculation sheet for Building C
Page 624–629

WATER SUPPLY FOR PUBLIC FIRE PROTECTION

Job Name: 9 Erskine Lane
Job #: 2253
Date: 9-Oct-19
Name: K. Krajnc

Building D

A. TYPE OF CONSTRUCTION
Fire-Resistive Construction 0.6
Non-combustible Construction 0.8
Ordinary Construction 1.0
Wood Frame Construction 1.5
C = 1.5
B. GROUND FLOOR AREA
1414 m² 1st
C. HEIGHT OF BUILDING IN STOREYS
Height 6 (Number of floors) *Average
Area Total: 8484 m²
D. FIRE FLOW FORMULA
F = 220 · C √A
C 1.5
A 8484 m²
F 30396 L/min
F (Nearest 1000): 30000 L/min
E. TOTAL DECREASE FOR OCCUPANCY
Non-Combustible -25%
Limited Combustible -15% O = -25 %
Combustible No Change
Free Burning 15%
Rapid Burning 25% T = -7500 L/min
Tt = 22500 L/min
F. DECREASE FOR SPRINKLER PROTECTION
50% for complete automatic protection
30% for adequately designed systems
10% for water supply standard to both domestic and fire department hose lines required
10% for fully supervised system
T = 50 %
T = 11250 L/min
G. TOTAL INCREASE OF EXPOSURES
Seperation Charge Seperation Charge
0 to 3m 25% 20.1 to 30m 10%
3.1 to 10m 20% 30.1 to 40m 5%
10.1 to 20m 15% >45m 0%
N = 0% Total charge: 20%
S = 5%
E = 15% T = 20%
W = 0%
T = 4500 L/min
H. TOTAL FIRE FLOW REQUIREMENT
E = 22500 L/min
F = 11250 L/min Total = 15750 L/min
G = 4500 L/min Total = 16000 L/min
Total = 266.7 L/sec
Total = 4226.8 USGal/min
Total = 3519.5 IGal/min

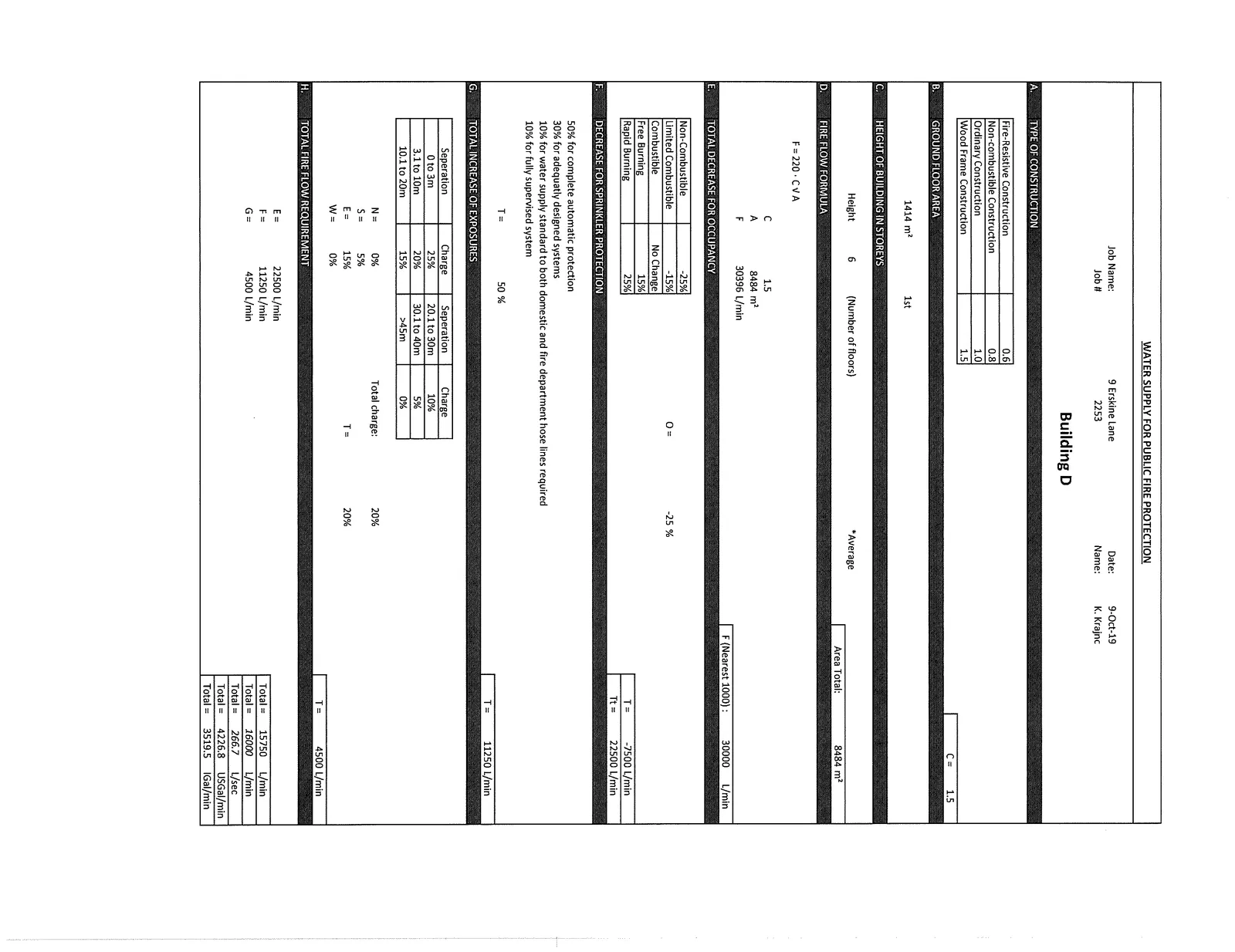

Water Supply for Public Fire Protection calculation sheet for Building D
Water Supply for Public Fire Protection calculation sheet for Building D
Page 624–629
