LOCATION PLAN - Proposed 5-6 Story Building - 9 Erskine Lane

March 10, 2020Page 6621 section

An aerial site map detailing property lines, rock walls, cut slopes, and nearby landmarks for the 9 Erskine Lane development.

9.2.3 b) Rezoning Application No. 2020/02 - 9 Erskine Lane
9 Erskine LaneJuly 2019Drawing No. 8298-3-1Scale 1:2950

LOCATION PLAN

LEGEND

  • Bedrock at surface - Site Class 'A'
  • Inferred Clay Deposit - Site Class 'C'

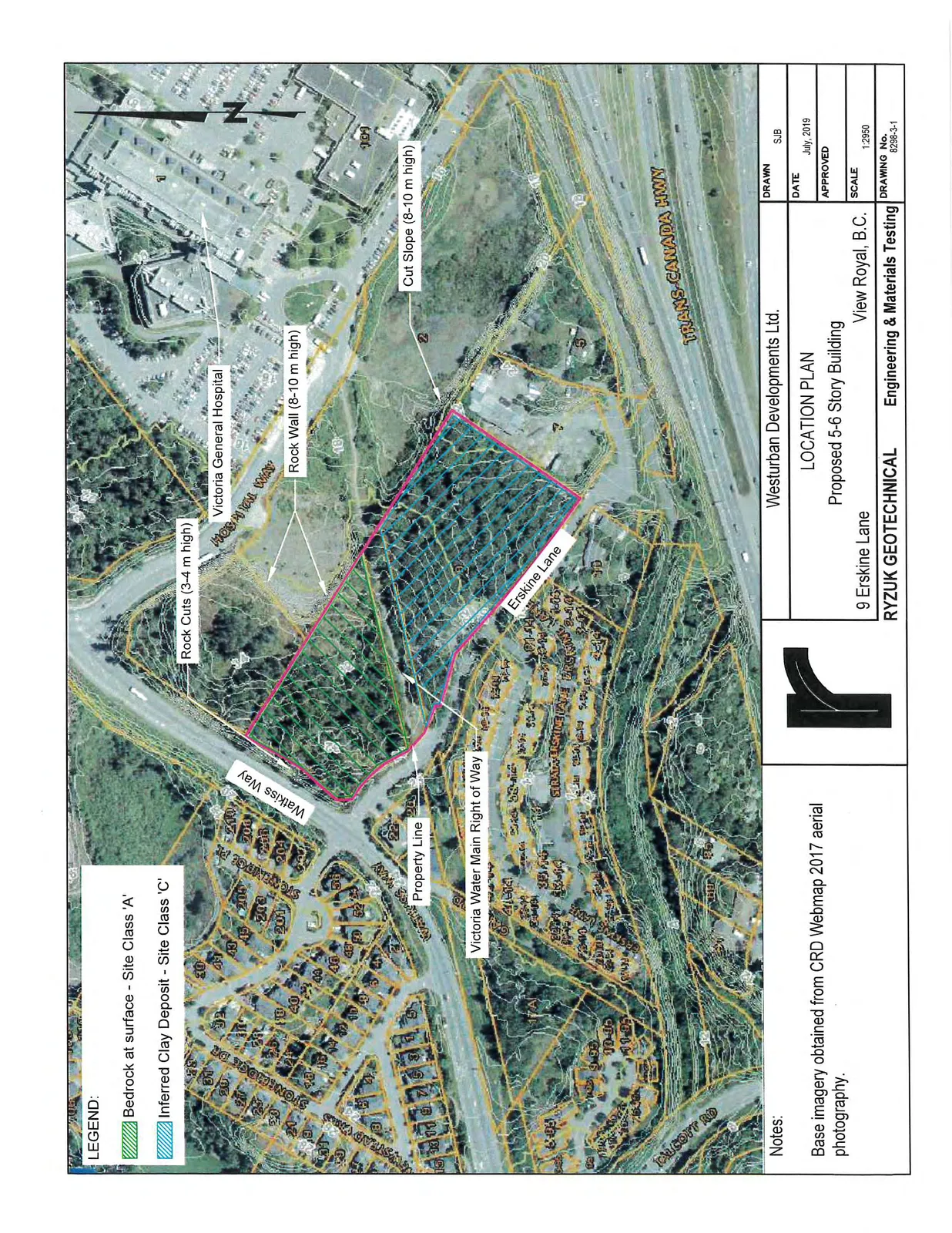

Geotechnical location plan map for 9 Erskine Lane, View Royal, B.C. featuring aerial imagery with overlays for property lines, geological site classifications, and local landmarks such as Victoria General Hospital, Watkiss Way, and the Trans-Canada Highway.
Geotechnical location plan map for 9 Erskine Lane, View Royal, B.C. featuring aerial imagery with overlays for property lines, geological site classifications, and local landmarks such as Victoria General Hospital, Watkiss Way, and the Trans-Canada Highway.

Notes:

Base imagery obtained from CRD Webmap 2017 aerial photography.
Client Westurban Developments Ltd.
Project LOCATION PLAN Proposed 5-6 Story Building
Address 9 Erskine Lane View Royal, B.C.
Company RYZUK GEOTECHNICAL Engineering & Materials Testing
Drawn SJB
Date July, 2019
Scale 1:2950
Drawing No. 8298-3-1
Page 662
