Appendix
Landscape Plans – LADR Landscape Architects (Attachment 4)
January 14, 2020Pages 66–675 sections
Landscape concept plans and recommended nursery stock list for the project site.
Date: Oct 8, 2019Landscape Architect: LADR Landscape Architects
Craigflower Hall - Landscape Concept Plan
[Landscape Concept Plan: Site plan for Craigflower Hall showing proposed landscaping, raingardens, and walkways between Island Hwy and Admirals Road.]
Tree Symbol Legend
- Preserved tree: Large solid circle
- Bylaw protected tree (or possible bylaw protected tree): Large circle with dashed outline and solid inner circle
- Bylaw protected tree (or possible bylaw protected tree), proposed removal: Large dashed circle with solid inner circle
- 16 proposed removals = 48 required replacement trees: Large dashed circle
- Proposed tree: Small solid circle
Site Features and Notes
- Island Hwy Boundary: Arcs of Columnar Rowan/European Mountain Ash (Sorbus aucuparia 'Cardinal Royal' - Scotland's second national tree) soften the building elevation and frame views toward Craigflower Manor.
- North Boundary: Evergreen hedging (Waxleaf Privet, Ligustrum japonicum 'Texanum') and Shore Pine (Pinus contorta var. contorta) provide screening for neighbors.

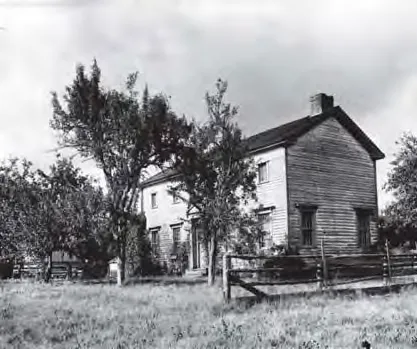

- Craigflower Manor Access: Includes a new crushed aggregate pathway, interpretive signage, and an accessible sloped path.
- Courtyard and Entrance: Features a unit paver patio, amphitheatre seatwalls, and an outdoor event space. Groundcover planting beds with heathers, grasses, and small evergreen shrubs frame the entrance.
- Water Management:
- Turf surfaced rock pit in the building entrance courtyard for roof rainwater infiltration.
- Roof water raingarden with dwarf willows, redtwig dogwood, wax myrtle, and ornamental grasses.
- Rain gardens with native grasses, bracken fern, shrubs, and Vine Maple (Acer circinatum).
- Grass swale for drainage from the parking area.
- Parking Area: Screened by Garry Oak and Shore Pine. Curb inlets acting as wheelstops allow drainage into the swale.
- Admirals Road Boundary: Includes Garry Oak (Quercus garryana) and Scots Pine (Pinus sylvestris) to screen the loading dock.
- Tree Removal and Health:
- Several Birches (720, 721, 722, 723) removed due to construction impacts and poor health.
- Birches (730, 729) removed due to poor health.
- European Mountain Ash/Rowan trees (4) used to infill gaps from Birch removals.
Page 66–67
Character Inspiration
Page 66–67
Trees
Page 66–67
Planting
Page 66–67
Recommended Nursery Stock
| Category | Botanical Name | Common Name | Size |
|---|---|---|---|
| Trees (48 Total) | Acer circinatum | Vine Maple | Min 3 stem, 2mH |
| Nyssa sylvatica | Tupelo | 6cm cal. | |
| Pinus contorta | Shore Pine | 2mH | |
| Pinus sylvestris | Scots Pine | 2mH | |
| Pyrus calleryana 'Chanticleer' | Chanticleer Flowering Pear | 5cm cal. 1.5m clear | |
| Quercus garryana | Garry Oak | 4cm cal. | |
| Sorbus aucuparia 'Cardinal Royal' | Columnar European Mountain Ash | 5cm cal. | |
| Large Shrubs (1 Total) | Myrica californica | Pacific Wax Myrtle | #5 pot |
| Medium Shrubs (240 Total) | Cornus sanguinea 'Midwinter Fire' | Midwinter Fire Dogwood | #3 pot |
| Erica cinerea 'C.D. Eason' | C.D. Eason Bell Heath | #1 pot | |
| Erica x darleyensis 'Jenny Porter' | Jenny Porter Winter Heath | #1 pot | |
| Leucothoe axillaris 'Scarletta' | Scarletta Leucothoe | #2 pot | |
| Ligustrum japonicum 'Texanum' | Waxleaf Privet | #5 pot | |
| Pinus mugo pumilio | Dwarf Mugo Pine | #2 pot | |
| Prunus laurocerasus 'Otto Luyken' | Otto Luyken English Laurel | #2 pot | |
| Rhododendron 'Dora Amateis' | Dora Amateis Rhododendron | #5 pot | |
| Rhododendron 'Mardi Gras' | Mardi Gras Rhododendron | #3 pot | |
| Rosa nutkana | Nootka Rose | #2 pot | |
| Salix purpurea 'Nana' | Dwarf Arctic Blue Leaf Willow | #3 pot | |
| Sarcococca ruscifolia | Sweet Box | #2 pot | |
| Small Shrubs (889 Total) | Erica cinerea 'C.D. Eason' | C.D. Eason Bell Heath | #1 pot |
| Erica vagans 'Mrs. D.F. Maxwell' | Maxwell's Cornish Heath | #1 pot | |
| Erica x darleyensis 'Jenny Porter' | Jenny Porter Winter Heath | #1 pot | |
| Gaultheria shallon | Salal | #3 pot | |
| Mahonia nervosa | Low Oregon Grape | #2 pot | |
| Sarcococca hookeriana var. humilis | Dwarf Sweet Box | #2 pot | |
| Groundcovers (14 Total) | Arctostaphylos uva-ursi 'Vancouver Jade' | Vancouver Jade Kinnickinnick | #1 pot |
| Perennials, Annuals and Ferns (688 Total) | Carex obnupta | Slough Sedge | SP4 |
| Deschampsia caespitosa | Tufted Hair Grass | SP4 | |
| Isotoma fluviatilis | Blue Star Creeper | SP3 | |
| Juncus ensifolius | Daggerleaf Rush | SP4 | |
| Nassella tenuissima | Mexican Feather Grass | #1 pot | |
| Panicum virgatum 'Heavy Metal' | Switchgrass | #1 pot | |
| Polystichum munitum | Sword Fern | #1 pot | |
| Pteridium aquilinum | Bracken Fern | #1 pot | |
| Stipa gigantea | Giant Needle Grass | #1 pot |
Notes:
- All work to be completed to current BCSLA Landscape Standards.
- All soft landscape to be irrigated with an automatic irrigation system.
Project Information:
- Project No: 1933
- Date: Oct-8-19
Page 66–67
