PROPOSED PATIO ENCLOSURE Architectural Drawings (Evan Eunson Designs)

December 8, 2020Pages 68–759 sections

Architectural design plans, elevations, and 3D renderings for the proposed sunroom/patio enclosure.

2. APPROVAL OF AGENDA (motion to approve)
September 29, 2020Job No. RVT 006350 SF total floor area

PROPOSED PATIO ENCLOSURE

Page 68–75

335 STEWART AVENUE, VIEW ROYAL, VICTORIA BC

PROPOSED RESIDENCE FOR: Mr. Lee Critchley AT: 335 Stewart Ave, VIEW ROYAL BC

EVAN EUNSON DESIGNS 778-966-4944 EVANEUNSON@GMAIL.COM

DATE: SEP. 29, 2020 DRAWN BY: EVAN JOB NO.: RVT 006 SHEET: A-000

COVER IMAGE

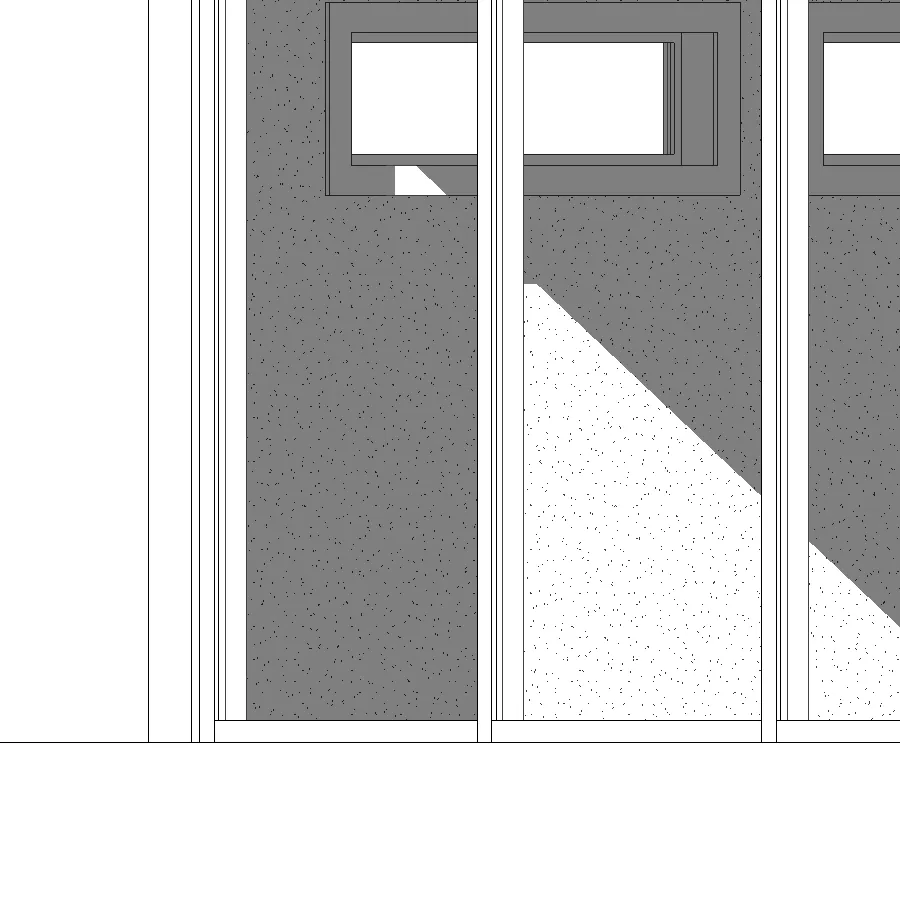

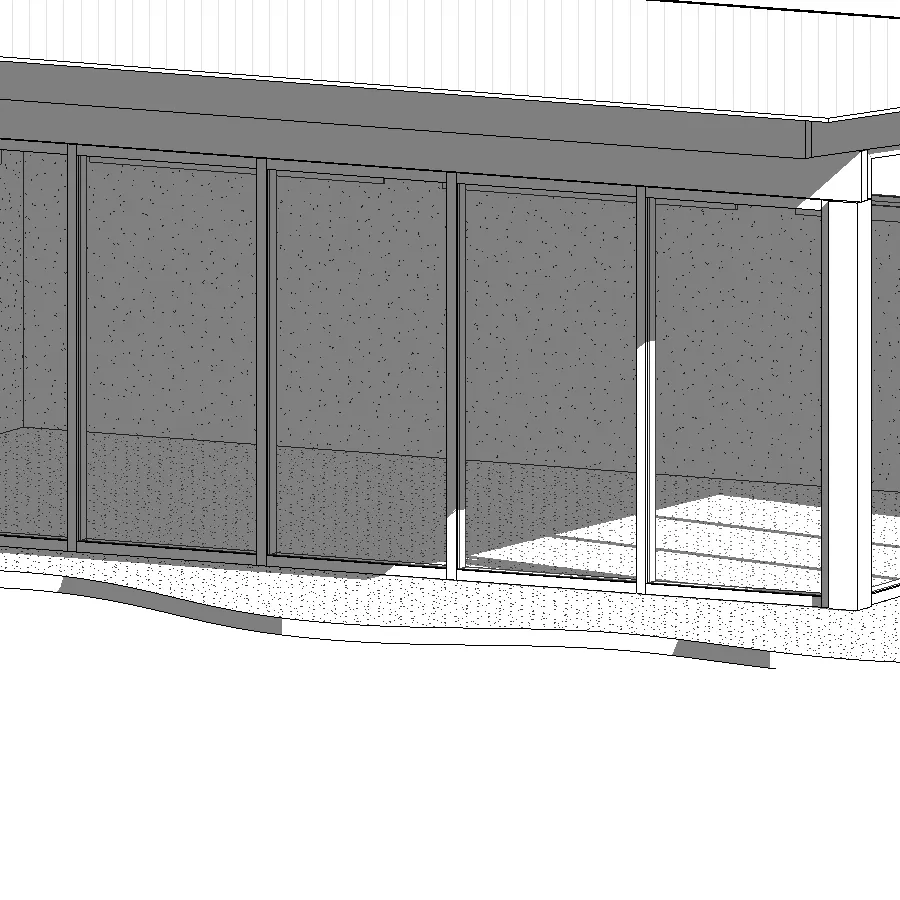

Architectural rendering of the proposed enclosure front view
Architectural rendering of the proposed enclosure front view

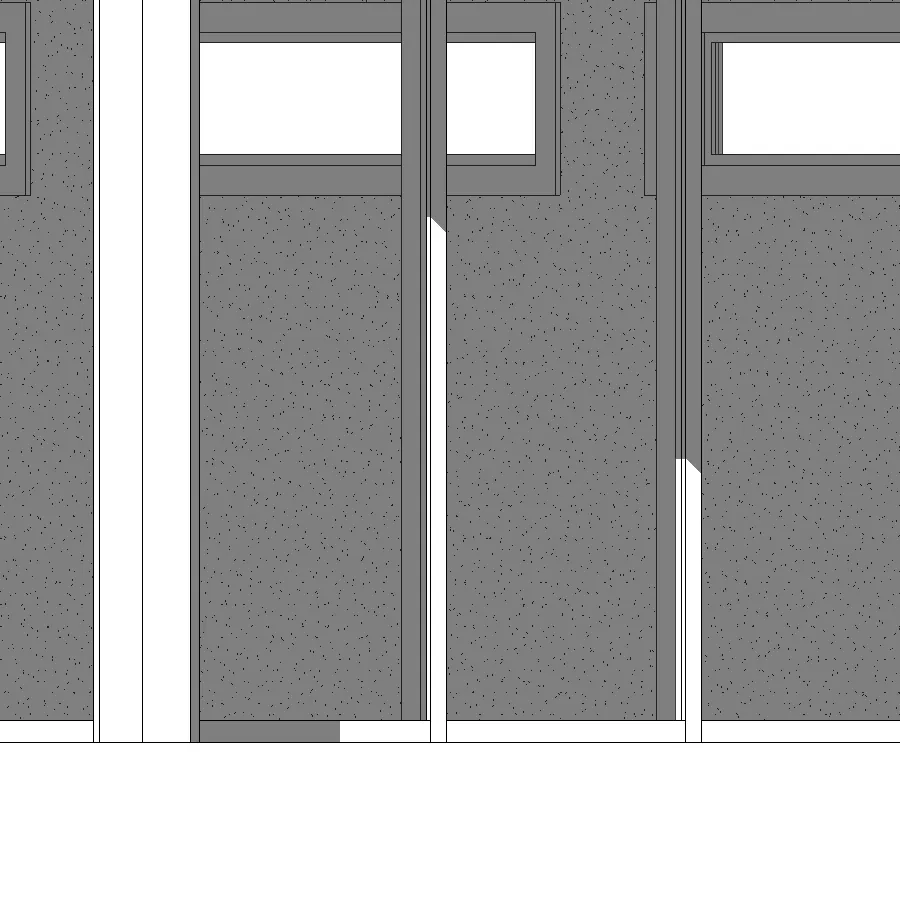

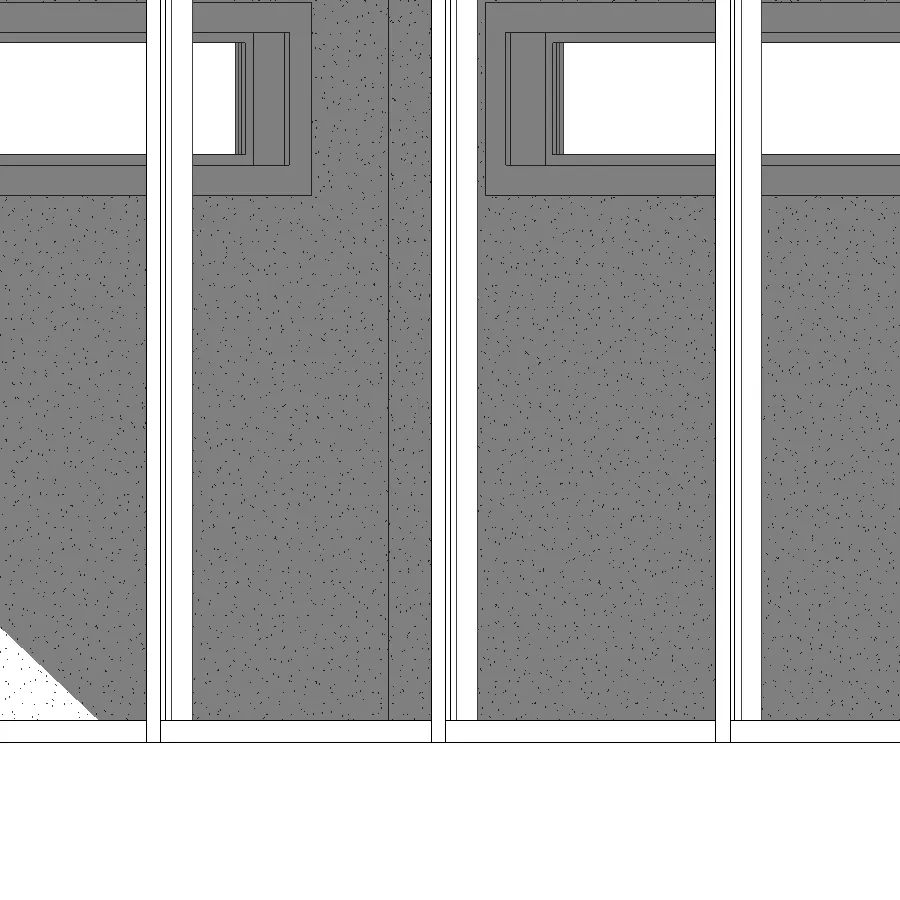

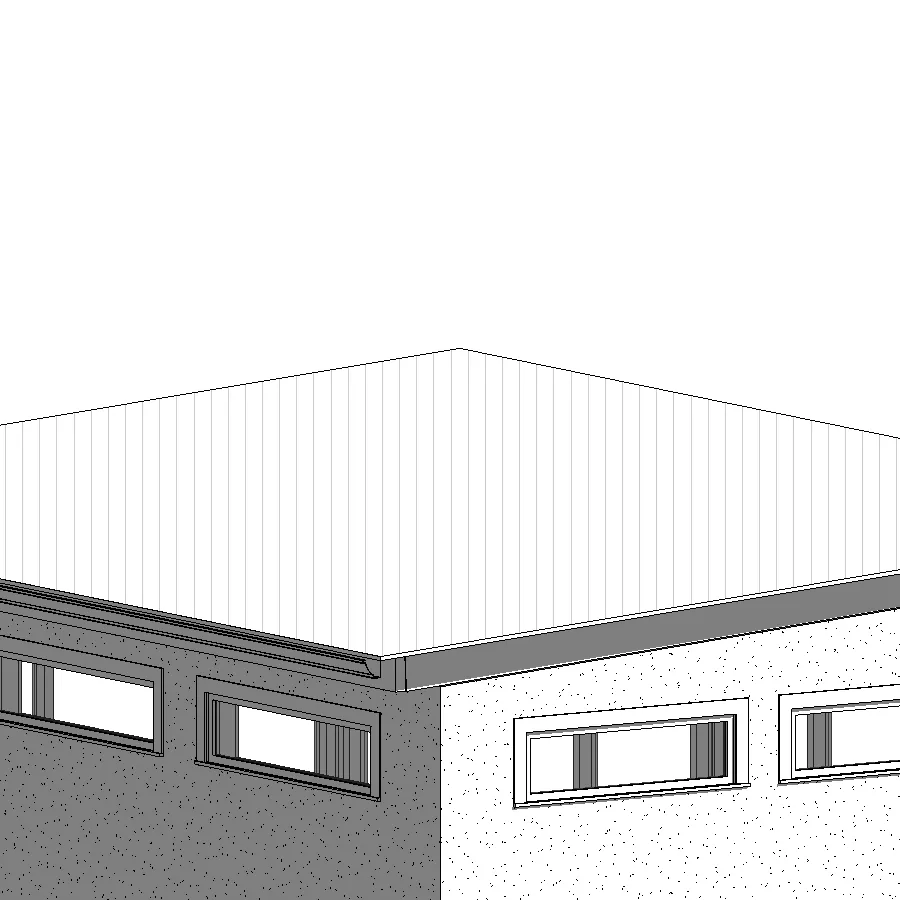

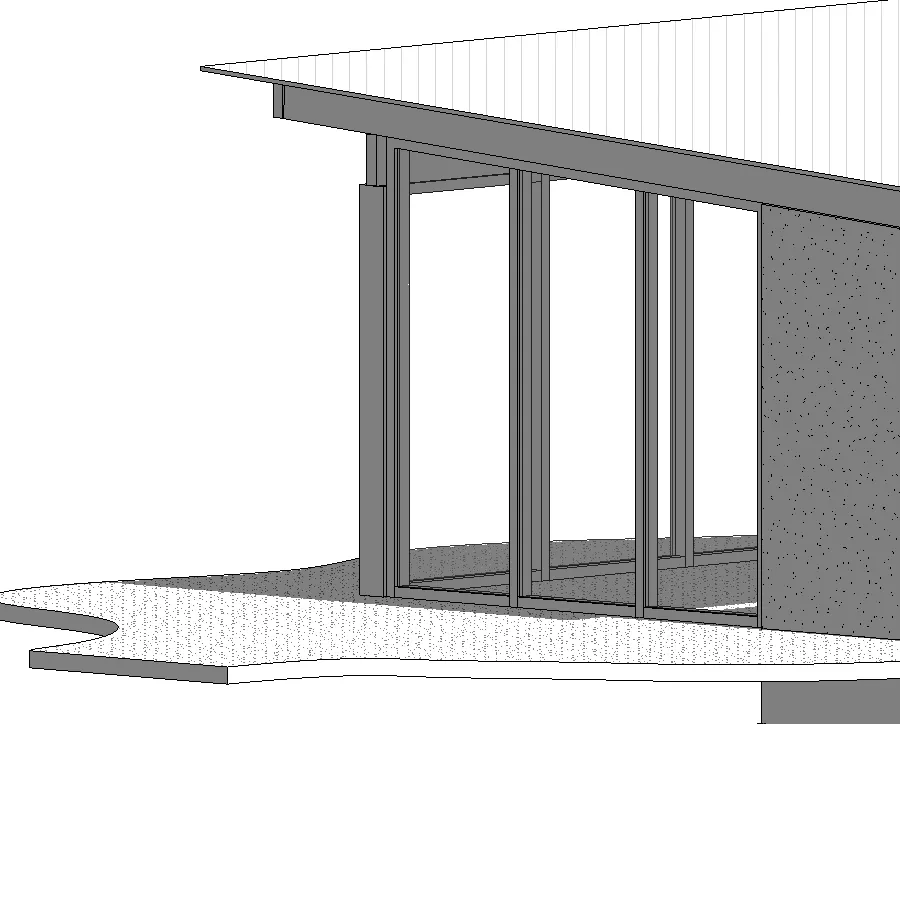

Detail of the rendering showing window panels
Detail of the rendering showing window panels

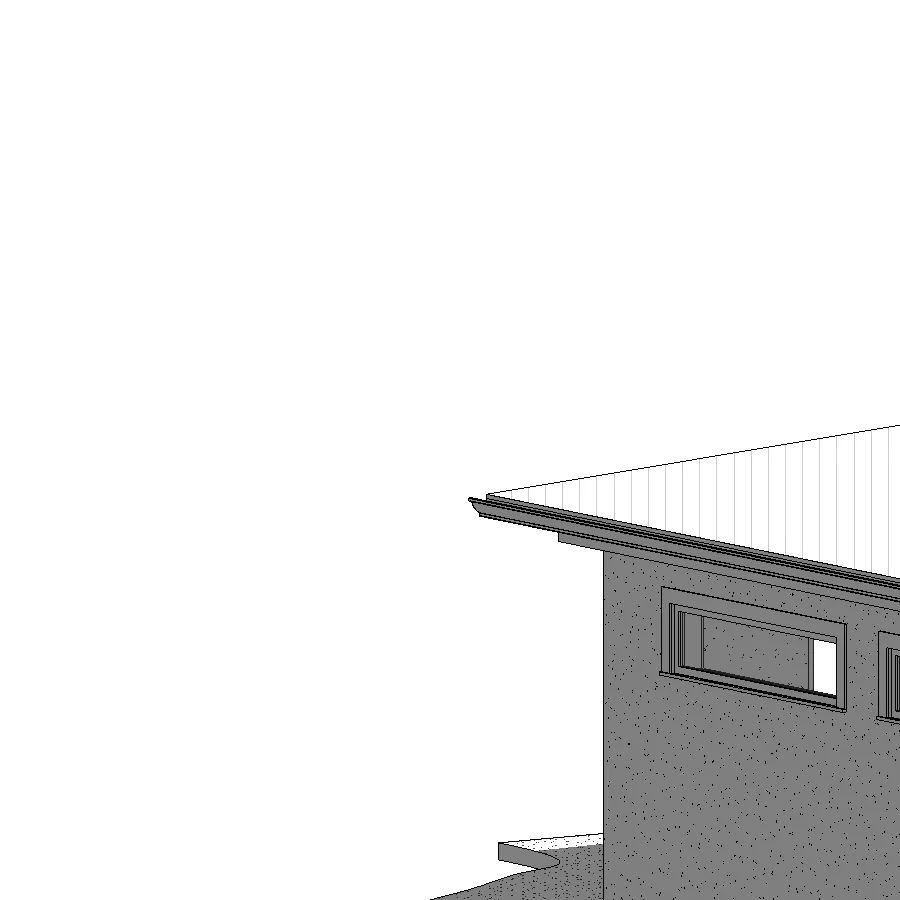

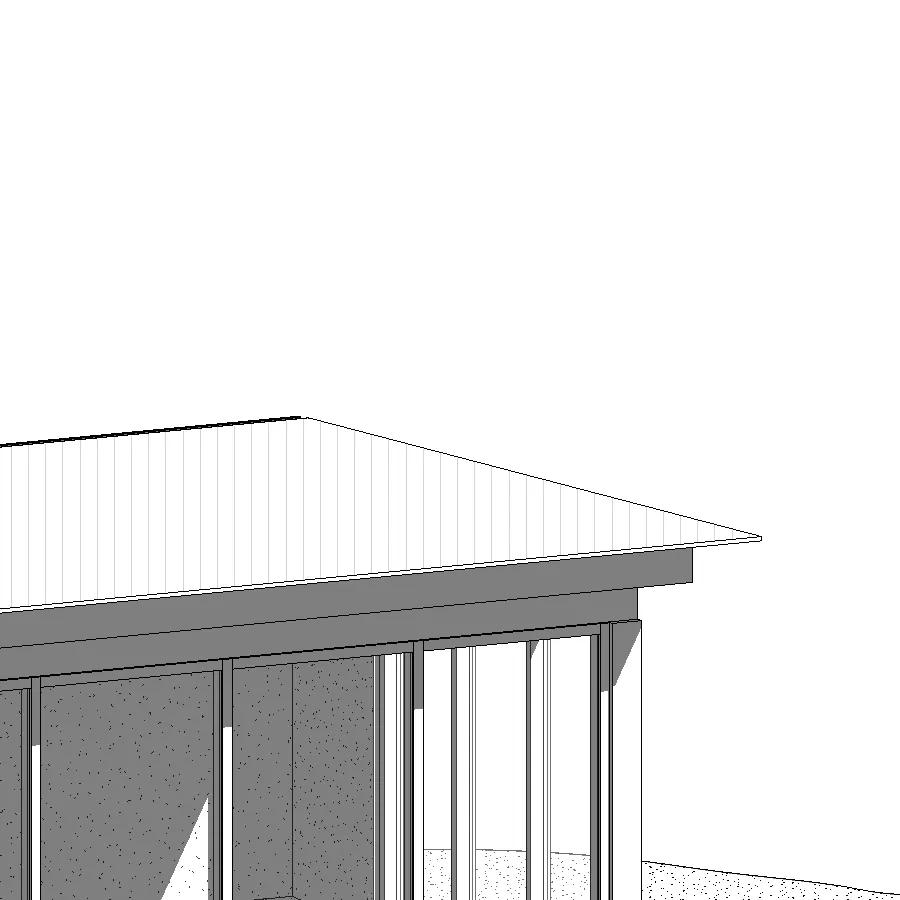

Detail of the rendering showing roof line
Detail of the rendering showing roof line

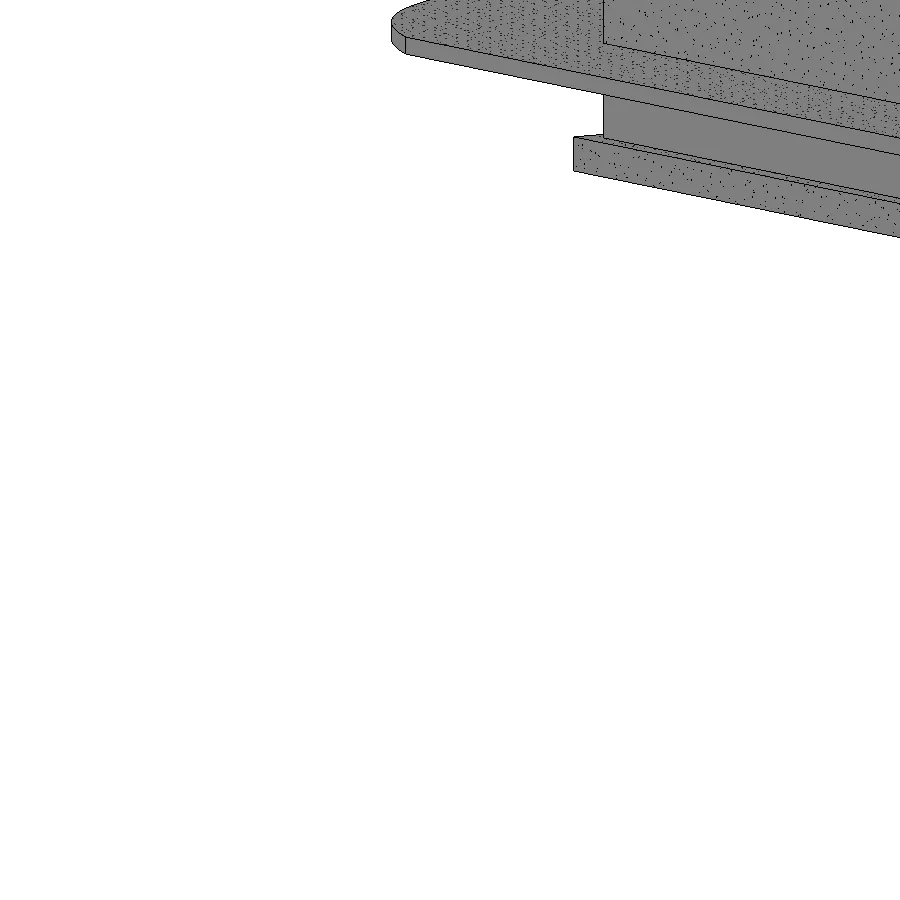

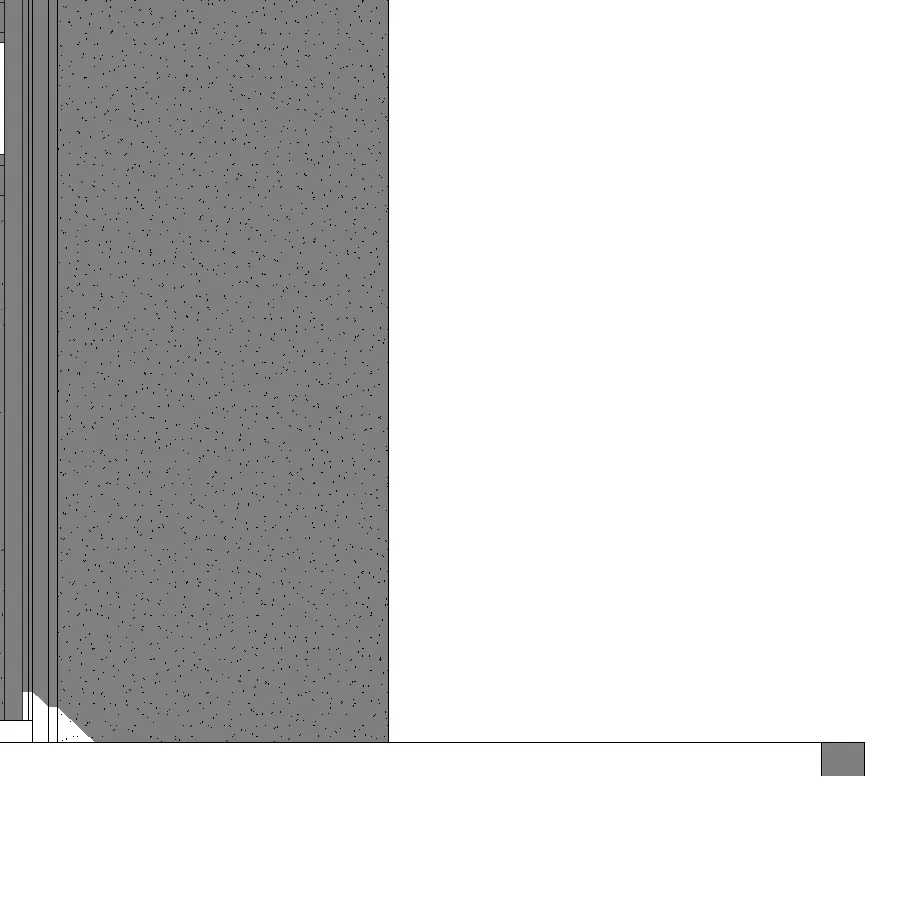

Detail of the rendering showing structure base
Detail of the rendering showing structure base

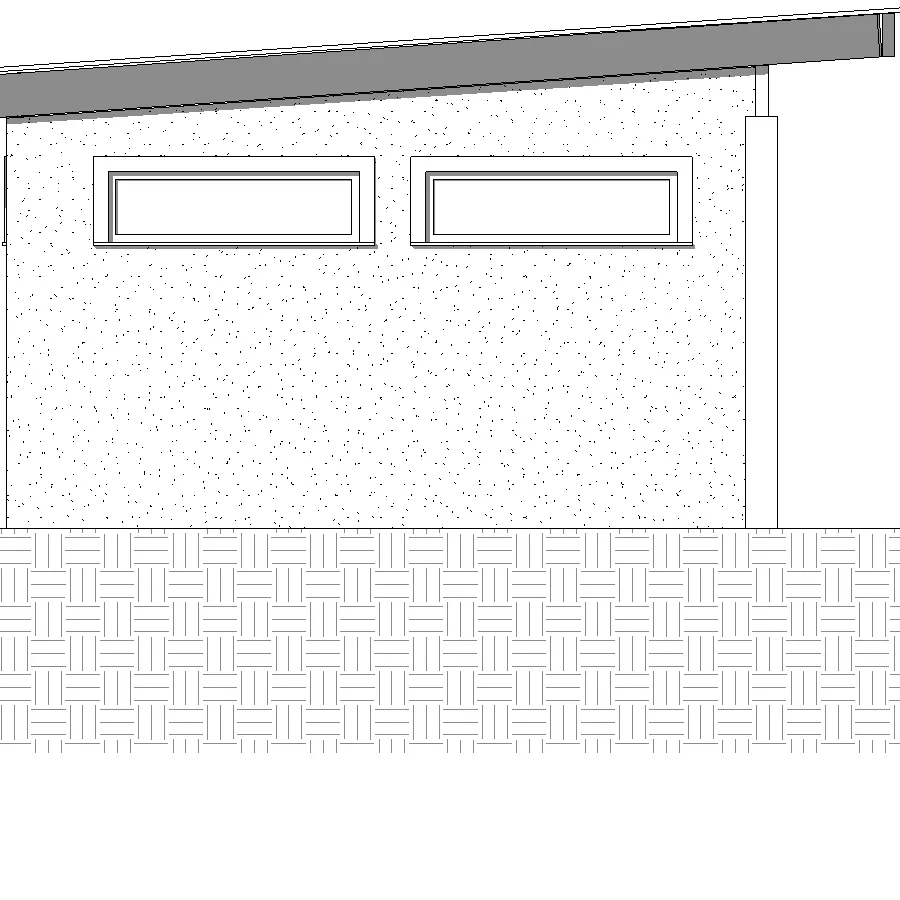

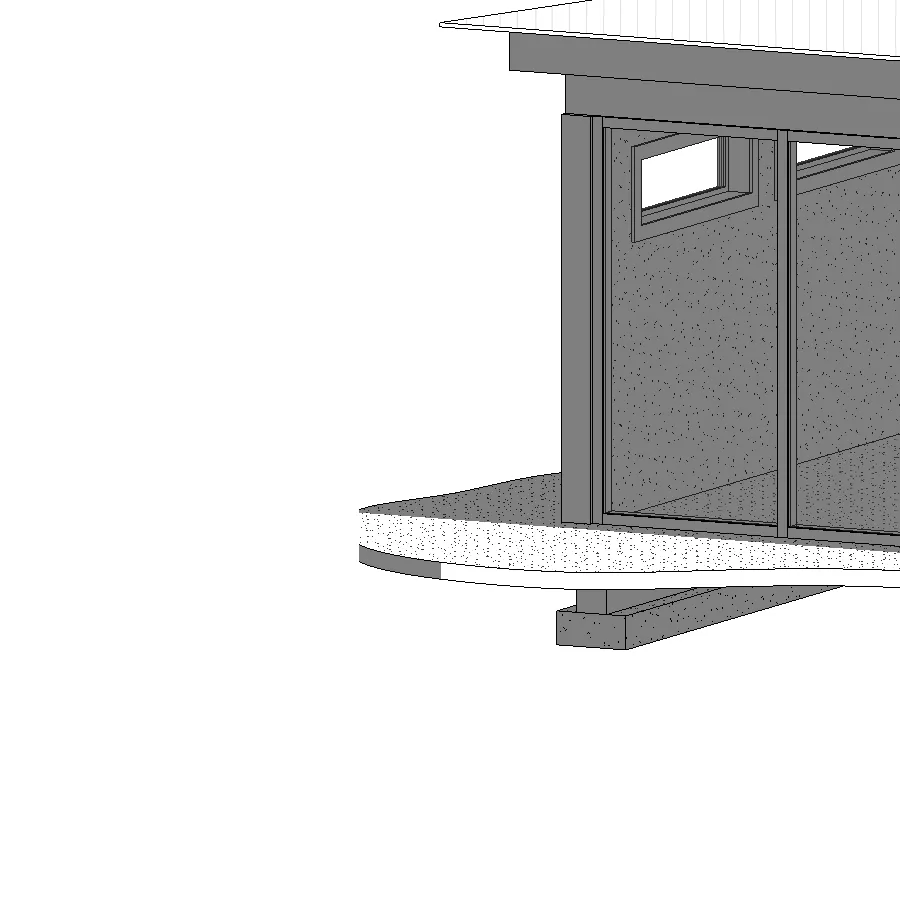

Right-side view of the proposed structure in the rendering
Right-side view of the proposed structure in the rendering

Page 68–75

GENERAL NOTES

PREAMBLE:

ALL WORK IN THESE DRAWING DOCUMENTS SHALL CONFORM TO PART 9 OF BCBC 2018. FURTHER, WARRANTY AND INSURANCE COMPANIES ARE REQUIRING ALL ASPECTS OF CONSTRUCTION TO FOLLOW 'BEST PRACTICES'. CONFIRM THESE WITH YOUR CARRIER. THESE DRAWINGS ARE A CONSOLIDATION OF MANY GOVERNING FACTORS, INCLUDING ZONING, POSSIBLY COVENANTS, DEVELOPMENT PERMITS, ETC, AND SO SHOULD NOT BE DIGRESSED FROM WITHOUT ADDITIONAL CONSULTATION WITH DESIGNER.

IT IS EXPECTED THAT CONTRACTOR OR OWNER/BUILDER WILL HAVE BCBC 2018 IN THEIR POSSESSION.

ENVIRONMENT: BCBC 9.27

THIS BUILDING IS DEEMED BY THIS DESIGNER TO NOT WHOLLY MEET COVERAGE OF 2' OVERHANG FOR EVERY 8' WALL, THEREFORE CONSIDERED TO BE IN A WEATHER EXPOSED SITING.

EXTERIOR CLADDING WILL BE PART OF A RAIN-SCREEN ASSEMBLY WITH AN INTERIOR 'SEALED POLYETHYLENE APPROACH'. 9.26 ALSO NOTE BALCONIES AND DECKS WITH SOLID SURFACE ARE DEEMED TO BE ROOFS AND RAILINGS MUST BE FACE MOUNTED. SEE NOTE ON SHEET REGARDING WINDOW RATING.

DIVISION 1 GENERAL REQUIREMENTS

ALL CONSTRUCTION SHALL CONFORM TO THE REQUIREMENTS OF DIV B, PART 9 OF THE BRITISH COLUMBIA BUILDING CODE 2018. THE CONTRACTOR OR OWNER SHALL OBTAIN ALL PERMITS, LICENSES, AND CERTIFICATES AND PAY ALL NECESSARY FEES FOR THE PERFORMANCE OF THE WORK.

DIVISION 2 SITE WORK - EXISTING CONDITIONS

02010 SUBSURFACE INVESTIGATION: SEEK A GEOTECHNICAL ENGINEER'S OPINION REGARDING EXCAVATION PRIOR TO POURING FOOTINGS IF DEEMED A CONCERN. 02100 EXCAVATION: EXCAVATIONS SHALL BE MADE TO DEPTH AND SIZE REQUIRED FOR FORMWORK, DRAINS, APPLICATIONS OF DAMPPROOFING, ETC., AS SHOWN ON DRAWINGS. 02110 BACKFILL: BCBC 9.12.3. BACKFILL OUTSIDE OF FOUNDATION SHALL BE FREE OF DELETERIOUS MATERIAL AND BOULDERS LARGER THAN 50MM DIAMETER WITHIN 0.6M. 02140 DEWATERING & DRAINAGE: BCBC 9.14.2, 9.14.3. PERIMETER DRAIN PIPE SHALL BE 4" DIA PERFORATED PVC PIPE SLOPE SHALL BE 6" IN 100 FEET.

DIVISION 3 CONCRETE: BCBC 9.3.1, 9.15, 9.16

CONCRETE SHALL BE READY MIXED, WITH COMPRESSIVE STRENGTHS PER BCBC 9.3.1.6. MOISTURE BARRIER UNDER FLOOR SLAB SHALL BE 6 MIL. POLYETHYLENE.

DIVISION 4 UNIT MASONRY: BCBC 9.20

ALL MATERIALS AND WORKMANSHIP TO CONFORM TO BCBC 9.20.2.1. MORTAR: TYPE S MATERIALS CONFORM TO BCBC 9.20.3.1.

DIVISION 6 WOODWORK: BCBC 9.23

LUMBER FOR FRAMING SHALL CONFORM TO GRADE SCHEDULE: WALL STUDS #2 SPF F-J OR BETTER; POSTS, BEAMS DF #2 OR BETTER; ROOF/WALL SHEATHING AS NOTED ON DWGS.

DIVISION 7 THERMAL AND MOISTURE PROTECTION: BCBC 9.13

MOISTURE PROOFING OF FOUNDATION WALLS INCLUDED IN THIS SECTION. ROOFING AND SHEET METAL PER BCBC 9.26. AIR & VAPOR BARRIER PER BCBC 9.25.4.

PROJECT INFORMATION

CATEGORY DATA
ADDRESS 335 STEWART AVENUE, LOT 17, BLOCK 6
PID 007-088-809
ALR N/A
ZONING R1, DETACHED RESIDENTIAL
LOT SIZE 31,463 SF (2923.06M²)

LOT COVERAGE

PROPOSED ALLOWED
MAIN RESIDENCE N/A N/A
ACCESSORY BUILDINGS 350SF N/A
TOTAL 350 SF N/A

SETBACKS

PROPOSED ALLOWED
FRONT LOT LINE N/A N/A
REAR LOT LINE N/A N/A
EAST LOT LINE 1.8M N/A
WEST LOT LINE N/A N/A

BUILDING HEIGHT

PROPOSED ALLOWED
AVERAGE GRADE N/A N/A
HIGHEST POINT (MAIN BUILDING) N/A N/A
HIGHEST POINT (ACCESSORY BUILDING) 10' 1" N/A

FLOOR AREA

PROPOSED ALLOWED
MAIN FLOOR N/A N/A
TOTAL FLOOR AREA 350 SF N/A

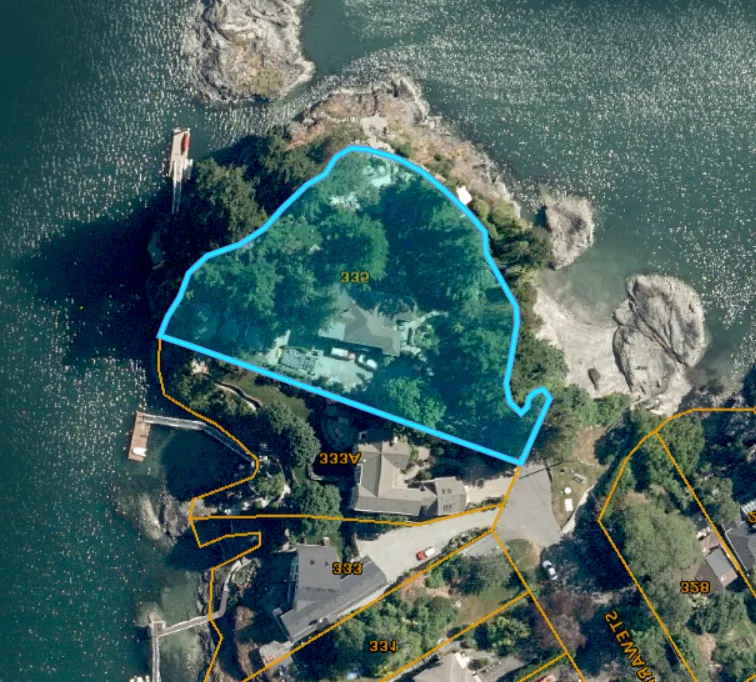

View Royal GIS Map showing 335 Stewart Ave property boundaries
View Royal GIS Map showing 335 Stewart Ave property boundaries
B.C. Land Surveyor's Site Plan of Lot 17, Plan 1888
B.C. Land Surveyor's Site Plan of Lot 17, Plan 1888

DATE: SEP. 29, 2020 SHEET: A-101


Page 68–75

PLANS

1: FOUNDATION PLAN

3/8" = 1'-0"

  • TYP. 8" CONC FOUNDATION WALL ON 16" STRIP FOOTING TO SIT ON APPROVED BEARING.
  • COMPACTED GRANULAR FILL COMPACTED.
  • 2FT X 2FT PAD FOOTING, WITH POST SADDLE. CONTRACTOR TO DETERMINE SADDLE.
  • DIMENSIONS: 26' - 0" x 14' - 4 1/4".
Foundation plan detail showing dimensions and annotations
Foundation plan detail showing dimensions and annotations
Detail of the pad footing annotation on the foundation plan
Detail of the pad footing annotation on the foundation plan

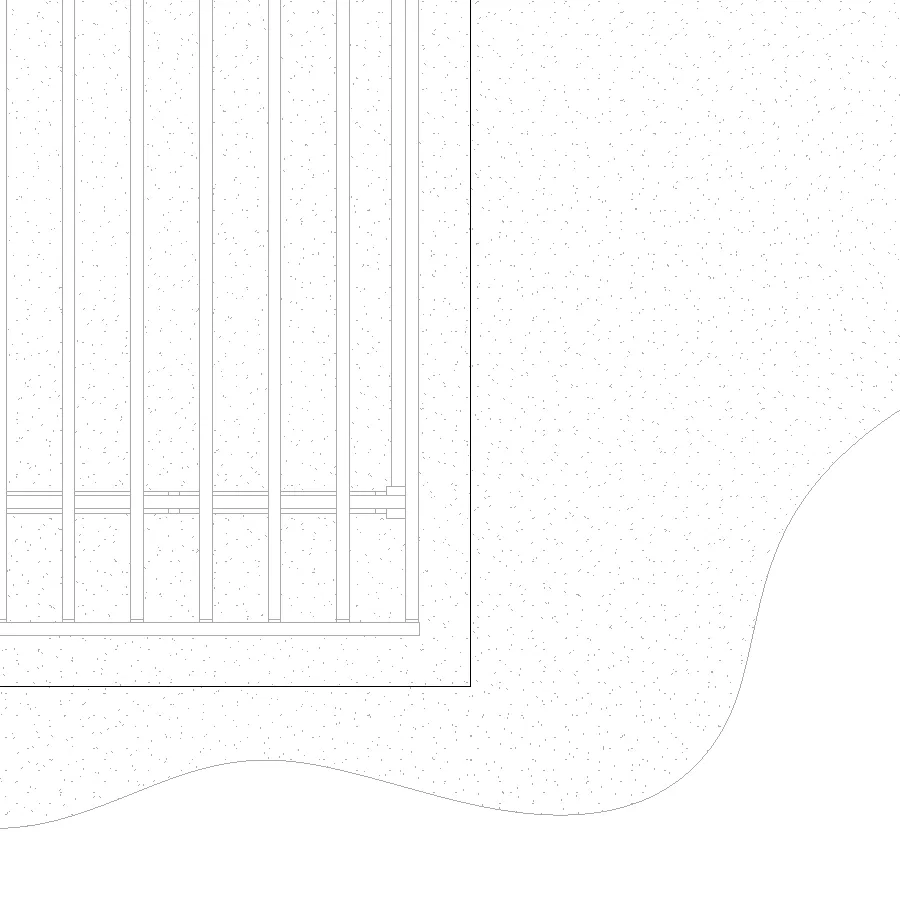

Detail of the foundation wall annotation
Detail of the foundation wall annotation

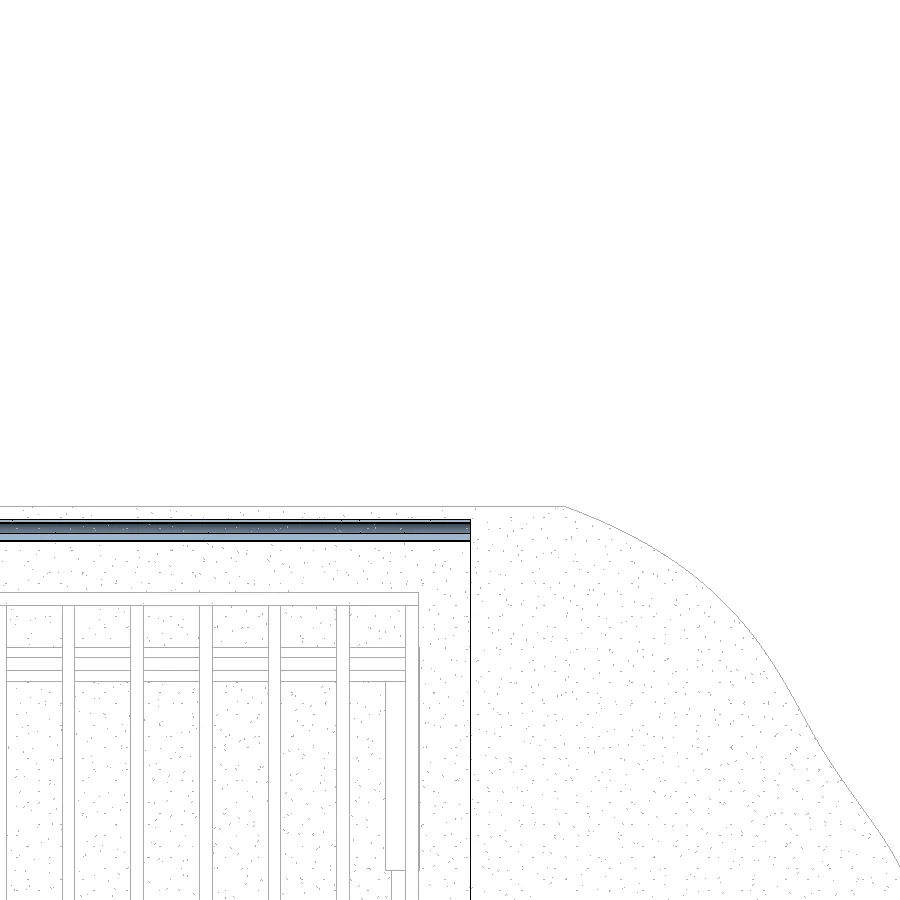

2: MAIN FLOOR PLAN

3/8" = 1'-0"

  • EXISTING FLAG STONE TO BE REINSTATED AS FINISHED FLOOR.
  • FULL SPAN SLIDING PATIO DOORS BY OTHERS.
  • WINDOWS: (3) 72" x 18", (2) 60" x 18".
  • DIMENSIONS: 25' - 11 3/4" x 14' - 11 3/4".
Main floor plan detail showing layout and openings
Main floor plan detail showing layout and openings
Detail of window schedules on floor plan
Detail of window schedules on floor plan

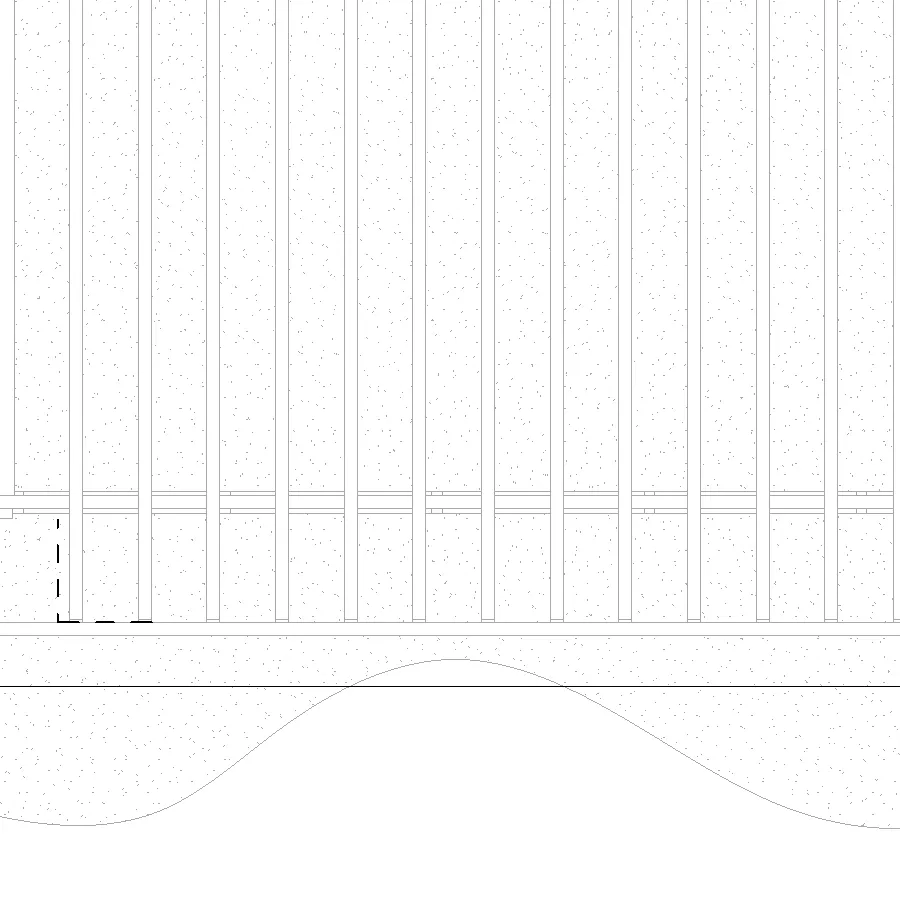

Detail of sliding door annotation
Detail of sliding door annotation
Detail of flagstone annotation
Detail of flagstone annotation
Overall dimensioning on main floor plan
Overall dimensioning on main floor plan

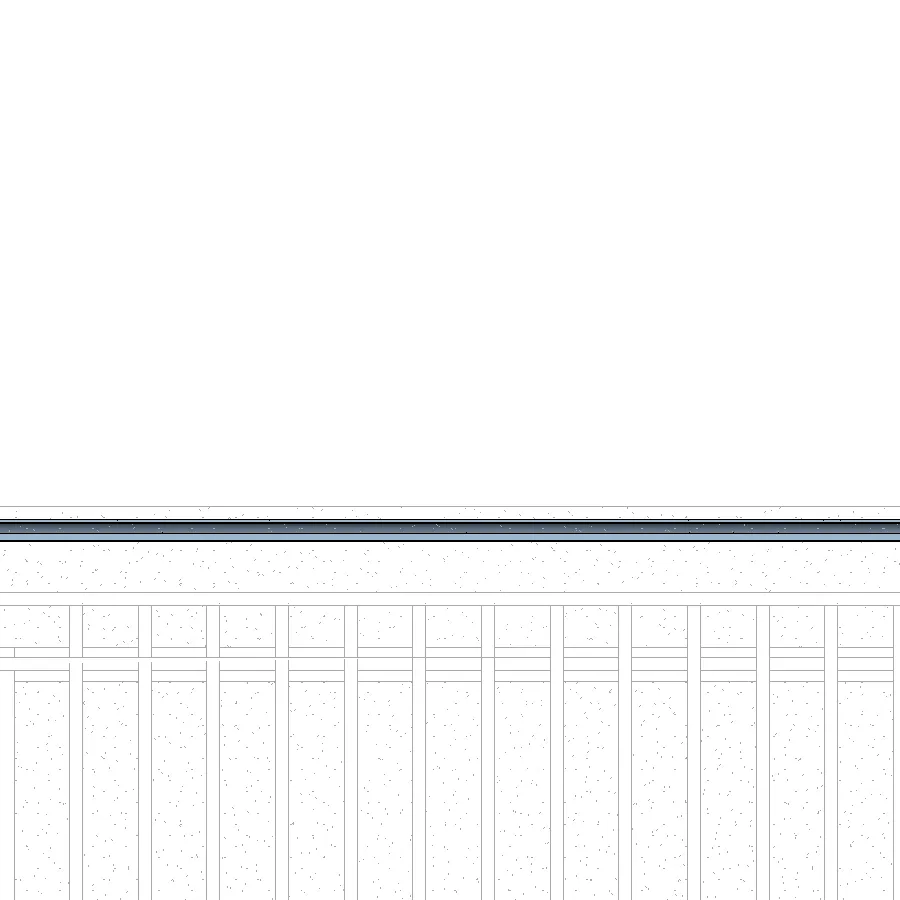

3: ROOF PLAN

3/8" = 1'-0"

  • ROOF TO BE STICK FRAMED ON SITE WITH HEAVY TIMBER FULL DIMENSION, 16-24" O.C.
  • DIMENSIONS: 28' - 0" x 20' - 3 11/16".
  • 1' - 0" OVERHANGS TYPICAL.
Roof plan showing framing and overhangs
Roof plan showing framing and overhangs
Detail of roof framing annotation
Detail of roof framing annotation
Detail of roof dimensions
Detail of roof dimensions
Roof overhang dimension detail
Roof overhang dimension detail

SHEET: A-102


Page 68–75

ELEVATIONS

SCALE: 3/8" = 1'-0"

1: FRONT (NORTH) ELEVATION

  • FULL WIDTH SLIDER BY OTHERS.
  • ROOF TOP HEIGHT: 10' - 1 1/8".
Front elevation drawing
Front elevation drawing

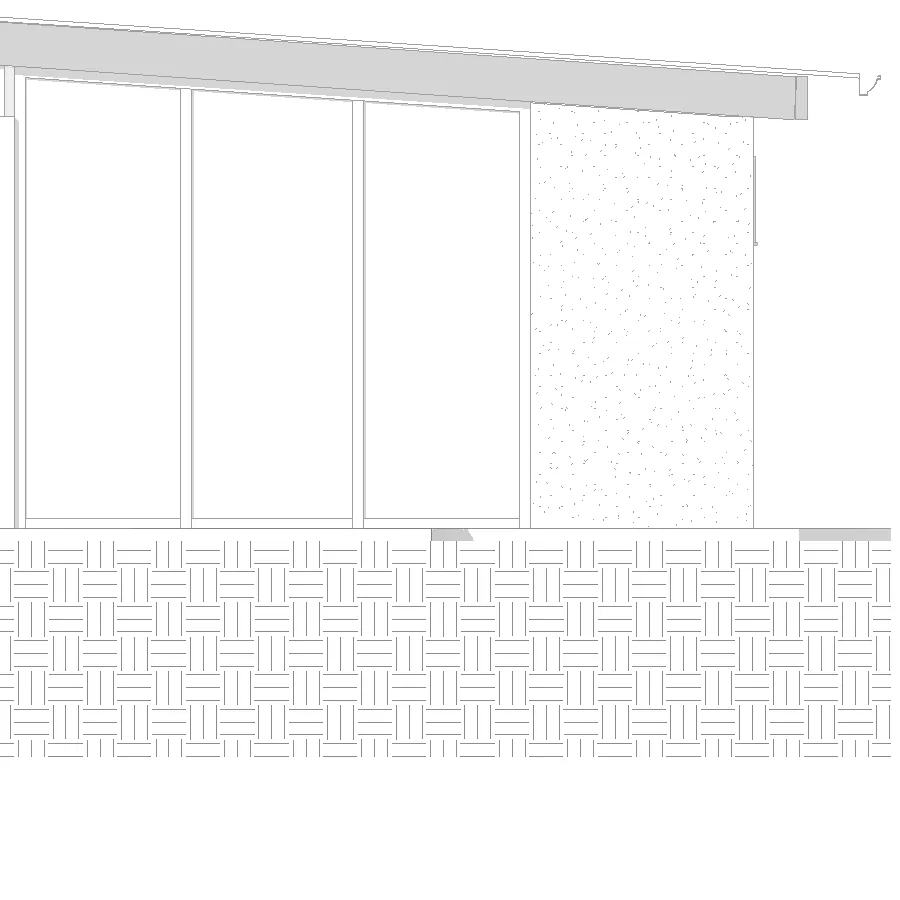

2: RIGHT (WEST) ELEVATION

  • SHOWS SLOPE OF ROOF AND GLAZING.
Right elevation drawing
Right elevation drawing

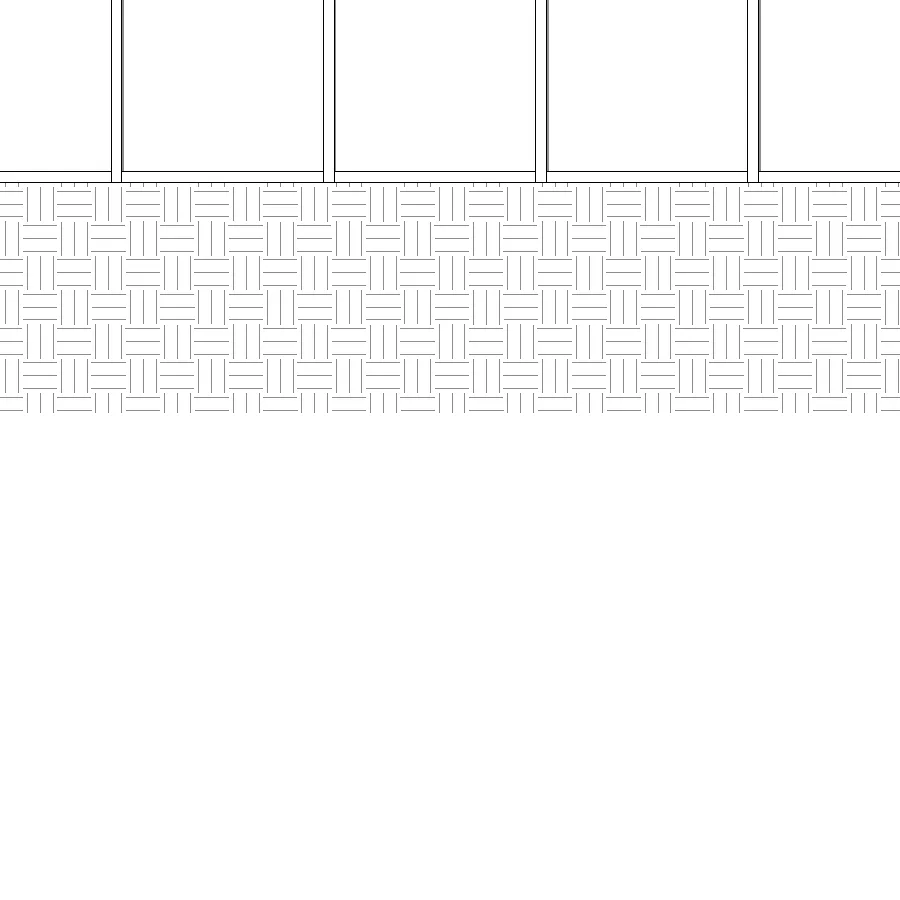

3: REAR (SOUTH) ELEVATION

  • SHOWS (3) 72" X 18" WINDOWS.
Rear elevation drawing
Rear elevation drawing

4: LEFT (EAST) ELEVATION

  • SHOWS (2) 60" X 18" WINDOWS.
Left elevation drawing
Left elevation drawing

EXTERIOR FINISH SCHEDULE

  1. ARCHITECTURAL CONCRETE FINISH
  2. CUSTOM GLASS SLIDERS (BY OTHERS)
  3. 2X10 FULL DIMENSION FASCIA
  4. STANDING SEAM METAL ROOF
  5. ALUMINUM GUTTER

NOTES:

  • ALL WINDOWS TO MAINTAIN PROPER EGRESS AS PER BCBC.
  • WINDOW MULLIONS AND DESIGN TBD BY CLIENT AND WINDOW MANUFACTURER.
  • ALL WINDOWS VINYL, WATERPROOFING AND RAINSCREEN IS THE RESPONSIBILITY OF SIDING CONTRACTOR.
  • INTERFACE BETWEEN WINDOWS, DOORS AND SKYLIGHTS TO BE AIRTIGHT BY SEALING JOINTS BETWEEN A.B. AND WINDOW.
Elevation labels and floor level markers
Elevation labels and floor level markers

SHEET: A-201


Page 68–75

SECTIONS

SCALE: 3/8" = 1'-0"

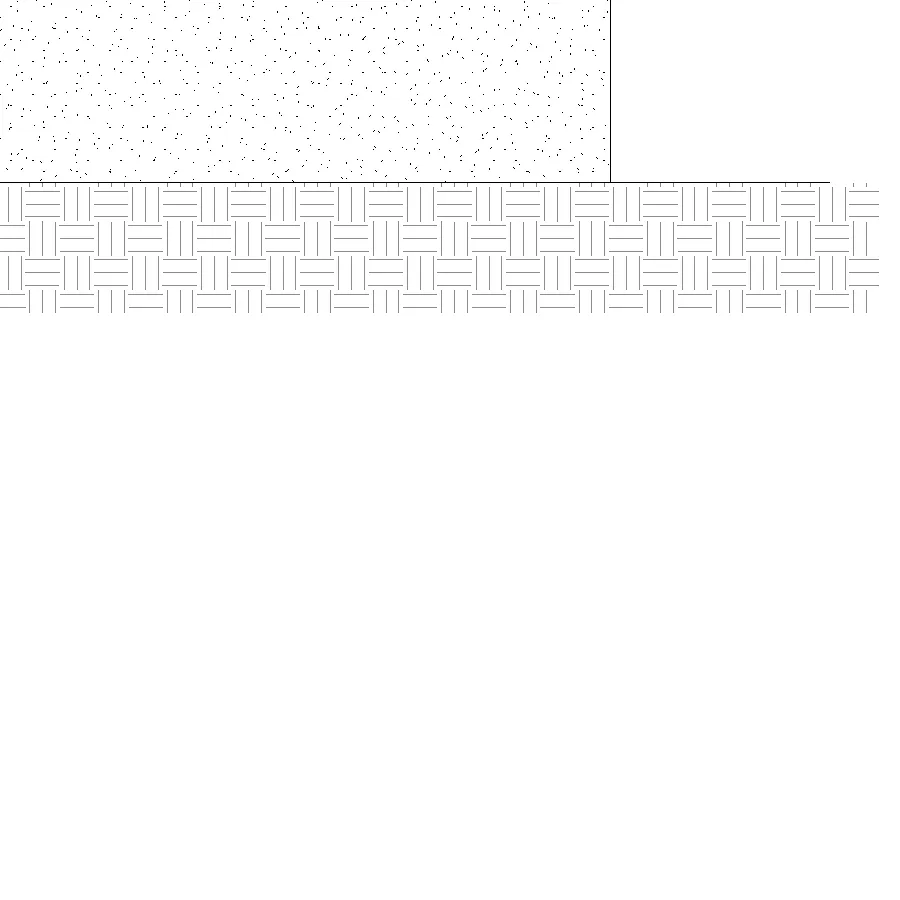

1: SECTION 1

  • SHOWS TYP. ROOF ASSEMBLY, WINDOW SLIDER, CAST IN PLACE WINDOWS, AND TYP. EXTERIOR CONC WALL.
  • GRABNULAR COMPACTED FILL OVER BEDROCK.
  • TYP FOUNDATION WALL INTO BEDROCK.
Section 1 detail drawing
Section 1 detail drawing

2: SECTION 2

  • SHOWS TYP. ROOF ASSEMBLY, CAST IN PLACE WINDOWS, AND RE-INSTATE EXISTING GARDEN.
  • GRABNULAR COMPACTED FILL OVER BEDROCK.
Section 2 detail drawing
Section 2 detail drawing

ASSEMBLIES

WALL ASSEMBLIES

  • EXT. CONC WALL: 8" CAST IN PLACE CONCRETE WALL W/ XYPEX ADD MIX.
  • EXT. GLASS SLIDER: WINDOW SLIDERS BY OTHERS.
  • FOUNDATION WALL: 8" CONC FOOTING ON STRIP FOOTING OR DIRECTLY INTO BED ROCK.

FLOOR ASSEMBLIES

  • EXT FINISHED FLOOR: COMPACTED GRANULAR FILL, RE-INSTATE EXISTING PATIO FLAGSTONE.

ROOF ASSEMBLIES

  • TIMBER FRAME ROOF: METAL STANDING SEAM ROOF, METAL GUTTER, WOOD FACIA, SELF ADHERED WATERPROOF MEMBRANE, 5/8" SHEATHING, 1 1/2" FIR T&G, CEDAR WOOD TIMBER ROOF JOIST.
Section assembly annotations - cast in place
Section assembly annotations - cast in place
Section assembly annotations - exterior conc wall
Section assembly annotations - exterior conc wall

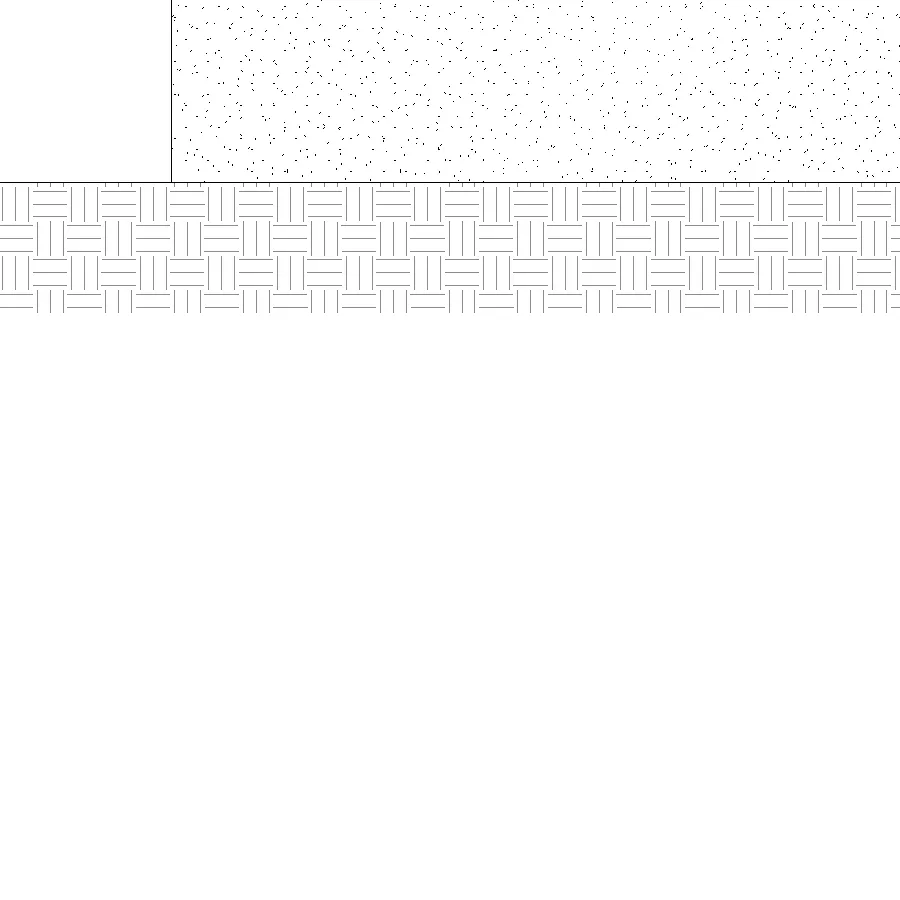

Section assembly annotations - re-instate garden
Section assembly annotations - re-instate garden
Section assembly annotations - foundation wall
Section assembly annotations - foundation wall
Assembly schedules table (Wall, Floor, Roof)
Assembly schedules table (Wall, Floor, Roof)
Section 1 label and scale
Section 1 label and scale
Section 2 label and scale
Section 2 label and scale
Section roof line and height markers
Section roof line and height markers

SHEET: A-301


Page 68–75

RAINSCREEN DETAILS

SCALE: 1" = 1'-0" EXCEPT AS NOTED

1 SPA: FOUNDATION WALL AT SLAB

  • 4" CONCRETE SLAB (A.B.)
  • 6 mil POLYETHYLENE (V.B.)
  • 5" min COMPACTED GRANULAR FILL (M.B. & V.B.)
  • 8" (reinforced) CONCRETE FOUNDATION WALL (A.B.)
  • 3" dia NON-PERFORATED DRAINAGE PIPE FOR RAIN WATER FROM GUTTERS.
  • 4" dia PERFORATED DRAINAGE PIPE WITH FILTER CLOTH WRAP.

2 SPA: BASE OF WALL / FOUNDATION

  • EXTERIOR FINISH, 19mm (3/4") AIR SPACE, P.T. WOOD STRAPPING.
  • SHEATHING PAPER (M.B.), 13mm (1/2") SHEATHING.
  • 2x6 WOOD FRAMING @ 16" o.c., R20 BATT INSULATION.
  • 6mil POLYETHYLENE (A.B. & V.B.), 13mm (1/2") GYPSUM BOARD.

4 SPA: RIM JOIST

  • SEALANT OR GASKET (A.B.)
  • SEAL POLYETHYLENE TO PLATE (A.B. & V.B.)
  • SPRAY IN PLACE FOAM INSULATION (A.B. AND V.B.)

5 SPA: WATER SHEDDING ROOF / WALL

  • FIBREGLASS LAMINATED SHINGLES (M.B.)
  • R40 BLOWN INSULATION.
  • 6 mil POLYETHYLENE (A.B. & V.B.).
  • VENTED ALUMINUM SOFFIT PANELS.

7 SPA: CANTILEVERED FLOOR

  • 12 mm (1/2") BATT INSULATION.
  • POLYETHYLENE (V.B.) STAPLED IN PLACE.

DETAIL: JOIST POCKET

  • 8" CONC WALL, 1/2" AIRSPACE, R12 RIGID INSULATION.
  • 2x6 SILL PLATE w/ ANCHOR BOLTS, SILL GASKET.

1: RAINSCREEN DETAILS (1 1/2" = 1'-0")

Detail of roof-to-wall rainscreen connection
Detail of roof-to-wall rainscreen connection
Detail of base wall foundation rainscreen
Detail of base wall foundation rainscreen
Detail of cantilevered floor assembly
Detail of cantilevered floor assembly
Detail of rim joist framing
Detail of rim joist framing
Detail of foundation wall at slab
Detail of foundation wall at slab
Joist pocket detail
Joist pocket detail
Typical exterior wall layering diagram
Typical exterior wall layering diagram
Floor finish and joist detail
Floor finish and joist detail
Rainwater drainage detail
Rainwater drainage detail
Rim joist alternative detail
Rim joist alternative detail
Detail of base wall alternative
Detail of base wall alternative

SHEET: A-501


Page 68–75

RAINSCREEN DETAILS (CONT)

SCALE: 1 1/2" = 1'-0"

  • 8 SPA: EXTERIOR CORNER (VINYL SIDING, STUCCO, WOOD SIDING)
  • 9 SPA: INTERIOR CORNER (VINYL SIDING, STUCCO, WOOD SIDING)
  • 10 SPA: CLADDING TRANSITION (STUCCO TO VINYL SIDING)
  • 11 SPA: WINDOW HEAD
  • 12 SPA: WINDOW JAMB
  • 13 SPA: WINDOW SILL
  • 14 SPA: DOOR SILL - PROTECTED MEMBRANE PEDESTRIAN SURFACE
  • 15 SPA: DOOR SILL - EXPOSED MEMBRANE PEDESTRIAN SURFACE
  • 16 SPA: ACCESSIBLE DOOR SILL - PROTECTED MEMBRANE PEDESTRIAN SURFACE
  • 17 SPA: ACCESSIBLE DOOR SILL - EXPOSED MEMBRANE PEDESTRIAN SURFACE
  • 23 SPA: EXTERIOR ELEMENT - COLUMN
  • 27 SPA: WALL EXHAUST VENT
  • 28 SPA: ELECTRICAL FIXTURES
  • 29 SPA: PIPES
Window head and sill rainscreen details
Window head and sill rainscreen details
Door sill assembly details
Door sill assembly details
Exterior and interior corner details
Exterior and interior corner details
Cladding transition and column details
Cladding transition and column details
Window jamb and exhaust vent details
Window jamb and exhaust vent details
Electrical fixture and pipe penetration details
Electrical fixture and pipe penetration details
Detail of accessible door sill membrane
Detail of accessible door sill membrane
Detail of protected membrane door sill
Detail of protected membrane door sill

SHEET: A-502


Page 68–75

3D VIEWS

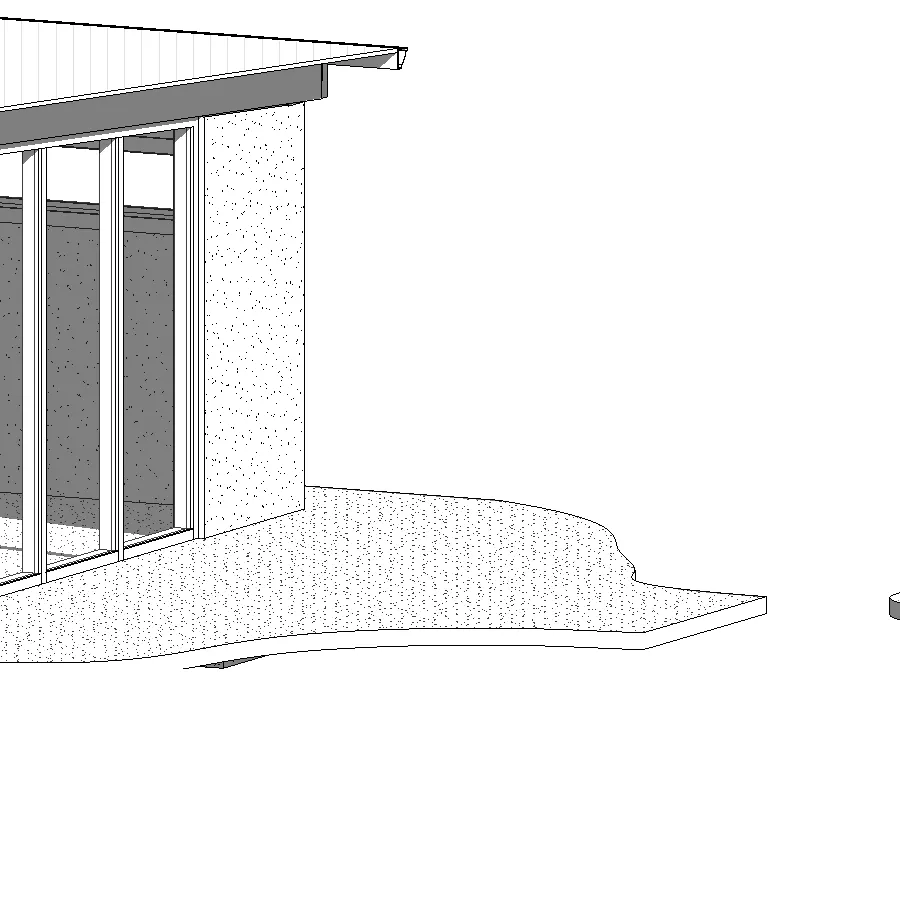

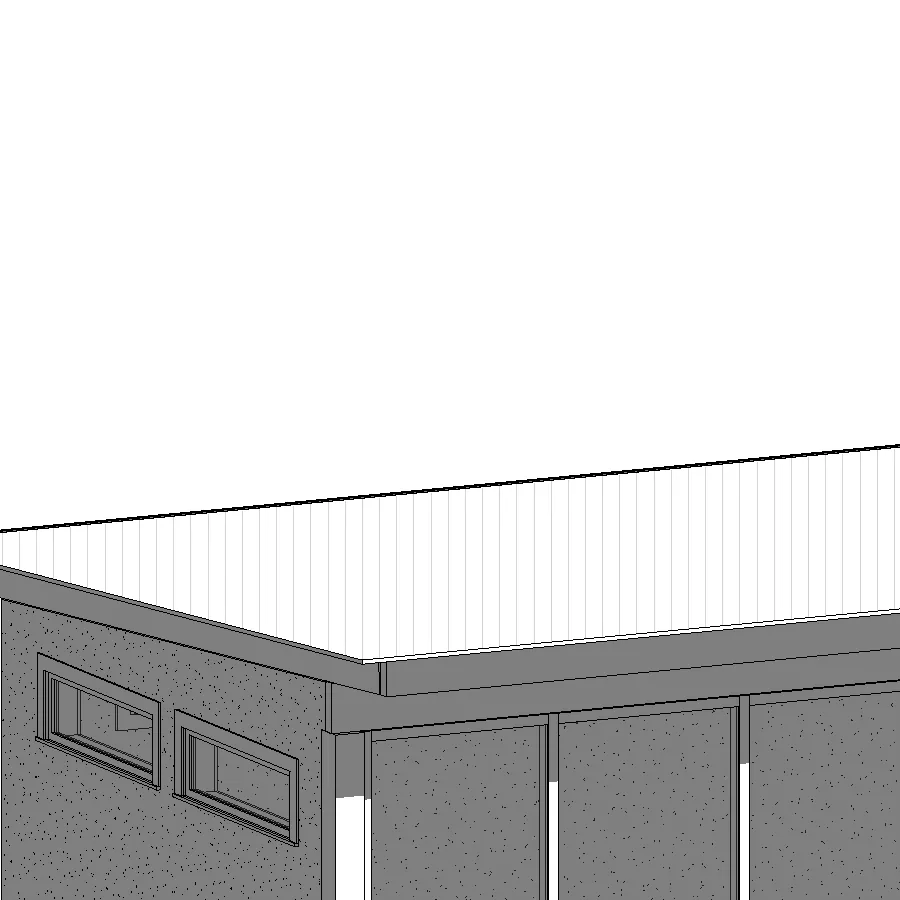

3D View 1 - perspective from front/right
3D View 1 - perspective from front/right

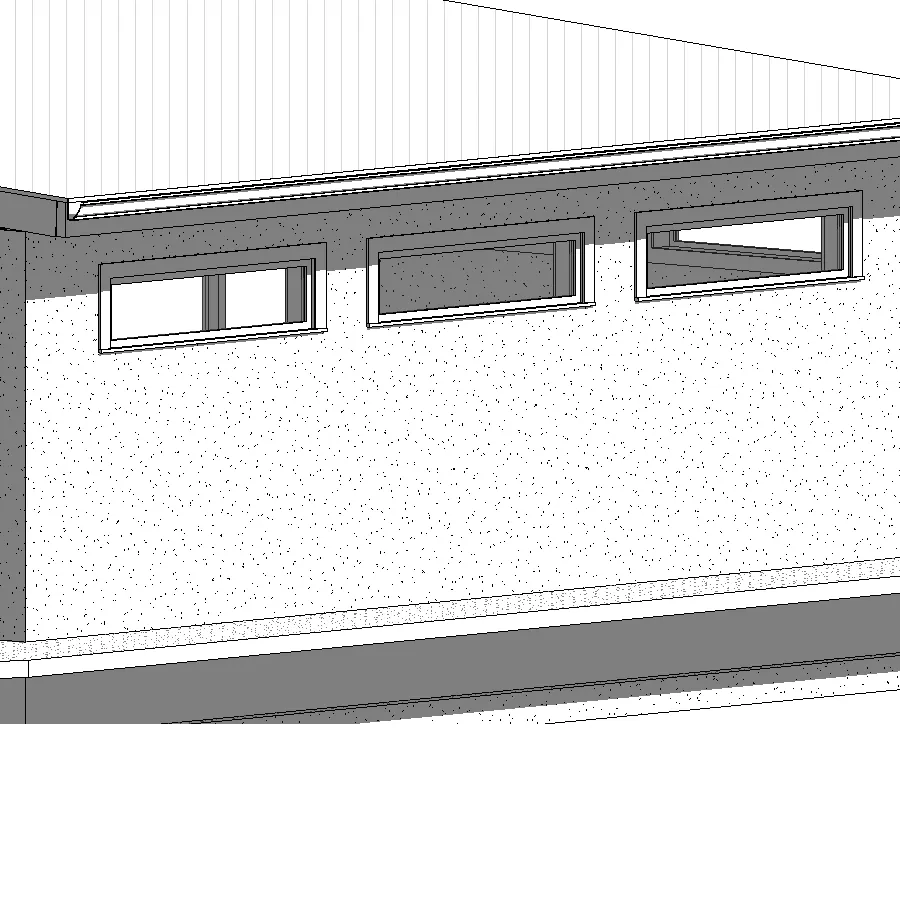

3D View 2 - perspective from rear/right
3D View 2 - perspective from rear/right
3D View 4 - perspective from rear/left
3D View 4 - perspective from rear/left
3D View 5 - perspective from front/left
3D View 5 - perspective from front/left

DATE: SEP. 29, 2020 DRAWN BY: Author JOB NO.: RVT 006 SHEET: A-900

Page 68–75

Document Images

(7)
Document image
Document image
Document image
Document image
Document image
Document image
Document image
Extracted from: 2020 12 08 Committee of the Whole Agenda - Agenda - Pdf
