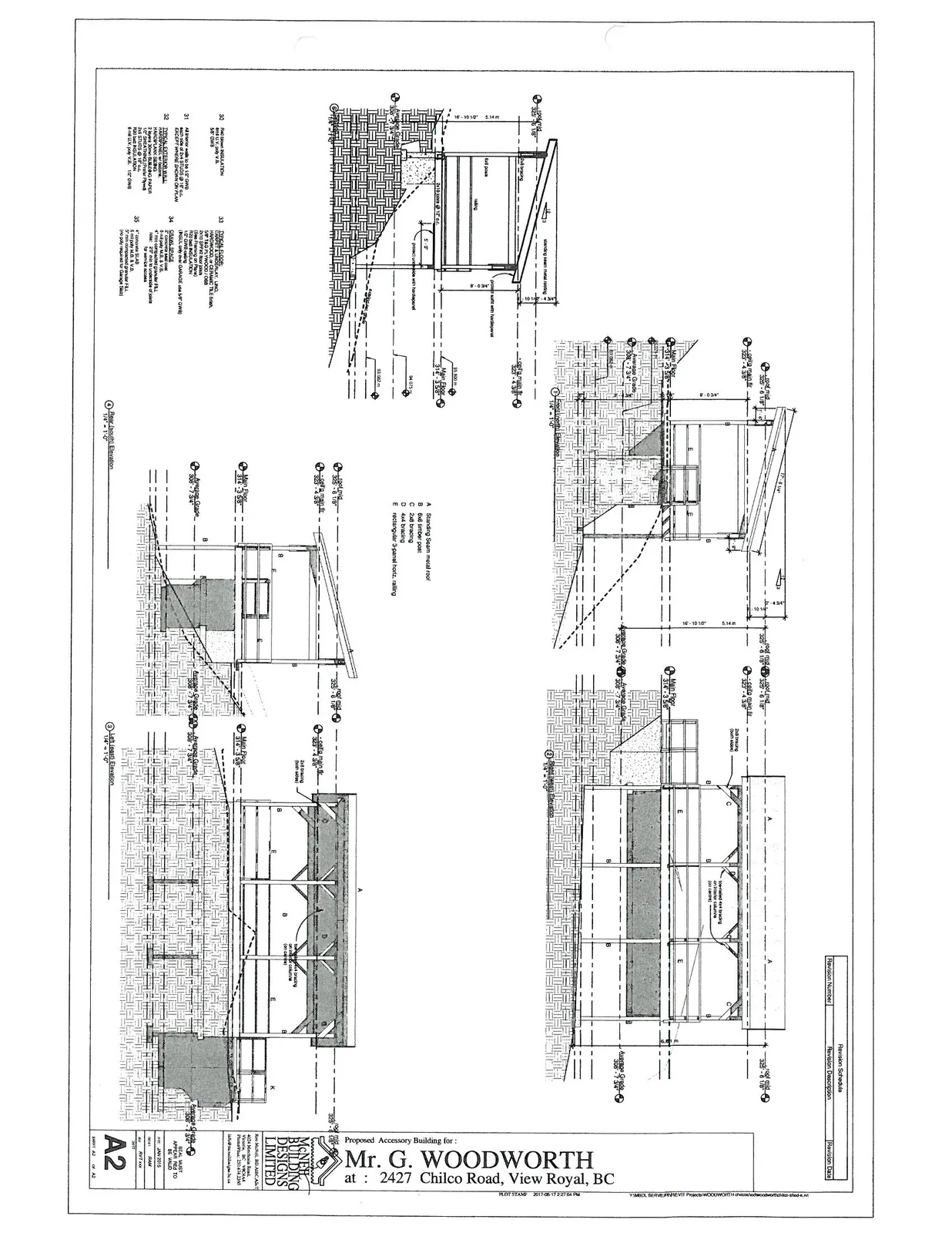

Attachment 3: Proposed Accessory Building Elevations - 2427 Chilco Road

Proposed Accessory Building for: Mr. G. Woodworth

Address: 2427 Chilco Road, View Royal, BC

Component Legend

• A: Standing Seam metal roof
• B: 6x6 timber post
• C: 2x6 bracing
• D: 4x4 bracing
• E: rectangular 3-panel horiz. railing

Construction Notes

30. RIGID INNER INSULATION:

• 1/2" GWB

31. 2x4 STUDS @ 16" O.C. WITH R-14 BATT INSULATION (FOR HEATED AREAS ONLY) IN STUD SPACE OR R-20 AT 24" O.C. (MIN 2x6 STUDS)

32. TYPICAL EXTERIOR WALL:

• 5/16" HARDI-PANEL FINISH
• 3/8" EXT GRADE PLYWOOD SHEATHING
• 2 LAYERS 30min BUILDING PAPER
• 2x4 STUDS @ 16" O.C.
• R14 BATT INSULATION
• RIGID INNER INSULATION 1/2" GWB
• POLY VAPOUR BARRIER

33. TYPICAL FLOOR:

• HARDWOOD, OR CERAMIC TILE finish
• 5/8" T&G PLYWOOD
• 2x10 JOISTS @ 16" O.C.
• R-28 BATT INSULATION IN JOIST SPACE
• (PROVIDE MIN R-20 FIRE DAMAGE use 5/8" GWB)

34. TYPICAL BELOW GRADE:

• CONCRETE WALL
• 2x4 FRAME WALL ON INSIDE OF 2x4 PLATES
• R-12 BATT INSULATION
• 6 mil POLY VAPOUR BARRIER
• 1/2" GWB FINISH
• 6" min. BELOW GROUND & 8" o.c.
• EXT GRADE PLYWOOD EXTERIOR FILL

35. GARAGE SLAB:

• 4" CONCRETE SLAB
• 10 mil POLY VAPOUR BARRIER
• 4" CRUSHED DRAIN ROCK
• 1/2" EXPANSION JOINT AT GARAGE WALLS

Revision Schedule

Project Information

• Designer: McNeil Building Designs Limited
• Office: 204-500 Admirals Rd, Victoria, BC V9A 2N4
• Date: 2017-06-12
• Drawn By: BC / JMM
• Project No: 2017-062
• Sheet Number: A2
• Scale: 1/4" = 1'-0"
• Plot Stamp: 2017-06-17 2:37:54 PM
