A technical drawing showing the plan view of the proposed deck extension at 275 Plowright Road.

2. APPROVAL OF AGENDA
Joists 2" x 8" @ 20"

275 PLOWRIGHT ROAD - DECK PLAN

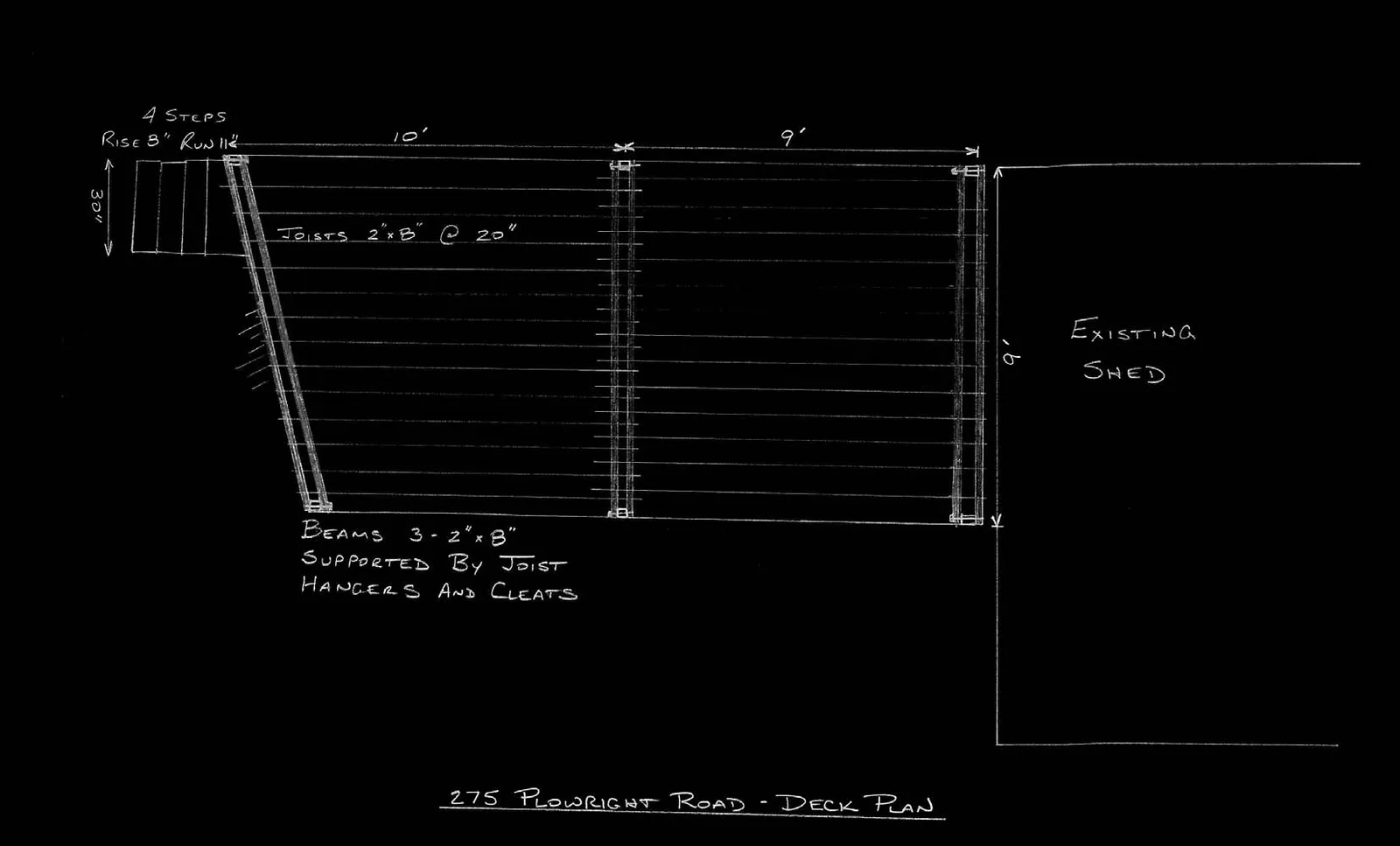

Hand-drawn technical diagram of a deck construction plan showing dimensions, joist spacing, and structural notes relative to an existing shed.
Hand-drawn technical diagram of a deck construction plan showing dimensions, joist spacing, and structural notes relative to an existing shed.

Diagram Details:

  • Stairs: 4 steps; Rise 8"; Run 11"; Width 30"
  • Joists: 2" x 8" @ 20"
  • Beams: 3 - 2" x 8" supported by joist hangers and cleats
  • Dimensions:
    • Horizontal segments: 10' and 9'
    • Vertical width: 9'
  • Existing Structure: Existing Shed
