Attachment 5 Deck Elevation

June 12, 2018Page 611 section

A technical elevation drawing of the proposed deck structure.

2. APPROVAL OF AGENDA
Roofing 26" x 10' PolycarbonMax height 10'-0"

275 Plowright Road - Deck Elevation

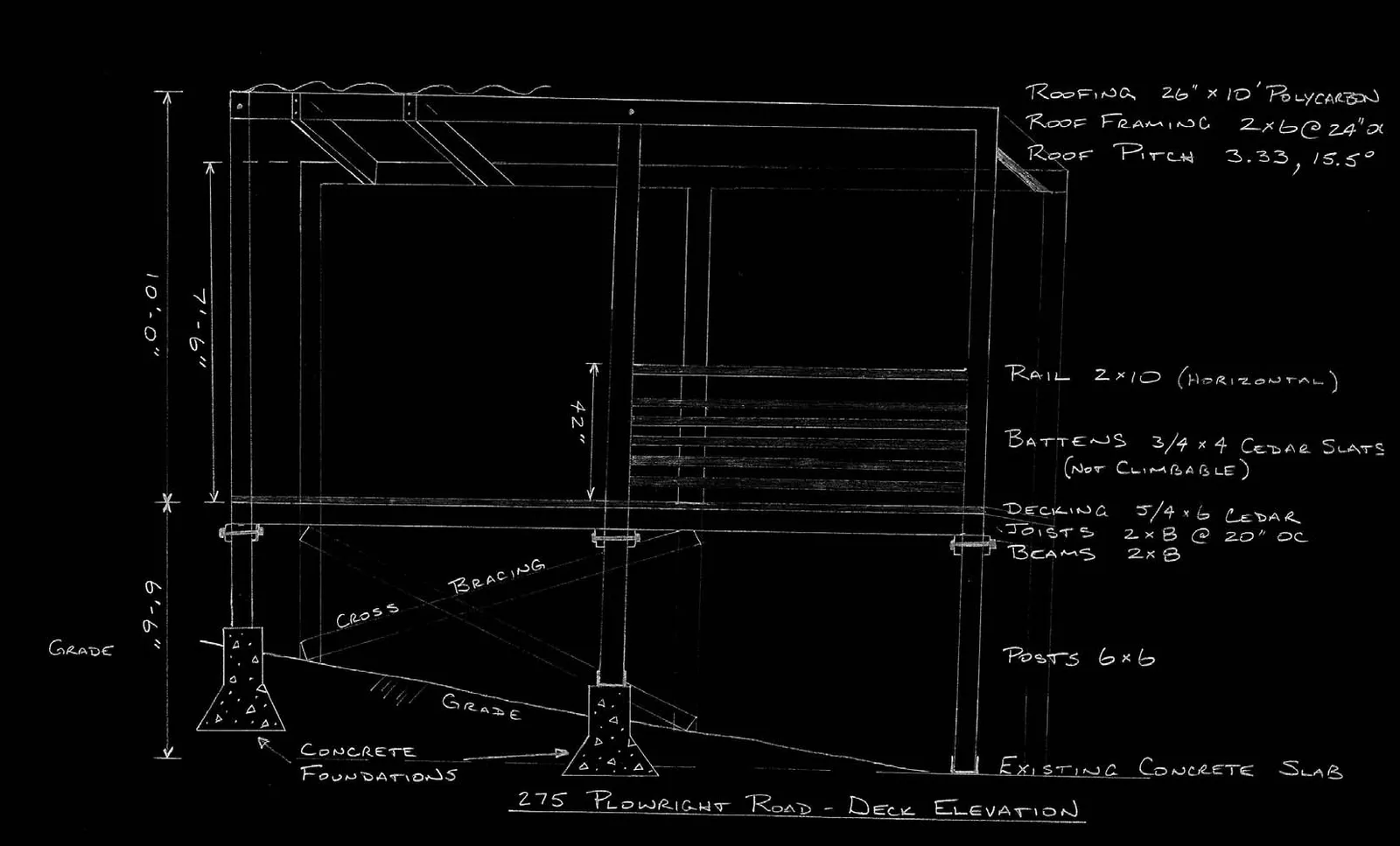

Hand-drawn architectural elevation diagram for a deck at 275 Plowright Road showing structural components, dimensions, and material specifications.
Hand-drawn architectural elevation diagram for a deck at 275 Plowright Road showing structural components, dimensions, and material specifications.

Structural Specifications

  • Roofing: 26" x 10' Polycarbon
  • Roof Framing: 2x6 @ 24" oc
  • Roof Pitch: 3.33, 15.5°
  • Rail: 2x10 (Horizontal)
  • Battens: 3/4 x 4 Cedar Slats (Not Climbable)
  • Decking: 5/4 x 6 Cedar
  • Joists: 2x8 @ 20" oc
  • Beams: 2x8
  • Posts: 6x6

Dimensions and Site Details

  • Total Height: 10'-0"
  • Inner Post Height: 7'-6"
  • Height Above Grade: 6'-6"
  • Railing Height: 42"
  • Foundations: Concrete Foundations and Existing Concrete Slab
  • Additional Features: Cross Bracing and Grade slope markings
