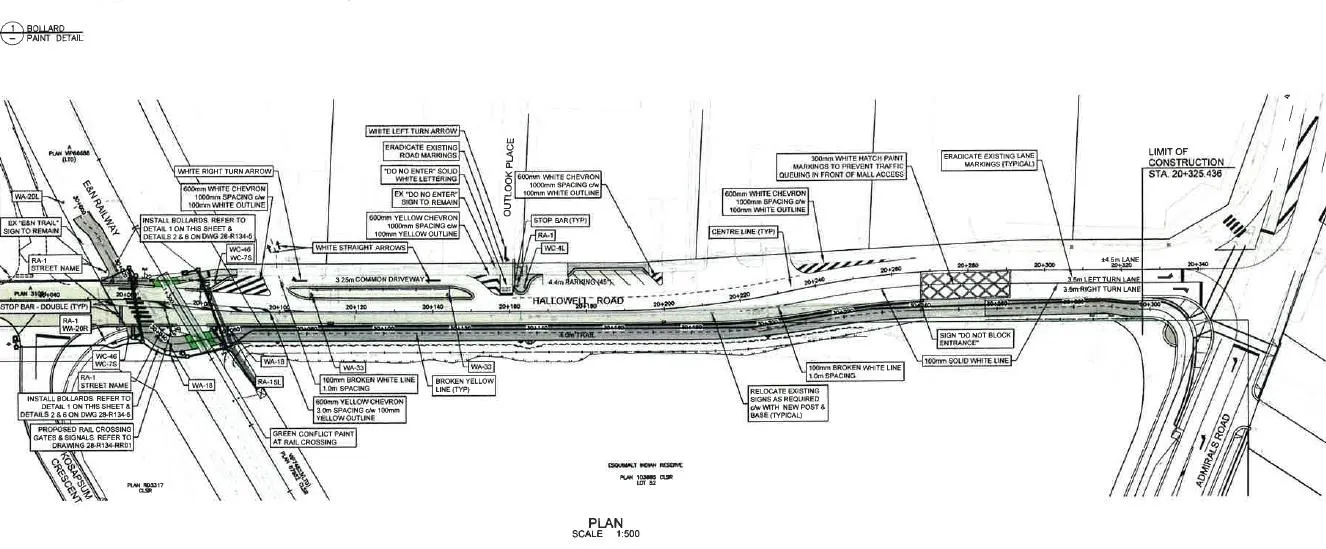

Sketch #1 - Hallowell Road Rail Trail Upgrade

Sketch #1

Plan Details

• Scale: 1:500
• Limit of Construction: STA. 20+325.436
• Location: Hallowell Road, Admirals Road, Outlook Place, and Kosapsum Crescent; adjacent to Esquimalt Indian Reserve (Plan 102860 CLSR Lot 52).

Construction and Marking Callouts

• Bollard Paint Detail
• White Right Turn Arrow
• 600mm White Chevron: 1000mm spacing c/w 100mm white outline
• Install Bollards: Refer to detail 1 on this sheet & details 2 & 6 on DWG 28-R134-5
• White Left Turn Arrow
• Eradicate Existing Road Markings
• "DO NOT ENTER" Solid White Lettering
• EX "DO NOT ENTER" Sign to Remain
• 600mm Yellow Chevron: 1000mm spacing c/w 100mm yellow outline
• White Straight Arrows
• 3.25m Common Driveway
• Stop Bar (TYP)
• 300mm White Hatch Paint Markings: To prevent traffic queuing in front of mall access
• Eradicate Existing Lane Markings (Typical)
• Centre Line (TYP)
• Sign "DO NOT BLOCK ENTRANCE"
• 100mm Solid White Line
• 100mm Broken White Line: 1.0m spacing
• Relocate Existing Signs as Required: c/w with new post & base (typical)
• Broken Yellow Line (TYP)
• 300mm Broken White Line: 1.0m spacing
• 600mm Yellow Chevron: 3.0m spacing c/w 100mm yellow outline
• Green Conflict Paint at Rail Crossing
• Proposed Rail Crossing Gates & Signals: Refer to drawing 28-R134-RR01
• EX "E&N TRAIL" Sign to Remain

Referenced Locations and Lanes

• E&N Railway
• Kosapsum Crescent
• Hallowell Road
• Outlook Place
• Admirals Road
• Esquimalt Indian Reserve (Plan 102860 CLSR Lot 52)
• 3.5m Left Turn Lane
• 3.5m Right Turn Lane
