Sketch #3

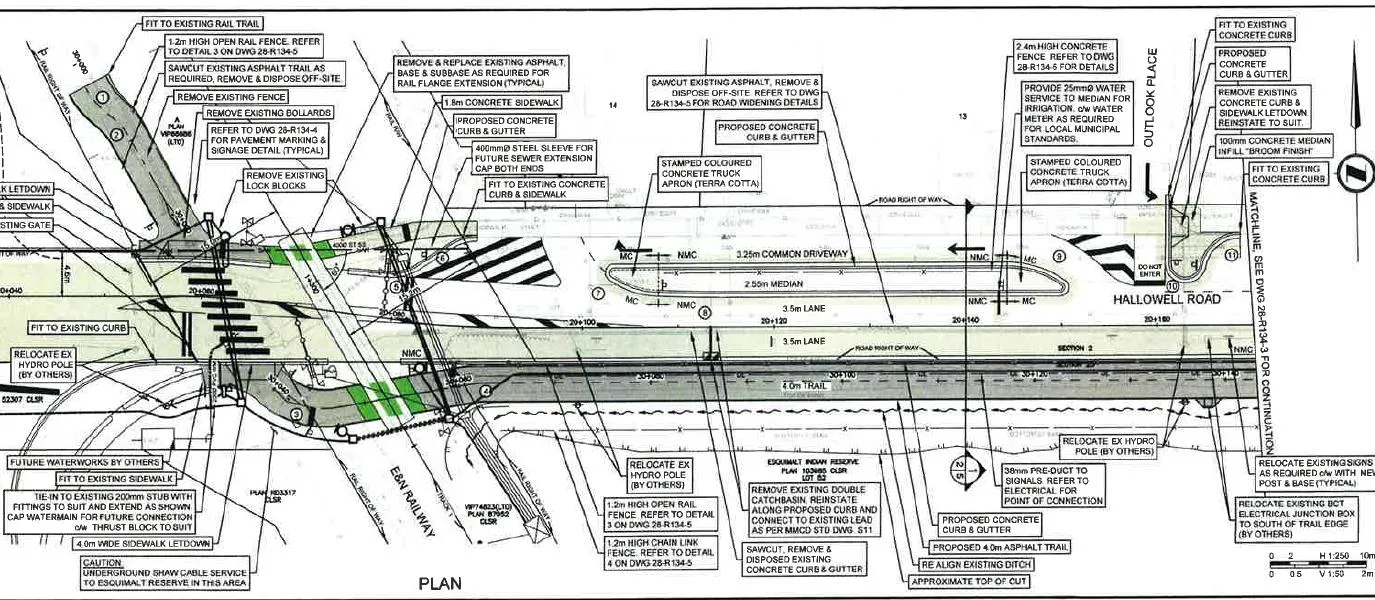

Construction Plan

Detailed engineering plan for road, rail, and trail improvements including curb, gutter, sidewalk, and fencing specifications.

Construction and Design Specifications:

FIT TO EXISTING RAIL TRAIL
1.2m HIGH OPEN RAIL FENCE. REFER TO DETAIL 3 ON DWG 28-R134-5
SAWCUT EXISTING ASPHALT TRAIL AS REQUIRED, REMOVE & DISPOSE OFF-SITE
REMOVE EXISTING FENCE
REMOVE EXISTING BOLLARDS
REFER TO DWG 28-R134-4 FOR PAVEMENT MARKING & SIGNAGE DETAIL (TYPICAL)
REMOVE EXISTING LOCK BLOCKS
REMOVE & REPLACE EXISTING ASPHALT, BASE & SUBBASE AS REQUIRED FOR RAIL FLANGE EXTENSION (TYPICAL)
1.8m CONCRETE SIDEWALK
PROPOSED CONCRETE CURB & GUTTER
400mmØ STEEL SLEEVE FOR FUTURE SEWER EXTENSION CAP BOTH ENDS
FIT TO EXISTING CONCRETE CURB & SIDEWALK
SAWCUT EXISTING ASPHALT, REMOVE & DISPOSE OFF-SITE. REFER TO DWG 28-R134-5 FOR ROAD WIDENING DETAILS
STAMPED COLOURED CONCRETE TRUCK APRON (TERRA COTTA)
3.25m COMMON DRIVEWAY
2.50m MEDIAN
3.5m LANE
4.0m TRAIL
2.4m HIGH CONCRETE FENCE. REFER TO DWG 28-R134-5 FOR DETAILS
PROVIDE 25mmØ WATER SERVICE TO MEDIAN FOR IRRIGATION. c/w WATER METER AS REQUIRED FOR LOCAL MUNICIPAL STANDARDS
STAMPED COLOURED CONCRETE TRUCK APRON (TERRA COTTA)
FIT TO EXISTING CONCRETE CURB
PROPOSED CONCRETE CURB & GUTTER
REMOVE EXISTING CONCRETE CURB & SIDEWALK LETDOWN REINSTATE TO SUIT.
100mm CONCRETE MEDIAN INFILL "BROOM FINISH"
FUTURE WATERWORKS BY OTHERS
FIT TO EXISTING SIDEWALK
TIE-IN TO EXISTING 200mm STUB WITH FITTINGS TO SUIT AND EXTEND AS SHOWN CAP WATERMAIN FOR FUTURE CONNECTION c/w THRUST BLOCK TO SUIT
4.0m WIDE SIDEWALK LETDOWN
CAUTION: UNDERGROUND SHAW CABLE SERVICE TO ESQUIMALT RESERVE IN THIS AREA
RELOCATE EX HYDRO POLE (BY OTHERS)
1.2m HIGH OPEN RAIL FENCE. REFER TO DETAIL 3 ON DWG 28-R134-5
1.2m HIGH CHAIN LINK FENCE. REFER TO DETAIL 4 ON DWG 28-R134-5
REMOVE EXISTING DOUBLE CATCHBASIN. REINSTATE ALONG PROPOSED CURB AND CONNECT TO EXISTING LEAD AS PER MMCD STD DWG S11
SAWCUT, REMOVE & DISPOSED EXISTING CONCRETE CURB & GUTTER
RELOCATE EX HYDRO POLE (BY OTHERS)
38mm PRE-DUCT TO SIGNALS. REFER TO ELECTRICAL FOR POINT OF CONNECTION
PROPOSED CONCRETE CURB & GUTTER
PROPOSED 4.0m ASPHALT TRAIL
RE-ALIGN EXISTING DITCH
APPROXIMATE TOP OF CUT
RELOCATE EXISTING SIGNS AS REQUIRED c/w WITH NEW POST & BASE (TYPICAL)
RELOCATE EXISTING BCT ELECTRICAL JUNCTION BOX TO SOUTH OF TRAIL EDGE (BY OTHERS)

Site Features and Locations:

OUTLOOK PLACE
HALLOWELL ROAD
E&N RAILWAY
ESQUIMALT INDIAN RESERVE PLAN 102490 CLSR LOT 62
ROAD RIGHT OF WAY
SECTION 2
MATCHLINE, SEE DWG 28-R134-3 FOR CONTINUATION
