Committee of the Whole/Documents/Solar Array and Pole Technical Drawings
Appendix

Solar Array and Pole Technical Drawings

April 12, 2016Pages 65–673 sections

Engineering drawings showing dimensions and assembly for the solar array and its 20-foot mounting pole.

25'-1 3/4" total height30W power consumption luminaire160W Solar Array

P61 - Solar Light Pole Technical Drawings

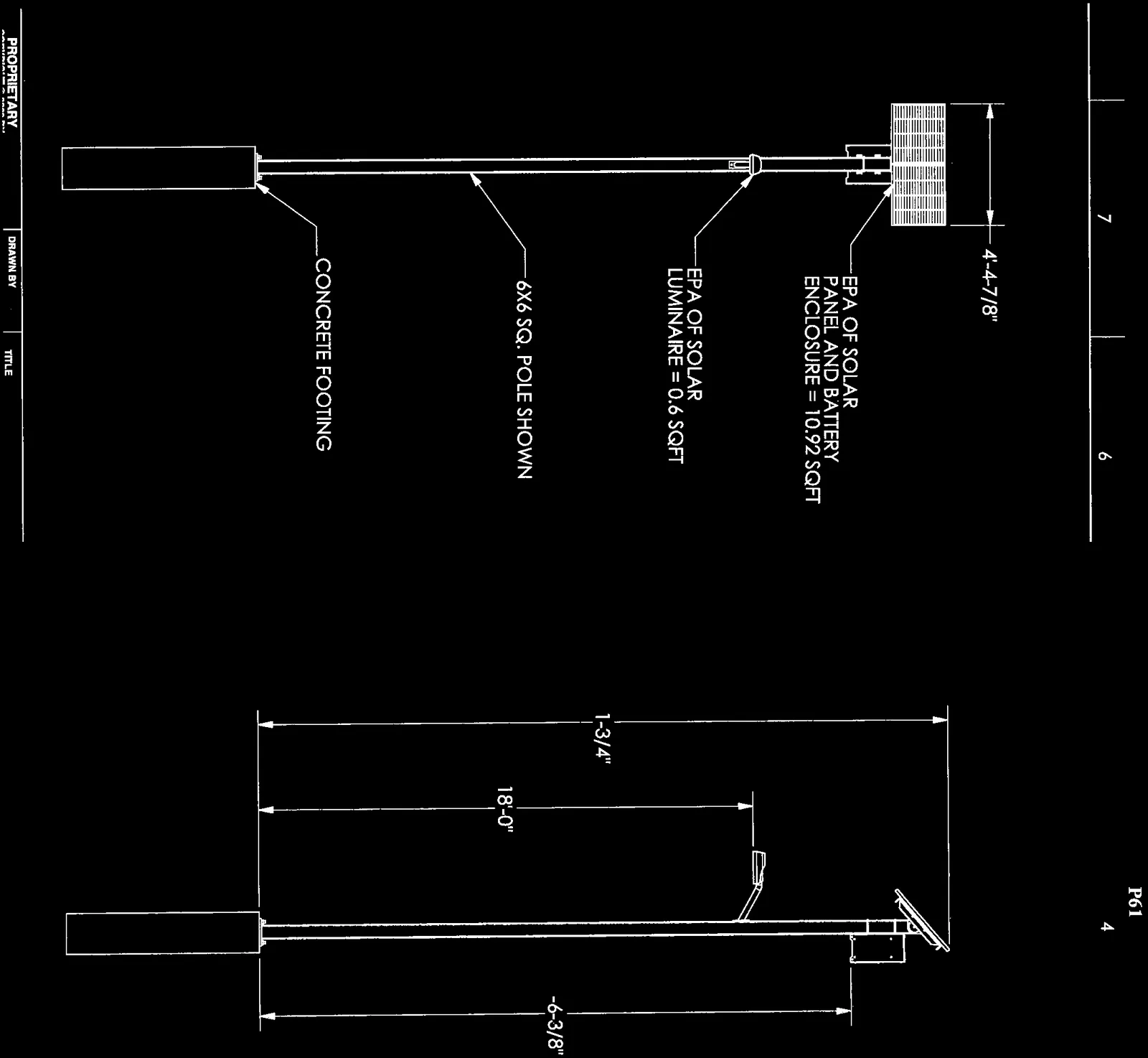

Elevation and perspective drawings of a solar-powered light pole assembly with component labels and dimensions
Elevation and perspective drawings of a solar-powered light pole assembly with component labels and dimensions

Technical Data

  • EPA of Solar Panel and Battery Enclosure = 10.92 SQFT
  • EPA of Solar Luminaire = 0.6 SQFT
  • 6x6 SQ. Pole Shown
  • Concrete Footing

Dimensions

  • Solar array width: 4'-4-7/8"
  • Total assembly height: 25'-1-3/4"
  • Battery enclosure mounting height: 21'-6-3/8"
  • Luminaire mounting height: 18'-0"

Specifications

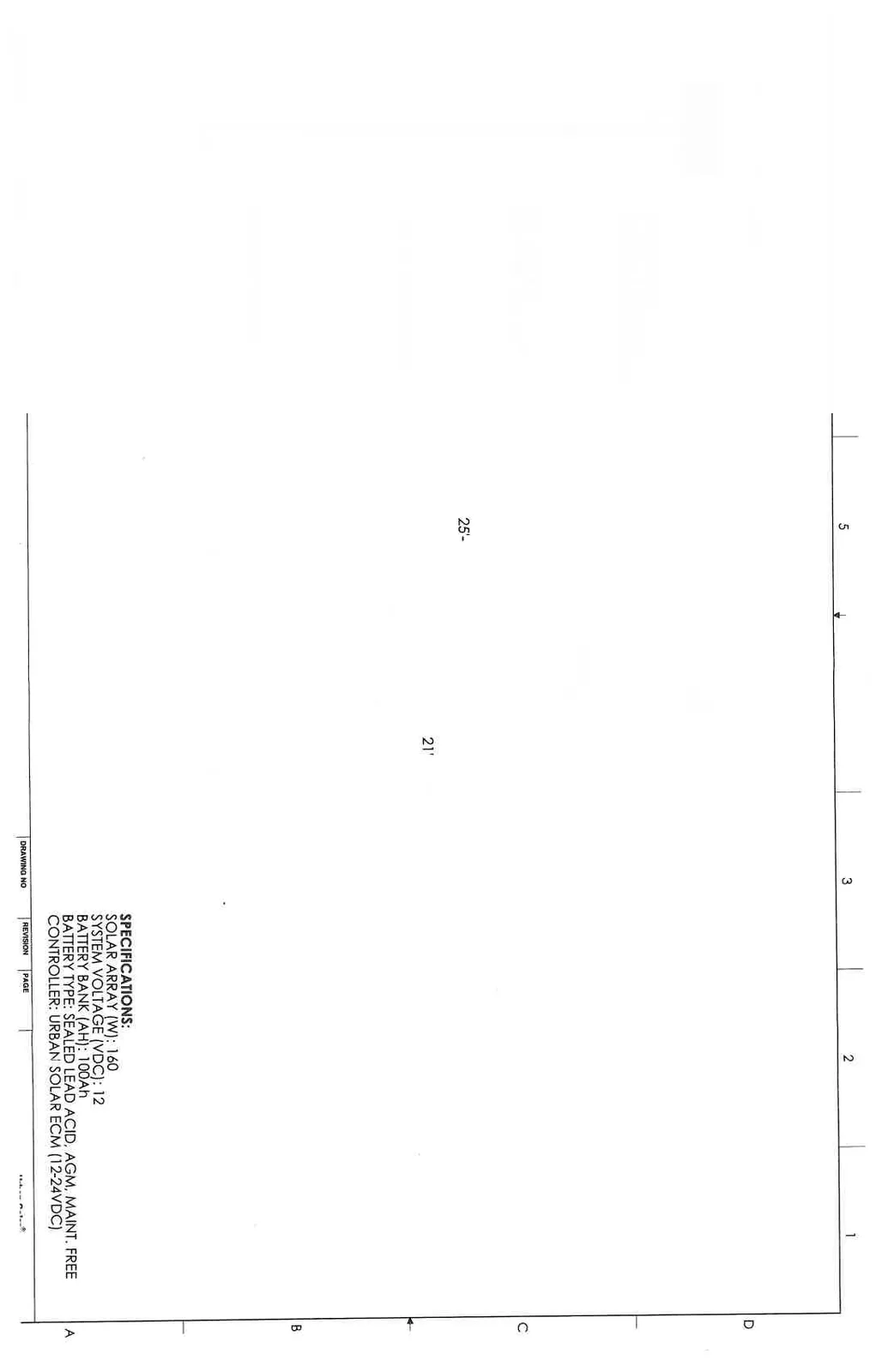

Specifications table for the solar lighting system
Specifications table for the solar lighting system
Specification Detail
Solar Array (W) 160
System Voltage (VDC) 12
Battery Bank (AH) 100Ah
Battery Type Sealed Lead Acid, AGM, Maint. Free
Controller Urban Solar ECM (12-24VDC)
Page 65–67

P62 - Component Details and Specifications

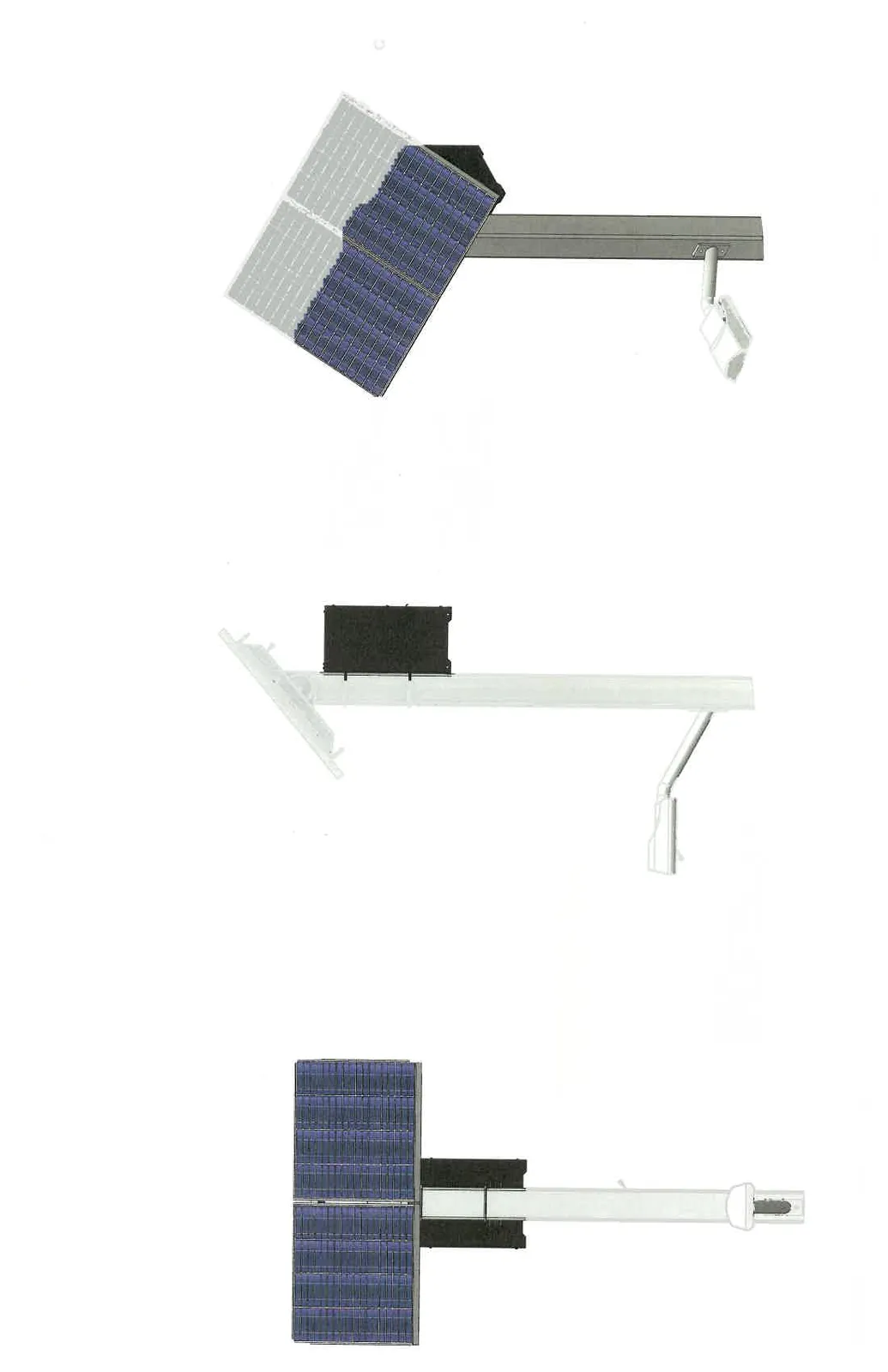

Detailed front, side, and isometric technical drawings of the upper pole assembly
Detailed front, side, and isometric technical drawings of the upper pole assembly

Solar Array

Solar array specifications text
Solar array specifications text

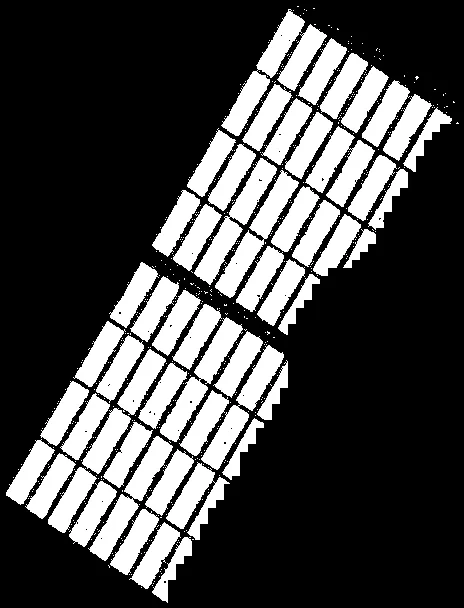

Top-down view detail of the dual solar panel array
Top-down view detail of the dual solar panel array
* 2X 80W Solar Panel * 12V Nominal * Polycrystalline

Pole

  • 6" SQ. Steel Pole 20 FT LOA.
  • Powder Coat Finish - Bronze

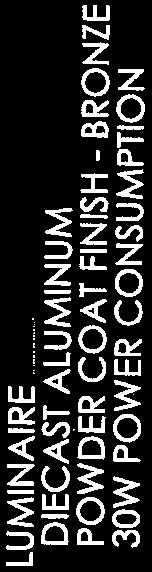

Luminaire

Luminaire specifications text
Luminaire specifications text

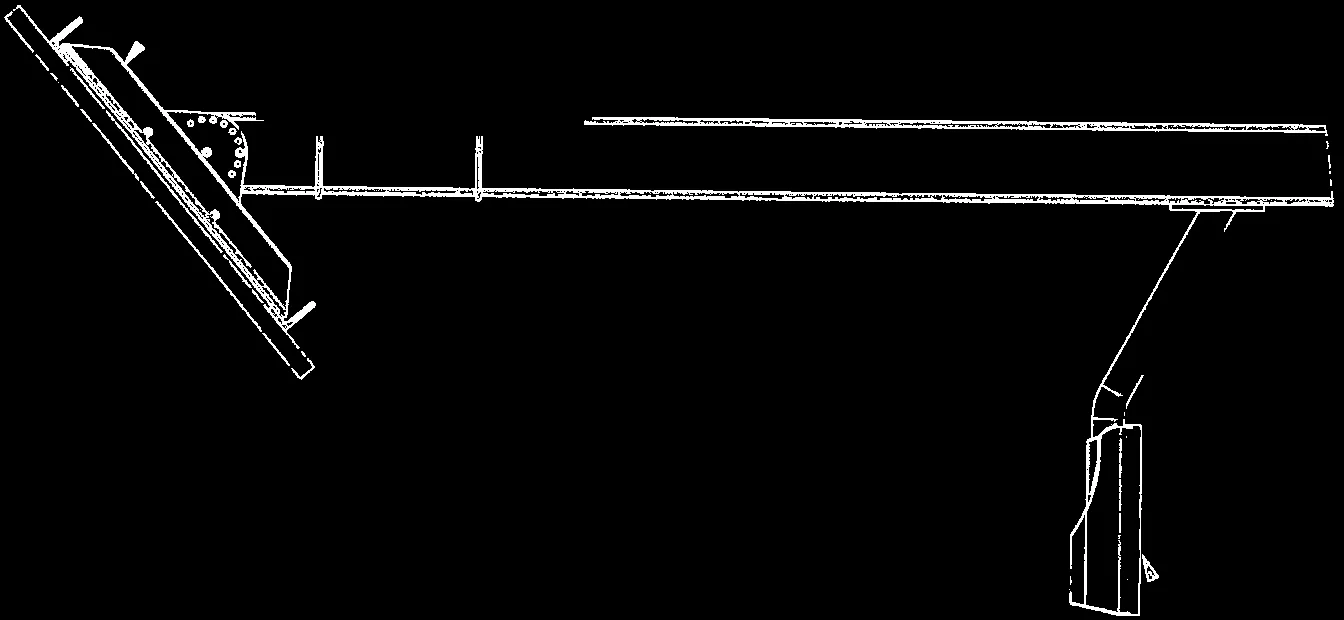

Perspective view detail of the light fixture
Perspective view detail of the light fixture
* Diecast Aluminum * Powder Coat Finish - Bronze * 30W Power Consumption

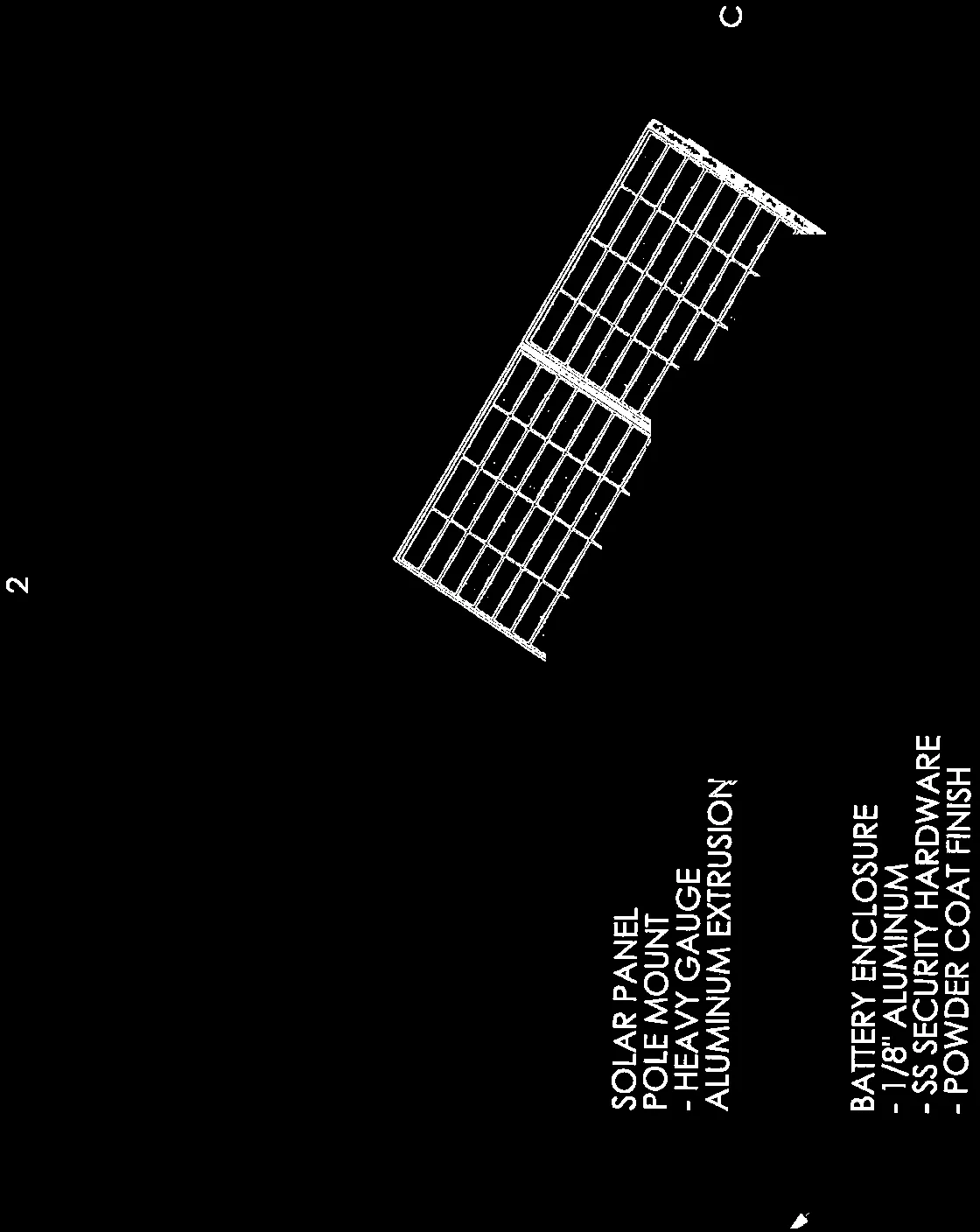

Mounting and Enclosure

Solar Panel Pole Mount:

  • Heavy Gauge Aluminum Extrusion

Battery Enclosure:

  • 1/8" Aluminum
  • SS Security Hardware
  • Powder Coat Finish
Page 65–67

P63 - Assembly Elevations

Simplified front, side, and isometric elevation drawings of the solar light pole assembly
Simplified front, side, and isometric elevation drawings of the solar light pole assembly
Page 65–67
