Committee of the Whole/Documents/Signage Attachments – #110-21 Helmcken Road
Appendix

Signage Attachments – #110-21 Helmcken Road

May 10, 2016Pages 164–1681 section

Location plan, correspondence from Pride Signs, and detailed sign design drawings for the Dollar Tree storefront.

2 APPROVAL OF AGENDA
Sign Area: 3.10 m2 total

Report to Committee of the Whole

Development Permit Variance Application 2016/06 - #110-21 Helmcken Road Meeting Date: May 10, 2016

ATTACHMENTS:

  1. Location Plan
  2. Letter to Mayor and Council from Pride Signs Ltd., April 27, 2016
  3. Building and Sign Location Plan
  4. South and West Building Elevation – Omicron Architecture, April 11, 2014
  5. Sign Design – Pride Signs, February 3, 2016

Attachment 1. Location Plan

Subject Property Map - 33 Helmcken Rd showing the location relative to Victoria General Hospital, Watkiss Way, and surrounding residential streets.
Subject Property Map - 33 Helmcken Rd showing the location relative to Victoria General Hospital, Watkiss Way, and surrounding residential streets.

Attachment 2. Letter to Mayor and Council

April 27, 2016

Town of View Royal Mayor and Council

RE: Dollar Tree sign variance application at Eagle Creek 33 Helmcken Rd.

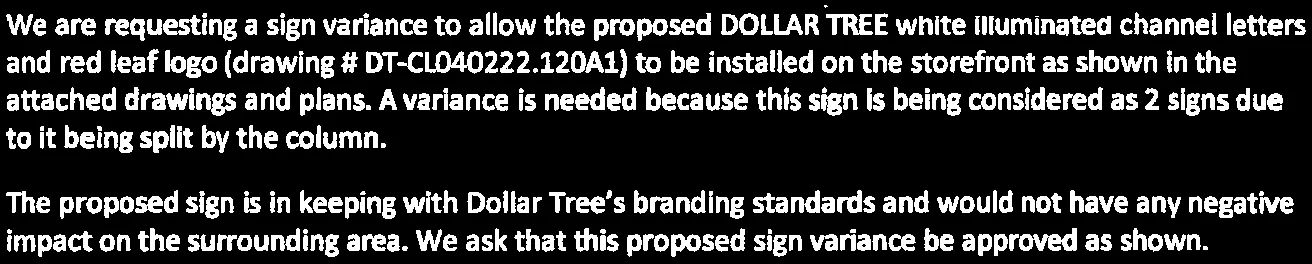

We are requesting a sign variance to allow the proposed DOLLAR TREE white illuminated channel letters and red leaf logo (drawing # DT-CL040222.120A1) to be installed on the storefront as shown in the attached drawings and plans. A variance is needed because this sign is being considered as 2 signs due to it being split by the column.

The proposed sign is in keeping with Dollar Tree's branding standards and would not have any negative impact on the surrounding area. We ask that this proposed sign variance be approved as shown.

Thank you, Jeff Barron

Pride Signs Ltd. – Permit Coordinator

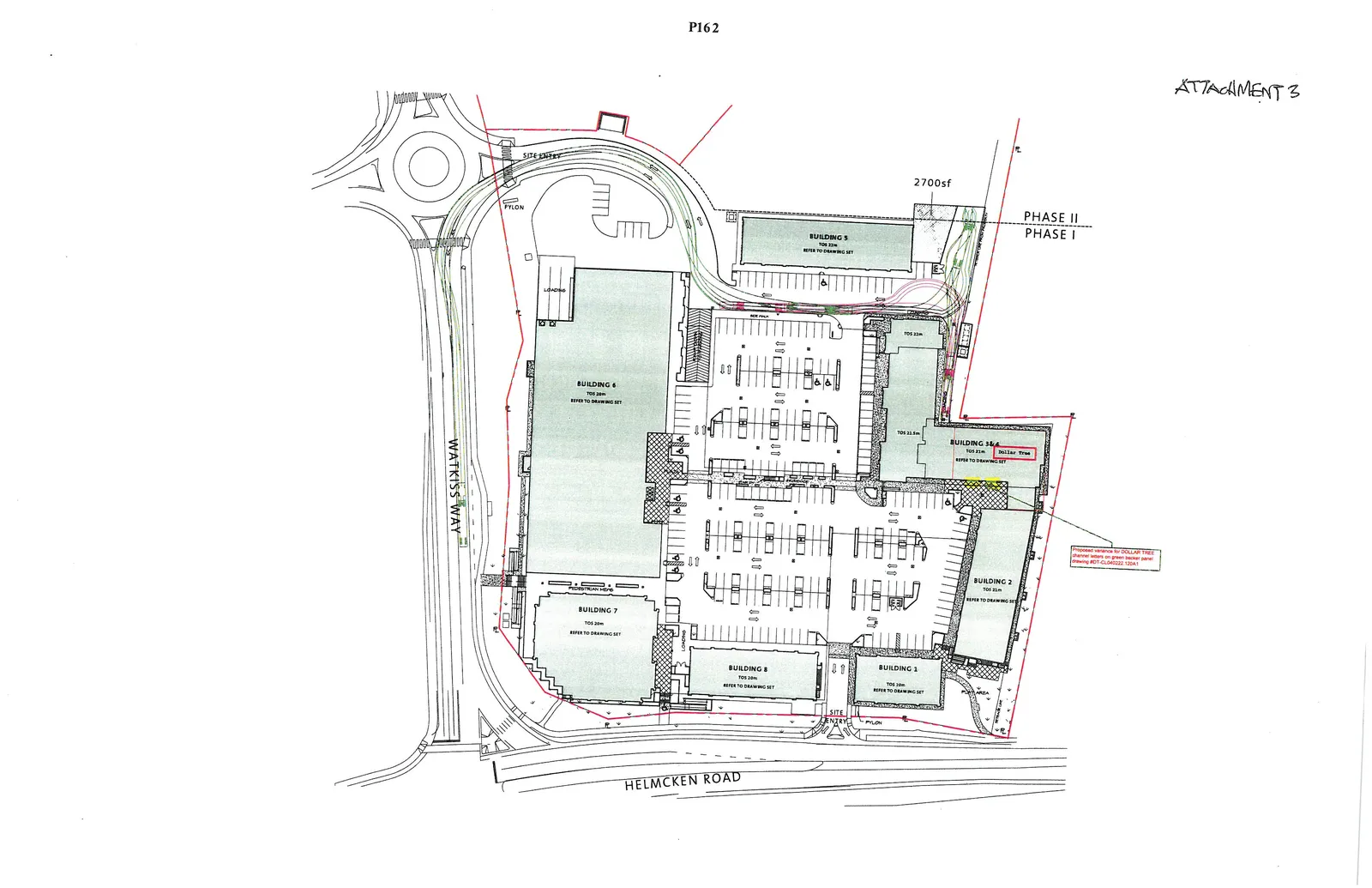

Attachment 3. Building and Sign Location Plan

Site plan for Eagle Creek Phase I and II development. A red box highlights the Dollar Tree location in Building 3&4.
Site plan for Eagle Creek Phase I and II development. A red box highlights the Dollar Tree location in Building 3&4.

Note on plan: Proposed variance for DOLLAR TREE channel letters on green backer panel drawing #DT-CL040222.120A1

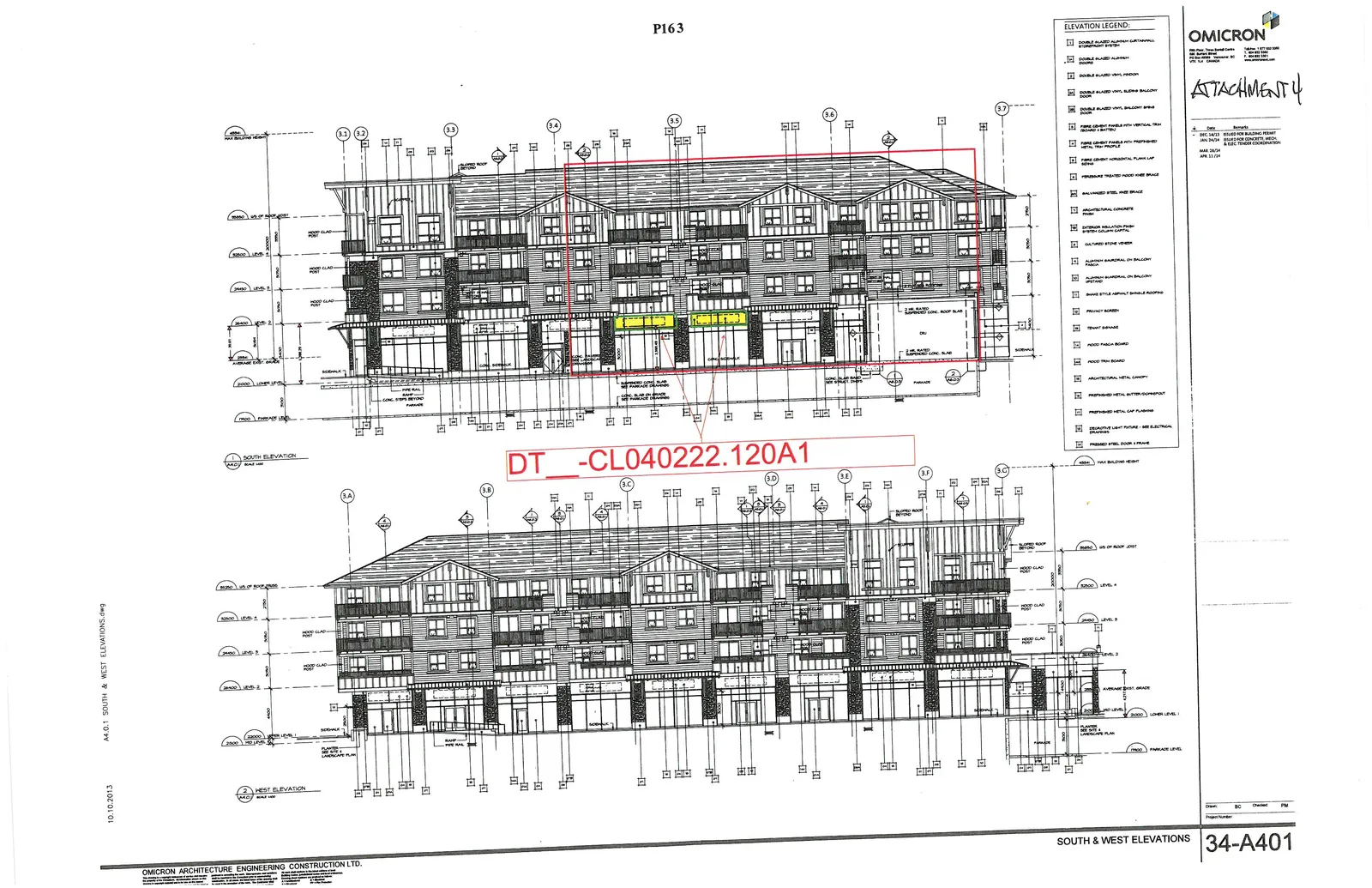

Attachment 4. South and West Building Elevation

South and West Elevation architectural drawings for the development. A red box on the South Elevation indicates the location of the proposed Dollar Tree sign on the storefront.
South and West Elevation architectural drawings for the development. A red box on the South Elevation indicates the location of the proposed Dollar Tree sign on the storefront.

Drawing Number: 34-A401 Date: April 11, 2014

Attachment 5. Sign Design

Technical sign design drawing showing dimensions, materials, and area calculations for the DOLLAR TREE signage.
Technical sign design drawing showing dimensions, materials, and area calculations for the DOLLAR TREE signage.

SIGN #1 TOTAL SIGN AREA = 3.10m2

Component Calculated Sign Area Dimensions
DOLLAR letters 1.80m2 12'-6" total length; letters 10'-11 1/4"; height 2'-5"
TREE letters & leaf 1.30m2 12'-6" total length; letters/leaf 7'-11"; height 1'-9 1/4"

Additional Sign Reference (Drawing # DT-MS040222): 20.22 m; 1.882 sq.m

Specifications:

  • Faces: 3/16" White 7328 acrylic faces with Red A9324-1 vinyl (leaf)
  • Trim Cap: 1" Black
  • Returns: 5" Deep pre-finished dark bronze coil returns
  • Illumination: White LED Illumination / Leaf to be Red LED Illumination
Color rendering of the "DOLLAR TREE" sign on the dark green backer panel of the building facade.
Color rendering of the "DOLLAR TREE" sign on the dark green backer panel of the building facade.

Project Details:

  • Drawn By: B. Guse
  • Date: December 21, 2015
  • Revision Dates: January 6, 2016; January 15, 2016; February 3, 2016
Page 164–168
