Attachment 10: Second Floor Plan - Building A (Sheet A2.3)

December 13, 2016Page 451 section

Architectural layout for the second floor of Building A.

6.4.3.a Development Permit No. 2016/13 - 450 Six Mile Road - "Pacific Lakeside"
Total Floor Area: 1,716.8 m2

Pacific Lakeside - Proposed Rental Apartment Development

450 Six Mile Road, View Royal, BC

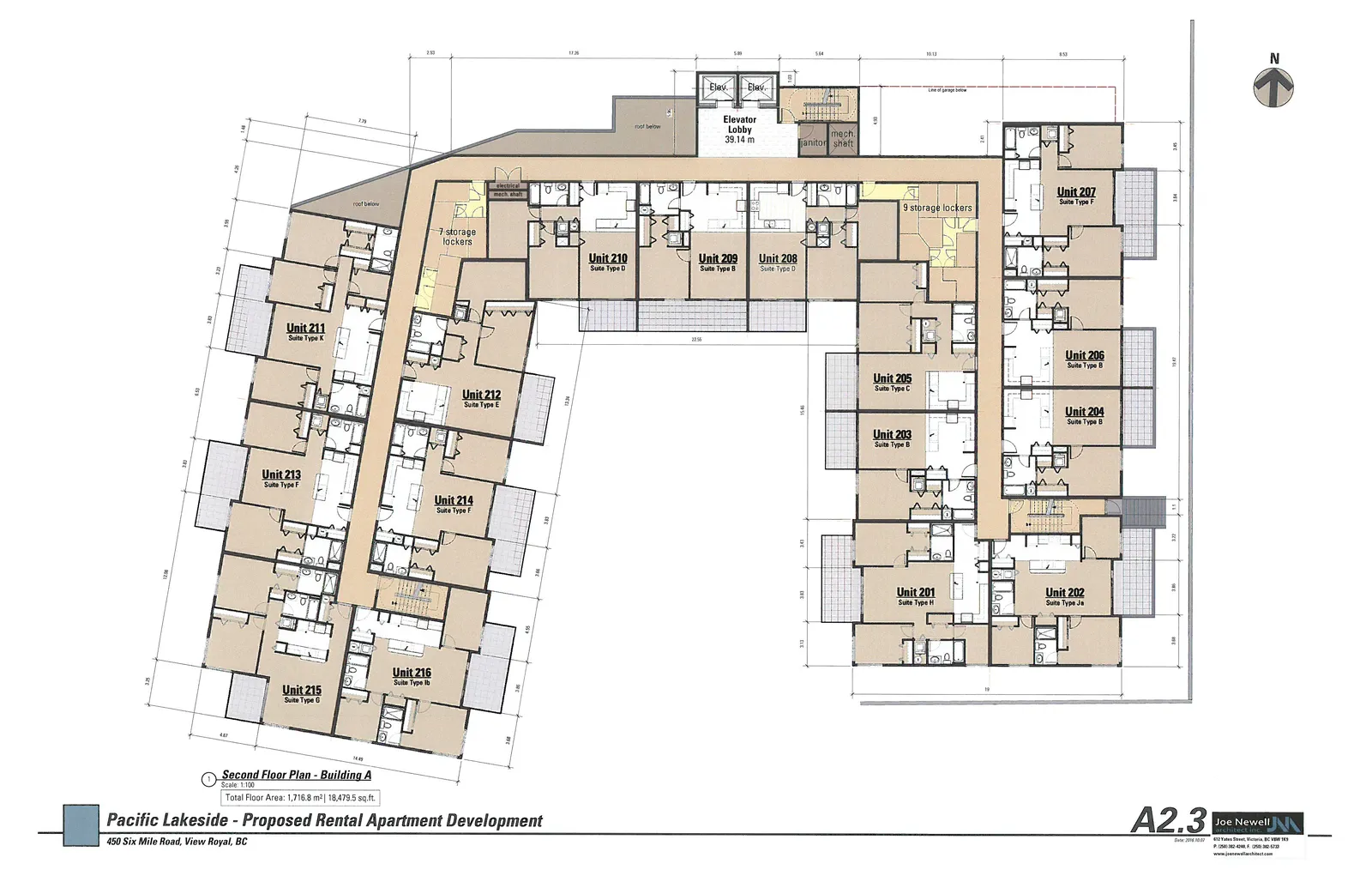

Second Floor Plan for Building A, featuring a U-shaped layout with individual unit designations, common areas, and dimensions.
Second Floor Plan for Building A, featuring a U-shaped layout with individual unit designations, common areas, and dimensions.

Second Floor Plan - Building A

Scale: 1:100 Total Floor Area: 1,716.8 m² | 18,479.5 sq.ft.

Unit Designations

Unit Number Suite Type
Unit 201 Suite Type H
Unit 202 Suite Type Ja
Unit 203 Suite Type B
Unit 204 Suite Type B
Unit 205 Suite Type C
Unit 206 Suite Type B
Unit 207 Suite Type F
Unit 208 Suite Type D
Unit 209 Suite Type B
Unit 210 Suite Type D
Unit 211 Suite Type K
Unit 212 Suite Type E
Unit 213 Suite Type F
Unit 214 Suite Type F
Unit 215 Suite Type G
Unit 216 Suite Type Ib

Common Areas and Facilities

  • Elevator Lobby: 39.14 m
  • Storage:
    • 7 storage lockers (located near Unit 211 and 212)
    • 9 storage lockers (located near Unit 205 and 208)
  • Utilities:
    • Electrical mech. shaft
    • Janitor shaft
    • Mech. shaft
  • Circulation: Corridors providing access to all units and exit stairs.

Architect: Joe Newell Architect Inc. 812 Yates Street, Victoria, BC V8W 1K9 P (250) 382-4248 F (250) 382-5733 www.joenewellarchitect.com

Date: 2018.10.01 Drawing Number: A2.3

Page 45
