Committee of the Whole/Documents/Attachment 12: Fourth Floor Plan - Building A (Sheet A2.5)
Appendix

Attachment 12: Fourth Floor Plan - Building A (Sheet A2.5)

December 13, 2016Page 471 section

Architectural layout for the fourth floor of Building A.

6.4.3.a Development Permit No. 2016/13 - 450 Six Mile Road - "Pacific Lakeside"
Total Floor Area: 1,523.8 m2

Pacific Lakeside - Proposed Rental Apartment Development

450 Six Mile Road, View Royal, BC

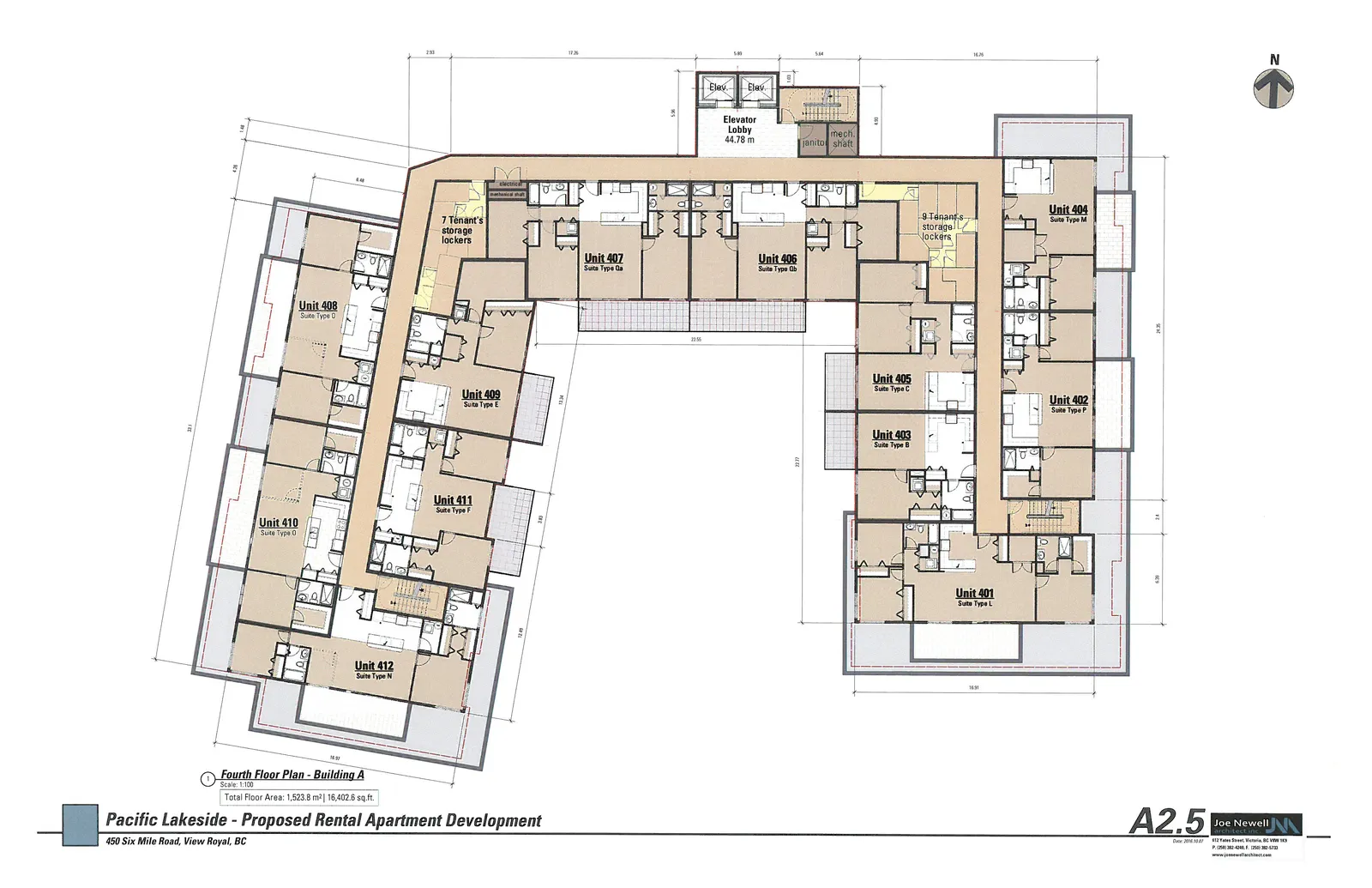

Fourth Floor Plan - Building A for the Pacific Lakeside Proposed Rental Apartment Development. The plan displays a U-shaped building layout featuring twelve residential units (Units 401 through 412) connected by a central corridor. The plan includes annotations for suite types, common areas such as an elevator lobby and tenant storage lockers, and technical shafts for mechanical, janitorial, and electrical services.
Fourth Floor Plan - Building A for the Pacific Lakeside Proposed Rental Apartment Development. The plan displays a U-shaped building layout featuring twelve residential units (Units 401 through 412) connected by a central corridor. The plan includes annotations for suite types, common areas such as an elevator lobby and tenant storage lockers, and technical shafts for mechanical, janitorial, and electrical services.

Fourth Floor Plan - Building A

  • Scale: 1:100
  • Total Floor Area: 1,523.8 m² | 16,402.6 sq. ft.
  • Date: 2016.10.07
  • Drawing Number: A2.5

Unit Schedule:

Unit Number Suite Type
Unit 401 Suite Type L
Unit 402 Suite Type P
Unit 403 Suite Type B
Unit 404 Suite Type M
Unit 405 Suite Type C
Unit 406 Suite Type Gb
Unit 407 Suite Type Qa
Unit 408 Suite Type Q
Unit 409 Suite Type E
Unit 410 Suite Type O
Unit 411 Suite Type F
Unit 412 Suite Type N

Common and Service Areas:

  • Elevator Lobby (44.78 m)
  • 7 Tenant's storage lockers
  • 9 Tenant's storage lockers
  • Mechanical / Janitor shaft
  • Electrical / Mechanical shaft
Page 47
