Attachment 15: Suite Types - Building A (Sheet A2.8)

December 13, 2016Page 501 section

Floor plan layouts for suite types K through Qb in Building A.

6.4.3.a Development Permit No. 2016/13 - 450 Six Mile Road - "Pacific Lakeside"
Suite Type K: 99.2 m2Suite Type Qb: 113.9 m2

Pacific Lakeside - Proposed Rental Apartment Development

450 Six Mile Road, View Royal, BC

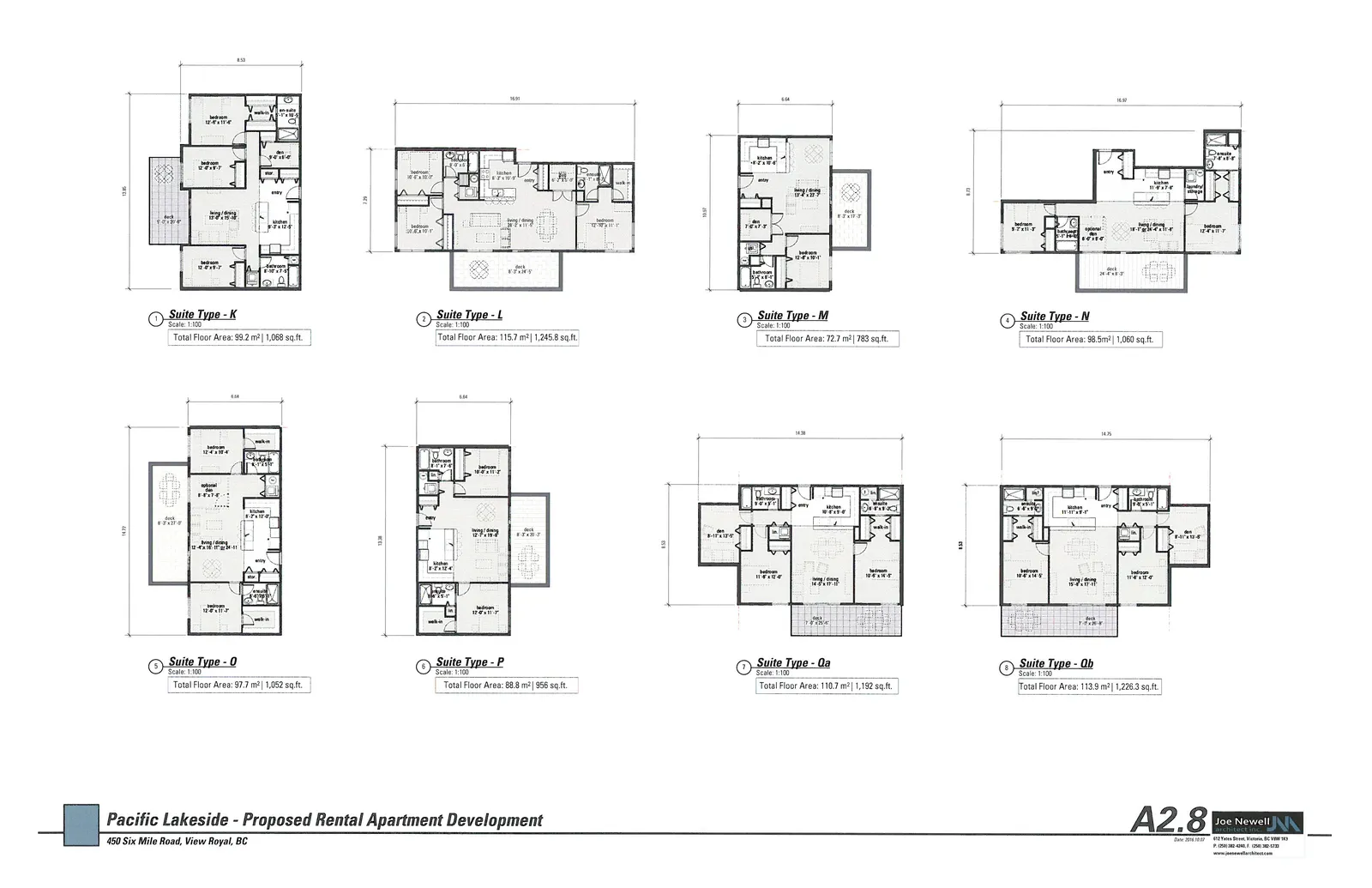

Architectural floor plans for eight different suite types, labeled K through Qb
Architectural floor plans for eight different suite types, labeled K through Qb

Suite Type Details

  1. Suite Type - K

    • Scale: 1:100
    • Total Floor Area: 99.2 m² | 1,068 sq.ft.

  2. Suite Type - L

    • Scale: 1:100
    • Total Floor Area: 115.7 m² | 1,245.8 sq.ft.

  3. Suite Type - M

    • Scale: 1:100
    • Total Floor Area: 72.7 m² | 783 sq.ft.

  4. Suite Type - N

    • Scale: 1:100
    • Total Floor Area: 98.5 m² | 1,060 sq.ft.

  5. Suite Type - O

    • Scale: 1:100
    • Total Floor Area: 97.7 m² | 1,052 sq.ft.

  6. Suite Type - P

    • Scale: 1:100
    • Total Floor Area: 88.8 m² | 956 sq.ft.

  7. Suite Type - Qa

    • Scale: 1:100
    • Total Floor Area: 110.7 m² | 1,192 sq.ft.

  8. Suite Type - Qb

    • Scale: 1:100
    • Total Floor Area: 113.9 m² | 1,226.3 sq.ft.
