Attachment 17: North & East Elevations - Building A (Sheet A3.2)

December 13, 2016Page 521 section

External elevation drawings for the northern and eastern facades of Building A.

6.4.3.a Development Permit No. 2016/13 - 450 Six Mile Road - "Pacific Lakeside"
Average grade datum: 35.15m

Pacific Lakeside - Proposed Rental Apartment Development

450 Six Mile Road, View Royal, BC

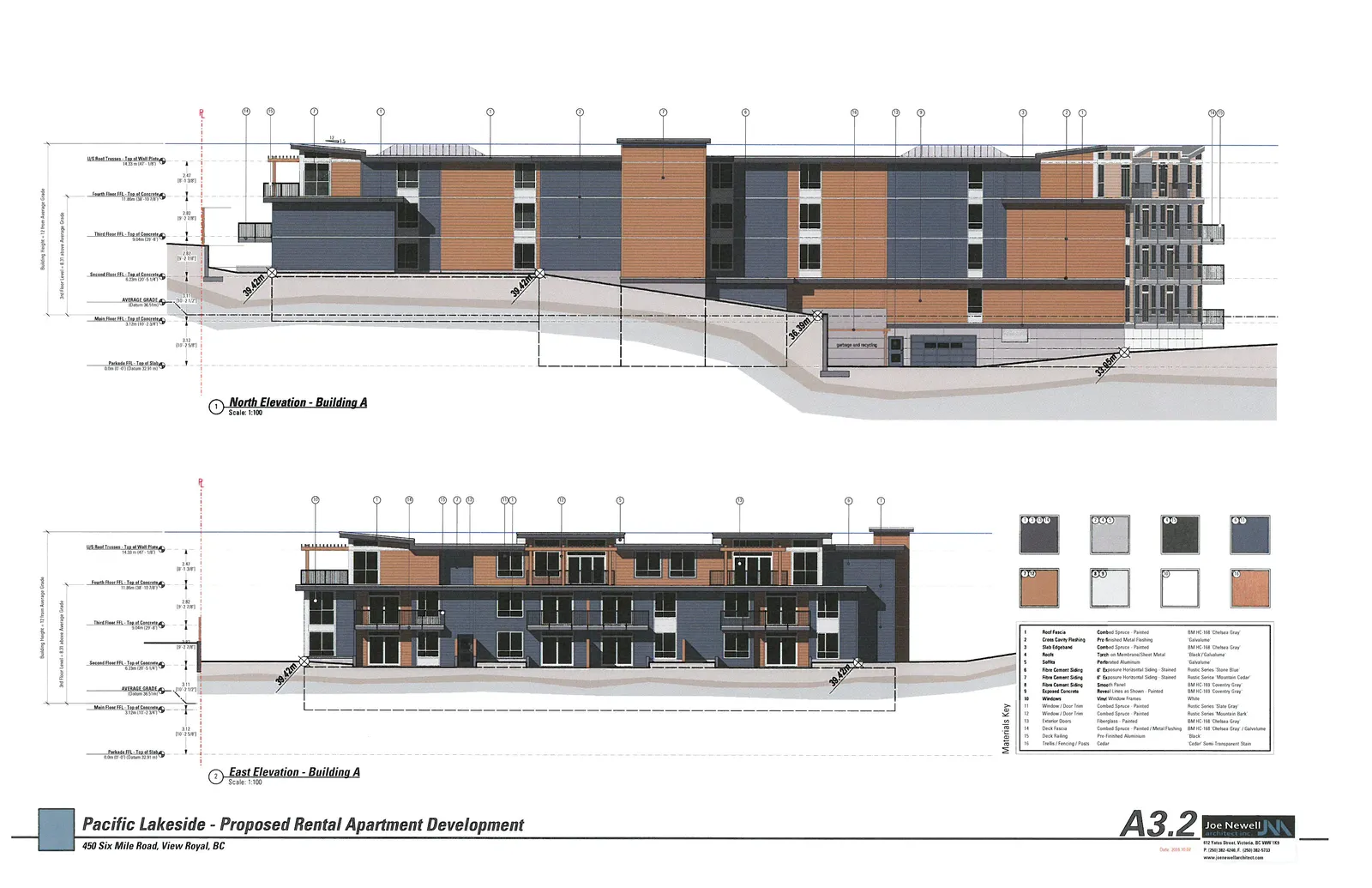

Architectural elevation drawings showing the North and East elevations of Building A. The drawings include vertical annotations for floor levels and heights, specific topographical grade points (39.42m, 36.39m, 33.95m), and a materials key with corresponding swatches.
Architectural elevation drawings showing the North and East elevations of Building A. The drawings include vertical annotations for floor levels and heights, specific topographical grade points (39.42m, 36.39m, 33.95m), and a materials key with corresponding swatches.

Elevation Floor Heights

  • US Roof Trusses - Top of Wall Plate: 14.33 m (47' - 1/8")
  • Fourth Floor FFL - Top of Concrete: 11.85m (38' - 10 3/8")
  • Third Floor FFL - Top of Concrete: 9.05m (29' - 8 1/4")
  • Second Floor FFL - Top of Concrete: 6.25m (20' - 6 1/4")
  • AVERAGE GRADE (Datum 36.31m): 3.11 (10' - 2 1/2")
  • Main Floor FFL - Top of Concrete: 3.12m (10' - 2 3/4")
  • Parkade FFL - Top of Slab (Datum 32.91 m): 0.00m (0' - 0")

1 North Elevation - Building A

Scale: 1:100

2 East Elevation - Building A

Scale: 1:100

Materials Key

# Item Material / Finish Color / Notes
1 Roof Fascia Combed Spruce - Painted BM HC-168 'Chelsea Gray'
2 Cross Cavity Flashing Pre-finished Metal Flashing 'Galvalume'
3 Slab Edgebend Combed Spruce - Painted BM HC-168 'Chelsea Gray'
4 Roofs Torch on Membrane/Sheet Metal 'Black' / 'Galvalume'
5 Soffits Perforated Aluminum 'Galvalume'
6 Fibre Cement Siding 6" Exposure Horizontal Siding - Stained Rustic Series 'Stone Blue'
7 Fibre Cement Siding 6" Exposure Horizontal Siding - Stained Rustic Series 'Mountain Cedar'
8 Fibre Cement Siding Smooth Panel BM HC-169 'Coventry Gray'
9 Exposed Concrete Reveal Lines as Shown - Painted BM HC-169 'Coventry Gray'
10 Windows Vinyl Window Frames White
11 Window / Door Trim Combed Spruce - Painted Rustic Series 'Slate Gray'
12 Window / Door Trim Combed Spruce - Painted Rustic Series 'Mountain Bark'
13 Exterior Doors Fiberglass - Painted BM HC-168 'Chelsea Gray'
14 Deck Fascia Combed Spruce - Painted / Metal Flashing BM HC-168 'Chelsea Gray' / Galvalume
15 Deck Railing Pre-finished Aluminum 'Black'
16 Trellis / Fencing / Posts Cedar 'Cedar' Semi Transparent Stain

Drawing No: A3.2 Date: 2016.10.07

Architect: Joe Newell Architect 612 Yates Street, Victoria, BC V8W 1K9 P: (250) 382-4248 F: (250) 382-5732 www.joenewellarchitect.com
