Attachment 18: Courtyard Elevations - Building A (Sheet A3.3)
December 13, 2016Page 531 section
Elevation drawings showing the western courtyard and eastern interior facades of Building A.
Max building height: 12.0m
Pacific Lakeside - Proposed Rental Apartment Development
450 Six Mile Road, View Royal, BC
Elevation Specifications
- Building Height: 12.00m Above Average Grade
- 3rd Floor Level: 8.31m above Average Grade
Vertical Level Data:
- U/S Roof Trusses - Top of Wall Plate: 14.55 m (47' - 8 7/8")
- Fourth Floor FFL - Top of Concrete: 11.85 m (38' - 10 1/2")
- Third Floor FFL - Top of Concrete: 9.03 m (29' - 8")
- Second Floor FFL - Top of Concrete: 6.22 m (20' - 5 1/4")
- AVERAGE GRADE (Datum 36.51m)
- Main Floor FFL - Top of Concrete: 3.12 m (10' - 2 3/4")
- Parkade FFL - Top of Slab: 0.0m (0' - 0") (Datum 33.11m)

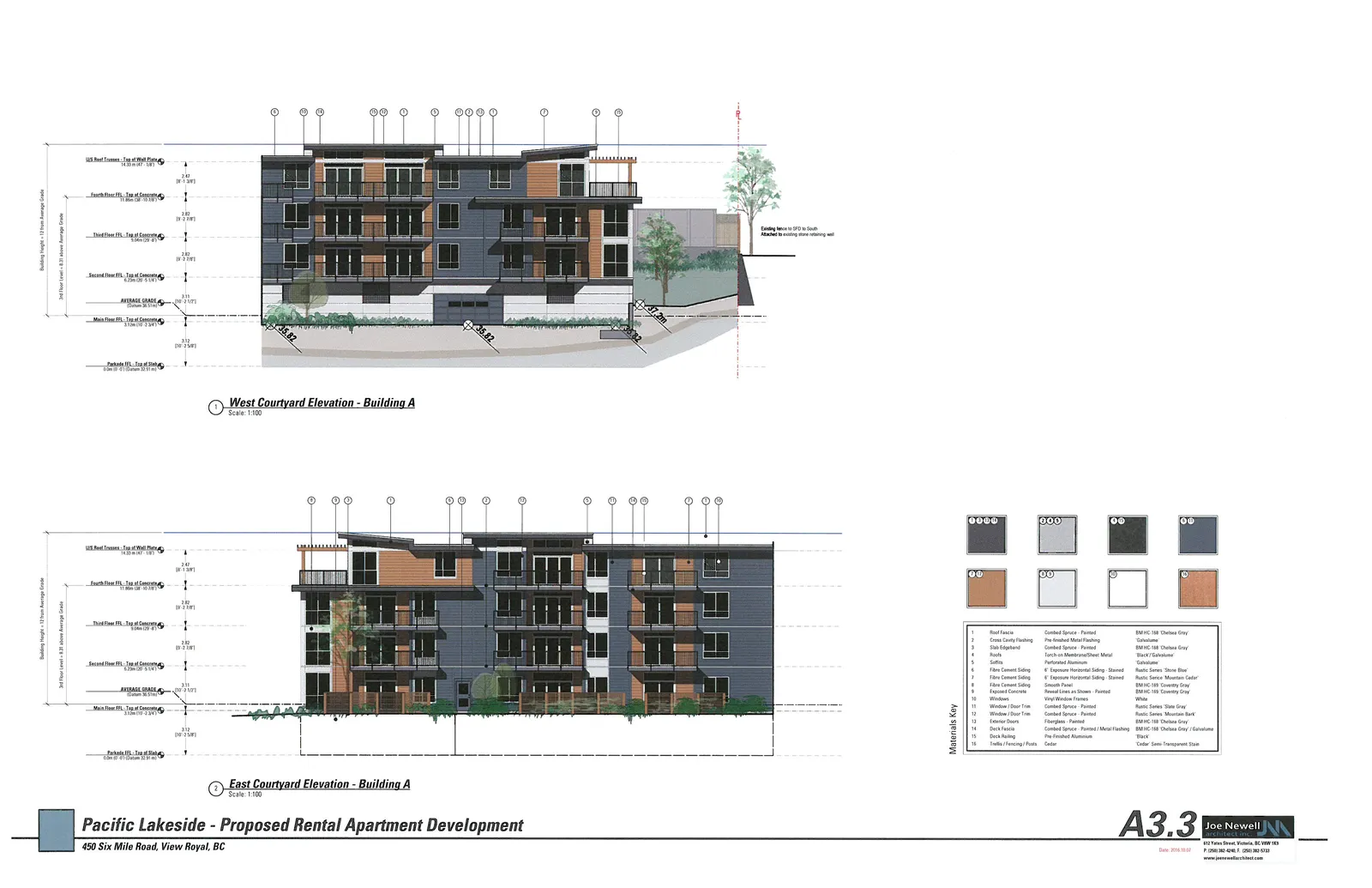

West Courtyard Elevation - Building A
Scale: 1:100
- Note: Existing fence to SFD to South. Attached to existing stone retaining wall.
- Ground Elevation Markers: 35.82, 35.82, 35.32, 37.2m
East Courtyard Elevation - Building A
Scale: 1:100
Materials Key
| # | Item | Material | Finish / Color |
|---|---|---|---|
| 1 | Roof Fascia | Combed Spruce - Painted | BM HC-168 'Chelsea Gray' |
| 2 | Cross Cavity Flashing | Pre-finished Metal Flashing | Galvalume |
| 3 | Slab Edgeband | Combed Spruce - Painted | BM HC-168 'Chelsea Gray' |
| 4 | Roofs | Torch-on Membrane/Sheet Metal | Black / 'Galvalume' |
| 5 | Soffits | Perforated Aluminum | Galvalume |
| 6 | Fibre Cement Siding | 6" Exposure Horizontal Siding - Stained | Rustic Series 'Slate Gray' |
| 7 | Fibre Cement Siding | 4" Exposure Horizontal Siding - Stained | Rustic Series 'Mountain Cedar' |
| 8 | Fibre Cement Siding | Smooth Panel | BM HC-165 'Coventry Gray' |
| 9 | Exposed Concrete | Reveal Lines as Shown - Painted | BM HC-165 'Coventry Gray' |
| 10 | Windows | Vinyl Window Frames | White |
| 11 | Window / Door Trim | Combed Spruce - Painted | Rustic Series 'Slate Gray' |
| 12 | Window / Door Trim | Combed Spruce - Painted | Rustic Series 'Mountain Bark' |
| 13 | Exterior Doors | Fiberglass - Painted | BM HC-168 'Chelsea Gray' |
| 14 | Deck Fascia | Combed Spruce - Painted / Metal Flashing | BM HC-168 'Chelsea Gray' / Galvalume |
| 15 | Deck Railing | Pre-Finished Aluminum | 'Black' |
| 16 | Trellis / Fencing / Posts | Cedar | Cedar Semi-Transparent Stain |
