Attachment 21: Elevations - Building B (Sheet A5.1)
December 13, 2016Page 561 section

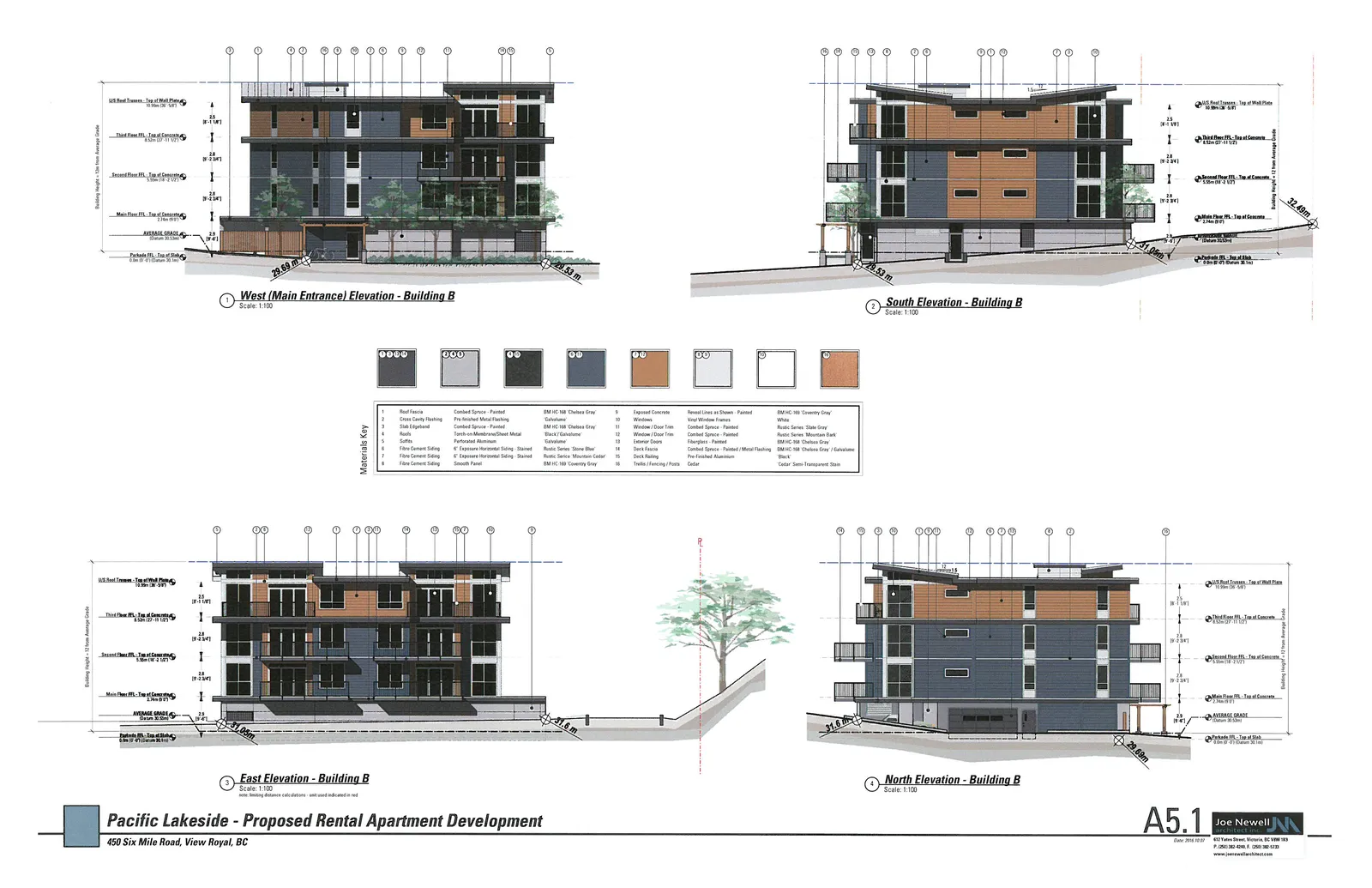

Elevation drawings showing all four facades of Building B.
West (Main Entrance), South, East, and North elevations
Pacific Lakeside - Proposed Rental Apartment Development
450 Six Mile Road, View Royal, BC
Elevations - Building B
1. West (Main Entrance) Elevation - Building B
Scale: 1:100
Height Measurements:
- U/S Roof Trusses - Top of Wall Plate: 10.99m (36' - 5/8")
- Third Floor FFL - Top of Concrete: 8.52m (27' - 11 1/2")
- Second Floor FFL - Top of Concrete: 5.55m (18' - 2 1/2")
- Main Floor FFL - Top of Concrete: 2.74m (9' - 0")
- AVERAGE GRADE (Datum 30.53m): 2.9m (9' - 6")
- Parkade FFL - Top of Slab: 0.0m (0' - 0") (Datum 30.1m)
2. South Elevation - Building B
Scale: 1:100
Height Measurements:
- U/S Roof Trusses - Top of Wall Plate: 10.99m (36' - 5/8")
- Third Floor FFL - Top of Concrete: 8.52m (27' - 11 1/2")
- Second Floor FFL - Top of Concrete: 5.55m (18' - 2 1/2")
- Main Floor FFL - Top of Concrete: 2.74m (9' - 0")
- AVERAGE GRADE (Datum 30.53m): 2.9m (9' - 6")
- Parkade FFL - Top of Slab: 0.0m (0' - 0") (Datum 30.1m)
3. East Elevation - Building B
Scale: 1:100 Note: limiting distance calculations - unit used indicated in red
Height Measurements:
- U/S Roof Trusses - Top of Wall Plate: 10.99m (36' - 5/8")
- Third Floor FFL - Top of Concrete: 8.52m (27' - 11 1/2")
- Second Floor FFL - Top of Concrete: 5.55m (18' - 2 1/2")
- Main Floor FFL - Top of Concrete: 2.74m (9' - 0")
- AVERAGE GRADE (Datum 30.53m): 2.9m (9' - 6")
- Parkade FFL - Top of Slab: 0.0m (0' - 0") (Datum 30.1m)
4. North Elevation - Building B
Scale: 1:100
Height Measurements:
- U/S Roof Trusses - Top of Wall Plate: 10.99m (36' - 5/8")
- Third Floor FFL - Top of Concrete: 8.52m (27' - 11 1/2")
- Second Floor FFL - Top of Concrete: 5.55m (18' - 2 1/2")
- Main Floor FFL - Top of Concrete: 2.74m (9' - 0")
- AVERAGE GRADE (Datum 30.53m): 2.9m (9' - 6")
- Parkade FFL - Top of Slab: 0.0m (0' - 0") (Datum 30.1m)
Materials Key
| # | Material | Description | Finish / Color |
|---|---|---|---|
| 1 | Roof Fascia | Combed Spruce - Painted | BM HC-168 'Chelsea Gray' |
| 2 | Cross Cavity Flashing | Pre-finished Metal Flashing | 'Galvalume' |
| 3 | Slab Edgeband | Combed Spruce - Painted | BM HC-168 'Chelsea Gray' |
| 4 | Roofs | Torch-on Membrane/Sheet Metal | 'Black' / 'Galvalume' |
| 5 | Soffits | Perforated Aluminum | 'Galvalume' |
| 6 | Fibre Cement Siding | 6" Exposure Horizontal Siding - Stained | Rustic Series 'Stone Blue' |
| 7 | Fibre Cement Siding | 6" Exposure Horizontal Siding - Stained | Rustic Series 'Mountain Cedar' |
| 8 | Fibre Cement Siding | Smooth Panel | BM HC-169 'Coventry Gray' |
| 9 | Exposed Concrete | Reveal Lines as Shown - Painted | BM HC-169 'Coventry Gray' |
| 10 | Windows | Vinyl Window Frames | White |
| 11 | Window / Door Trim | Combed Spruce - Painted | Rustic Series 'Slate Gray' |
| 12 | Window / Door Trim | Combed Spruce - Painted | Rustic Series 'Mountain Bark' |
| 13 | Exterior Doors | Fiberglass - Painted | BM HC-168 'Chelsea Gray' |
| 14 | Deck Fascia | Combed Spruce - Painted / Metal Flashing | BM HC-168 'Chelsea Gray' / Galvalume |
| 15 | Deck Railing | Pre-finished Aluminium | 'Black' |
| 16 | Trellis / Fencing / Posts | Cedar | 'Cedar' Semi-transparent Stain |
Date: 2018.10.22 Sheet Number: A5.1
Page 56
