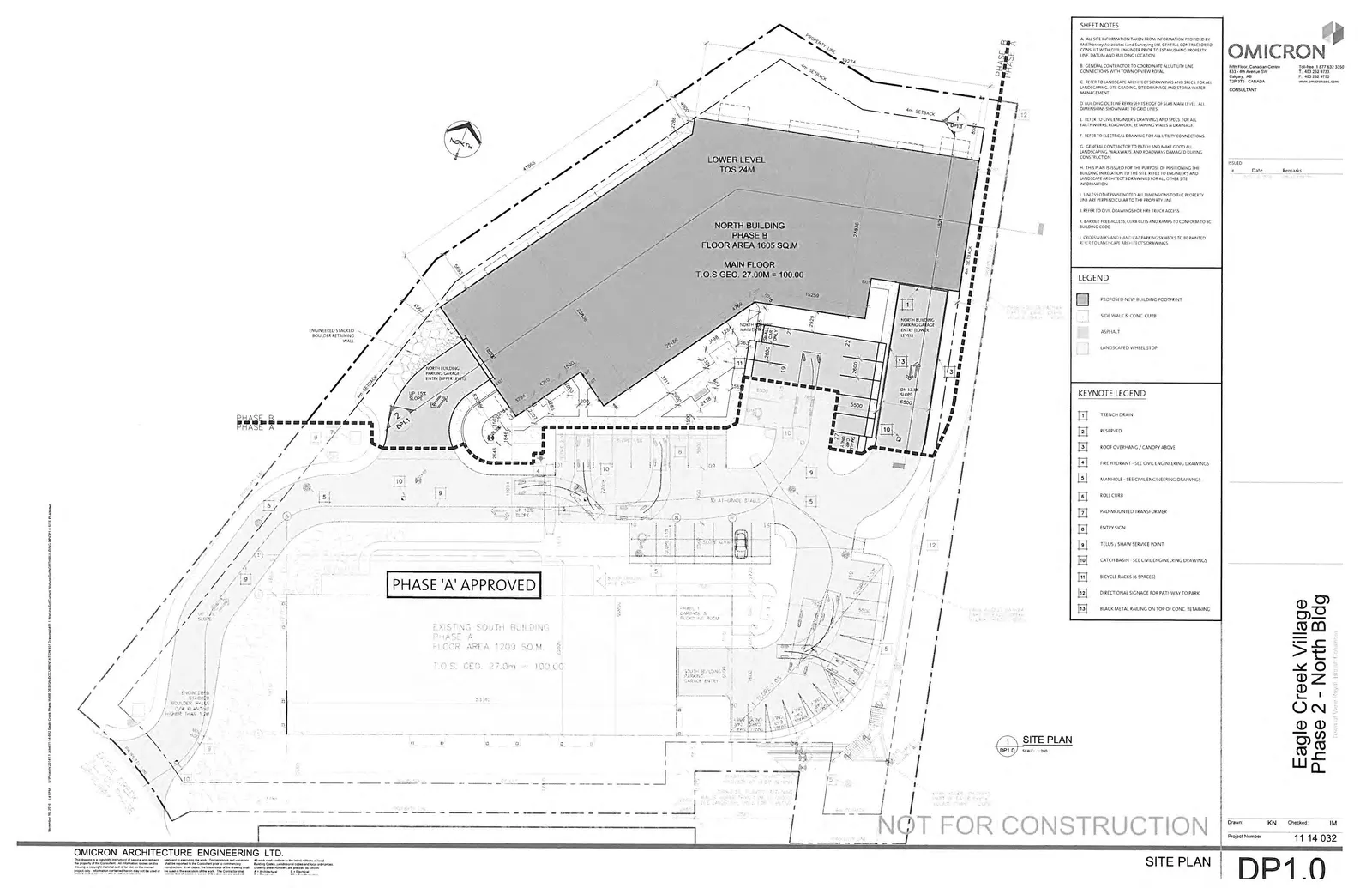

DP 2016/14 - Attachment 4. DP1.0 – Site Plan
Architectural site plan showing the footprint of the North Building and access routes.
Eagle Creek Village Phase 2 - North Bldg
SITE PLAN
SHEET NOTES
A. ALL SITE INFORMATION TAKEN FROM INFORMATION PROVIDED BY B&B/Harvey Associates Land Surveying Ltd. GENERAL CONTRACTOR TO CONSULT WITH CIVIL ENGINEER PRIOR TO ESTABLISHING PROPERTY LINE, DATUM AND BUILDING LOCATION. B. GENERAL CONTRACTOR TO COORDINATE ALL UTILITY LINE CONNECTIONS WITH TOWN OF VIEW ROYAL. C. REFER TO LANDSCAPE ARCHITECT'S DRAWINGS AND SPECS. FOR ALL LANDSCAPING, SITE GRADING, SITE DRAINAGE AND STORM WATER MANAGEMENT. D. BUILDING OUTLINE REPRESENTS EDGE OF SLAB MAIN LEVEL. ALL DIMENSIONS SHOWN ARE TO GRID LINES. E. REFER TO CIVIL ENGINEER'S DRAWINGS AND SPECS FOR ALL EARTHWORKS, ROADWORK, RETAINING WALLS & DRAINAGE. F. REFER TO ELECTRICAL DRAWINGS FOR ALL UTILITY CONNECTIONS. G. GENERAL CONTRACTOR TO PATCH AND MAKE GOOD ALL LANDSCAPING, WALKWAYS, AND ROADWAYS DAMAGED DURING CONSTRUCTION. H. THIS PLAN IS ISSUED FOR THE PURPOSE OF POSITIONING THE BUILDING IN RELATION TO THE SITE. REFER TO ENGINEER'S AND LANDSCAPE ARCHITECT'S DRAWINGS FOR ALL OTHER SITE INFORMATION. I. UNLESS OTHERWISE NOTED ALL DIMENSIONS TO THE PROPERTY LINE ARE PERPENDICULAR TO THE PROPERTY LINE. J. REFER TO CIVIL DRAWINGS FOR WB-17 TRUCK ACCESS. K. BARRIER FREE ACCESS, CURB CUTS AND RAMPS TO CONFORM TO BC BUILDING CODE. L. REFER TO ARCHITECTURAL CAR PARKING SYMBOLS TO BE PAINTED KEYED TO LANDSCAPE ARCHITECT'S DRAWINGS.
LEGEND
| Symbol | Description |
|---|---|
| [Grey shaded area] | PROPOSED NEW BUILDING FOOTPRINT |
| [Blue dashed line] | SIDE WALK & CONC. CURB |
| [Grey texture] | ASPHALT |
| [Green line] | LANDSCAPED WHEEL STOP |
KEYNOTE LEGEND
| Keynote | Description |
|---|---|
| 1 | TRENCH DRAIN |
| 2 | RESERVED |
| 3 | ROOF OVERHANG / CANOPY ABOVE |
| 4 | FIRE HYDRANT - SEE CIVIL ENGINEERING DRAWINGS |
| 5 | MANHOLE - SEE CIVIL ENGINEERING DRAWINGS |
| 6 | ROLL CURB |
| 7 | PAD-MOUNTED TRANSFORMER |
| 8 | ENTRY SIGN |
| 9 | TELUS / SHAW SERVICE POINT |
| 10 | CATCH BASIN - SEE CIVIL ENGINEERING DRAWINGS |
| 11 | BICYCLE RACKS (6 SPACES) |
| 12 | DIRECTIONAL SIGNAGE FOR PATHWAY TO PARK |
| 13 | BLACK METAL RAILING ON TOP OF CONC. RETAINING |
Site Details
- North Building Phase B:
- Floor Area: 1605 SQ.M
- Main Floor T.O.S GEO. 27.00M = 100.00
- Lower Level TOS 24M
- Existing South Building Phase A (Approved):
- Floor Area: 1209 SQ.M
- T.O.S. GEO. 27.0M = 100.00
Project Information
- Consultant: OMICRON ARCHITECTURE ENGINEERING LTD.
- Project Number: 11 14 032
- Drawn: KN
- Checked: IM
- Drawing Number: DP1.0
