Floor plan for the fifth level of the apartment building.

2. APPROVAL OF AGENDA
11 units on the fifth floor

Eagle Creek Village Phase 2 - North Bldg

North Building Fifth Floor Plan

Project Details

  • Project Number: 11 14 032
  • Date: NOV 16, 2018
  • Drawing Number: DP2.3
  • Status: NOT FOR CONSTRUCTION
  • Drawn By: RI
  • Checked By: IM

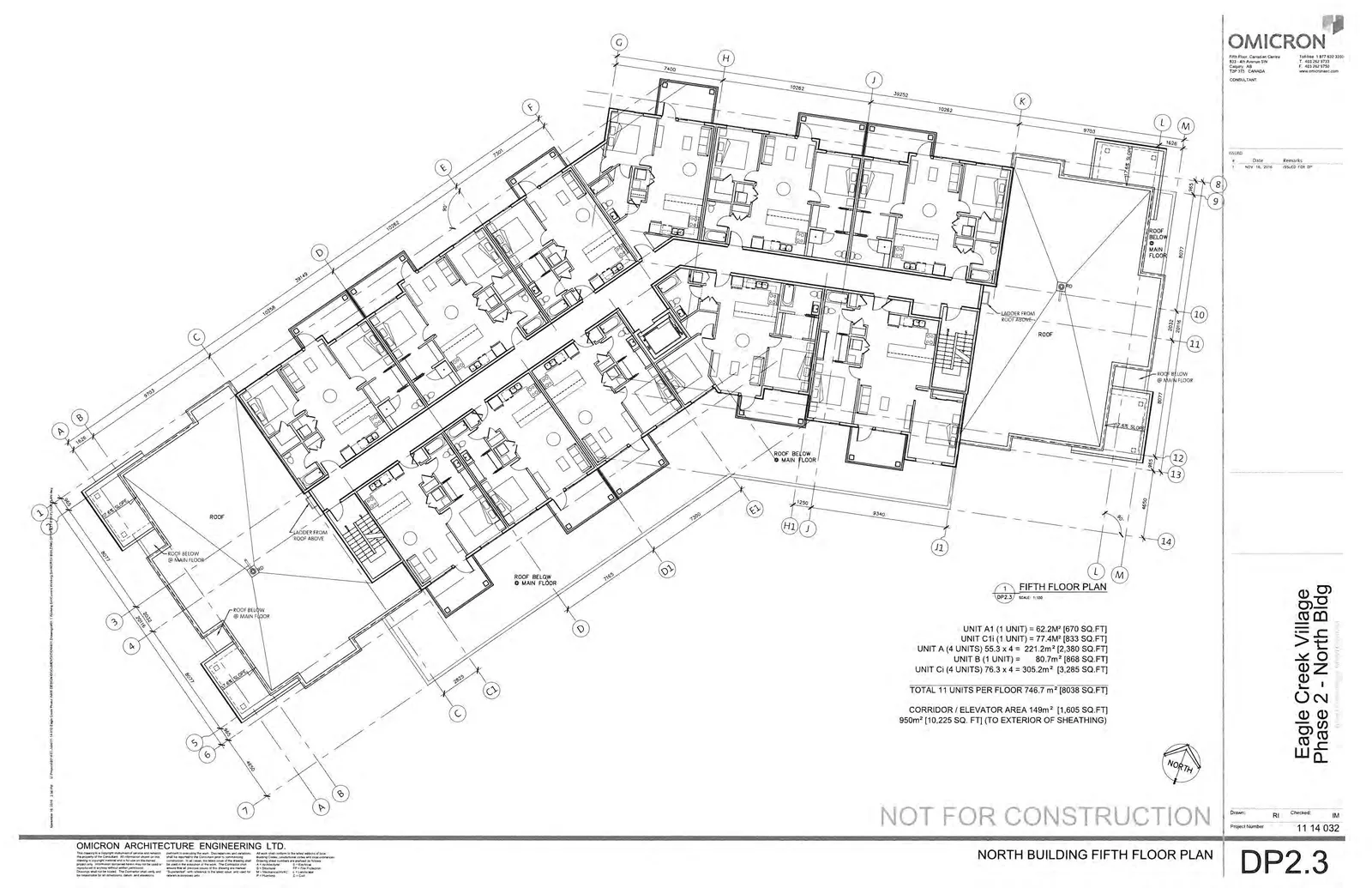

North Building Fifth Floor Plan diagram showing the layout of 11 residential units, common corridors, elevator access, and surrounding roof areas, plotted against a grid of axes labeled A through M and 1 through 14.
North Building Fifth Floor Plan diagram showing the layout of 11 residential units, common corridors, elevator access, and surrounding roof areas, plotted against a grid of axes labeled A through M and 1 through 14.

Unit and Area Summary

Unit Type Unit Count Area (m²) Area (sq. ft.)
UNIT A1 1 UNIT 62.2 m² 670 SQ.FT
UNIT C1i 1 UNIT 77.4 m² 833 SQ.FT
UNIT A 4 UNITS 55.3 x 4 = 221.2 m² 2,380 SQ.FT
UNIT B 1 UNIT 80.7 m² 868 SQ.FT
UNIT Ci 4 UNITS 76.3 x 4 = 305.2 m² 3,285 SQ.FT
TOTAL 11 UNITS PER FLOOR 746.7 m² 8,038 SQ.FT

Total Floor Area Data

  • CORRIDOR / ELEVATOR AREA: 149 m² [1,605 SQ.FT]
  • TOTAL (TO EXTERIOR OF SHEATHING): 950 m² [10,225 SQ. FT]

Revision History

No. Date Remarks
1 NOV 16, 2018 ISSUED FOR DP

Consultant Information

Omicron Architecture Engineering Ltd. 5th Floor, Cambrian Centre 823 - 4th Avenue SW Calgary, AB T2P 3T5 CANADA

Page 68
