Committee of the Whole/Documents/DP 2016/14 - Attachment 10. DP2.4 – Roof Plan
Appendix

DP 2016/14 - Attachment 10. DP2.4 – Roof Plan

January 10, 2017Page 691 section

Roof plan indicating mechanical units and screening structures.

2. APPROVAL OF AGENDA

Eagle Creek Village Phase 2 - North Bldg

North Building Roof Plan

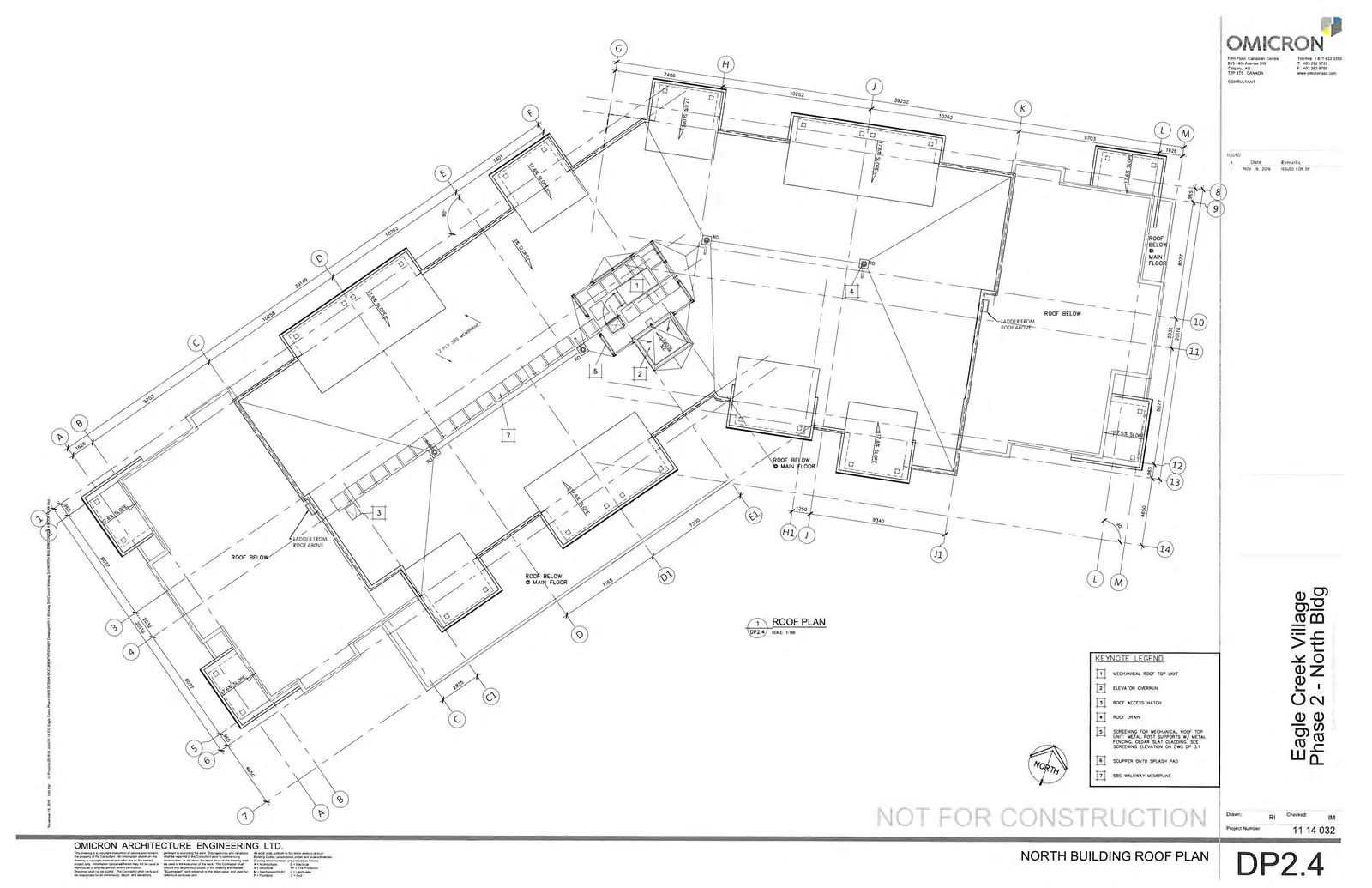

Architectural drawing of the North Building Roof Plan showing mechanical units, roof access points, roof slopes, and dimensions.
Architectural drawing of the North Building Roof Plan showing mechanical units, roof access points, roof slopes, and dimensions.

ROOF PLAN Scale: 1:100

Keynote Legend

Keynote Description
1 MECHANICAL ROOF TOP UNIT
2 ELEVATOR OVERRUN
3 ROOF ACCESS HATCH
4 ROOF DRAIN
5 SCREENING FOR MECHANICAL ROOF TOP UNIT; METAL POST SUPPORTS W/ METAL FENCING. CLEAR SLAT CLADDING. SEE SCREENING ELEVATION ON DWG DP 3.1
6 SCUPPER ONTO SPLASH PAD
7 SBS WALKWAY MEMBRANE

Project Information

  • Project Number: 11 14 032
  • Drawing Number: DP2.4
  • Date: NOV. 16, 2016

Revisions

  • 1: NOV. 16, 2016 - ISSUED FOR DP
Page 69
