DP 2016/14 - Attachment 13-14. Exterior Elevations
North, South, East, and West exterior architectural drawings.
NORTH BUILDING EXTERIOR ELEVATIONS

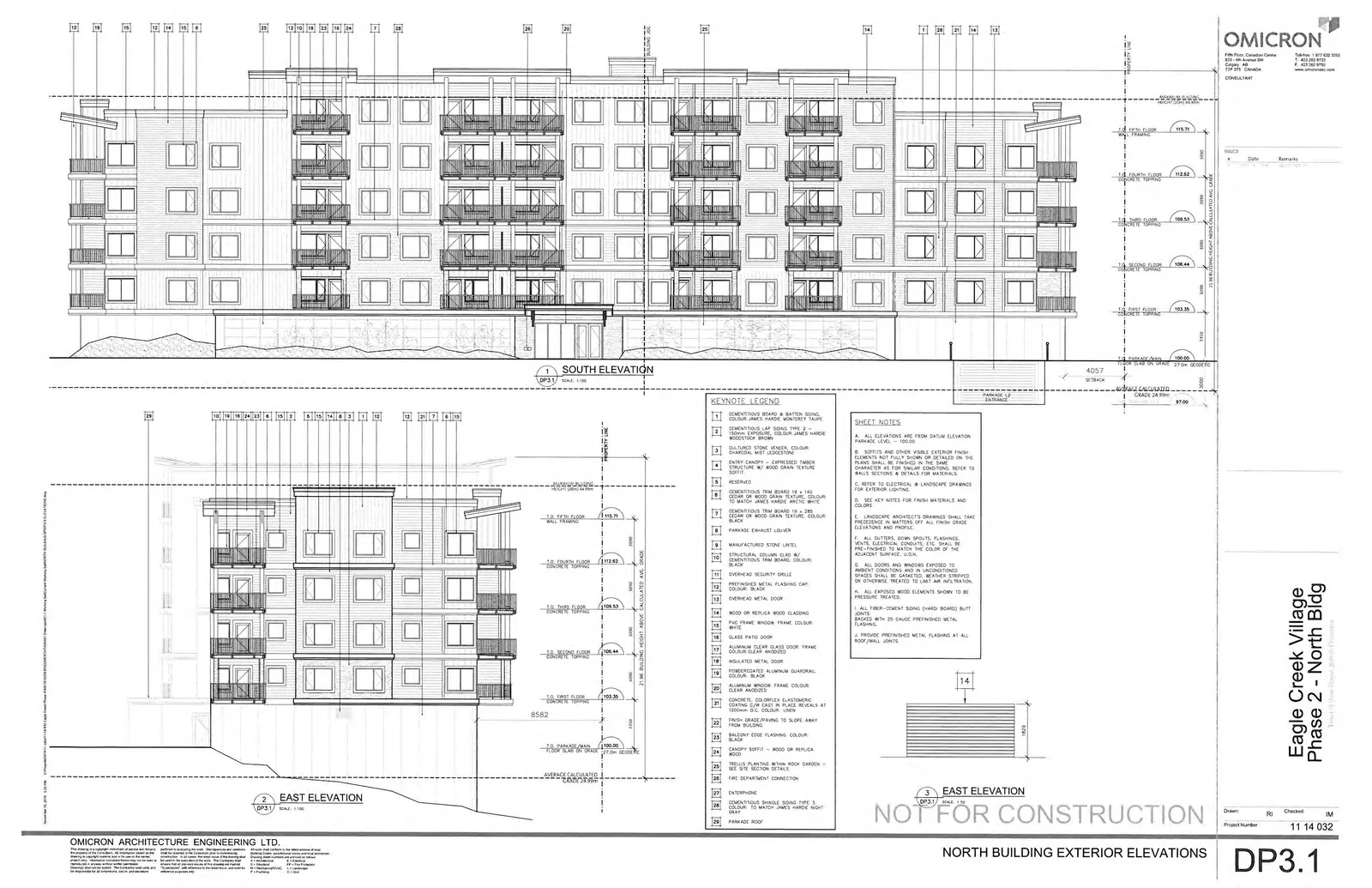

1 SOUTH ELEVATION
2 EAST ELEVATION
3 EAST ELEVATION
KEYNOTE LEGEND
| Keynote | Description |
|---|---|
| 1 | CEMENTITIOUS BOARD & BATTEN SIDING. COLOUR: JAMES HARDIE MONTEREY TAUPE |
| 2 | CEMENTITIOUS LAP SIDING TYPE 2 - 150mm EXPOSURE, COLOUR: JAMES HARDIE WOODSTOCK BROWN |
| 3 | CULTURED STONE VENEER. COLOUR: CHARCOAL MIST LEDGESTONE |
| 4 | ENTRY CANOPY - EXPRESSED TIMBER STRUCTURE W/ WOOD GRAIN TEXTURE SOFFIT |
| 5 | RESERVED |
| 6 | CEMENTITIOUS TRIM BOARD 19 x 140 CEDAR OR WOOD GRAIN TEXTURE. COLOUR: TO MATCH JAMES HARDIE ARCTIC WHITE |
| 7 | CEMENTITIOUS TRIM BOARD 19 x 285 CEDAR OR WOOD GRAIN TEXTURE. COLOUR: BLACK |
| 8 | PARKADE EXHAUST LOUVER |
| 9 | MANUFACTURED STONE LINTEL |
| 10 | STRUCTURAL COLUMN CLAD W/ CEMENTITIOUS TRIM BOARD. COLOUR: BLACK |
| 11 | OVERHEAD SECURITY GRILLE |
| 12 | PREFINISHED METAL FLASHING CAP. COLOUR: BLACK |
| 13 | OVERHEAD METAL DOOR |
| 14 | WOOD OR REPLICA WOOD CLADDING |
| 15 | PVC FRAME WINDOW FRAME. COLOUR: WHITE |
| 16 | GLASS PATIO DOOR |
| 17 | ALUMINUM CLEAR GLASS DOOR FRAME COLOUR: CLEAR ANODIZED |
| 18 | INSULATED METAL DOOR |
| 19 | POWDERCOATED ALUMINUM GUARDRAIL. COLOUR: BLACK |
| 20 | ALUMINUM WINDOW FRAME COLOUR: CLEAR ANODIZED |
| 21 | CONCRETE COLORFLEX ELASTOMERIC COATING C/W CAST IN PLACE REVEALS AT 1200mm O.C. COLOUR: LINEN |
| 22 | FINISH GRADE/PAVING TO SLOPE AWAY FROM BUILDING |
| 23 | BALCONY EDGE FLASHING. COLOUR: BLACK |
| 24 | CANOPY SOFFIT - WOOD OR REPLICA WOOD |
| 25 | TRELLIS PLANTING WITHIN ROCK GARDEN - SEE SITE SECTION DETAILS |
| 26 | FIRE DEPARTMENT CONNECTION |
| 27 | ENTERPHONE |
| 28 | CEMENTITIOUS SHINGLE SIDING TYPE 3. COLOUR: TO MATCH JAMES HARDIE NIGHT GRAY |
| 29 | PARKADE ROOF |
SHEET NOTES
A. ALL ELEVATIONS ARE FROM DATUM ELEVATION PARKADE LEVEL = 100.00
B. SOFFITS AND OTHER VISIBLE EXTERIOR FINISH ELEMENTS NOT FULLY SHOWN OR DETAILED ON THE PLANS SHALL BE FINISHED IN THE SAME CHARACTER AS FOR SIMILAR CONDITIONS. REFER TO WALLS SECTIONS & DETAILS FOR MATERIALS.
C. REFER TO ELECTRICAL & LANDSCAPE DRAWINGS FOR EXTERIOR LIGHTING.
D. SEE KEY NOTES FOR FINISH MATERIALS AND COLORS.
E. LANDSCAPE ARCHITECT'S DRAWINGS SHALL TAKE PRECEDENCE IN MATTERS OFF ALL FINISH GRADE ELEVATIONS AND PROFILE.
F. ALL GUTTERS, DOWN SPOUTS, FLASHINGS, VENTS, ELECTRICAL CONDUITS, ETC. SHALL BE PRE-FINISHED TO MATCH THE COLOR OF THE ADJACENT SURFACE, U.O.N.
G. ALL DOORS AND WINDOWS EXPOSED TO AMBIENT CONDITIONS AND IN UNCONDITIONED SPACES SHALL BE GASKETED, WEATHER STRIPPED OR OTHERWISE TREATED TO LIMIT AIR INFILTRATION.
H. ALL EXPOSED WOOD ELEMENTS SHOWN TO BE PRESSURE TREATED.
I. ALL FIBER-CEMENT SIDING (HARDIE BOARD) BUTT JOINTS BACKED WITH 26 GAUGE PREFINISHED METAL FLASHING.
J. PROVIDE PREFINISHED METAL FLASHING AT ALL ROOF/WALL JOINTS.
Eagle Creek Village Phase 2 - North Bldg Project Number: 11 14 032 DP3.1
NORTH BUILDING EXTERIOR ELEVATIONS

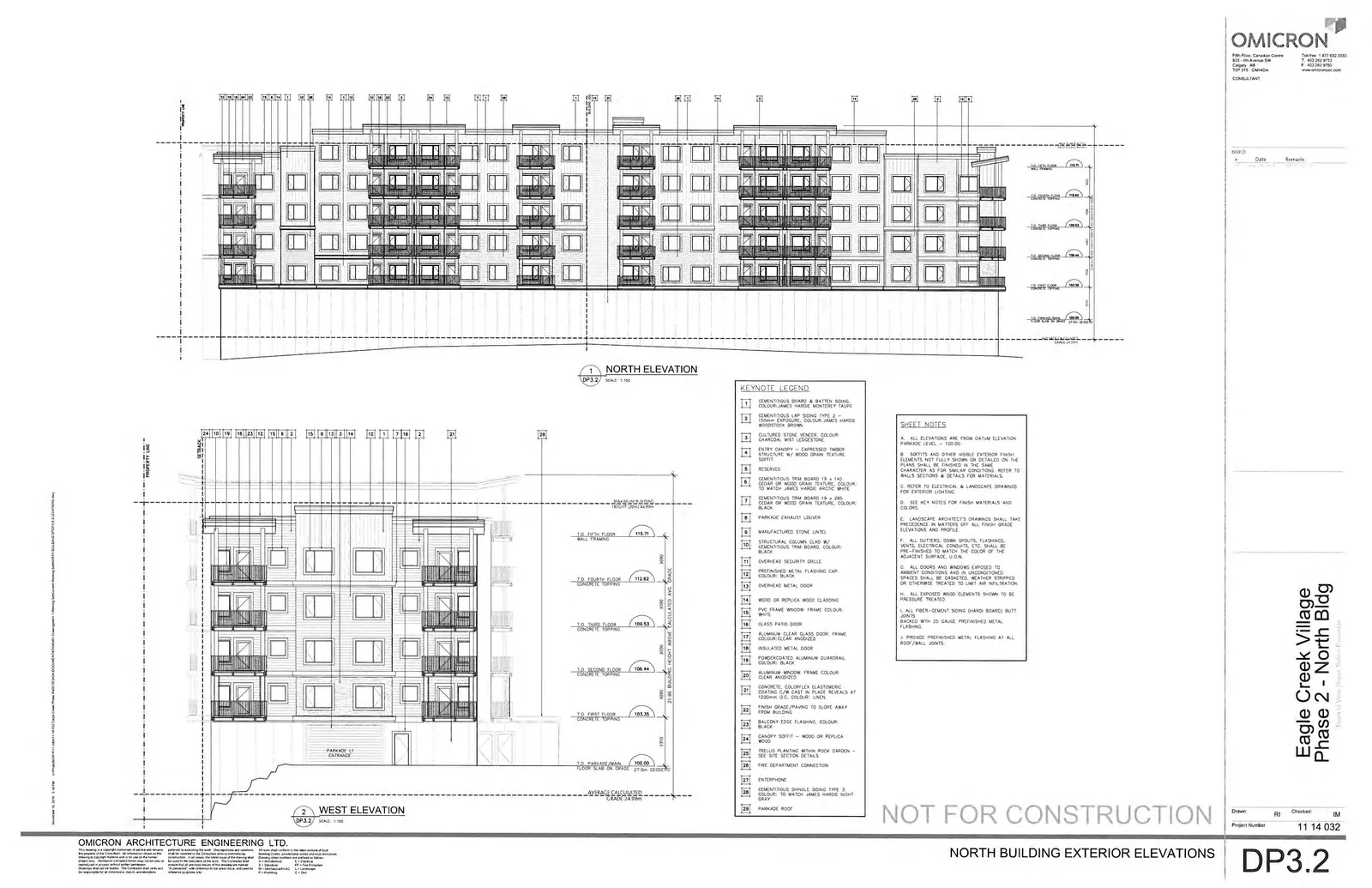

1 NORTH ELEVATION
2 WEST ELEVATION
KEYNOTE LEGEND
| Keynote | Description |
|---|---|
| 1 | CEMENTITIOUS BOARD & BATTEN SIDING. COLOUR: JAMES HARDIE MONTEREY TAUPE |
| 2 | CEMENTITIOUS LAP SIDING TYPE 2 - 150mm EXPOSURE, COLOUR: JAMES HARDIE WOODSTOCK BROWN |
| 3 | CULTURED STONE VENEER. COLOUR: CHARCOAL MIST LEDGESTONE |
| 4 | ENTRY CANOPY - EXPRESSED TIMBER STRUCTURE W/ WOOD GRAIN TEXTURE SOFFIT |
| 5 | RESERVED |
| 6 | CEMENTITIOUS TRIM BOARD 19 x 140 CEDAR OR WOOD GRAIN TEXTURE. COLOUR: TO MATCH JAMES HARDIE ARCTIC WHITE |
| 7 | CEMENTITIOUS TRIM BOARD 19 x 285 CEDAR OR WOOD GRAIN TEXTURE. COLOUR: BLACK |
| 8 | PARKADE EXHAUST LOUVER |
| 9 | MANUFACTURED STONE LINTEL |
| 10 | STRUCTURAL COLUMN CLAD W/ CEMENTITIOUS TRIM BOARD. COLOUR: BLACK |
| 11 | OVERHEAD SECURITY GRILLE |
| 12 | PREFINISHED METAL FLASHING CAP. COLOUR: BLACK |
| 13 | OVERHEAD METAL DOOR |
| 14 | WOOD OR REPLICA WOOD CLADDING |
| 15 | PVC FRAME WINDOW FRAME. COLOUR: WHITE |
| 16 | GLASS PATIO DOOR |
| 17 | ALUMINUM CLEAR GLASS DOOR FRAME COLOUR: CLEAR ANODIZED |
| 18 | INSULATED METAL DOOR |
| 19 | POWDERCOATED ALUMINUM GUARDRAIL. COLOUR: BLACK |
| 20 | ALUMINUM WINDOW FRAME COLOUR: CLEAR ANODIZED |
| 21 | CONCRETE COLORFLEX ELASTOMERIC COATING C/W CAST IN PLACE REVEALS AT 1200mm O.C. COLOUR: LINEN |
| 22 | FINISH GRADE/PAVING TO SLOPE AWAY FROM BUILDING |
| 23 | BALCONY EDGE FLASHING. COLOUR: BLACK |
| 24 | CANOPY SOFFIT - WOOD OR REPLICA WOOD |
| 25 | TRELLIS PLANTING WITHIN ROCK GARDEN - SEE SITE SECTION DETAILS |
| 26 | FIRE DEPARTMENT CONNECTION |
| 27 | ENTERPHONE |
| 28 | CEMENTITIOUS SHINGLE SIDING TYPE 3. COLOUR: TO MATCH JAMES HARDIE NIGHT GRAY |
| 29 | PARKADE ROOF |
SHEET NOTES
A. ALL ELEVATIONS ARE FROM DATUM ELEVATION PARKADE LEVEL = 100.00
B. SOFFITS AND OTHER VISIBLE EXTERIOR FINISH ELEMENTS NOT FULLY SHOWN OR DETAILED ON THE PLANS SHALL BE FINISHED IN THE SAME CHARACTER AS FOR SIMILAR CONDITIONS. REFER TO WALLS SECTIONS & DETAILS FOR MATERIALS.
C. REFER TO ELECTRICAL & LANDSCAPE DRAWINGS FOR EXTERIOR LIGHTING.
D. SEE KEY NOTES FOR FINISH MATERIALS AND COLORS.
E. LANDSCAPE ARCHITECT'S DRAWINGS SHALL TAKE PRECEDENCE IN MATTERS OFF ALL FINISH GRADE ELEVATIONS AND PROFILE.
F. ALL GUTTERS, DOWN SPOUTS, FLASHINGS, VENTS, ELECTRICAL CONDUITS, ETC. SHALL BE PRE-FINISHED TO MATCH THE COLOR OF THE ADJACENT SURFACE, U.O.N.
G. ALL DOORS AND WINDOWS EXPOSED TO AMBIENT CONDITIONS AND IN UNCONDITIONED SPACES SHALL BE GASKETED, WEATHER STRIPPED OR OTHERWISE TREATED TO LIMIT AIR INFILTRATION.
H. ALL EXPOSED WOOD ELEMENTS SHOWN TO BE PRESSURE TREATED.
I. ALL FIBER-CEMENT SIDING (HARDIE BOARD) BUTT JOINTS BACKED WITH 26 GAUGE PREFINISHED METAL FLASHING.
J. PROVIDE PREFINISHED METAL FLASHING AT ALL ROOF/WALL JOINTS.
Eagle Creek Village Phase 2 - North Bldg Project Number: 11 14 032 DP3.2
