Attachment 8. Proposed Development Plan of Lot 1, Sections 97 and 98

June 13, 2017Page 531 section

Professional survey plan showing the proposed subdivision of the subject parcel into five individual lots.

May 23, 2017Plan VIP64516

PROPOSED DEVELOPMENT PLAN OF LOT 1, SECTIONS 97 AND 98, ESQUIMALT DISTRICT, PLAN VIP64516

NOTE: Lot dimensions, areas and subdivision design are subject to vary. Existing encumbrances upon the parcel are not shown. This proposal is subject to rezoning and must be approved by approving authorities.

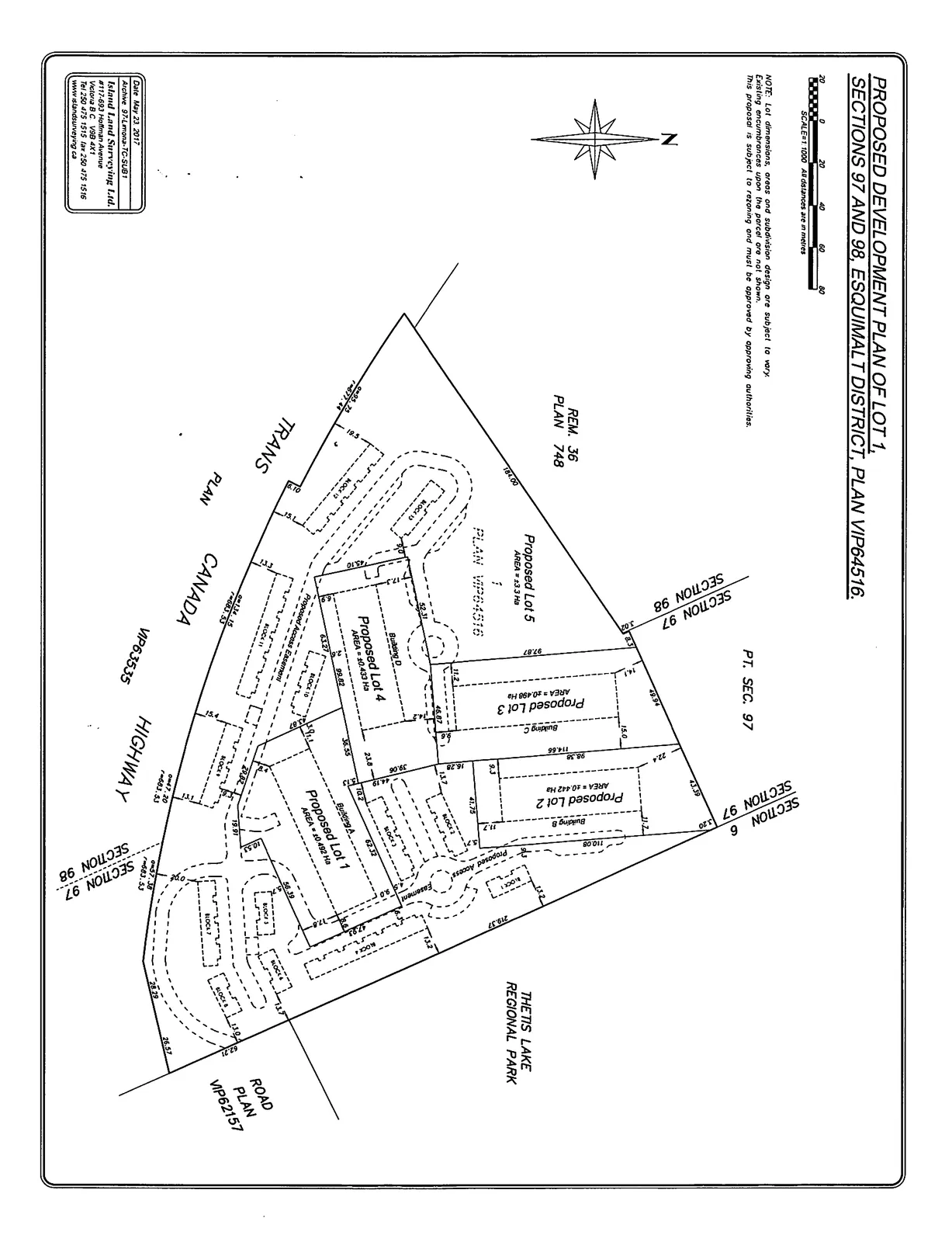

Proposed development plan map showing five proposed lots, building footprints for Buildings A, B, C, and D, various numbered blocks, and access easements. The site is bounded by the Trans Canada Highway to the west, Thetis Lake Regional Park to the east, and Road Plan VIP62157 to the south.
Proposed development plan map showing five proposed lots, building footprints for Buildings A, B, C, and D, various numbered blocks, and access easements. The site is bounded by the Trans Canada Highway to the west, Thetis Lake Regional Park to the east, and Road Plan VIP62157 to the south.

Site Plan Details

  • Proposed Lot 1: AREA = ±0.482 Ha (Includes Building A and Blocks 1-7)
  • Proposed Lot 2: AREA = ±0.442 Ha (Includes Building B and Blocks 1-8)
  • Proposed Lot 3: AREA = ±0.498 Ha (Includes Building C and Blocks 1-6)
  • Proposed Lot 4: AREA = ±0.433 Ha (Includes Building D and Blocks 1-13)
  • Proposed Lot 5: AREA = ±3.3 Ha (PLAN VIP64516)
  • REM. 36 PLAN 748
  • PT. SEC. 97
  • Adjacent Landmarks:
    • THETIS LAKE REGIONAL PARK
    • TRANS CANADA HIGHWAY VIP63535
    • ROAD PLAN VIP62157

Surveyor Information

  • Date: May 23, 2017
  • Archive: 97-Lemare-TC-SUB1
  • Firm: Island Land Surveying Ltd.
  • Address: #117-693 Hoffman Avenue, Victoria B.C. V9B 4X1
  • Tel: 250 475 1515
  • Fax: 250 475 1516
  • Website: www.islandsurveying.ca
