Attachment 7 - Servicing Plan

Preliminary Site Servicing Plan

Site Address: 242 Helmcken & 296 Eltham Legal Description: Lots 2 and 3, Section 8, Esquimalt District, Plan 12695 Benchmark: Traverse Hub 502, Elev. 26.104m Project Number: 33862 Date: April 29, 2022

Status

ISSUED FOR DEVELOPMENT PERMIT

Sheet Notes

CRD crews to cap and abandon existing water service at developers expense.
CRD crews to install domestic and fire service complete with water meter at developers expense. Sizing to be confirmed during building permit stage.
Town of View Royal crews to cap and abandon existing sewer and drain services at developers expense. Contractor to locate sewer services.
Town of View Royal crews to install sewer and drain service at developers expense, sizing to be confirmed during building permit stage.
Contractor to construct 6.0m driveway complete with 2.0m flares as per Town of View Royal standards.
Contractor to remove existing tree. See arborist report.
Contractor to relocate existing 150mm sewer main complete with new manhole to center of existing sewer right of way.
Contractor to install stormwater detention system to meet the required storage volume of 53 m³. Storm tank to be located in parkade, design by mechanical engineer and architect.
Contractor to remove existing driveways and remove and replace existing sidewalks and reinstate boulevard as required.
Contractor to construct 1.5m concrete sidewalk complete with non-mountable curb.

INVERT ELEVATIONS AT PROPERTY LINE DETERMINED FROM RECORD DRAWINGS SUPPLIED BY TOWN OF VIEW ROYAL, FINAL ELEVATIONS TO BE CONFIRMED AT BUILDING PERMIT STAGE.

Proposed Development Summary

Feature	Detail
Proposed Development Area	1396.9 m²
Component Areas	A: 24.1 m² B: 24.1 m² C: 25.0 m²

Key Plan

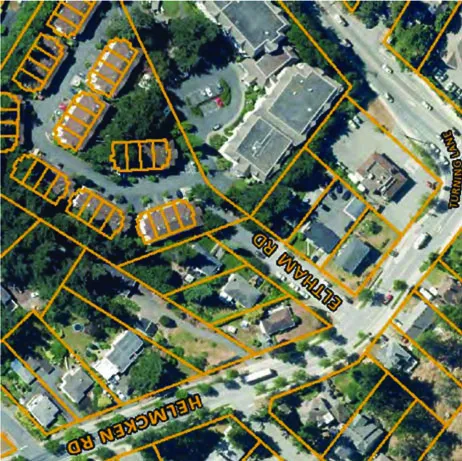

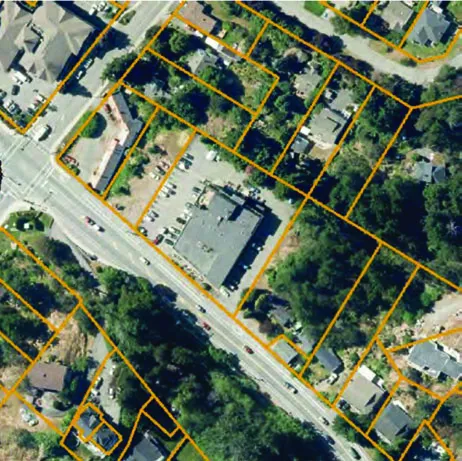

Aerial map of the site showing property parcel boundaries highlighted in yellow

Title Block Information

Field	Information
Project Title	242 HELMCKEN & 296 ELTHAM PRELIMINARY SITE SERVICING PLAN
Scale	Horiz: 1:200, Vert: NTS
Sheet	1 of 1
Eng. Project No.	33862
Firm	J.E. ANDERSON & ASSOCIATES, SURVEYORS - ENGINEERS
Offices	Victoria, Nanaimo, Parksville, Campbell River
Contact	Phone: 250-727-2214, Email: info@jeanderson.com

Site Servicing Plan Annotations

Helmcken Road: Notes include proposed CB (catch basin) to replace existing CB (typ). Contractor to remove existing driveway letdown and replace with non-mountable curb.
Eltham Road: Includes proposed parking and a proposed concrete sidewalk. Existing hydro poles are noted for relocation (design by others).
Internal Site Details:
- Proposed stormwater tank (refer to architect plans).
- Parkade extents (refer to architect plans).
- Existing buildings on Lot 2 and Lot 3 are marked to be demolished.
- Driveway width: 6.00m.
- Proposed building extents (typ) (refer to architect plans).
