Council Meeting/Documents/REQUEST FOR DECISION – ERSKINE LANE BIKE LANE
Staff Report

REQUEST FOR DECISION – ERSKINE LANE BIKE LANE

April 7, 2026Pages 26–3213 sectionsOriginal PDF

A report regarding road adjustments on Erskine Lane to address systemic unlawful parking in the buffered bike lane.

March 31, 2026Location: Erskine LaneRecommended Option 2B: knock down bollards$5,000 one-time installation costUp to $7,000 annual maintenance cost

TOWN OF VIEW ROYAL COUNCIL REPORT

TO: Council DATE: March 31, 2026 FROM: Ivan Leung, P.Eng, Director of Engineering MEETING DATE: April 7, 2026

Page 26–32

REQUEST FOR DECISION – ERSKINE LANE BIKE LANE

Page 26–32

RECOMMENDATION:

THAT staff install knock down bollards akin to “Option 2B” in the staff report “Request for Decision – Erskine Lane Bike Lane”, using the Town’s Transportation Roads budget to install the bollards ($5,000, one time) and maintain the asset (up to $7,000, annually).

Page 26–32

ALTERNATIVE OPTIONS:

Option #2: THAT Council direct staff to install knock down bollards akin to “Option 2A” in the staff report “Request for Decision – Erskine Lane Bike Lane”, using the Town’s Transportation Roads budget to install the bollards ($15,000, one time) and maintain the asset (up to $10,000, annually).

Option #3 (Not Recommended): That Council direct staff to convert the cycle lane into on street parking, complete with an additional mid-block crosswalk if warranted, using the Town’s Transportation Roads budget (up to $10,000)

Page 26–32

PURPOSE:

The purpose of this report is to seek direction from Council on how to proceed with road adjustments on Erskine Lane due to the systemic parking issues that is occurring along the roadway. Per Council direction, solutions that include protection of cycle lanes are to be presented to Council for consideration.

Page 26–32

BACKGROUND:

The decision to install a bike lane on Erskine Lane was a requirement of the 9 Erskine development. A buffered bike lane does provide the necessary road width to be converted to on street parking, but Council discussions at the time opted to improve cycling accessibility due to the transportation demand management opportunities that was analyzed as part of the development (connection to the Galloping Goose Regional Trail is 50m away from the development).

Since occupancy of the 9 Erskine apartment buildings, staff and residents within the vicinity have, and continue to notice vehicles being parked within the buffered bike lane, located on the northbound side of Erskine Lane. Parking within the bike lane is considered unlawful and contravenes the Town’s Streets Bylaw 980 and the Motor Vehicle Act.

Engineering and Bylaw enforcement staff continue to field numerous complaints of the issue. The issues raised include but are not limited to:

  • The obvious unlawful parking of vehicles within the cycle lane (Section 8.1.7 of Streets Bylaw 980) and the request for more enforcement;
  • Pedestrian safety issues arising from vehicles blocking sidewalk access;
  • Emergency access issues;
  • Requests for the bike lane to be converted to on street parking.
2026 2027
Files Opened 7 13
Complaints Received 10 16
MTI 39 21

Bylaw complaints have increased significantly. 2027 complaints have already exceeded the complaints received in 2026.

Figure 1: Parking Issue (March 2026)

Overhead photo showing a line of several cars parked illegally within the buffered bike lane and partially blocking the sidewalk on Erskine Lane.
Overhead photo showing a line of several cars parked illegally within the buffered bike lane and partially blocking the sidewalk on Erskine Lane.
Page 26–32

DISCUSSION:

Engineering has been informed by Bylaw Enforcement that they do not have the resources to regularly patrol and administer ticketing on Erskine Lane. This is especially because many of the incidents occur in the evening. Safety concerns therefore prevail unless adjustments to the roadway are made.

There are two feasible options:

Option 1: Convert Bike Lane to On Street Parking (Not Recommended)

This option was generally suggested by residents of the new apartment complex.

At no point did the Town convey to any resident or development that on street parking would be available on this section of Erskine Lane. As a result, this option is not recommended because:

  1. It does not align with the Town’s strategy to shift transportation away from the vehicle and to encourage active transportation choices. There are opportunities to balance transportation demand management in the vicinity due to the proximity of the development to the Galloping Goose Regional Trail;
  2. On street parking impacts residents in the area from accessing the sidewalk. Until a new sidewalk is installed on the other side of the street, the crossing opportunities for neighbouring residents are impacted due to parked vehicles. A new sidewalk on the far side of the street is a condition of the 10 Erskine development. However, there has been no progress on that development and there does not appear to be any movement on it. Therefore, construction timing of the additional sidewalk is unknown and assumed ‘long term’;
  3. Opening up parking on Erskine Lane will cause conflicts between residents and hospital workers. Hospital worker parking was a systemic issue on Erskine Lane prior to development in the area, and the ‘resident parking only’ restriction are generally difficult to administer.

Costs to convert the bike lane into on street parking would include the eradication of the existing bike lane markings, changes to street signs, and a potential need to add a mid block crosswalk on the street to safely convey pedestrians to the sidewalk (crosswalk warrant required to confirm). Costs could be between $5,000-$10,000 depending on whether a mid block crosswalk is warranted.

Option 2: Install Knock Down Bollards on Bike Lane (Recommended)

This option would provide a physical barrier preventing vehicles from parking along the curb. The recommendation is to install white bollards, similar to what is found within other West Shore municipalities, or the Victoria Core Region. Doing so would not be as robust as installing the bike lane ‘concrete curb plunking’. However, this interim option would be considered a good start, has been successful in other parts of Greater Victoria, and the asset could be removed easily with minimal damage or affect to the existing roadway.

Additionally, the Town’s road maintenance contractor, Victoria Contracting and Municipal Maintenance Corporation, has recently procured a narrow sweeper that is specifically meant to sweep and maintain protected bike lanes. This service will adequately maintain the protected bike lane.

Option 2A and 2B are detailed below complete with approximate installation and maintenance costs:

OPTION 2A

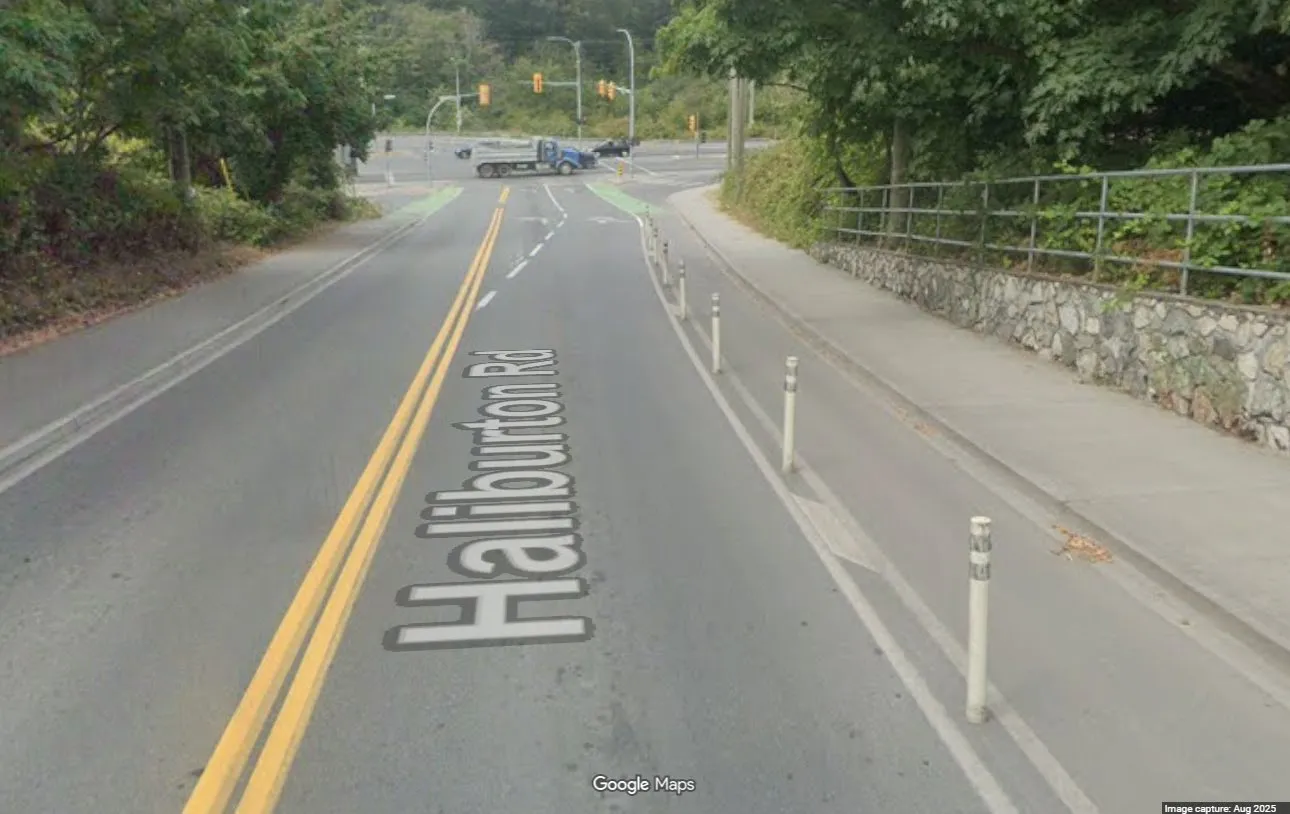

Street view photo of Haliburton Rd showing flush-mounted white delineator posts separating a bike lane from vehicle traffic.
Street view photo of Haliburton Rd showing flush-mounted white delineator posts separating a bike lane from vehicle traffic.
Commonly Used: District of Saanich
Pros: Flush mounted with the roadway, aesthetics
Cons: More expensive capital and replacement costs
Cost to install on Erskine Lane: $15,000 plus GST
Maintenance cost: Sweeping: $2,900 / year
Budget $10,000 ops cost to include contingencies and replacement costs

OPTION 2B (RECOMMENDED)

Studio product shot of a single white knock-down bollard with reflective bands and a black circular base.
Studio product shot of a single white knock-down bollard with reflective bands and a black circular base.
Commonly Used: West Shore
Pros: Lower cost, easier to replace. Easy to remove once a new sidewalk is installed on the far side of the road (development driven).
Cons: Non flush mount is less preferable for cyclists
Cost to install on Erskine Lane: $5,000 plus GST
Maintenance cost: Sweeping: $2,900 / year
Budget $7,000 ops cost to include contingencies and replacement costs
Page 26–32

Non-Feasible Options

Three non-feasible options were investigated:

  • Retain a towing company to tow vehicles: desktop research has indicated that such services are not feasible / not provided within roadways (service only provided on private property and parking lots)
  • Do nothing approach: as the customer level of service far exceeds the Town’s technical level of service, the parking issue will continue to persist and may be precedent setting in that other neighbourhoods, especially areas with higher densities. Safety and accessibility issues would persist.
  • Additional bylaw enforcement staff: not currently in the financial plan, and additional staff would not necessarily solve the issues in the evenings and weekends.
Page 26–32

ANALYSIS:

Impacts and implications can be summarized as follows:

Community Impact: Taking action on the issue would satisfy the concerns of the surrounding neighbourhood. While physically preventing parking may cause hardships for the tenants of the new apartment complex, the benefits of maintaining pedestrian and cyclist access outweigh these hardships.

It has always been conveyed to the new development that TDM measures have been considered as part of the development and that tenants should seek alternative forms of transportation resulting from the off street parking variance.
Financial Implication: The recommended option (Option 2B) would cost approximately $5,000 net of GST for installation. Maintenance costs are recommended to be set at $7,000. These works can be covered using the Town’s current operational budget.
Inter-governmental Relations Impact: N/A
Page 26–32

ALIGNMENT:

The recommended option aligns with the Town’s following core guiding documents as follows:

Strategic Plan: Priority A, Goal 1: Shift primary transport mode within View Royal away from vehicles to walking, cycling and transit.
Official Community Plan: Objective TR1: Recognize walking, cycling and transit as priority modes of transportation in View Royal. Support the expansion of these transportation networks as a means for reducing dependency on car travel and associated greenhouse gas emissions, and promoting a healthy, walkable community.
Other Policy Documents: Active Transportation Network Plan Objective 1, Target 1: Achieve the mode share target of 25% of all trips to work and school by an active mode.
Page 26–32

PUBLIC PARTICIPATION GOAL:

The desired level of public participation for the recommended option is:

[x] Inform [x] Consult [ ] Involve [ ] Collaborate [ ] Empower [ ] N/A

While no formal engagement has been done for the issue, staff have heard from numerous residents in the vicinity through the complaints process. This ‘informal consultation’ has provided staff have a good understanding of the issue, and have been able to acknowledge all positions on the matter.

Page 26–32

TIME CRITICAL:

A council decision would help improve safety and accessibility for pedestrians and cyclists in the vicinity, as well as provide relief to Engineering and Bylaw Enforcement staff.

CONCURRENCE: Initials Comments
Chief Administrative Officer SS I concur wit the recommendation.
REVIEWED BY: Initials
Director of Corporate Administration/Deputy CAO N/A
Director of Finance & Technology SV
Director of Development Services N/A
Director of Engineering IL
Director of Protective Services N/A
Page 26–32

ATTACHMENTS: N/A

Page 26–32
