Appendix

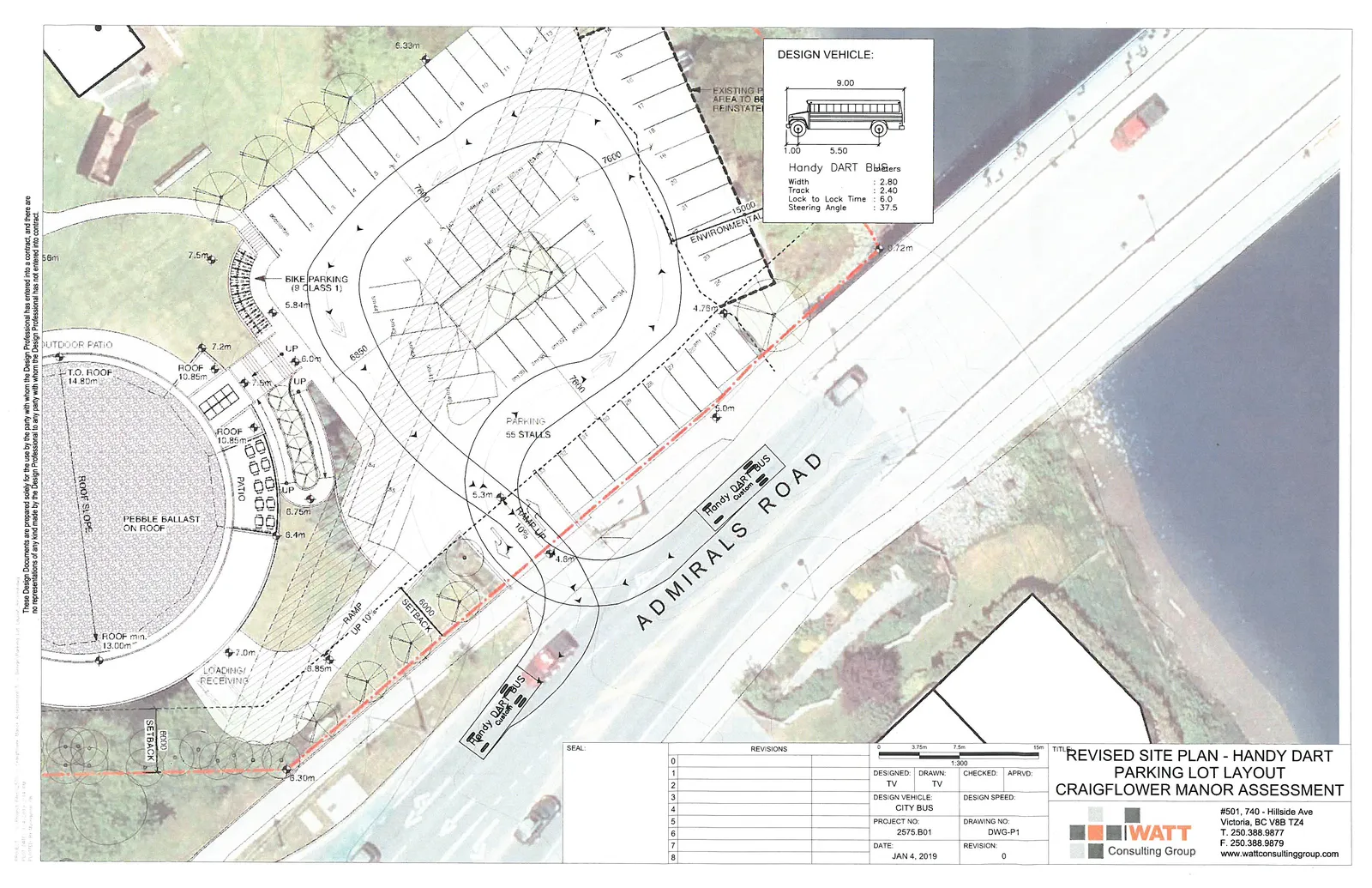

REVISED SITE PLAN - HANDY DART PARKING LOT LAYOUT
March 5, 2019Page 231 section
A site plan drawing by WATT Consulting Group showing the parking lot layout and vehicle maneuvering requirements for Handy DART buses.
January 4, 201955 stallsDesign vehicle: Handy DART Bus
REVISED SITE PLAN - HANDY DART PARKING LOT LAYOUT CRAIGFLOWER MANOR ASSESSMENT
Design Vehicle: Handy DART Bus
| Feature | Specification |
|---|---|
| Width | 2.80 |
| Track | 2.40 |
| Lock to Lock Time | 6.0 |
| Steering Angle | 37.5 |
| Overall Length | 9.00 m |
| Wheelbase | 5.50 m |
| Front Overhang | 1.00 m |
Project Information
| Field | Details |
|---|---|
| Project No: | 2575.B01 |
| Drawing No: | DWG-P1 |
| Date: | Jan 4, 2019 |
| Revision: | 0 |
| Designed: | TV |
| Drawn: | TV |
| Checked: | [Blank] |
| Approved: | [Blank] |
| Design Vehicle: | City Bus |
| Design Speed: | [Blank] |
| Consultant: | WATT Consulting Group |
| Address: | #501, 740 - Hillside Ave, Victoria, BC V8B TZ4 |
| Contact: | T. 250.388.9877, F. 250.388.9879, www.wattconsultinggroup.com |
Plan Details and Annotations
- Roadway: Admirals Road
- Parking Capacity: 55 Stalls
- Bicycle Facilities: Bike Parking (9 Class 1)
- Site Features:
- Outdoor Patio
- Loading / Receiving Area
- Pebble Ballast on Roof
- Roof min. 13.00m
- Access and Grades:
- Ramp Up 10%
- 4.5m, 5.3m, and 5.0m access points
- Setbacks and Dimensions:
- 15000 Environmental Setback
- 8000 Setback
- 6000 Setback
- Other measurements: 6.33m, 7.5m, 14.80m (T.O. Roof), 10.85m (Roof), 6.75m, 6.4m, 7.0m, 8.30m, 0.72m, 4.75m.
Page 23
