Elevations South + West - Craigflower Hall

March 5, 2019Page 271 section

Architectural elevation drawings showing the south and west exterior views of the proposed community center.

1. CALL TO ORDER
September 13, 2018Craigflower Hall

Craigflower Hall - Victoria Scottish Community Centre

Elevations South + West

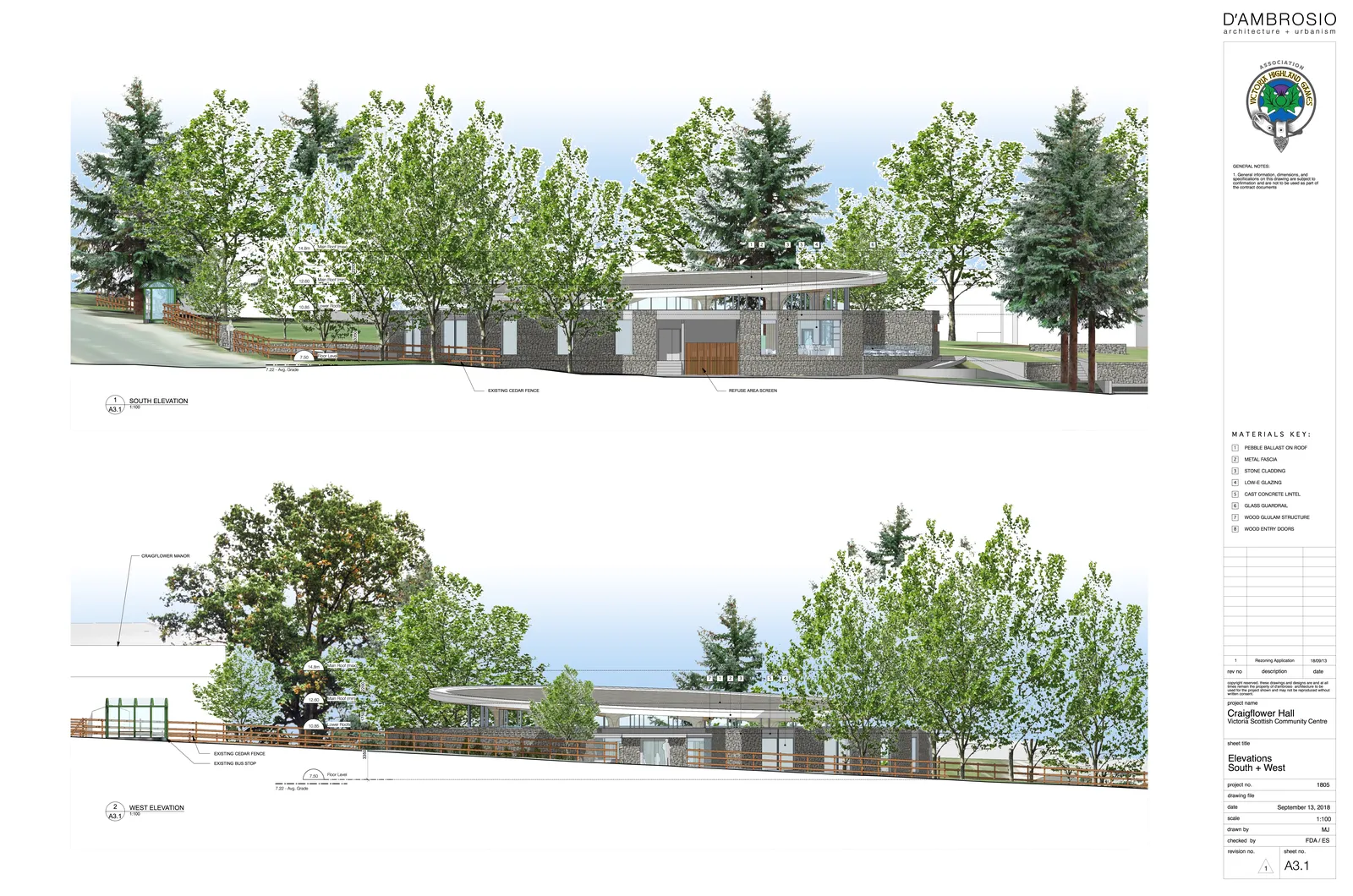

Architectural renderings showing the South and West elevations of Craigflower Hall. The South Elevation (top) shows the building nestled among trees with stone cladding and a refuse area screen. The West Elevation (bottom) shows the building's profile relative to the existing bus stop and Craigflower Manor, featuring a low roofline and glass guardrails.
Architectural renderings showing the South and West elevations of Craigflower Hall. The South Elevation (top) shows the building nestled among trees with stone cladding and a refuse area screen. The West Elevation (bottom) shows the building's profile relative to the existing bus stop and Craigflower Manor, featuring a low roofline and glass guardrails.

Materials Key

  1. PEBBLE BALLAST ON ROOF
  2. METAL FASCIA
  3. STONE CLADDING
  4. LOW-E GLAZING
  5. CAST CONCRETE LINTEL
  6. GLASS GUARDRAIL
  7. WOOD GLULAM STRUCTURE
  8. WOOD ENTRY DOORS

General Notes

  1. General information, dimensions, and specifications on this drawing are subject to confirmation and are not to be used as part of the contract document.

Revision History

rev no description date
1 Rezoning Application 18/09/13

Project Information

  • Project Name: Craigflower Hall Victoria Scottish Community Centre
  • Sheet Title: Elevations South + West
  • Project No.: 1805
  • Date: September 13, 2018
  • Scale: 1:100
  • Drawn by: MJ
  • Checked by: FDA / ES
  • Revision No.: 1
  • Sheet No.: A3.1
Page 27
Extracted from: 2019 03 05 Public Hearing Agenda - Agenda - Pdf
