Northwest Trunk - Western Craigflower Pump Station Site and Grading Plan

April 30, 2013Page 441 section

Detailed engineering site plan showing grades, asphalt surfaces, and building footprint.

1. CALL TO ORDER
Pump Station EL. 3.47

SITE AND GRADING PLAN

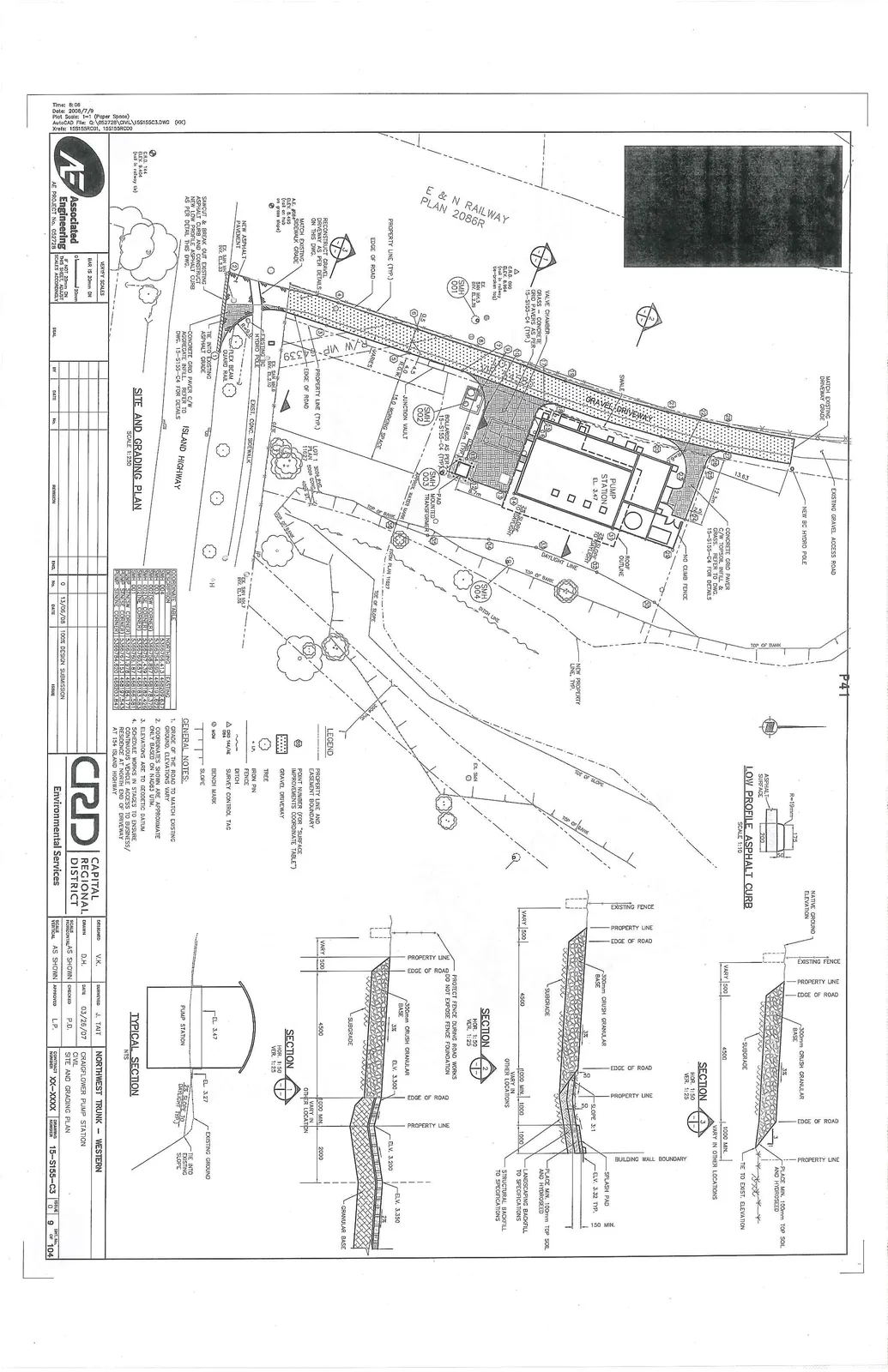

Site and Grading Plan for Craigflower Pump Station, featuring a plan view of the site, coordinate table, legend, general notes, and typical sections for roadway and curb construction.
Site and Grading Plan for Craigflower Pump Station, featuring a plan view of the site, coordinate table, legend, general notes, and typical sections for roadway and curb construction.

COORDINATE TABLE

COORDINATE DESCRIPTION NORTHING EASTING
SMH 004 5366768.413 468409.837
SMH 002 5366754.550 468371.892
SMH 001(NW CORNER) 5366758.857 468338.332
SMH 001(NE CORNER) 5366761.438 468342.428
SMH 001(SE CORNER) 5366757.342 468345.008
SMH 001(SW CORNER) 5366754.761 468340.912
PUMP STN(NW CORNER) 5366785.187 468385.981
PUMP STN(NE CORNER) 5366791.228 468394.137
PUMP STN(SE CORNER) 5366780.353 468402.214
PUMP STN(SW CORNER) 5366784.620 468393.847

GENERAL NOTES:

  1. GRADE OF THE ROAD TO MATCH EXISTING GROUND, ELEVATIONS VARY.
  2. COORDINATES SHOWN ARE APPROXIMATE ONLY BASED ON NAD83 UTM.
  3. ELEVATIONS ARE TO GEODETIC DATUM.
  4. SCHEDULE WORKS IN STAGES TO ENSURE CONTINUOUS VEHICLE ACCESS TO BUSINESS/RESIDENCE AT NORTH END OF DRIVEWAY AT 154 ISLAND HIGHWAY.

LEGEND:

  • Property Line and Easement Boundary
  • Point Number (for "Surface Improvements Coordinate Table")
  • Gravel Driveway
  • Tree
  • Iron Pin
  • Fence
  • Ditch
  • Survey Control Tag
  • Bench Mark
  • Slope

DETAIL SECTIONS:

  • LOW PROFILE ASPHALT CURB (SCALE 1:10)
  • SECTION 1 (SCALE HOR. 1:50, VER. 1:25) - Roadway cross-section with 300mm crush granular base.
  • SECTION 2 (SCALE HOR. 1:50, VER. 1:25) - Cross-section showing junction vault and road edge.
  • SECTION 3 (SCALE HOR. 1:50, VER. 1:25) - Cross-section at building wall boundary with splash pad (ELV. 3.32 TYP.).
  • TYPICAL SECTION (NTS) - Pump station cross-section showing EL. 3.47 floor and EL. 3.27 ground.

REVISION HISTORY:

NO. DATE REVISION ENG. NO.
0 13/06/08 100% DESIGN SUBMISSION MD [Check]

PROJECT INFORMATION:

  • Project Name: NORTHWEST TRUNK - WESTERN
  • Project Subtitle: CRAIGFLOWER PUMP STATION
  • Discipline: CIVIL
  • Drawing Title: SITE AND GRADING PLAN
  • Date: 03/26/07
  • Project No.: 052728
  • Contract Number: XX-XXXX
  • Drawing Number: 15-S155-C3
  • Sheet: 9 of 104
  • Drawn: D.H.
  • Checked: P.D.
  • Approved: L.P.
  • Scale (Horizontal): AS SHOWN
  • Scale (Vertical): AS SHOWN
