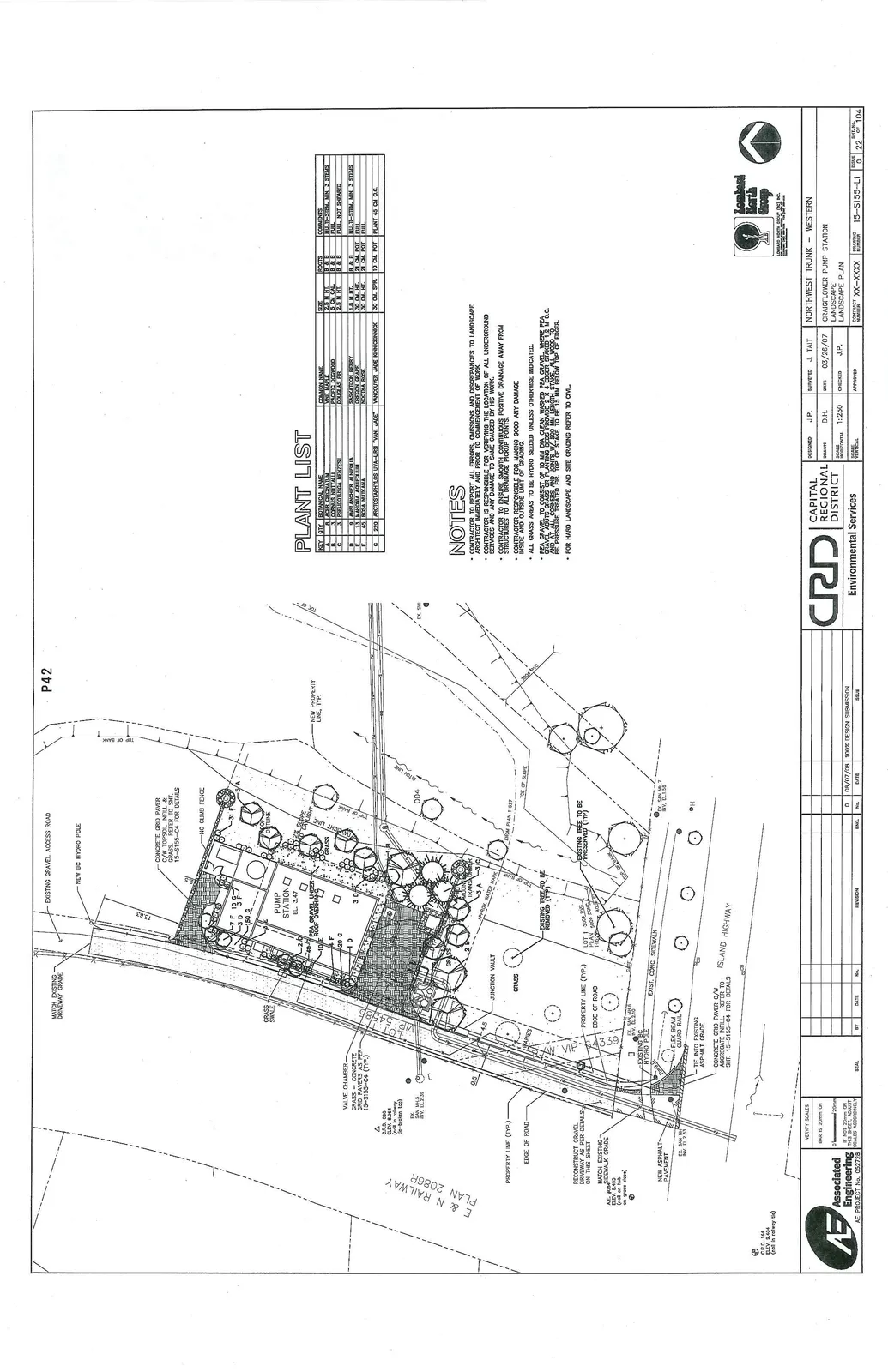

Northwest Trunk - Western Craigflower Pump Station Landscape Plan

Landscape Plan

Project Information

Project: Northwest Trunk — Western
Title: Craigflower Pump Station Landscape Plan
Date: 03/26/07
Drawing Number: 15-S155-L1
Revision: 0 (08/07/08 100% Design Submission)
Designed: J.P.
Surveyed: J. Tait
Drawn: D.H.
Checked: J.P.
Scale Horizontal: 1:250

Plant List

KEY	QTY	BOTANICAL NAME	COMMON NAME	SIZE	ROOTS	COMMENTS
A	8	ACER CIRCINATUM	VINE MAPLE	2.5 M HT.	B & B	MULTI-STEM, MIN. 3 STEMS
B	3	CORNUS NUTTALLII	PACIFIC DOGWOOD	5 CM CAL.	B & B	FULL
C	3	PSEUDOTSUGA MENZIESII	DOUGLAS FIR	2.5 M HT.	B & B	FULL, NOT SHEARED
D	9	AMELANCHIER ALNIFOLIA	SASKATOON BERRY	1.8 M HT.	B & B	MULTI-STEM, MIN. 3 STEMS
E	13	MAHONIA AQUIFOLIUM	OREGON GRAPE	30 CM. HT.	21 CM. POT	FULL
F	45	ROSA NUTKANA	NOOTKA ROSE	30 CM. HT.	21 CM. POT	FULL
G	220	ARCTOSTAPHYLOS UVA-URSI "VAN JADE"	VANCOUVER JADE KINNICKINNICK	30 CM. SPR.	10 CM. POT	PLANT 45 CM O.C.

Notes

CONTRACTOR TO NOTIFY ALL ERRORS, OMISSIONS AND DISCREPANCIES TO LANDSCAPE ARCHITECT IMMEDIATELY AND PRIOR TO COMMENCEMENT OF WORK.
CONTRACTOR IS RESPONSIBLE FOR VERIFYING THE LOCATION OF ALL UNDERGROUND SERVICES AND ANY DAMAGE TO SAME CAUSED BY HIS WORK.
CONTRACTOR TO ENSURE SMOOTH CONTINUOUS POSITIVE DRAINAGE AWAY FROM STRUCTURES TO ALL DRAINAGE PICKUP POINTS.
CONTRACTOR RESPONSIBLE FOR MAKING GOOD ANY DAMAGE INSIDE AND OUTSIDE LIMIT OF GRADING.
ALL GRASS AREAS TO BE HYDRO SEEDED UNLESS OTHERWISE INDICATED.
PEA GRAVEL TO CONSIST OF 10 MM DIA CLEAN WASHED PEA GRAVEL. WHERE PEA GRAVEL ABUTS GRADE OR PLANTING BEDS PROVIDE 2 X 4 EDGER STAKED 1.2 M O.C. AND AT ALL CORNERS AND JOINTS W/ 300 MM LENGTH STAKE. ALL WOOD TO BE PRESSURE TREATED FIR. TOP OF STAKE TO BE 15 MM BELOW TOP OF EDGER.
FOR HARD LANDSCAPE AND SITE GRADING REFER TO CIVIL.
