Attachment 9. West Side Elevation Drawing

April 2, 2013Page 361 section

Technical drawing showing the side elevation of the structure and retaining wall.

1 CALL TO ORDER
Date: 16/02/13

Attachment 9

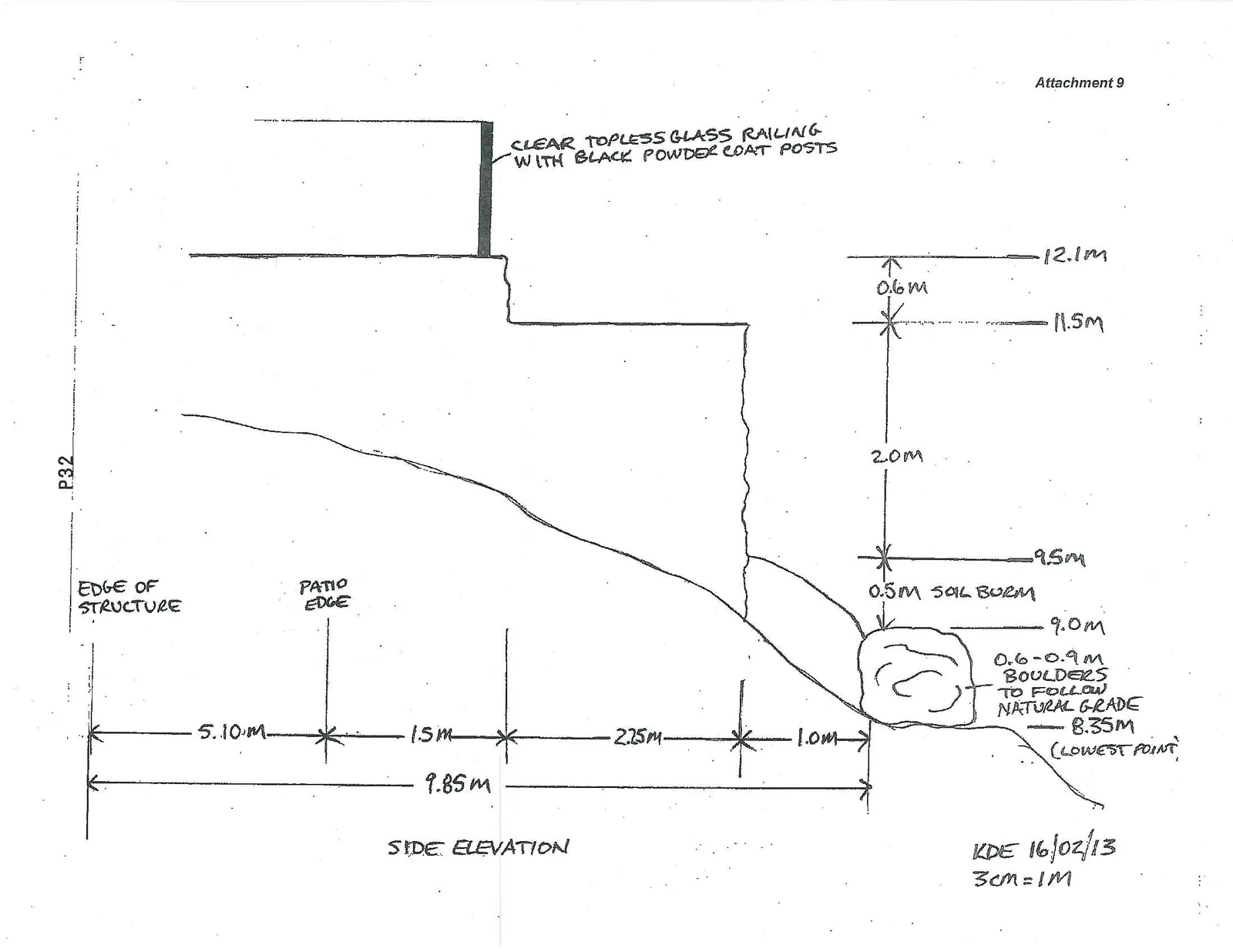

Hand-drawn side elevation diagram showing landscape and structural measurements including a glass railing, patio edge, soil berm, and boulders.
Hand-drawn side elevation diagram showing landscape and structural measurements including a glass railing, patio edge, soil berm, and boulders.

SIDE ELEVATION

Labels and Annotations:

  • CLEAR TOPLESS GLASS RAILING WITH BLACK POWDER COAT POSTS
  • EDGE OF STRUCTURE
  • PATIO EDGE
  • 0.5M SOIL BURM
  • 0.6-0.9M BOULDERS TO FOLLOW NATURAL GRADE
  • 8.35M (LOWEST POINT)
  • KDE 16/02/13
  • 3cm = 1M

Vertical Elevation and Height Measurements:

  • 12.1m (Top of railing)
  • 0.6m (Railing height)
  • 11.5m (Upper patio level)
  • 2.0m (Vertical drop to mid-level)
  • 9.5m (Mid-level elevation)
  • 0.5m (Vertical drop to soil berm)
  • 9.0m (Berm elevation)
  • 8.35m (Lowest point at natural grade)

Horizontal Measurements:

  • 5.10m (From edge of structure to patio edge)
  • 1.5m
  • 2.25m
  • 1.0m
  • 9.85m (Total horizontal span)
