Council Meeting/Documents/Attachment 5. Detailed Plans and Elevations
Appendix

Attachment 5. Detailed Plans and Elevations

April 2, 2013Pages 72–765 sections

Hand-drawn sections and plans for the proposed stoop and deck replacements.

1 CALL TO ORDER
Date: Jan 10/1348" wide steps

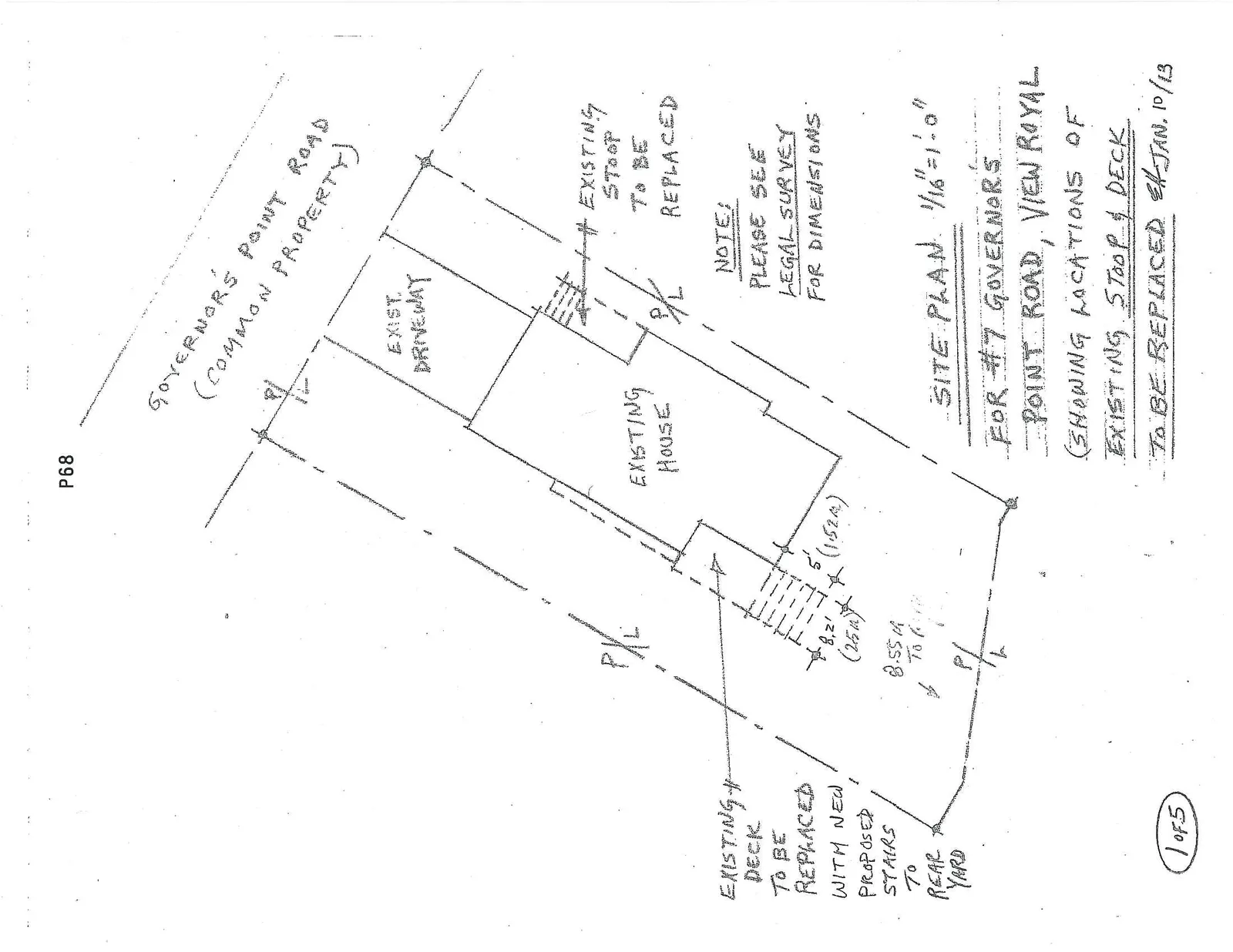

SITE PLAN

Site plan for #7 Governors Point Road showing locations of existing house, driveway, stoop, and deck.
Site plan for #7 Governors Point Road showing locations of existing house, driveway, stoop, and deck.

Project Information:

  • Site Plan Scale: 1/16" = 1'-0"
  • Property Address: #7 Governors Point Road, View Royal
  • Description: Showing locations of existing stoop and deck to be replaced
  • Date: Jan. 10/13

Site Details:

  • Governors Point Road (Common Property)
  • Existing Driveway
  • Existing House
  • Existing Stoop to be Replaced
  • Existing Deck to be replaced with new proposed stairs to rear yard
  • Property Lines (P/L) labeled
  • Dimensions noted: 8.2' (2.5m), 5' (1.52m), and 8.55m to Property Line

Note: Please see legal survey for dimensions.

Page 72–76

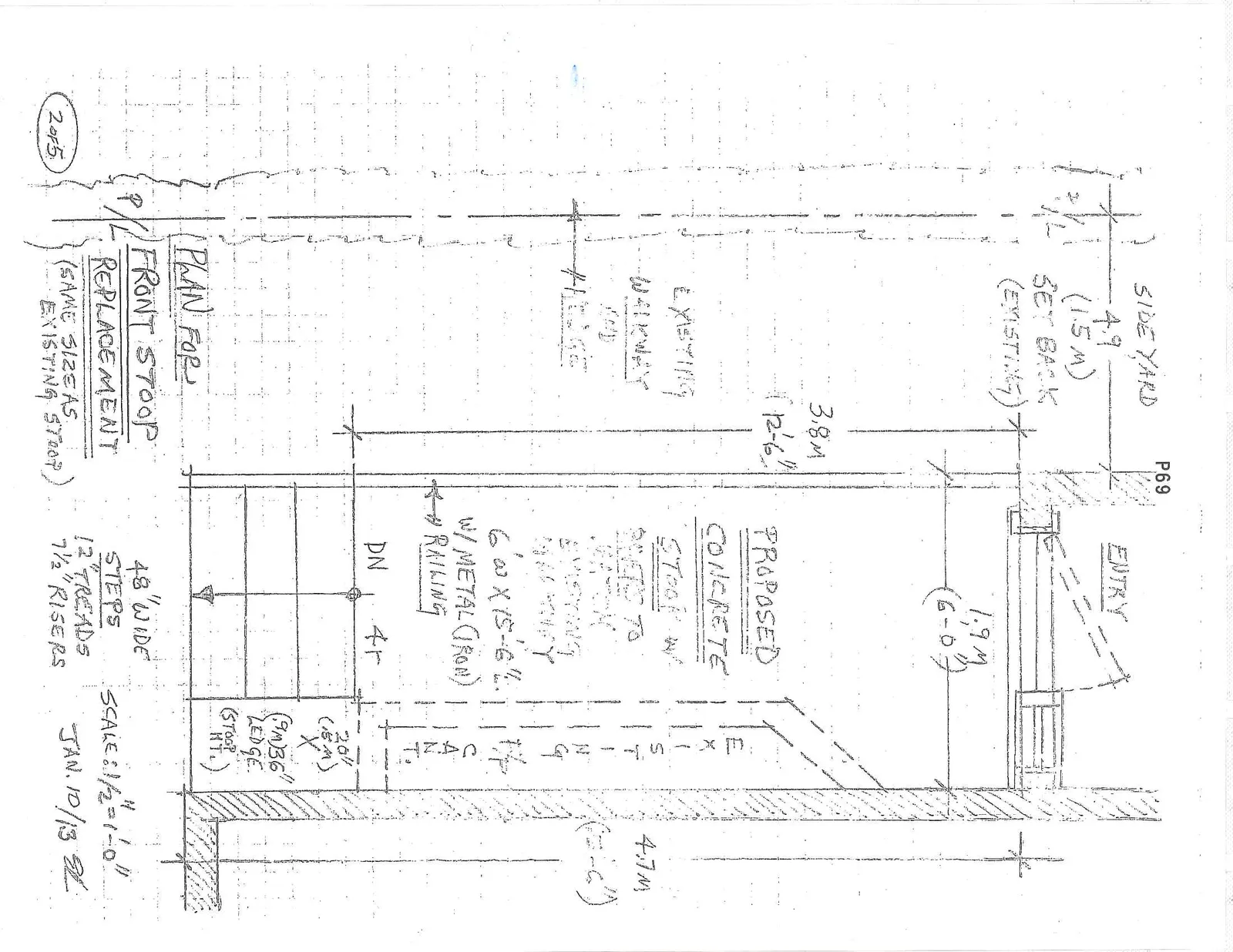

PLAN FOR FRONT STOOP REPLACEMENT

Detailed plan view for the proposed front stoop replacement.
Detailed plan view for the proposed front stoop replacement.

Sub-heading: (Same sizes as existing stoop)

  • Scale: 1/2" = 1'-0"
  • Date: Jan. 10/13

Specifications:

  • Proposed Material: Concrete stoop with steps to match existing walkway
  • Dimensions: 6'W x 15'-6"L with metal (iron) railing
  • Steps: 48" wide steps, 12" treads, 7 1/2" risers (Down 4 risers)
  • Ledge (Stoop Height): 20" (.5m) x 36" (.9m)
  • Stoop Footprint: 1.9m (6'-0") width x 3.8m (12'-6") length
  • Setback: Existing side yard set back of 4.9' (1.5m) to Property Line
  • Existing Features: Entry door, existing walkway and hedge, existing 4.7m (15'-6") cantilever
Page 72–76

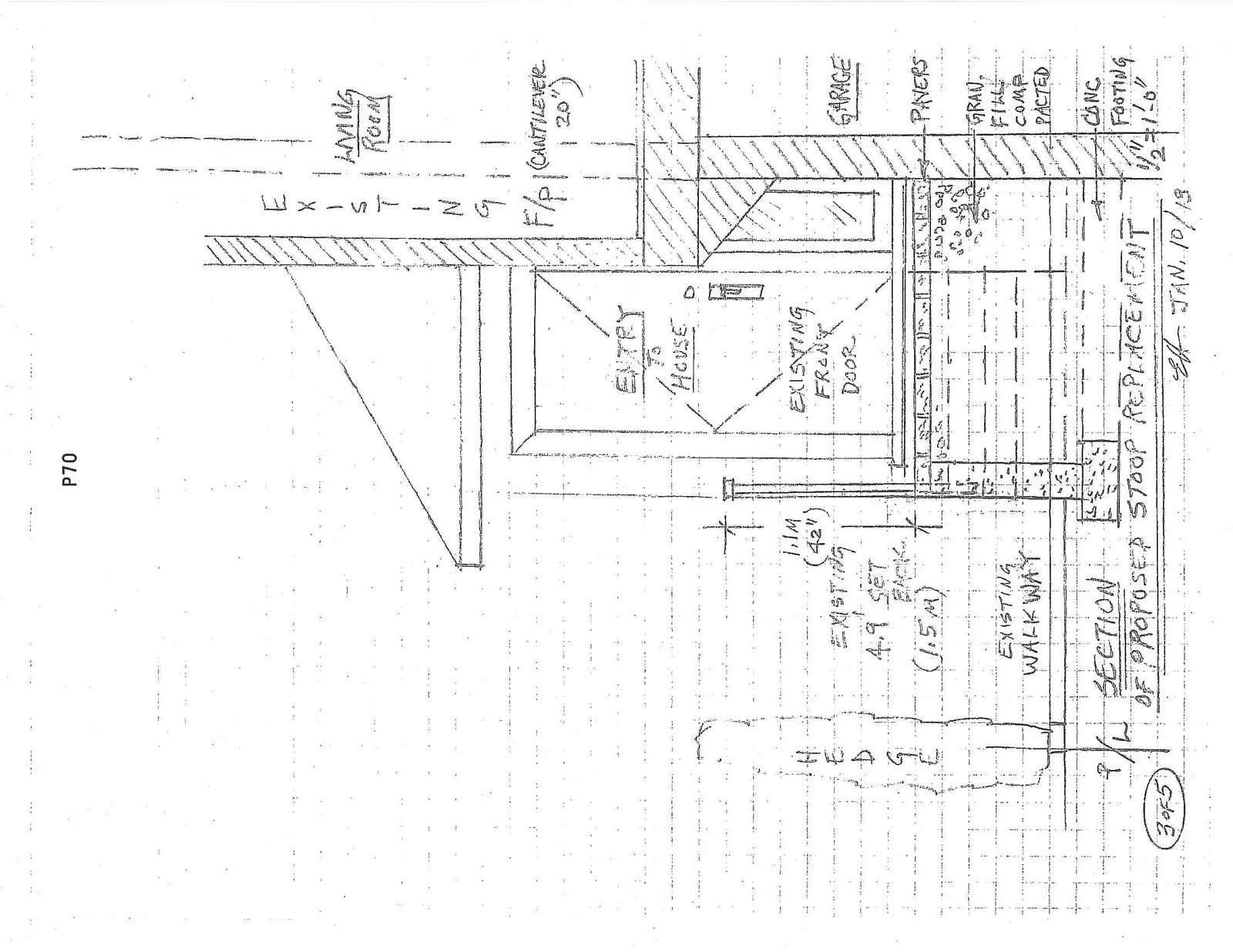

SECTION OF PROPOSED STOOP REPLACEMENT

Sectional view of the proposed stoop replacement showing house entry, foundation, and grading details.
Sectional view of the proposed stoop replacement showing house entry, foundation, and grading details.
  • Scale: 1/2" = 1'-0"
  • Date: Jan. 10/13

Section Details:

  • House Interior: Existing Living Room, F/P (Cantilever 20"), Entry to House, Existing Front Door
  • Foundation/Ground: Garage, Pavers, Granular fill compacted, Concrete footing
  • Railing: 1.1m (42") height
  • Exterior: Existing walkway, Hedge, Existing 4.9' (1.5m) set back to Property Line
Page 72–76

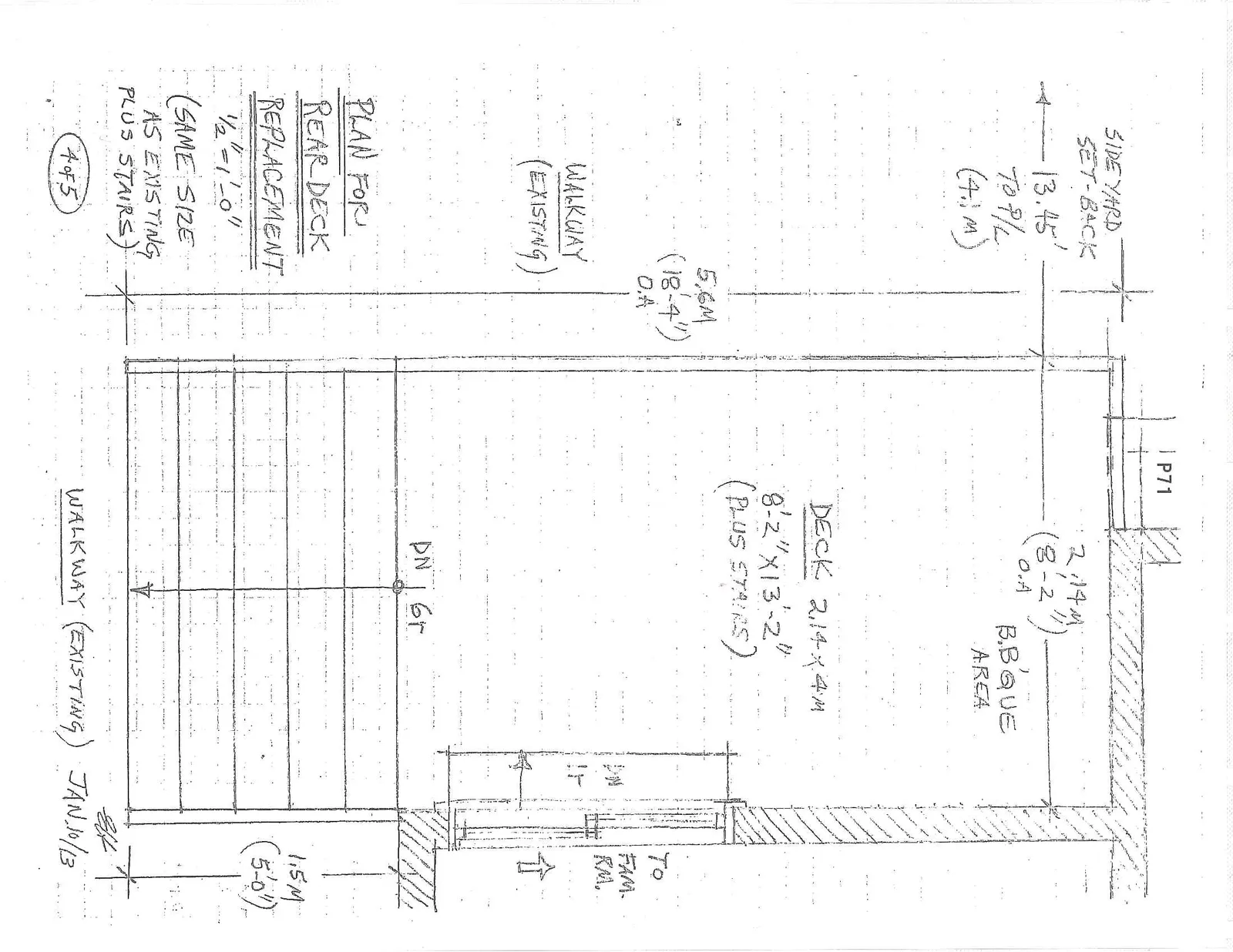

PLAN FOR REAR DECK REPLACEMENT

Plan view for the proposed rear deck replacement showing dimensions and stair layout.
Plan view for the proposed rear deck replacement showing dimensions and stair layout.

Sub-heading: (Same size as existing plus stairs)

  • Scale: 1/2" = 1'-0"
  • Date: Jan. 10/13

Specifications:

  • Deck Dimensions: 2.14m x 4m (8'-2" x 13'-2") plus stairs
  • Overall Dimensions: 2.14m (8'-2") O.A. width and 5.6m (18'-4") O.A. length including stairs
  • Features: B.B'que area, Entry to Family Room, Stairs (Down 6 risers)
  • Walkway: Existing walkway, 1.5m (5'-0") width
  • Setback: Side yard set-back 13.45' to Property Line (4.1m)
Page 72–76

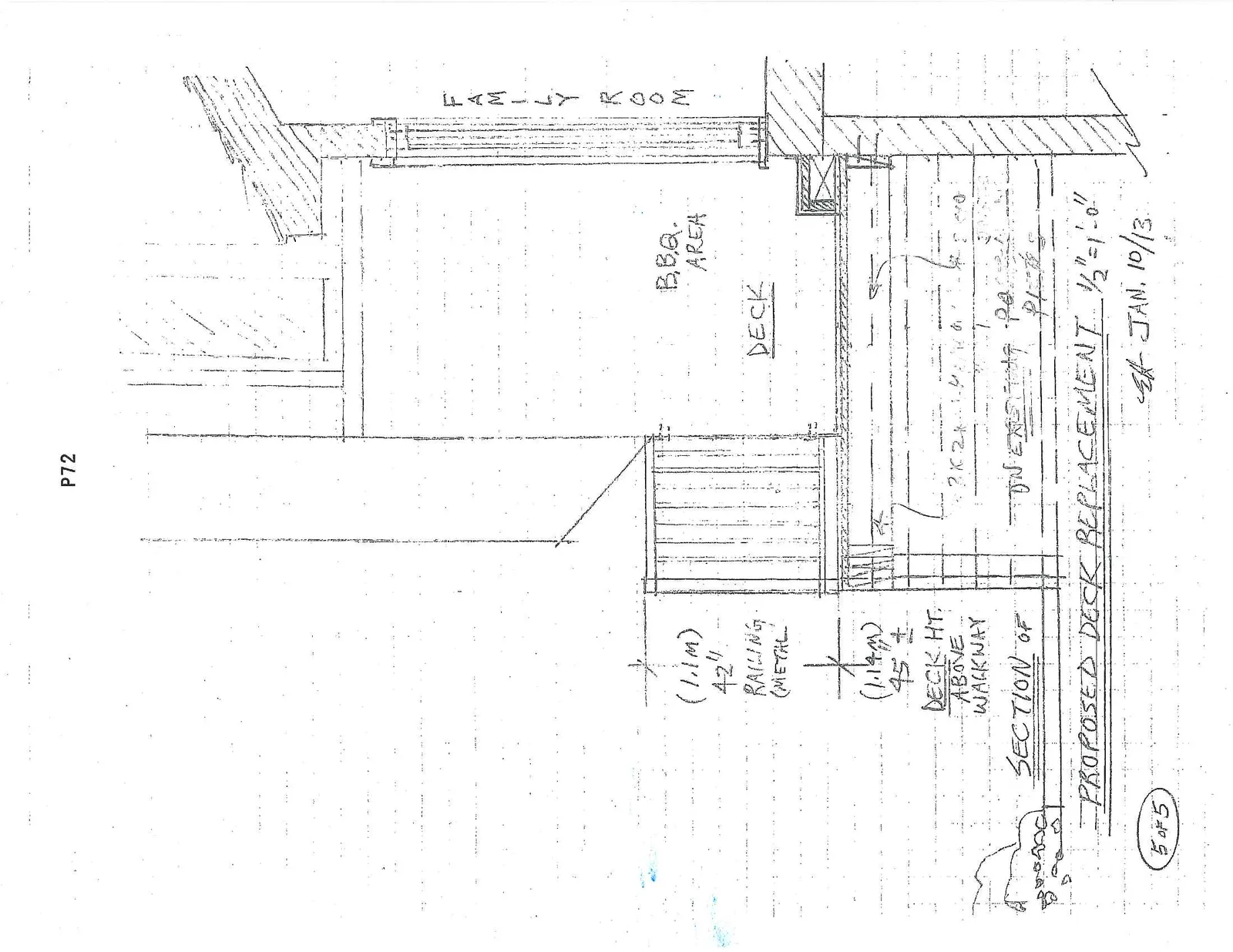

SECTION OF PROPOSED DECK REPLACEMENT

Sectional view of the proposed rear deck replacement showing deck height and railing.
Sectional view of the proposed rear deck replacement showing deck height and railing.
  • Scale: 1/2" = 1'-0"
  • Date: Jan. 10/13

Section Details:

  • House Interior: Family Room
  • Deck Features: B.B.Q. area, Metal railing (1.1m / 42" height)
  • Height: Deck height is 1.14m (45" ±) above walkway
  • Foundation Note: Deck sits on existing pavers/piers.
Page 72–76
