Council Meeting/Documents/Attachment 4. Plan and Elevation - West Coast Flotation Systems
Appendix

Attachment 4. Plan and Elevation - West Coast Flotation Systems

May 7, 2013Page 271 section

Engineering drawings showing the proposed 4'x40' ramp and 12'x24' dock float.

8.1.a 325 Bessborough Close – Environmental Development Permit No. 2013/12 (Dock)
Project: 325 Bessborough CloseDrawing Number: WC13-00-00Ramp Dimensions: 4' x 40'

West Coast Floatation Systems

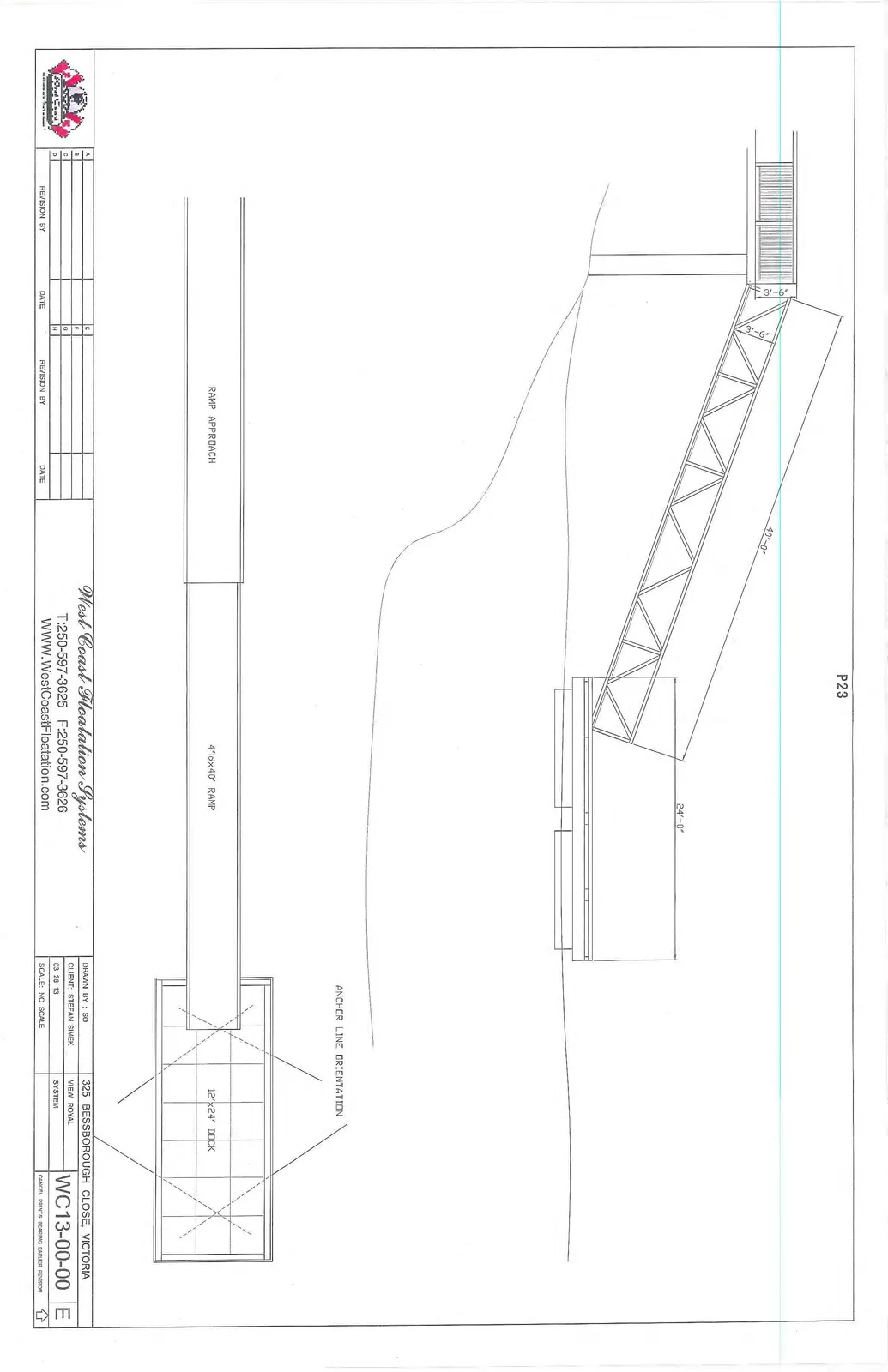

Technical drawing showing elevation and plan views of a marine ramp and dock system, including dimensions and anchor line orientation.
Technical drawing showing elevation and plan views of a marine ramp and dock system, including dimensions and anchor line orientation.

Project Details

Category Detail
Client STEFAN SIMEK
Address 325 BESSBOROUGH CLOSE, VICTORIA
Location VIEW ROYAL
Drawing Number WC13-00-00
Revision E
Date 03 26 13
Drawn By SO
Scale NO SCALE

Component Specifications

  • Ramp Approach
  • Ramp: 4'idx40' RAMP
    • Elevation length: 40'-0"
    • Junction dimension: 3'-6"
  • Dock: 12'x24' DOCK
    • Elevation length: 24'-0"
  • Anchor Line Orientation: (Specified layout on plan view)

Technical Notes

  • CANCEL PRINTS BEARING EARLIER REVISION

Company Contact Information

  • Telephone: 250-597-3625
  • Fax: 250-597-3626
  • Website: WWW.WestCoastFloatation.com
Page 27
