Council Meeting/Documents/Attachment 3. Cover Sheet - Plan A0.1
Appendix

Attachment 3. Cover Sheet - Plan A0.1

February 19, 2013Page 257 sections

Architectural cover sheet containing site statistics, consultants, and a data summary for the project.

1 CALL TO ORDER
241 Old Island HWYTotal Site Area: 6576.9 m223 Townhouses46 off-street parking spaces

VIEW ROYAL TOWNHOUSE

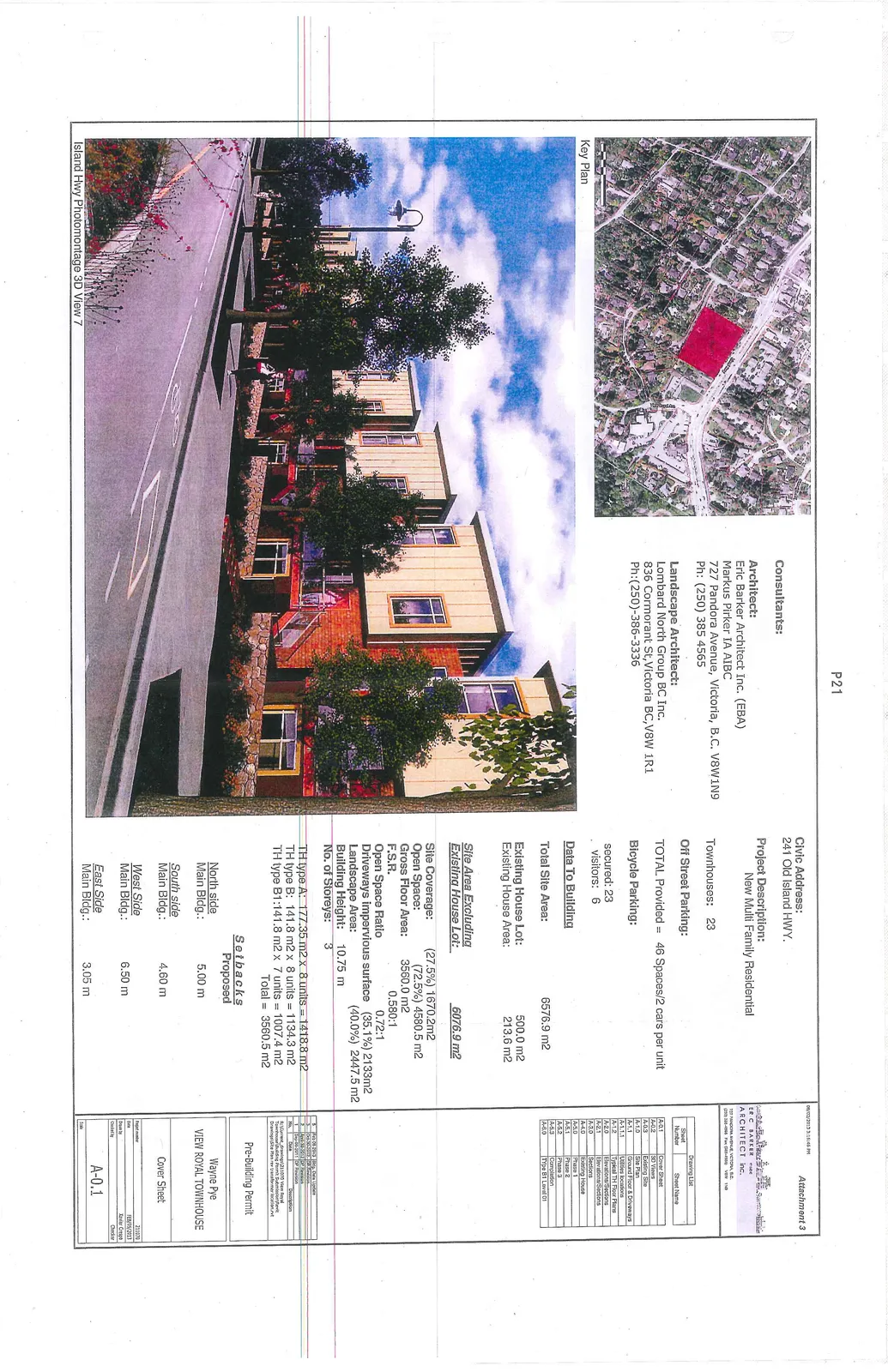

Key Plan aerial map showing the project site location at 241 Old Island Hwy
Key Plan aerial map showing the project site location at 241 Old Island Hwy
Page 25

Consultants

Architect: Eric Barker Architect Inc. (EBA) Markus Pirker IA AIBC 727 Pandora Avenue, Victoria, B.C. V8W1N9 Ph: (250) 385 4565

Landscape Architect: Lombard North Group BC Inc. 836 Cormorant St, Victoria BC, V8W 1R1 Ph: (250)-386-3336

Page 25

Project Description

New Multi Family Residential

Civic Address: 241 Old Island HWY.

Townhouses: 23

Off Street Parking: TOTAL Provided = 46 Spaces/2 cars per unit

Bicycle Parking:

  • secured: 23
  • visitors: 6
Page 25

Data To Building

  • Total Site Area: 6576.9 m2
  • Existing House Lot: 500.0 m2
  • Existing House Area: 213.6 m2

Site Area Excluding Existing House Lot: 6076.9 m2

Item Value
Site Coverage: (27.5%) 1670.2m2
Open Space: (72.5%) 4580.5 m2
Gross Floor Area: 3560.0 m2
F.S.R. 0.580:1
Open Space Ratio 0.72:1
Driveways impervious surface (35.1%) 2133m2
Landscape Area: (40.0%) 2447.5 m2
Building Height: 10.75 m
No. of Storeys: 3

Unit Breakdown

  • TH type A: 177.35 m2 x 8 units = 1418.8 m2
  • TH type B: 141.8 m2 x 8 units = 1134.3 m2
  • TH type B1: 141.8 m2 x 7 units = 1007.4 m2
  • Total = 3560.5 m2
Page 25

Setbacks

Location Proposed
North side Main Bldg.: 5.00 m
South side Main Bldg.: 4.60 m
West side Main Bldg.: 6.50 m
East side Main Bldg.: 3.05 m
Page 25

Drawing List

Sheet Number Sheet Name
A-0.1 Cover Sheet
A-0.2 3D Views
A-0.3 Existing Site
A-1.0 Site Plan
A-1.1 Ground Floor & Driveways
A-1.1.1 Utilities locations
A-1.2 Typical TH Floor Plans
A-2.0 Elevations/Sections
A-2.1 Elevations/Sections
A-3.0 Sections
A-4.0 Existing House
A-5.0 Phase 1
A-5.1 Phase 2
A-5.2 Phase 3
A-5.3 Completion
A-6.0 Type B1 Level 01
Page 25

Revisions

No. Date Description
3 Feb 05 2013 Bldg. Data Update
2 Oct 30 2012 DP Revision
1 Aug 10 2012 DP Revision
0 Dec 05 2011 DP Revision

Pre-Building Permit

Wayne Pye VIEW ROYAL TOWNHOUSE

Cover Sheet

  • Project number: 211070
  • Date: FEB/05/2013
  • Drawn by: Xavier Crespo
  • Checked by: Checker
  • Sheet Number: A-0.1
Page 25
