Attachment 9. Elevations / Sections - Plan A2.0

February 19, 2013Page 311 section

Exterior architectural elevations specifying materials and finishes.

1 CALL TO ORDER
Hardie Panel sidingNatural Stone low wallBenjamin Moore paint colors

VIEW ROYAL TOWNHOUSE

Rezoning Development Permit Application

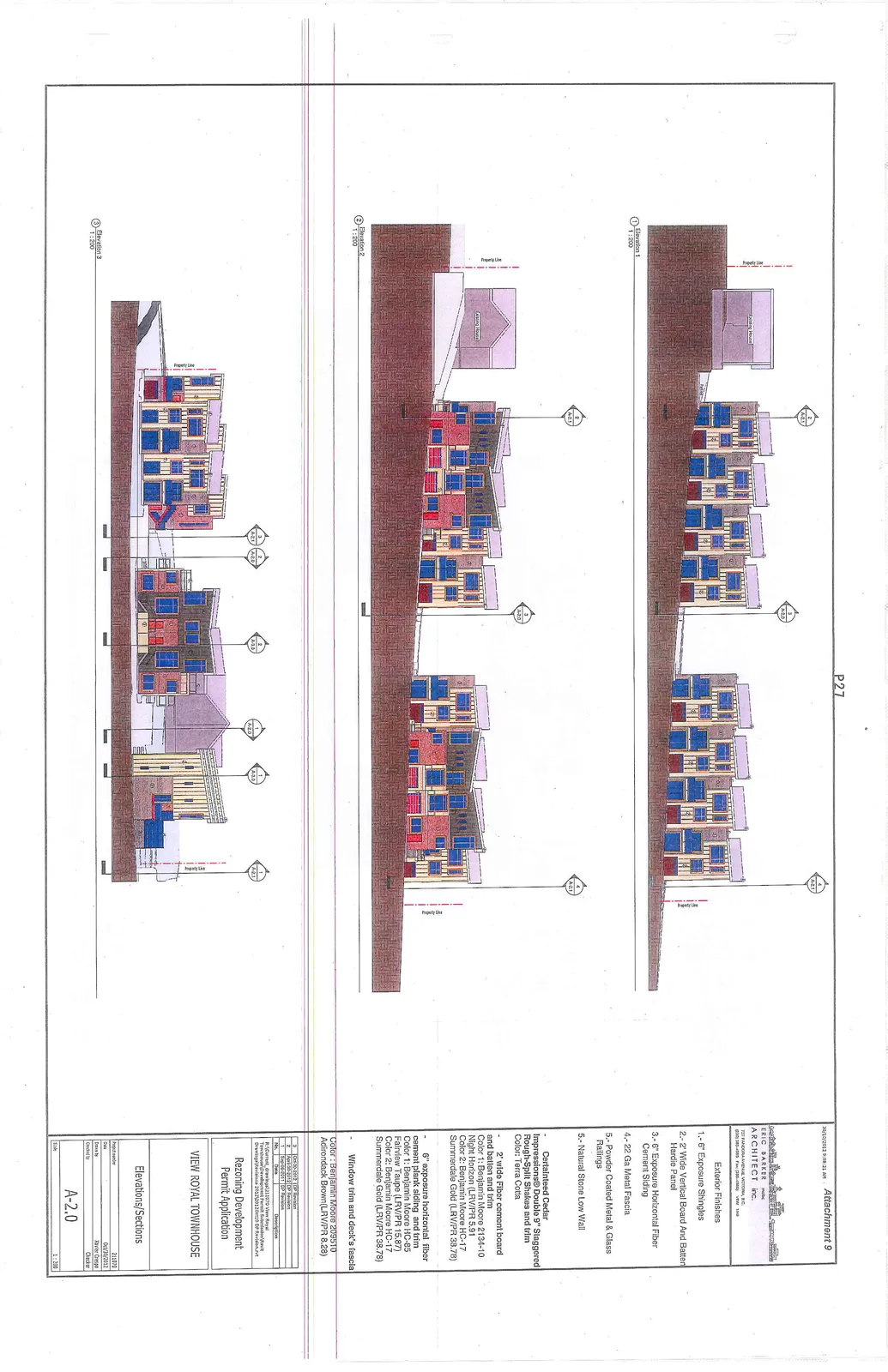

Architectural elevation drawing "Elevation 1" at 1:200 scale
Architectural elevation drawing "Elevation 1" at 1:200 scale

Exterior Finishes

  1. 6" Exposure Shingles
  2. 2' Wide Vertical Board And Batten Hardie Panel
  3. 6" Exposure Horizontal Fiber Cement Siding
  4. 22 Ga Metal Fascia
  5. Powder Coated Metal & Glass Railings
  6. Natural Stone Low Wall

Color Specifications

  • Certainteed Cedar Impressions® Double 9" Staggered Rough-Split Shakes and trim
    • Color: Terra Cotta
  • 2' wide Fiber cement board and batten and trim
    • Color 1: Benjamin Moore 2134-10 Night Horizon (LRV/PR 5.91)
    • Color 2: Benjamin Moore HC-17 Summerdale Gold (LRV/PR 38.78)
  • 6" exposure horizontal fiber cement plank siding and trim
    • Color 1: Benjamin Moore HC-85 Fairview Taupe (LRV/PR 15.87)
    • Color 2: Benjamin Moore HC-17 Summerdale Gold (LRV/PR 38.78)
  • Window trim and deck's fascia
    • Color : Benjamin Moore 209510 Adirondack Brown (LRV/PR 8.28)

Revision History

No. Date Description
3 Oct-30-2012 DP Revision
2 Apr-30-2012 DP Revision
1 Sep-16-2011 DP Revision

R:\Current_drawings\211070 View Royal Townhouse\Development Permit Submission\Revit Drawings\Revisions 2012\20121030 DP Revision.rvt

Elevations/Sections

Project details
Project number 211070
Date Oct/30/2012
Drawn by Xante Crespo
Checked by Checker
Scale 1 : 200
Drawing Number A-2.0
Page 31
