Attachment 17. Grade and Height Calculations

February 19, 2013Pages 39–411 section

Technical spreadsheets and diagrams calculating the average grade and resulting building heights for each block.

1 CALL TO ORDER
Block A building height 12.800mBlock B building height 14.150mAverage grade points listed for Blocks A through G

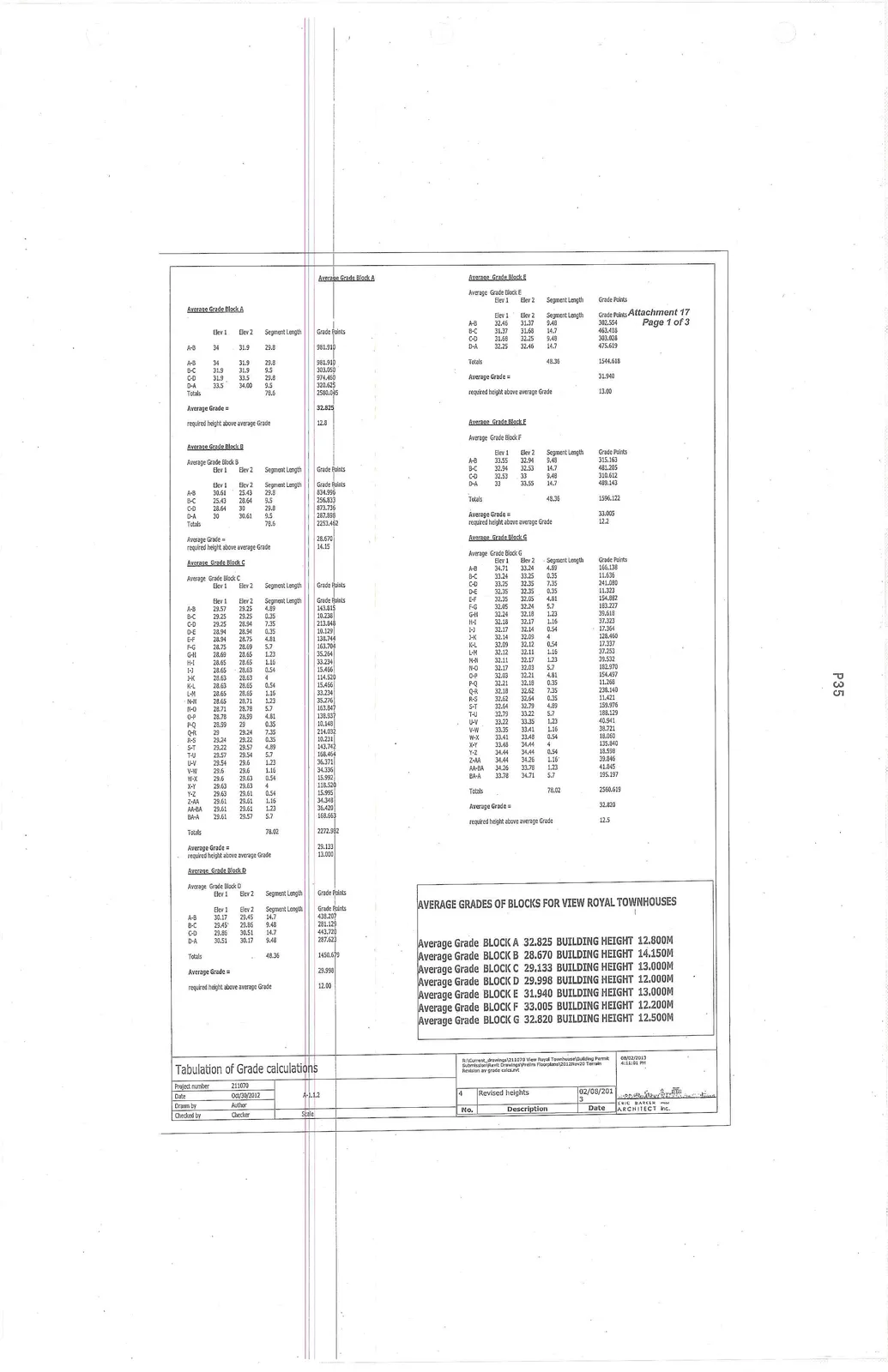

Tabulation of Grade calculations

Tabulation of Grade calculations table for Blocks A through G and average grade summary
Tabulation of Grade calculations table for Blocks A through G and average grade summary

Average Grade Block A

Segment Elev 1 Elev 2 Segment Length Grade Points
A-B 34 31.9 29.8 981.910
B-C 31.9 31.3 25.5 805.800
C-D 31.3 31.5 5.5 172.700
D-A 31.5 34 16.8 550.200
Totals 76.6 2514.610

Average Grade = 32.825 required height above average Grade: 12.8

Average Grade Block B

Segment Elev 1 Elev 2 Segment Length Grade Points
A-B 28.61 28.65 3.3 94.479
B-C 28.65 28.64 31.3 896.598
C-D 28.64 28.3 9.3 264.771
D-A 28.3 30.61 31.5 927.832
A-B 30.61 28.61 2.5 74.025
Totals 77.9 2257.705

Average Grade = 28.970 required height above average Grade: 14.15

Average Grade Block C

Segment Elev 1 Elev 2 Segment Length Grade Points
A-B 29.57 28.25 4.85 140.213
B-C 28.25 28.25 5.08 143.510
C-D 28.25 28.35 4.69 132.748
D-E 28.35 28.84 0.64 18.176
E-F 28.84 28.75 4.38 125.744
F-G 28.75 28.65 5.7 163.780
G-H 28.65 28.65 1.12 32.088
H-I 28.65 28.83 1.23 35.334
I-J 28.83 28.65 1.23 35.334
J-K 28.65 28.65 4 114.600
K-L 28.65 28.65 1.23 35.239
L-M 28.65 28.78 1.23 35.334
M-N 28.78 28.65 1.23 35.334
N-O 28.65 28.65 4.35 124.627
O-P 28.65 28.78 5.7 163.780
P-Q 28.78 28.78 4.38 126.056
Q-R 28.78 29.22 0.73 21.170
R-S 29.22 29.24 7.33 214.212
S-T 29.24 29.57 4.89 143.791
T-U 29.57 29.54 1.23 36.353
U-V 29.54 29.6 1.23 36.372
V-W 29.6 29.54 1.23 36.372
W-X 29.54 29.6 4 118.280
X-Y 29.6 29.61 1.23 36.414
Y-Z 29.61 29.61 1.23 36.420
Z-AA 29.61 29.61 1.15 34.051
AA-BA 29.61 29.61 5.7 168.777
BA-A 29.61 29.57 1.2 35.508
Totals 78.02 2272.912

Average Grade = 29.133 required height above average Grade: 13.000

Average Grade Block D

Segment Elev 1 Elev 2 Segment Length Grade Points
A-B 30.17 29.45 14.7 438.207
B-C 29.45 26.86 9.48 266.919
C-D 26.86 30.51 14.7 421.711
D-A 30.51 30.17 9.48 287.623
Totals 48.36 1450.673

Average Grade = 29.998 required height above average Grade: 12.86

Average Grade Block E

Segment Elev 1 Elev 2 Segment Length Grade Points
A-B 32.46 31.37 9.48 302.504
B-C 31.37 31.68 14.7 463.413
C-D 31.68 32.25 9.48 303.008
D-A 32.25 32.46 14.7 475.623
Totals 48.36 1544.618

Average Grade = 31.940 required height above average Grade: 13.00

Average Grade Block F

Segment Elev 1 Elev 2 Segment Length Grade Points
A-B 33.55 32.94 9.48 315.162
B-C 32.94 32.53 14.7 481.215
C-D 32.53 33 9.48 310.612
D-A 33 33.55 14.7 489.143
Totals 48.36 1596.132

Average Grade = 33.005 required height above average Grade: 12.2

Average Grade Block G

Segment Elev 1 Elev 2 Segment Length Grade Points
A-B 34.73 32.24 4.85 162.193
B-C 32.24 31.22 5.08 161.218
C-D 31.22 31.35 4.69 146.591
D-E 31.35 32.35 1.13 35.988
E-F 32.35 32.05 4.38 140.943
F-G 32.05 32.24 5.7 183.227
G-H 32.24 32.14 1.12 36.053
H-I 32.14 32.17 1.23 39.551
I-J 32.17 32.12 1.23 39.539
J-K 32.12 32.11 4 128.460
K-L 32.11 32.11 1.23 39.525
L-M 32.11 32.17 1.23 39.539
M-N 32.17 32.03 1.23 39.421
N-O 32.03 32.03 4.35 139.431
O-P 32.03 32.21 5.7 183.084
P-Q 32.21 32.27 4.38 141.209
Q-R 32.27 32.18 0.73 23.513
R-S 32.18 32.54 7.33 237.199
S-T 32.54 32.79 4.89 159.729
T-U 32.79 33.33 1.23 40.664
U-V 33.33 33.41 1.23 41.045
V-W 33.41 33.33 1.23 41.045
W-X 33.33 33.41 4 133.480
X-Y 33.41 34.07 1.23 41.503
Y-Z 34.07 34.44 1.23 42.132
Z-AA 34.44 34.44 1.15 39.606
AA-BA 34.44 34.78 5.7 197.249
BA-A 34.78 34.73 2.2 76.461
Totals 78.02 2560.619

Average Grade = 32.820 required height above average Grade: 12.5

AVERAGE GRADES OF BLOCKS FOR VIEW ROYAL TOWNHOUSES

Block Average Grade Building Height
Average Grade BLOCK A 32.825 BUILDING HEIGHT 12.800M
Average Grade BLOCK B 28.670 BUILDING HEIGHT 14.150M
Average Grade BLOCK C 29.133 BUILDING HEIGHT 13.000M
Average Grade BLOCK D 29.998 BUILDING HEIGHT 13.000M
Average Grade BLOCK E 31.940 BUILDING HEIGHT 13.000M
Average Grade BLOCK F 33.005 BUILDING HEIGHT 12.200M
Average Grade BLOCK G 32.820 BUILDING HEIGHT 12.500M
Diagrams showing grade calculation points and building outlines for Blocks A, B, and C
Diagrams showing grade calculation points and building outlines for Blocks A, B, and C

Grade Calculations BLOCK A/B/C

  1. Grade Calculations BLOCK A

    • Scale: 1:200
    • BLOCK A. AV. GRADE: 32.82

  2. Grade Calculations BLOCK B

    • Scale: 1:200
    • BLOCK B AV. GRADE: 28.67

  3. Grade Calculations BLOCK C

    • Scale: 1:200
    • BLOCK C AV. GRADE: 29.133

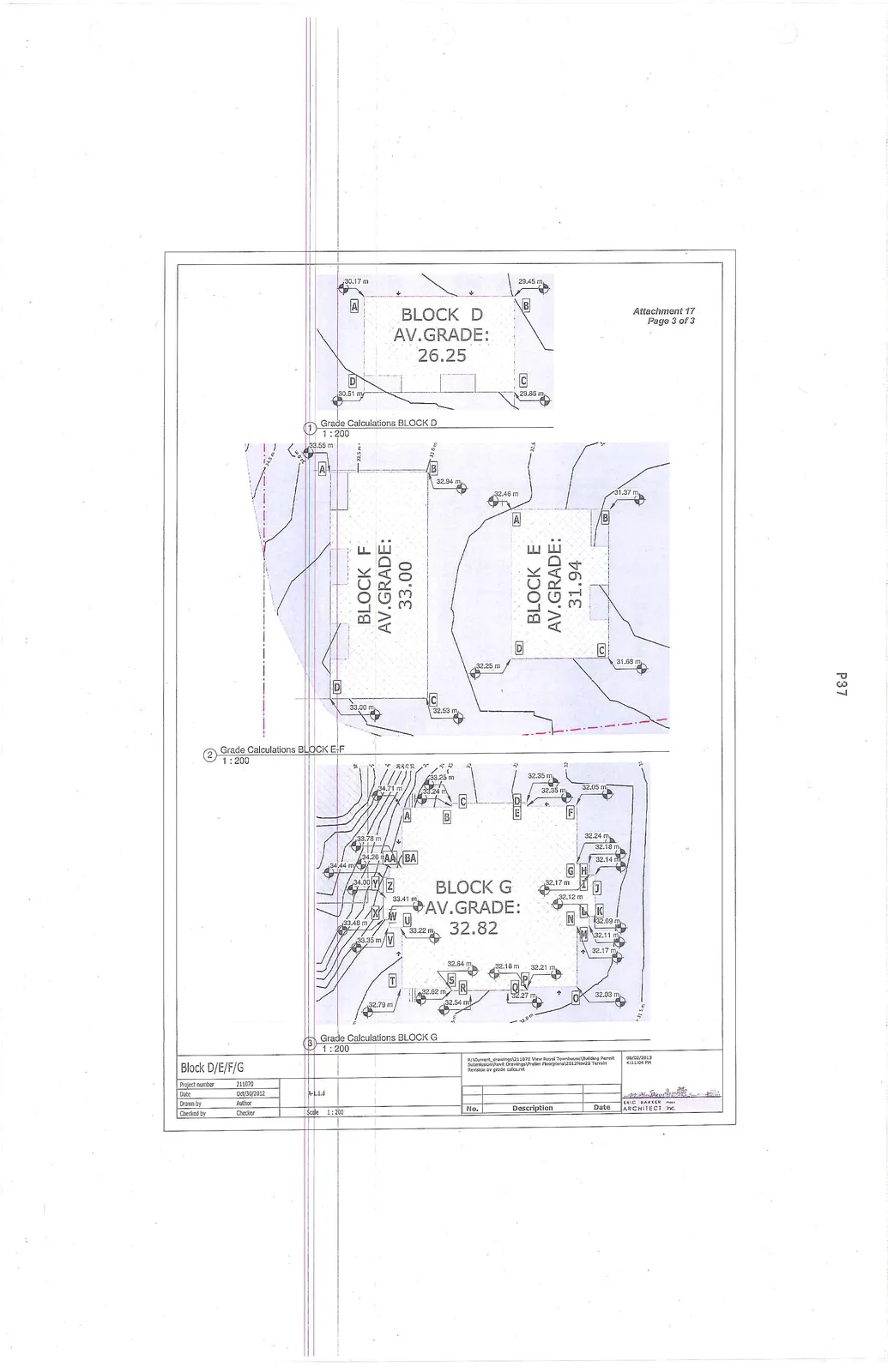

Diagrams showing grade calculation points and building outlines for Blocks D, E, F, and G
Diagrams showing grade calculation points and building outlines for Blocks D, E, F, and G

Grade Calculations BLOCK D/E/F/G

  1. Grade Calculations BLOCK D

    • Scale: 1:200
    • BLOCK D AV. GRADE: 26.25

  2. Grade Calculations BLOCK E/F

    • Scale: 1:200
    • BLOCK F AV. GRADE: 33.00
    • BLOCK E AV. GRADE: 31.94

  3. Grade Calculations BLOCK G

    • Scale: 1:200
    • BLOCK G AV. GRADE: 32.82
Page 39–41
Extracted from: 2013 02 19 Council Agenda
