Attachment 19. Site Servicing Plan

February 19, 2013Pages 43–464 sections

Engineering plans for sewer, water, and drainage infrastructure for the development.

1 CALL TO ORDER
Feb 7, 2013JE Anderson & AssociatesProject number 27731

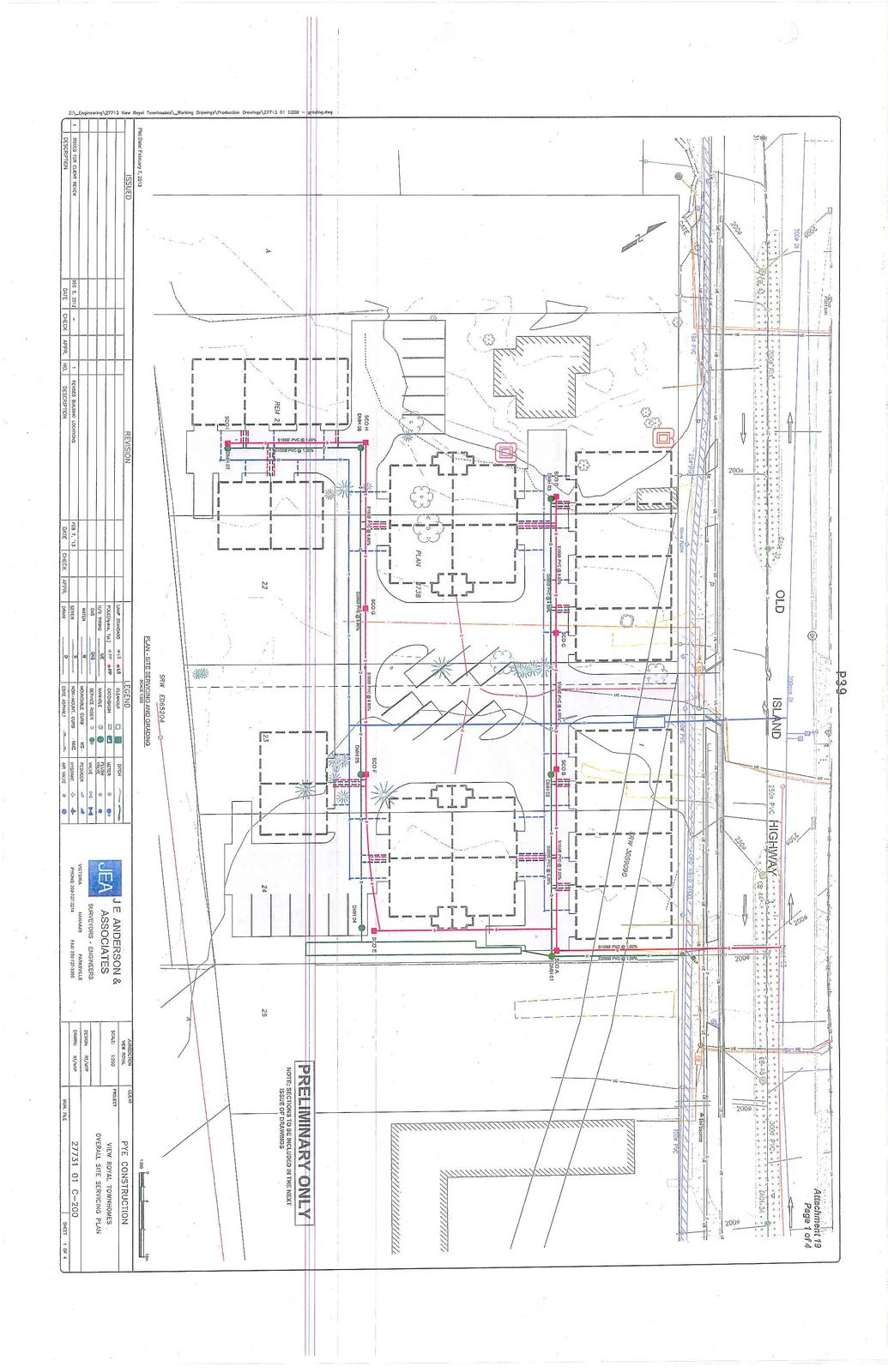

Page 1: Overall Site Servicing Plan

Overall Site Servicing Plan showing the building site layout, proposed utility lines for water, sewer, and drain, and their connections to the existing infrastructure along Old Island Highway.
Overall Site Servicing Plan showing the building site layout, proposed utility lines for water, sewer, and drain, and their connections to the existing infrastructure along Old Island Highway.

Project Information

  • Client: PYE CONSTRUCTION
  • Project: VIEW ROYAL TOWNHOMES
  • Drawing Title: OVERALL SITE SERVICING PLAN
  • Engineering Firm: J E ANDERSON & ASSOCIATES, SURVEYORS - ENGINEERS
  • Jurisdiction: TOWN OF VIEW ROYAL
  • Project Number: 27731 01 C-200
  • Plot Date: February 7, 2013
  • Scale: 1:250

Revision History

No. Description Date
1 REVISED BUILDING LOCATIONS FEB 7, '13
ISSUED FOR CLIENT REVIEW DEC 5, 2012

Legend

Symbol Description Symbol Description Symbol Description
LS LAMP STANDARD [Square] CLEANOUT [Zigzag] DITCH
PP / FP POLE(hydro, tel.) [Grid Square] CATCHBASIN [Circle in square] METER
UE U/G WIRING [Circle] MANHOLE [Arrow circle] FLUSH VALVE
GAS GAS [Dot in circle] SERVICE RISER [Box] VALVE
W WATER MC MOUNTABLE CURB [Bowtie] REDUCER
S SEWER NMC NON-MOUNT. CURB [Triangle/dot] HYDRANT
D DRAIN [Solid line] EDGE ASPHALT [Circle/plus] AIR VALVE

Notes

  • PRELIMINARY ONLY
  • NOTE: SECTIONS TO BE INCLUDED IN THE NEXT ISSUE OF DRAWINGS
Page 43–46

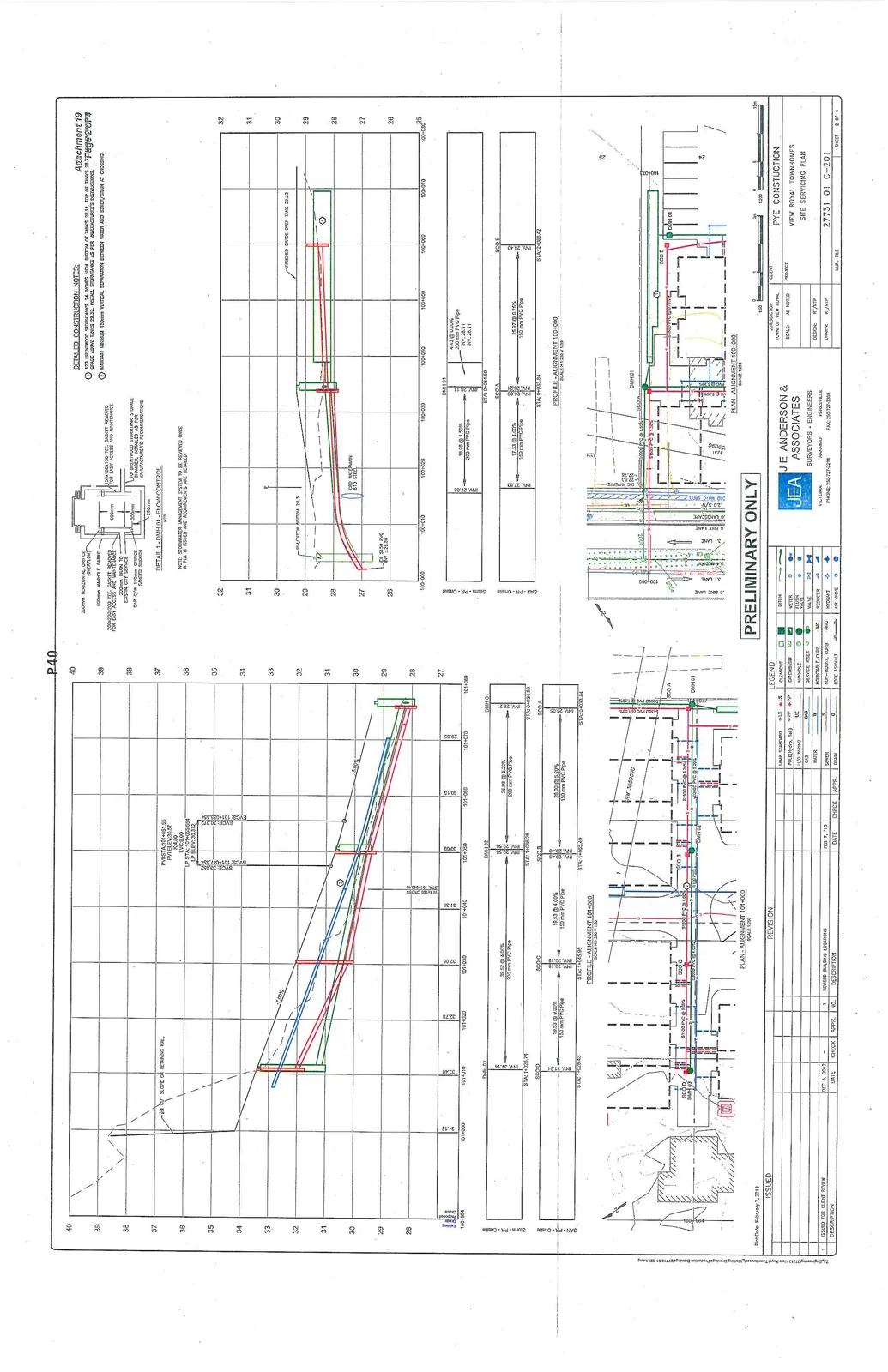

Page 2: Site Servicing Plan

Site Servicing Plan featuring detailed profile and plan views for Alignments 101+000 and 100+000, including a flow control manhole detail (DETAIL 1 - DMH 01).
Site Servicing Plan featuring detailed profile and plan views for Alignments 101+000 and 100+000, including a flow control manhole detail (DETAIL 1 - DMH 01).

Project Information

  • Project: VIEW ROYAL TOWNHOMES
  • Drawing Title: SITE SERVICING PLAN
  • Project Number: 27731 01 C-201
  • Plot Date: February 7, 2013

Detailed Construction Notes

  1. 1326 BRENTWOOD STORAGE(S). 24 INCHES HIGH. BOTTOM OF TANKS 28.11, TOP OF TANKS 28.71. FINISHED GRADE ABOVE TANKS 29.32. INSTALL STORAGE(S) AS PER MANUFACTURER'S INSTRUCTIONS.
  2. MAINTAIN MINIMUM 150mm VERTICAL SEPARATION BETWEEN WATER AND SEWER/DRAIN AT CROSSING.

Detail 1 - DMH 01 - Flow Control

  • 200mm HORIZONTAL ORIFICE (OVERFLOW)
  • 900mm MANHOLE BARREL
  • 200x200x200 TEE. GASKET REMOVED FOR EASY ACCESS AND MAINTENANCE
  • 200mm DRAIN TO ON SITE SERVICE
  • CAP C/W 100mm ORIFICE SAWED SMOOTH
  • 150x150x150 TEE. GASKET REMOVED FOR EASY ACCESS AND MAINTENANCE
  • TO BRENTWOOD STORMWATER STORAGE CHAMBER. INSTALLED AS PER MANUFACTURER'S RECOMMENDATIONS.
  • NOTE: STORMWATER MANAGEMENT SYSTEM TO BE REVIEWED ONCE A PLA IS ISSUED AND REQUIREMENTS ARE DETAILED.

Alignment 101+000 Profile Data

  • Storm Sewer: 200 mm PVC Pipe @ 4.50% and 0.20%
  • Sanitary Sewer: 150 mm PVC Pipe @ 9.00% and 4.00%

Alignment 100+000 Profile Data

  • Storm Sewer: 200 mm PVC Pipe @ 1.50% and 0.02%
  • Sanitary Sewer: 150 mm PVC Pipe @ 1.00% and 0.75%
Page 43–46

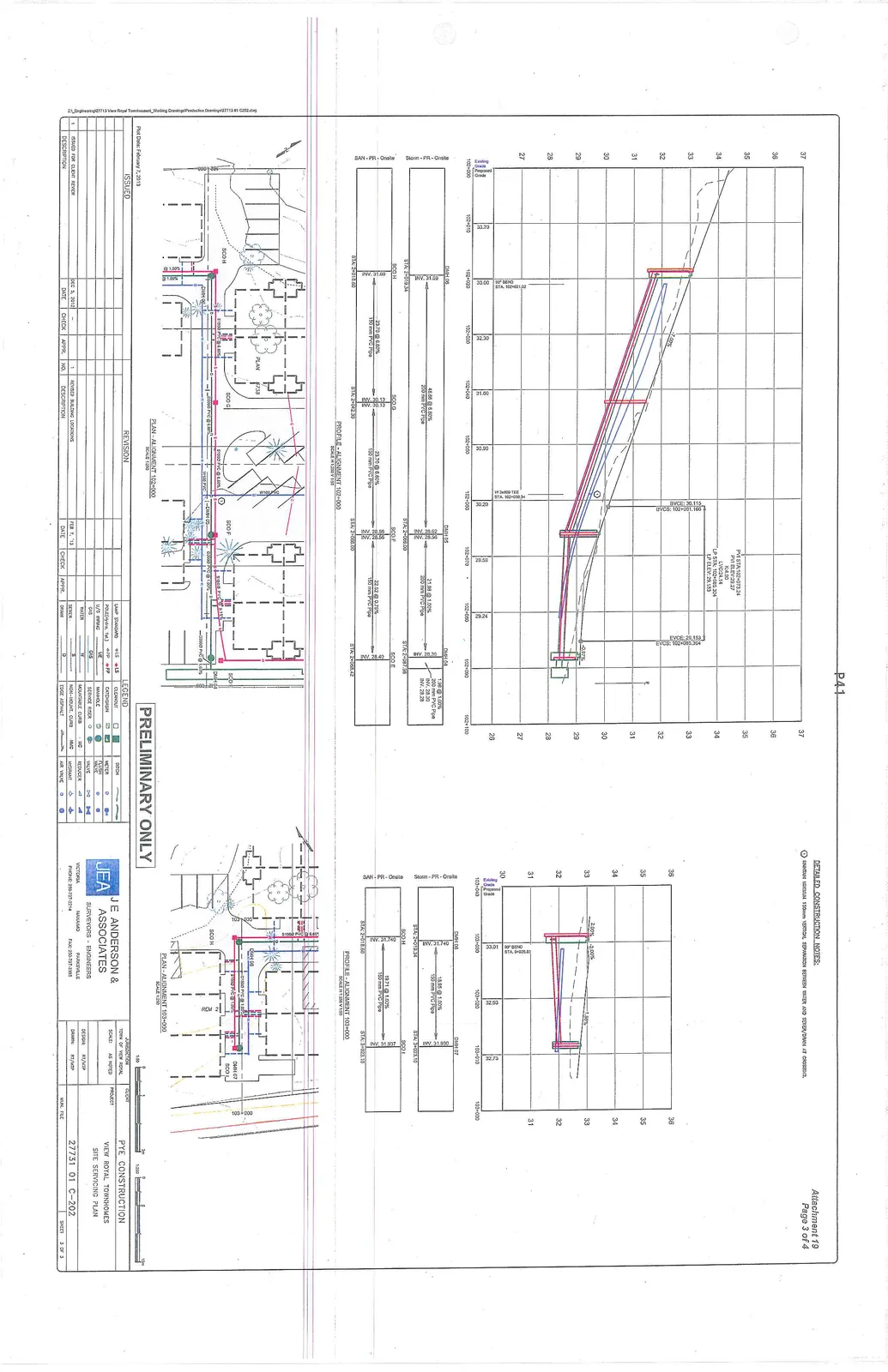

Page 3: Site Servicing Plan

Site Servicing Plan displaying profile and plan views for Alignments 102+000 and 103+000, illustrating pipe grades and manhole elevations.
Site Servicing Plan displaying profile and plan views for Alignments 102+000 and 103+000, illustrating pipe grades and manhole elevations.

Project Information

  • Project: VIEW ROYAL TOWNHOMES
  • Drawing Title: SITE SERVICING PLAN
  • Project Number: 27731 01 C-202
  • Plot Date: February 7, 2013

Detailed Construction Notes

  1. MAINTAIN MINIMUM 150mm VERTICAL SEPARATION BETWEEN WATER AND SEWER/DRAIN AT CROSSING.

Alignment 102+000 Profile Data

  • Storm Sewer: 200 mm PVC Pipe @ 8.50% and 1.00%
  • Sanitary Sewer: 150 mm PVC Pipe @ 8.60% and 0.75%

Alignment 103+000 Profile Data

  • Storm Sewer: 200 mm PVC Pipe @ 1.00%
  • Sanitary Sewer: 150 mm PVC Pipe @ 1.03%
Page 43–46

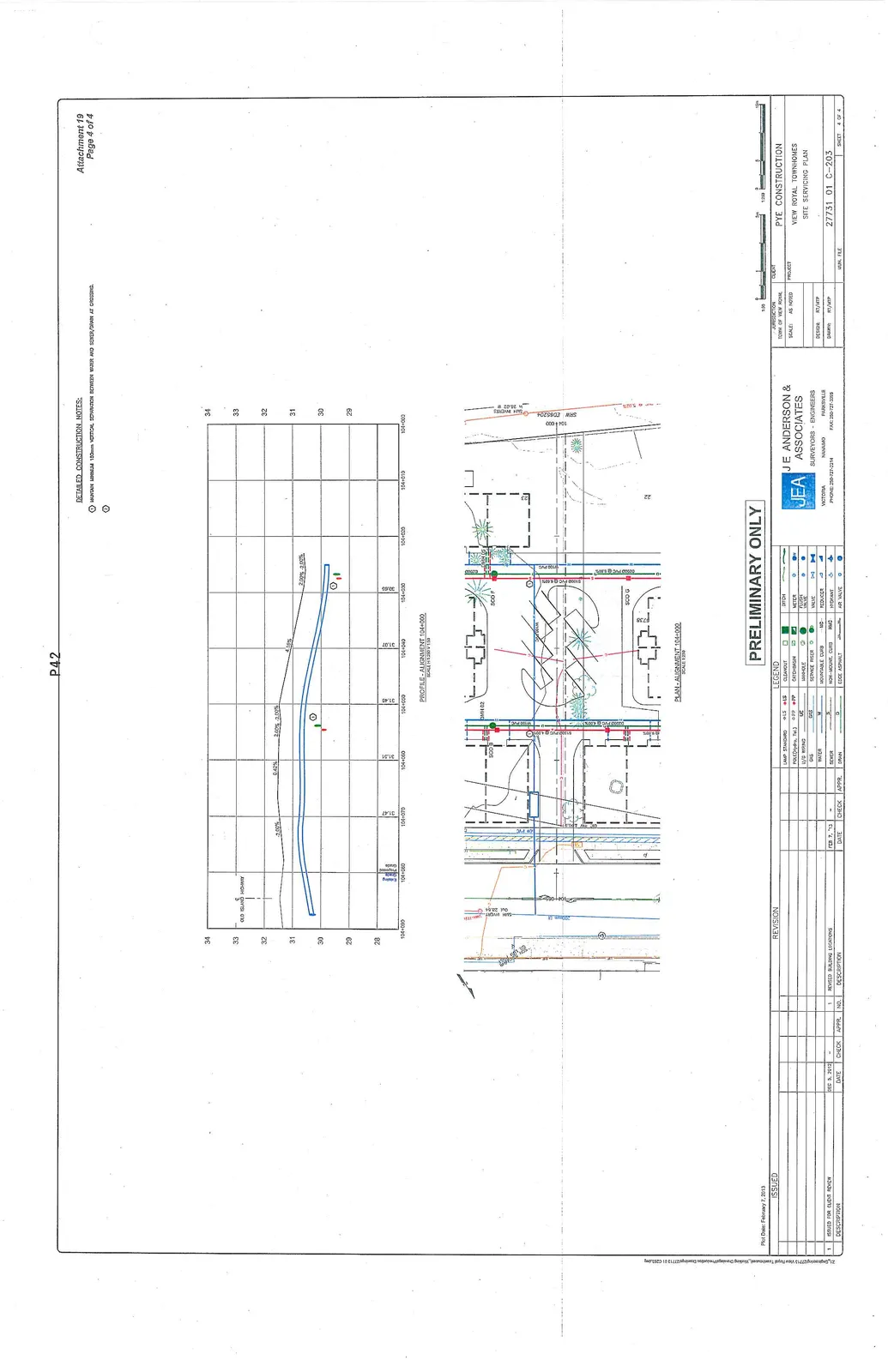

Page 4: Site Servicing Plan

Site Servicing Plan showing the profile and plan view for Alignment 104+000 along Old Island Highway.
Site Servicing Plan showing the profile and plan view for Alignment 104+000 along Old Island Highway.

Project Information

  • Project: VIEW ROYAL TOWNHOMES
  • Drawing Title: SITE SERVICING PLAN
  • Project Number: 27731 01 C-203
  • Plot Date: February 7, 2013

Detailed Construction Notes

  1. MAINTAIN MINIMUM 150mm VERTICAL SEPARATION BETWEEN WATER AND SEWER/DRAIN AT CROSSING.

Alignment 104+000 Profile Data

  • Surface Grades: 2.00%, -2.00%, 0.42%, 2.00%, -2.00%, 4.18%, 2.00%, -2.00%
Page 43–46
