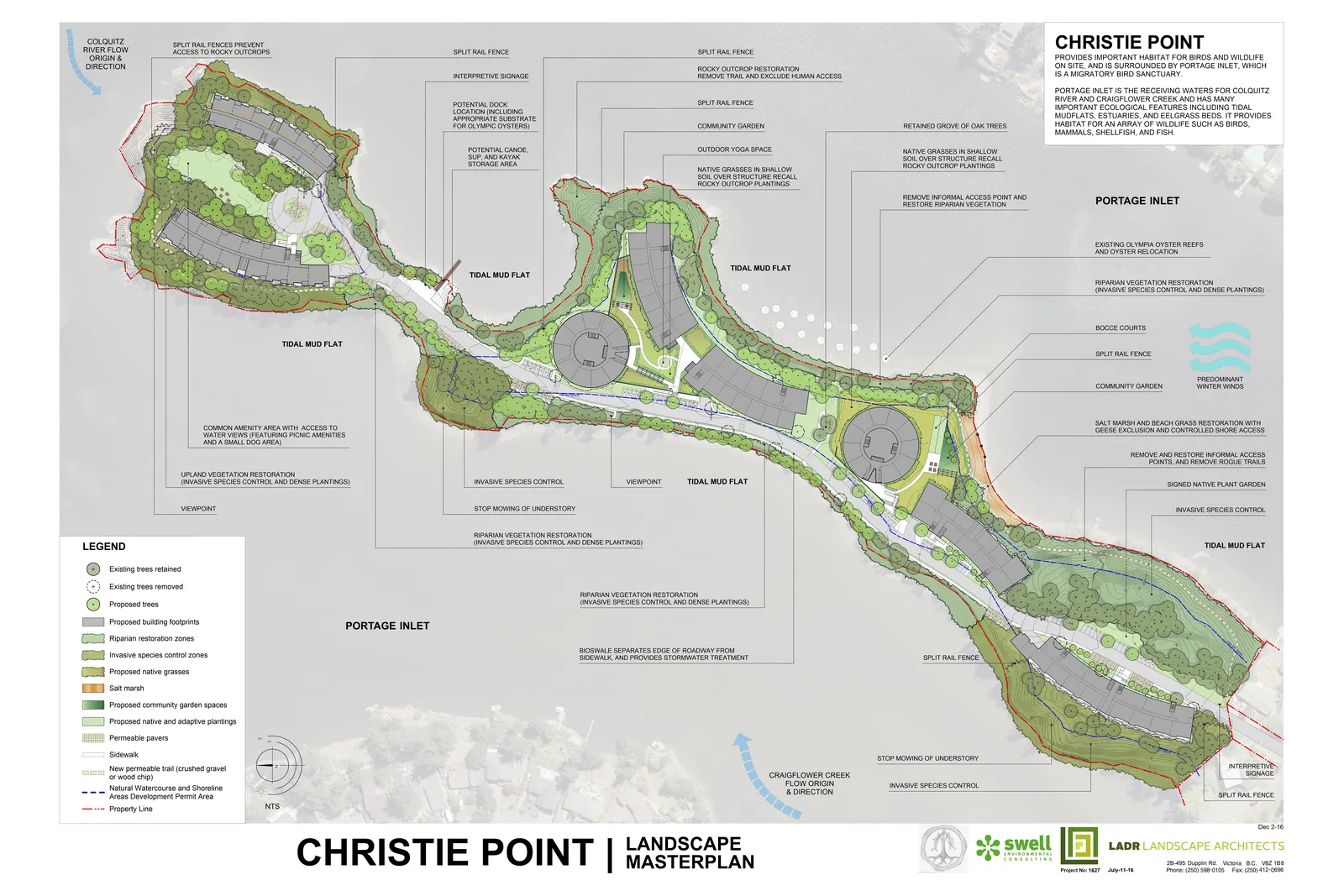

CHRISTIE POINT LANDSCAPE MASTERPLAN

CHRISTIE POINT | LANDSCAPE MASTERPLAN

CHRISTIE POINT

PROVIDES IMPORTANT HABITAT FOR BIRDS AND WILDLIFE ON SITE, AND IS SURROUNDED BY PORTAGE INLET, WHICH IS A MIGRATORY BIRD SANCTUARY.

PORTAGE INLET IS THE RECEIVING WATERS FOR COLQUITZ RIVER AND CRAIGFLOWER CREEK AND HAS MANY IMPORTANT ECOLOGICAL FEATURES INCLUDING TIDAL MUDFLATS, ESTUARIES, AND EELGRASS BEDS. IT PROVIDES HABITAT FOR AN ARRAY OF WILDLIFE SUCH AS BIRDS, MAMMALS, SHELLFISH, AND FISH.

LEGEND

• Existing trees retained
• Existing trees removed
• Proposed trees
• Proposed building footprints
• Riparian restoration zones
• Invasive species control zones
• Proposed native grasses
• Salt marsh
• Proposed community garden spaces
• Proposed native and adaptive plantings
• Permeable pavers
• Sidewalk
• New permeable trail (crushed gravel or wood chip)
• Natural Watercourse and Shoreline Areas Development Permit Area
• Property Line

MAP ANNOTATIONS AND SITE FEATURES

• Waterways and Environmental Features:

  • Colquitz River flow origin & direction
  • Craigflower Creek flow origin & direction
  • Tidal mud flats (surrounding the point)
  • Existing Olympia Oyster reefs and oyster relocation
  • Salt marsh and beach grass restoration with geese exclusion and controlled shore access
  • Portage Inlet
  • Predominant winter winds

• Restoration and Conservation:

  • Rocky outcrop restoration: remove trail and exclude human access
  • Riparian vegetation restoration (invasive species control and dense plantings)
  • Upland vegetation restoration (invasive species control and dense plantings)
  • Invasive species control zones
  • Stop mowing of understory
  • Retained grove of oak trees
  • Native grasses in shallow soil over structure recall rocky outcrop plantings
  • Remove and restore informal access points, and remove rogue trails

• Public and Resident Amenities:

  • Potential dock location (including appropriate substrate for Olympic Oysters)
  • Potential canoe, SUP, and kayak storage area
  • Community gardens
  • Outdoor yoga space
  • Bocce courts
  • Common amenity area with access to water views (featuring picnic amenities and a small dog area)
  • Viewpoints
  • Interpretive signage
  • Signed native plant garden

• Infrastructure:

  • Split rail fences to prevent access to rocky outcrops and delineate boundaries
  • Bioswale separates edge of roadway from sidewalk, and provides stormwater treatment
  • New permeable trails, sidewalks, and permeable pavers

---

LADR LANDSCAPE ARCHITECTS 28-495 Dupplin Rd. Victoria B.C. V8Z 1B8 Phone: (250) 598-0105 Fax: (250) 412-0696

Project No: 1627 Date: July-11-16 Revised: Dec 2-16
