Financial Analysis of Proposed Redevelopment of the Christie Point Site

1.0 INTRODUCTION

Christie Point is a waterfront site located in the Town of View Royal. It is currently developed with older, low density rental units. The owner is proposing a complete redevelopment of the site to a higher density, with all of the new units being rental. The municipality wants to know if the proposed redevelopment has the financial ability to provide any community amenity contribution, in the form of on-site amenities, cash-in-lieu, or some form of affordable housing.

2.0 APPROACH TO ANALYSIS

We use the following approach to the analysis:

1. We estimate the current value of the site by reviewing three indicators of value: a. The current assessed value. b. The value of the property as income producing property. c. The value of the site as a redevelopment candidate under existing zoning.
2. We construct a financial model of the proposed redevelopment concept to estimate the value of the land that is supported by the proposed rezoning. The model calculates the land value by estimating the end value of the project and then deducting all development costs.
3. If the land value after rezoning is higher than the existing property value, then there is a financial basis for a discussion about possible community amenity contributions.

3.0 SITE DESCRIPTION

The subject site is on a 6.3 hectare (15.8 acre) waterfront peninsula in the Portage Inlet, located at 2861 Craigowan Road.

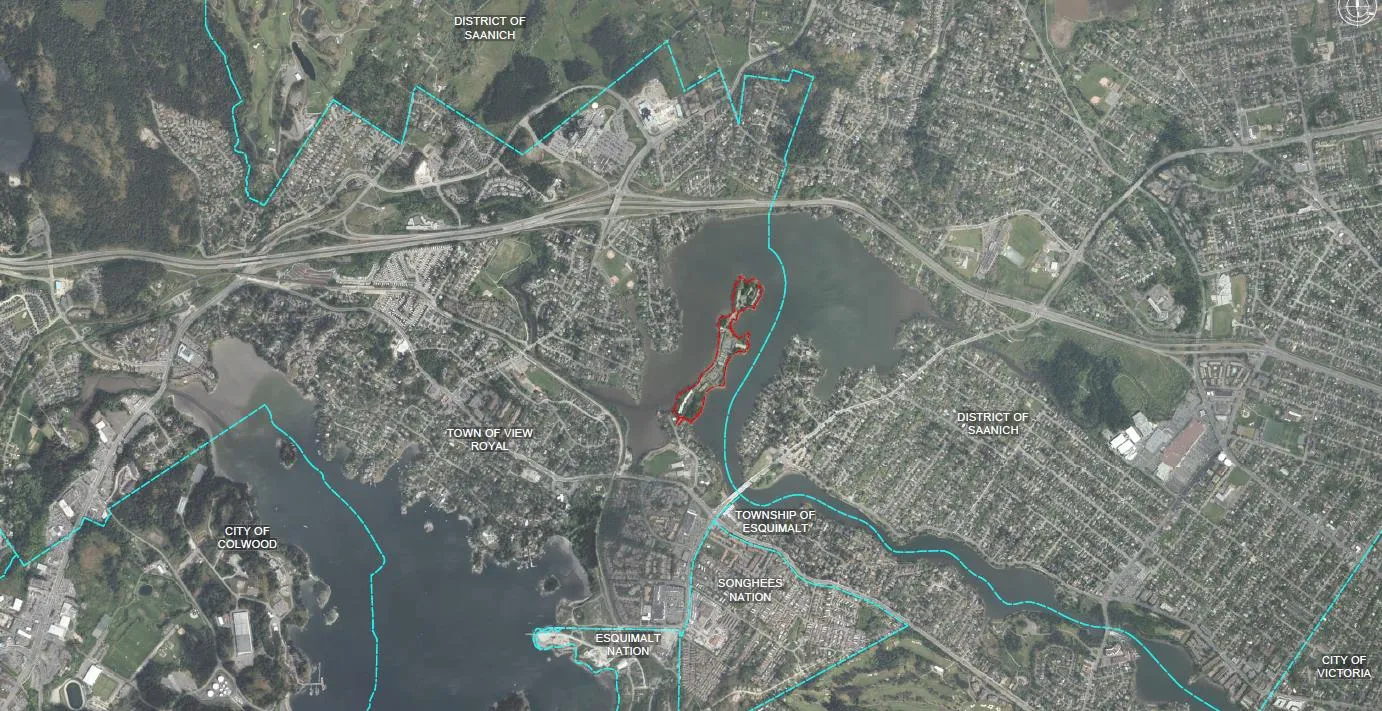

Exhibit 1: Location of Subject Site

Source: Christie Point Redevelopment Rezoning Application

The entire site is designated ‘Mixed Residential’ (M-R) under the Official Community Plan and is zoned ‘Ground-Oriented Multiple-Unit Residential’ (RM-1).

The Mixed Residential designation under the Official Community Plan allows for detached homes on small lots, townhouses, and low-rise apartments. Townhouse development is permitted up to 3 storeys with a maximum floor space ratio (FSR) of 1.25 and apartment development is permitted up to 4 storeys with a maximum FSR of 1.6.

The Official Community Plan also includes land use policy which encourages ‘any future redevelopment at Christie Point to include a mix of medium density residential and park uses’. It also indicates ‘Development at this location should be carefully reviewed to ensure that environmentally sensitive areas are protected, potential sea-level rise issues are addressed, and safe and efficient road access from the Island Highway is maintained’.¹

The site is zoned Ground-Oriented Multiple-Unit Residential, which allows for detached homes, duplexes, and townhouses up to a maximum FSR of 0.8.² Lot coverage is permitted up to 40% of the site at a maximum building height of 7.5 metres.

There are currently 161 units on site, including 113 apartment units and 48 townhouse units (Exhibit 2). There are 5 apartment buildings in the centre of the site with 2 and 3 bedroom apartment units, and 4 townhouse buildings at the outer edges of the site with 3 bedroom townhomes (Exhibit 3). All buildings are 2 storeys.

Exhibit 2: Existing Units at the Subject Site

Source: Town of View Royal

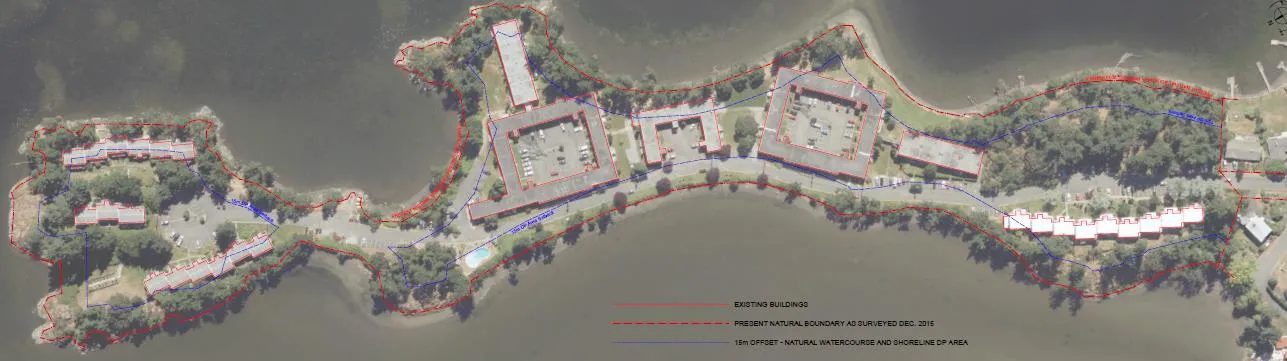

Exhibit 3: Aerial Photograph of Existing Units at the Subject Site

Source: Christie Point Redevelopment Rezoning Application

Land use surrounding the Portage Inlet is predominantly single family residential, with Highway 1 running east to west at the north end of the inlet. Shoreline Community Middle School is located directly to the south of the site. Admiral’s Walk Shopping Centre is a neighbourhood commercial centre located further to the south which includes a Thrifty’s Foods, Coast Capital Bank and Rexall Pharmacy.

Source: Google Earth

4.0 PROJECT DESCRIPTION

4.1 DEVELOPMENT PROPOSAL

Realstar Management has proposed to redevelop Christie Point with 473 purpose-built rental units in 8 buildings. Based on the proposed concept plan and discussions with Realstar, the units will be predominantly apartment units, with the potential for some podium townhouse units.

Exhibit 4 summarizes the total number of units and floorspace by building. Given the gross floor area of the building and the total number of units proposed, the average gross floor area per unit is about 1,650 square feet. Discussions with Realstar indicate the proposed project will have a net-to-gross ratio of 70%, which translates into a net unit size of about 1,150 square feet per unit. Realstar indicates the building efficiency is lower than the standard 85% due to flood construction requirements³, administrative office space for rental inquiries and tenant services, common amenity space, and support space for Realstar maintenance staff. There are two round buildings with single-loaded hallways which will also reduce building efficiency.

Unit mix has not yet been provided. However, the large average unit size suggests units will primarily be 2 or 3 bedroom units.

Exhibit 4: Christie Point Redevelopment Proposal

Source: Christie Point Redevelopment Rezoning Application

Buildings range in size from 4 to 6 storeys in height. Four of the buildings step down to 2 to 3 storeys to ‘respond to site topography and opening view angles from neighbouring shorelines.’⁴

The project will have 594 parking spaces, including 460 underground spaces⁵ and 134 surface parking spaces. Overall, the proposal includes 1.26 parking spaces per unit, including visitor parking.

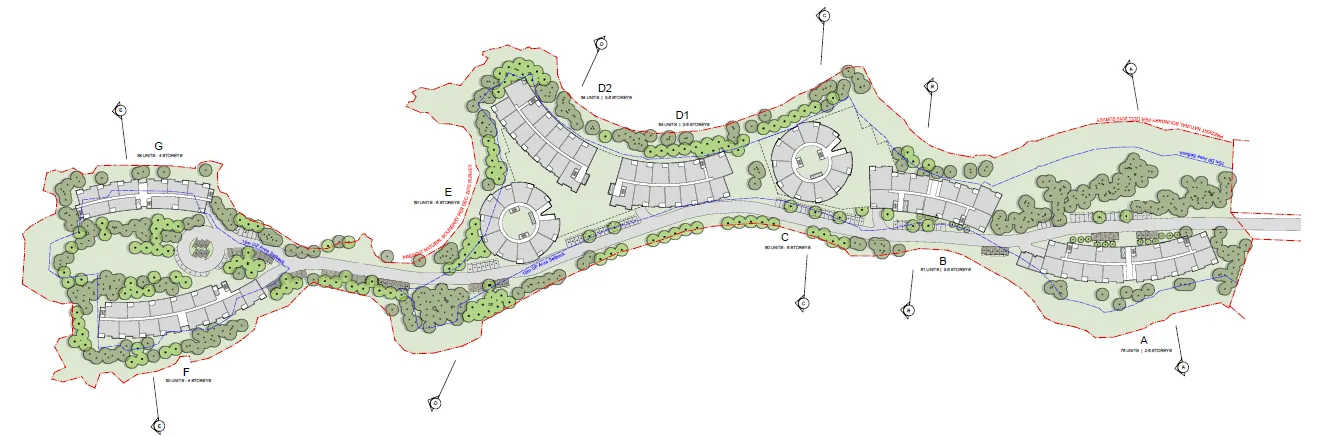

Exhibit 5: Christie Point Redevelopment - Proposed Concept Plan

Source: Christie Point Redevelopment Rezoning Application

Exhibit 6 summarizes applicable zoning by-law regulations and proposed zoning by-law amendments. The proposed density on the site totals 1.15 FSR which is permitted under the Official Community Plan, but requires a zoning by-law amendment. The base density permitted under the ‘RM-1’ zoning is 0.6 FSR with an additional 0.1 FSR for 80% underground parking and 0.1 FSR for 75% green roof. The proposed floorspace of 781,000 square feet yields an FSR of 1.15 and will require a rezoning.

Exhibit 6: Existing Zoning By-law and Proposed Zoning By-law Amendments

Source: Coriolis Consulting

The maximum building height permitted under the zoning by-law is 7.5 m. The proposed maximum building height is 26.0 m, requiring an amendment.

Lot coverage will increase from the existing 217,700 square feet to 266,300 square feet in the proposal, or from 32% to 39.2% lot coverage.⁷ This is permitted under the existing maximum lot coverage of 40%.

The project will have 1.26 parking spaces per unit. The zoning by-law requires 1 parking space per studio or one bedroom unit, 1.5 parking spaces per two bedroom unit and 2 parking spaces per three bedroom unit. While we do not know the project unit mix, the large average unit size indicates most units will be 2 and 3 bedroom units. This suggests a parking by-law amendment will be required.

Realstar Management indicates the project will be phased over 5 years which includes 1 year for the development permit process and 4 years for project build-out. The number, timing, and breakdown of potential construction phases has not yet been determined. Realstar has proposed one possible phasing scenario which is summarized in Exhibit 7. This involves the demolition of 56 units in Phase 1 and construction of buildings A, B and C. The remaining 105 units will be demolished at the beginning of Phase 2, followed by construction of buildings D1, D2, E, F and G.

Exhibit 7: Christie Point - Redevelopment Phasing Plan

Source: Realstar Management

4.2 COMMENTS ON DEVELOPMENT PROPOSAL

There are two components of the development proposal which are not typical for a purpose-built rental apartment project.

The proposed average net unit size of 1,150 square feet is very large. Our survey of units currently renting in the area indicates the average net unit size is around 715 square feet.⁸ An additional survey of purpose built rental projects in Metro Vancouver indicates average net unit size is around 650 square feet. This is common for purpose-built rental projects which generate a higher rent per square foot for studio and one bedroom units. The large average unit size will reduce the achievable rents per square foot and will have a downward influence on the estimated land value in the redevelopment scenario. On the other hand, the large average unit size means a high proportion of the units will be 2 or 3 bedroom units which are suitable for families.

The second component which is not typical for apartment development is the building efficiency. The standard net-to-gross ratio for an apartment building is 85%, and accounts for common areas, hallways and elevators. The net-to-gross ratio for this building is 70%. The low building efficiency also has a downward influence on the estimated land value in the redevelopment scenario.

5.0 EXISTING VALUE

We use three approaches to determine the existing value of the site:

• The current assessed value.
• The value of the property as income producing property.
• The value of the site as a redevelopment candidate under existing zoning.

5.1 ASSESSED VALUE

The assessed value for the property is $36,530,000 based on the 2016 BC Assessment. This includes a $15.1 million assessment for the land and $21.4 million for existing improvements on the site.

Exhibit 8: Christie Point (2861 Craigowan Road) – Assessed Value (2016)

Source: BC Assessment

5.2 INCOME APPROACH

We estimate the value of the property assuming the existing 48 townhouse and 113 apartment units are maintained as income producing assets.

Rental rates for existing townhouse and apartment units were provided by Realstar and represent an average across each unit type (Exhibit 9).

Exhibit 9: Christie Point – Average In-Place Rents

Source: Realstar Management

Parking revenue assumptions were also provided by the applicant with each space generating about $35 per month. The total number of parking spaces is estimated using parking standards in the current zoning by-law.

Operating cost assumptions are based on the cost per unit of operating a typical market rental project. A cap rate of 4.5% is used based on the Colliers Q4 2016 cap rate report for multifamily projects in Victoria.

Using the income approach, we estimate the value of the property is about $41.3 million, with the apartment units valued at $26.4 million and the townhouse units valued at $14.9 million. For a complete list of detailed assumptions and the financial analysis see Attachment 2.

Exhibit 10: Christie Point – Value Based on Income Approach

Source: Coriolis Consulting

The value based on this approach does not take into account any deferred maintenance or capital upgrades which are required on the building. According to the Christie Point Comprehensive Redevelopment Plan, Realstar began exploration of redevelopment options in early 2016, as cosmetic refurbishment of the suites is deemed no longer adequate for the long-term sustainability of the property and the building is reaching the end of its useful life.⁹ This suggests capital upgrades required at the building could be substantial. The capital cost of upgrading the building would reduce the estimate based on the income approach of $41.3 million.

5.3 LAND VALUE UNDER EXISTING ZONING

We also estimate the value of the subject site as a redevelopment site under the existing zoning. To do this, we estimate the land value of the property assuming the applicant redevelops the property to the highest and best use permitted under the existing regulations.

The ‘Ground-Oriented Multiple-Unit Residential’ (RM-1) zoning allows townhouse development up to 0.6 FSR base density, plus 0.1 FSR for 80% underground parking and 0.1 FSR for 75% green roof coverage, for a maximum total density of 0.8 FSR.¹⁰ This FSR translates into a total of 340 townhouse units permitted at the subject site, based on an average townhouse size of 1,595 square feet.¹¹

The ‘Mixed Residential’ (M-R) designation in the Official Community Plan permits apartment development up to 1.6 FSR. Based on the more restrictive zoning, we have assumed a maximum of 340 townhouse units could be developed on-site at an FSR of 0.8. We tested land value generated by both strata and rental development, and found strata development to generate the higher land value.

We estimate the land value of the site by deducting all project costs from project revenues and accounting for a developer profit margin of 15%. This generates a redevelopment land value of about $27.1 million.

For details on the financial analysis, see Attachment 3.

Exhibit 11: Christie Point – Redevelopment Value Under Existing Zoning

Source: Coriolis Consulting

We have not factored in the time to absorb the townhouse units on-site which would reduce the redevelopment value under existing zoning.

5.4 SITE VALUE

Our analysis shows that the value of the existing rental property ranges between the assessed value of $36.5 million and the maximum value based on income (before any deductions for major capital upgrades) of $41.3 million. If we assume that BC Assessment has considered the depreciated condition of the buildings, we can characterize the $4.8 million difference between assessed value and value based on income as the need for capital upgrades required on the building. A $4.8 million capital upgrade translates into around $28 per gross square foot of building area¹² or about $29,800 per unit. This is equivalent to only a modest upgrade for an older building, so we assume the $36.5 million assessment value is a reasonable estimate for the existing value of the property. This is higher than the $27.1 million value as a redevelopment site under existing zoning.

Exhibit 12: Existing Value of Christie Point

Source: Coriolis Consulting

Therefore, for this analysis we use $36.5 million as the current property value and $27.1 million as the value of the site as though vacant.

In order to support a significant community amenity contribution, the rezoned land value should be at least $27.1 million and ideally more than $36.5 million.

6.0 REDEVELOPMENT VALUE

Next, we estimate the residual land value of the site based on the proposed redevelopment concept submitted by the applicant. We compare the redevelopment land value with the existing value to determine if there is any increase in land value generated by the rezoning.

6.1 PROPOSED DEVELOPMENT CONCEPT

In the first scenario, we test the proposed development concept provided by Realstar. We completed a detailed review of apartments units for rent in the area to determine project revenues. We received some project costs assumptions from Realstar and have provided estimates for the remaining costs.

1. Revenue and Value:

To determine achievable rents at the subject site, we completed a detailed review of apartment rental rates in the area (Attachment 1).

Based on apartment rents currently being achieved near the subject site, we assume the project could achieve the rents per square foot summarized in Exhibit 13.

Exhibit 13: Achievable Rents Per Square Foot at Christie Point

Source: Coriolis Consulting

In order to generate an average unit size of 1,150 square feet, the development would be comprised primarily of very large two and three bedroom units.¹³ One possible unit mix outlined in Exhibit 14 generates a weighted average rent of $2.13 per square foot.

Exhibit 14: Base Case - Blended Average Rents Per Square Foot

Source: Coriolis Consulting

Additional revenue assumptions are included in Attachment 3.

2. Costs and Allowances

The following key cost assumptions and allowances were provided by the applicant:

1. Hard construction costs of $210 per square foot, which includes one storey of concrete construction and five storeys of woodframe construction. We reviewed indicators to test the appropriateness of this assumption, including the BDC cost index, the Altus Group 2017 Cost Guide, and previous experience in the area. Based on the information we reviewed, this assumption is reasonable. However, it is at the high end of the cost range for this type of construction.
2. An allowance of $5.0 million for site exclusions, which includes on-site servicing, landscaping and surface parking construction.
3. A project management fee of 3.5% included on hard and soft costs.
4. A contingency allowance of 5% included on hard costs, soft costs and the project management fee.
5. A $1.5 million allowance for demolition of existing buildings.
6. A cost of $2,000 per unit for fixtures and equipment in common areas.

The following assumptions used in our analysis are based on typical development assumptions:

1. Soft costs and professional fees will total 9.0% of hard construction costs. This covers application fees, design, engineering, consultants, survey, legal, insurance, warranties, deficiencies, and other professional fees. This is within the typical range for a highrise residential development.
2. Separate allowances included for property taxes and DCCs.
3. A financing fee of 1.25% is included.
4. No developer's profit margin. For rental projects developed by the owner, we assume that the objective is to earn the rate of return that is commensurate with the cap rate, not to earn a profit margin as would be expected by a developer of strata units for sale.
5. A cap rate of 4%, which is lower than the rate applied to the existing project. The lower cap rate reflects the fact that the development will be new, with no need for capital upgrades in the short term. The 4% cap rate may be a little low, based on market evidence, but it has the effect of maximizing the value of the new project and therefore yielding a high-side estimate of the value of the land after rezoning.

Based on the above assumptions, we estimate the value of site under the proposed development scenario to be approximately $5.2 million.¹⁴ This is significantly below the existing property value of $36.5 million (and lower than the estimated vacant site value of $27 million) so does not generate a significant increase in land value that could be put towards a community amenity contribution. For assumptions and details on the analysis see Attachment 3.

We think it is worth noting that we have analyzed the financial performance of a wide range of rental housing redevelopment projects in a variety of regional housing markets in BC and other provinces and we have found that rental developments do not typically support a community amenity contribution except in extraordinary circumstances such as a very large increase in density or a very low existing land value (neither of which applies to the subject property).

Considering the apparent “loss” of property value, one might ask whether this project is viable.

The proponent has two options: inject significant capital into a major renovation or demolish and redevelop. A renovation does not increase the number of units and would not significantly extend the life of the project.

Comparing the analysis of the existing situation to the redevelopment scenario (see Attachments 2 and 3) we see that:

• The value of the asset increases from $36.5 million to $260 million.
• Annual net operating income increases from just under $2 million per year to almost $10.5 million per year.

The developer is presumably willing to give up land value in order to create a much more valuable asset and greater revenue, rather than invest capital in a major upgrade of the existing units.

6.2 SENSITIVITY TESTING

We have already noted that the above-average unit sizes and the below-average efficiency have negative impact on project financial performance. If unit size is reduced and/or efficiency is increased, as the proposal evolves, the supportable land value will increase, although it will require significant improvements to both factors to generate enough land value lift to support a significant community amenity contribution.

7.0 BENEFITS OF THE PROPOSED DEVELOPMENT

The development as proposed does not generate a land lift that would support a major community contribution. However, it is important to note that the project has several features which could be considered advantageous to the municipality or community:

• The project will create 473 units of rental housing (a net increase of 312).
• The large units will be suitable for families.
• The project will pay about $2.9 million in DCC fees.
• The project has apparently offered a $1.0 million contribution to affordable housing. (This voluntary contribution may seem at odds with our conclusion that the project cannot support a significant CAC. Considering that this project is seeking a significant increase in height, unit count, and density, it is not surprising that the developer would want to offer some kind of community benefit. The $1.0 million is well under 1% of project cost, so it is not indicative of the ability to make a large contribution).
• According to The Town of View Royal, the project will be expected to provide off-site road and sidewalk improvements that benefit the area.

So, while the project does not appear able to support a large cash amenity contribution, it is providing an array of benefits.

8.0 CONCLUSION

Based on our analysis, a rezoning based on the development proposal submitted by the applicant does not generate an increase in land value that would support the financial ability to make a significant community amenity contribution.

We note that the concept includes a large average unit size and low efficiency. Improving these could have a significant upward effect on financial performance, land value, and potential for an amenity contribution. As proposed, the project should not be expected to make a significant amenity contribution, but the municipality should consider retesting the project if the applicant makes design changes that increase the number of units, reduce average unit size, or improve building efficiency.

CORIOLIS CONSULTING CORP.

Jay Wollenberg

---

¹ View Royal Official Community Plan. September 2011. Page 55. Policy LU8.4. ² Base Density of 0.6 FSR plus 0.1 FSR with provision of 80% underground parking and 0.1 FSR with provision of 75% green roof coverage. ³ Rising sea level mitigation through higher flood level construction requires that some spaces, such as mechanical equipment, electrical equipment, tenant storage lockers, and additional storage space be located at or above the main floor level. ⁴ Christie Point Comprehensive Development Plan. February 15, 2017. Pg. 34. ⁵ 70% underground parking. ⁶ FSR Base Density of 0.6 plus bonus of 0.1 for 80% underground parking and 0.1 for 75% green roof. ⁷ Both figures include site coverage of paved areas and site coverage of building footprints. ⁸ Includes a mix of one and two bedroom units. There were limited studio and three bedroom units renting in the four areas assessed: Downtown Victoria, Victoria West, Esquimalt and Langford/Colwood. See Attachment 1. ⁹ Realstar. Christie Point Comprehensive Redevelopment Plan. January 2017. Page 1. ¹⁰ Lot coverage is a maximum of 40% which requires 80% underground parking based on the site size and the existing by-law of 1.5 stalls per townhouse unit. ¹¹ Average townhouse size of the 14 units sold over the past year in View Royal that were built since 2012. ¹² Based on an estimated 168,292 square feet of gross floor area. ¹³ Average unit sizes take from survey of units currently marketing in the area. Size of one and two bedroom unit taken from the high end of the range of unit sizes surveyed. Unit sizes for studios based on ratio differential between studio and one bedroom units from a survey of purpose-built projects in Metro Vancouver. Size of three bedroom units were derived in order to generate the high average unit size. ¹⁴ Excludes a developer’s profit margin which would further reduce the land value.
