ERSKINE MULTIFAMILY

PROPOSED MATERIALS

Thuja Architecture + Design Tanis Schulte Architect AIBC LEED AP 41289 Horizon Dr. Squamish BC V8B 0Y7 T: 250.650.7901 E: info@thujaarchitecture.ca

General Notes CONTRACTOR TO VERIFY ALL LINES, LEVELS, SURVEYS, DIMENSIONS, LOCATION OF BUILDING ON SITE AND LOCATION OF ALL SERVICES PRIOR TO CONSTRUCTION. ALL WORK TO BE DONE IN ACCORDANCE WITH THE B.C. BUILDING CODE, CURRENT EDITION AND ALL LOCAL BUILDING BYLAWS.

COPYRIGHT RESERVED. THESE PLANS ARE THE PROPERTY OF THUJA ARCHITECTURE STUDIO. TO BE USED SOLELY FOR THE PROJECT SHOWN. UNAUTHORIZED REPRODUCTION OR USE IN ANY MANNER IS NOT PERMISSIBLE.

Revision History

NO.	DATE	DESCRIPTION
	JUL 07 2019	ISSUED FOR REVIEW
	AUG 13 2019	ISSUED FOR REVIEW
	OCT 23 2019	ISSUED FOR REVIEW
	NOV 04 2019	ISSUED FOR REZONE
	JAN 23 2020	ISSUED FOR REZONE
	MAR 09 2020	ISSUED FOR REVIEW
	MAY 21 2020	ISSUED FOR REZONE
	AUG 06 2020	REISSUED FOR REZONE

Project Information

Project No: 20--
Scale: AS NOTED
Drawn By: TS/SW
Sheet: PR10

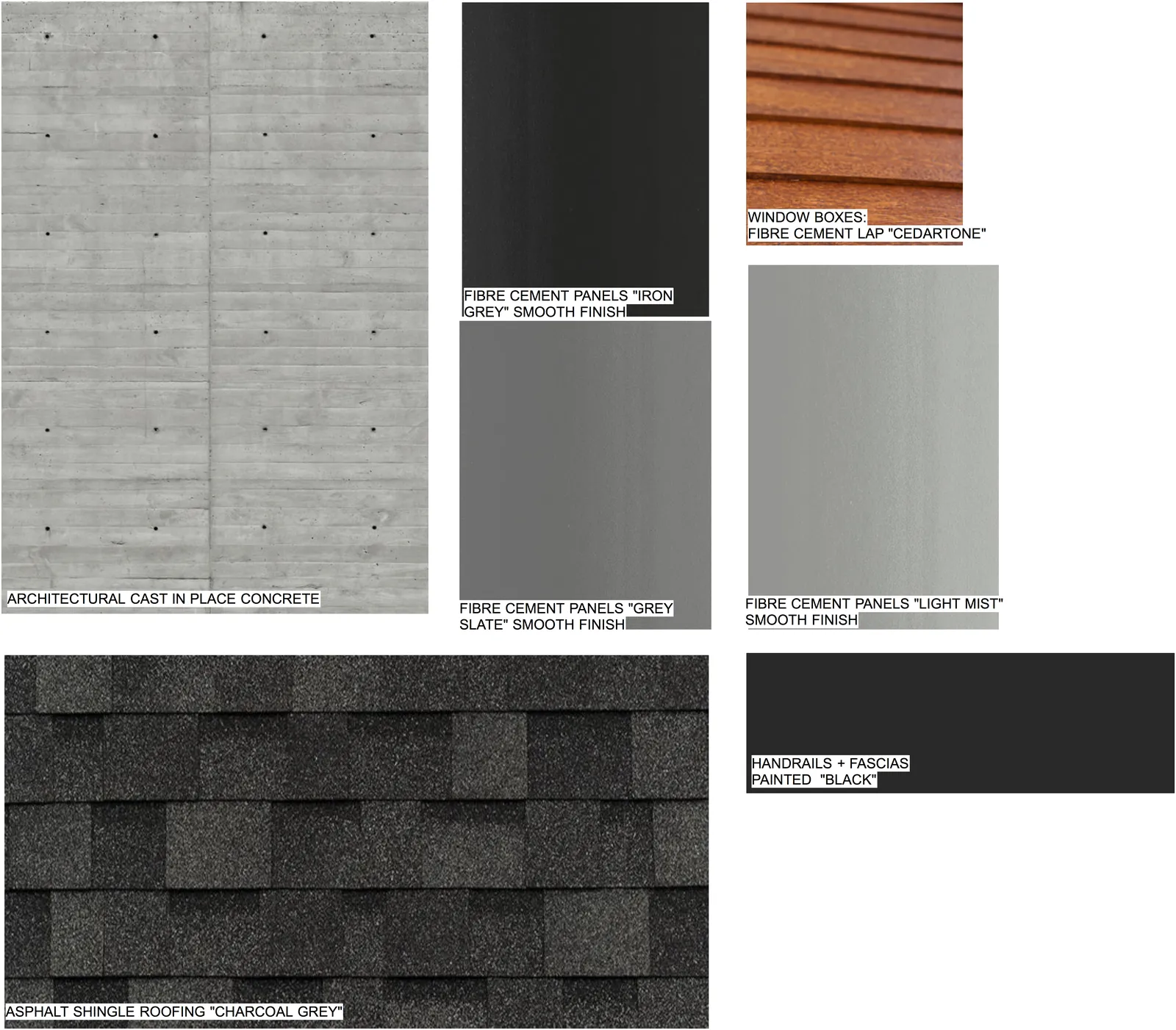

Material Samples

**ARCHITECTURAL CAST IN PLACE CONCRETE**

FIBRE CEMENT PANELS "IRON GREY" SMOOTH FINISH

FIBRE CEMENT PANELS "GREY SLATE" SMOOTH FINISH

WINDOW BOXES: FIBRE CEMENT LAP "CEDARTONE"

FIBRE CEMENT PANELS "LIGHT MIST" SMOOTH FINISH

ASPHALT SHINGLE ROOFING "CHARCOAL GREY"

HANDRAILS + FASCIAS PAINTED "BLACK"

ERSKINE MULTIFAMILY - PROPOSED MATERIALS (PR10)
