Landscape Plan West Site (L3)

Landscape Plan West Site

Project Information

• Project: WESTURBAN DEVELOPMENTS, Erskine Lane
• Sheet Title: Landscape Plan West Site
• Date: May 10, 2020
• Scale: 1:300 METERS
• Drawn By: LS/SD
• Drawing No.: L 3

Revisions

Site Plan Details

The site plan shows the development of two residential buildings located near Watkiss Way and Erskine Lane.

• Building A: 5 Storey (79 Units), 29 MFE. Features a main entry facing the central lot.
• Building B: 5 Storey (79 Units), 29 MFE. Features a main entry and is situated adjacent to a large area of CIP concrete tree planters.
• Lot A: Central area between buildings including parking, loading zones, and garbage/recycle facilities.
• Existing Features: Watkiss Way with an existing bus stop, and Erskine Lane.
• Natural Features: Large areas of retained existing vegetation, existing natural pathway through forest, and a dog run area.
• Proposed Improvements: Potential for a walking trail through the forest (for discussion) and various landscaped zones including lawn areas.

Legend

• Property Line (indicated by a dash-dot line)
• Setback Line (Building Envelope) (indicated by a dashed line)
• Underground Parkade (indicated by a dotted line)
• Brushed Concrete, Patterns TBD - Refer to Civil Eng. Dwgs.
• Proposed ROW Sidewalk - Refer to Civil For Details
• Compacted 3/4" Crush Rock For Informal Walkways & Dog Runs
• Planting Beds cw 60 mm Bark Mulch on Filter Fabric on Approved Growing Medium At Specified Depths (450 mm minimum For Shrubs & 750 mm minimum For Trees) For both on and off slab conditions
• Seeded Lawn Areas cw 150 mm Min. Depth of Approved Growing Medium
• Existing Vegetation Area To Be Retained
• Decorative (1" - 3") Washed Round Cobble Rock Groundcover Sized Cobble TBD With Detailed Design To Coordinate With On Slab Drainage
• Feature Decorative Boulders as Locally Available & Sourced From Site Size Range 600mm - 1200mm
• Boulder Rock Stack Retaining Walls, Utilizing Rock From Site *Refer to Eng. For Final Wall Design, Location & Details
• Black Vinyl Coated Chain Link Fence 5' Ht.
• Raised Planters Over Underground Parking On Slab (3 Types):
  1. Powder Coated Metal Style, Insulated for 4 Season Planting - Approx Size 24" x 72"

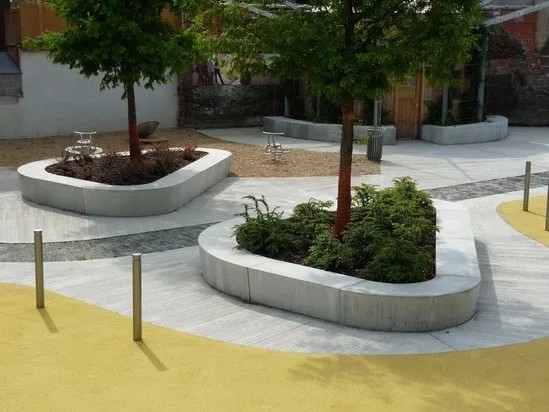

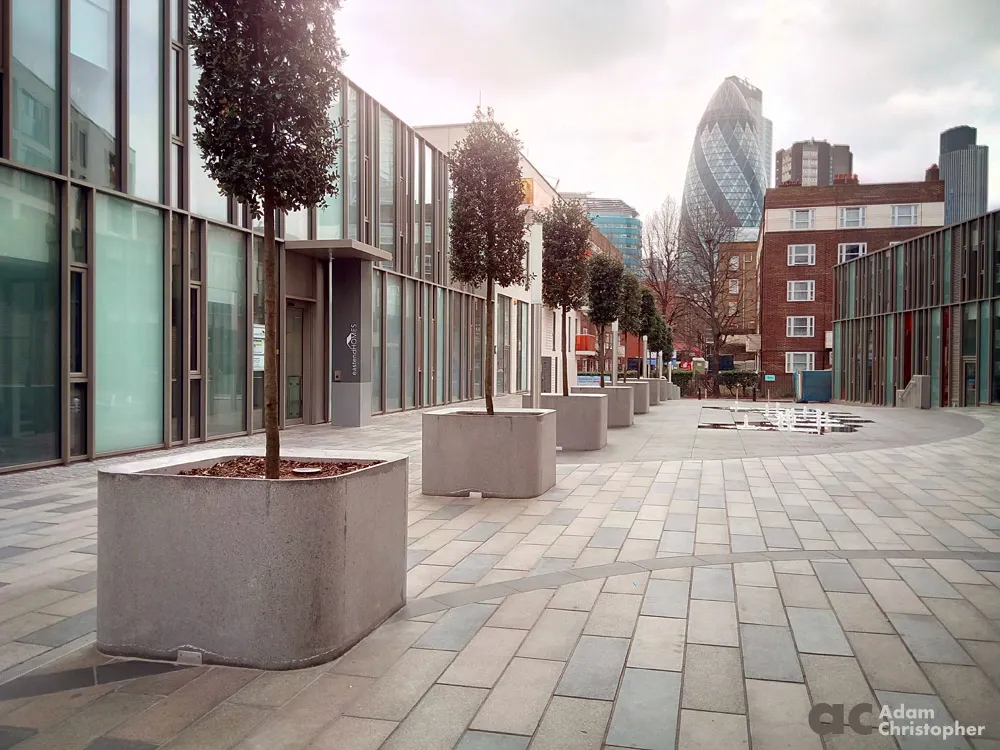

  2. CIP Concrete Tree Planter, Insulated for 4 Season Planting - Approx Size 1.2m x 2.5m (1 m ht.)
  3. Aluminum Horse Trough Vegetable Garden Planters: 2 Sizes - 2' x 2' x 4' & 6' Set On Crush Gravel On Slab
• Bench Seating - Wood or Wood Composite Construction
• Bike Racks Dero Rolling Rack or Approved Equivalent Colour TBD to Complement Building Character

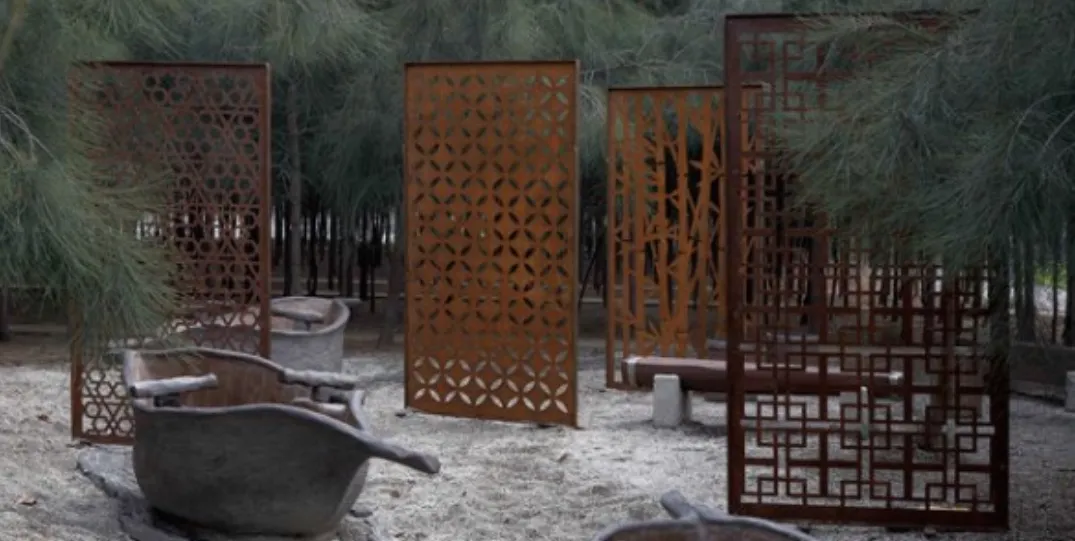

• Decorative Screen Feature, With Semi Transparent Style For Screening Between Parking & Mini Plaza Spaces
• Light Bollard or Interpretive Signage 36" Height
• Existing Contours For Reference Only
• Proposed New On Site Trees: TOTAL PROPOSED 238
• Proposed New Trees in ROW TO BE APPROVED BY CITY: TOTAL PROPOSED 12
• Waypoint ID Pin (White Circle): Indicates Location of Waypoint ID Pin For Existing Trees To Be Retained If Possible INSIDE & OUTSIDE BUILDING ENVELOPE. Refer To MJR Tree Report For Detailed Information.
• Waypoint ID Pin (Black X): Indicates Location of Waypoint ID Pin For Existing Trees To Be Removed OUTSIDE BUILDING ENVELOPE. TOTAL ID PINS TO BE RETAINED 130.

General Notes

NOTE: ALL WORK AND MATERIALS SHALL BE TO BCSLA / CNLA STANDARDS
