Project Information

Project: WESTURBAN DEVELOPMENTS, Erskine Lane
Sheet Title: Landscape Plan East Site
Date: May 10, 2020
Scale: 1:300 METERS
Drawn By: LS/SD
Drawing No.: L 4

Revisions

Legend

Materials

• CS: Brushed Concrete, Patterns TBD - Refer to Civil Eng. Dwgs.
• Proposed ROW Sidewalk: Refer to Civil For Details
• Compacted 3/4" Crush Rock: For Informal Walkways & Dog Runs
• Planting Beds: c/w 60 mm Bark Mulch on Filter Fabric on Approved Growing Medium At Specified Depths (450 mm minimum For Shrubs & 750 mm minimum For Trees) For both on and off slab conditions
• Sedum Feature Planting Display: c/w 150 mm Depth Approved Growing Medium On Slab
• LAWN: Seeded Lawn Areas c/w 150 mm Min. Depth of Approved Growing Medium
• Existing Vegetation Area To Be Retained
• Decorative (1" - 3") Washed Round Cobble Rock Groundcover: Sized Cobble TBD With Detailed Design To Coordinate With On Slab Drainage
• Feature Decorative Boulders: as Locally Available & Sourced From Site. Size Range 600mm - 1200mm
• Boulder Rock Stack Retaining Walls: Utilizing Rock From Site. *Refer to Eng. For Final Wall Design, Location & Details

Raised Planters Over Underground Parking On Slab (3 Types)

1. Powder Coated Metal Style: Insulated for 4 Season Planting - Approx Size 24" x 72"
2. CIP Concrete Tree Planter: Insulated for 4 Season Planting - Approx Size 1.2m x 2.5m (1 m ht.)
3. Aluminum Horse Trough Vegetable Garden Planters: 2 Sizes - 2' x 2' x 4' & 6' Set On Crush Gravel On Slab

Other Elements

• Bench Seating: Wood or Wood Composite Construction
• Bike Racks: Dero Rolling Rack or Approved Equivalent. Colour TBD to Complement Building Character
• Decorative Screen Feature: With Semi Transparent Style For Screening Between Parking & Mini Plaza Spaces
• Light Bollard or Interpretive Signage: 36" Height
• Bench Feature Style & Colour TBD
• Existing Contours For Reference Only
• Black Vinyl Coated Chain Link Fence: 5' Ht.
• Rough Cedar Wood Fence / Fall Protection: 4' Ht.
• PTW Privacy Fence: 6' Ht.
• Indicates Location of Waypoint ID Pin
• For Existing Trees To Be Retained if Possible INSIDE & OUTSIDE BUILDING ENVELOPE: Refer To MJR Tree Report For Detailed Information
• Proposed New On Site Trees: TOTAL PROPOSED 238
• Proposed New Trees in ROW (TO BE APPROVED BY CITY): TOTAL PROPOSED 12

Plan Features

Main Site Layout

• Building C: 5 STOREY (89 UNITS), 21 MFE
• Building D: 5 STOREY (89 UNITS), 21 MFE
• Main Entry for both Buildings C and D.
• Lot B: Contains Open Lawn & Play Area.
• Dog Run
• Garbage / Recycle area.
• Retained Existing Vegetation zones.
• Erskine Lane roadway bordering the site.

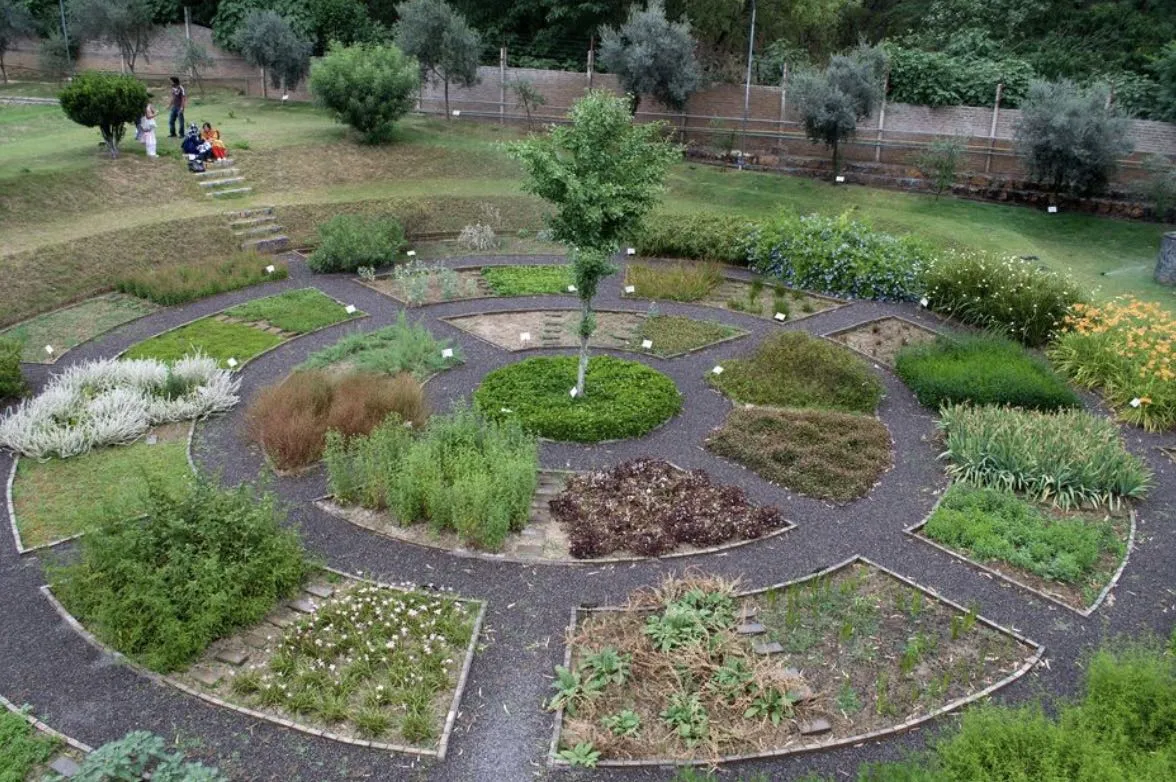

Healing Garden

Selection of perennial herbs & medicinal plants in feature front garden, some open dirt plot spaces available for resident gardening.

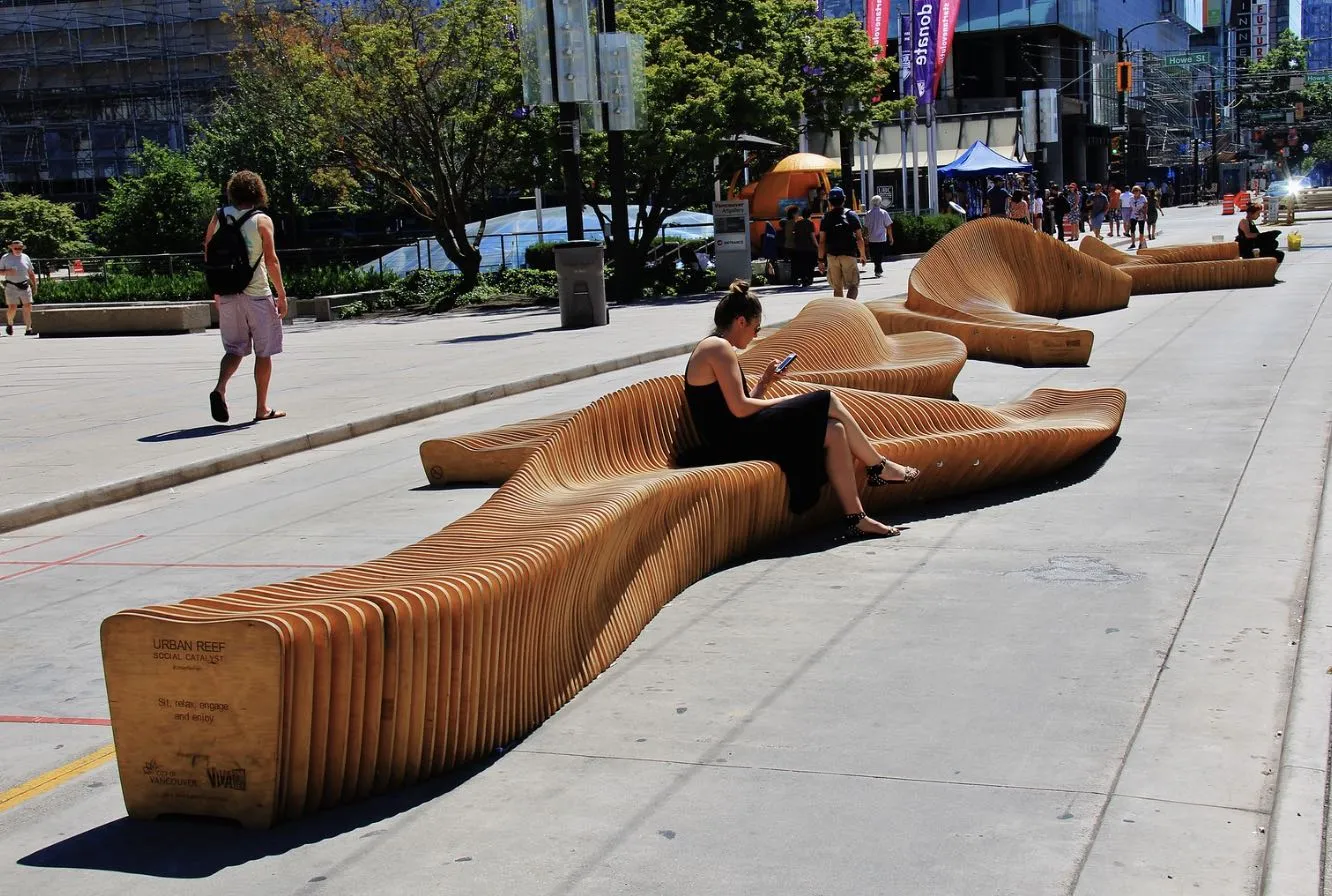

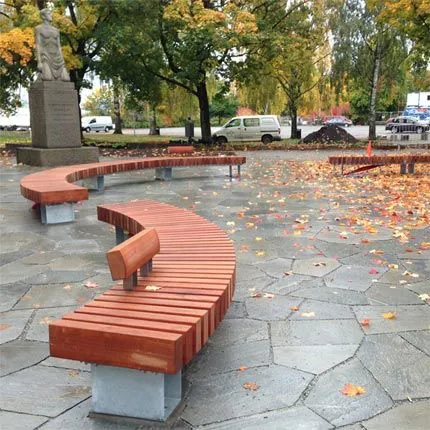

Feature Seating

Long bench seat feature set in centre of main amenity patio area.

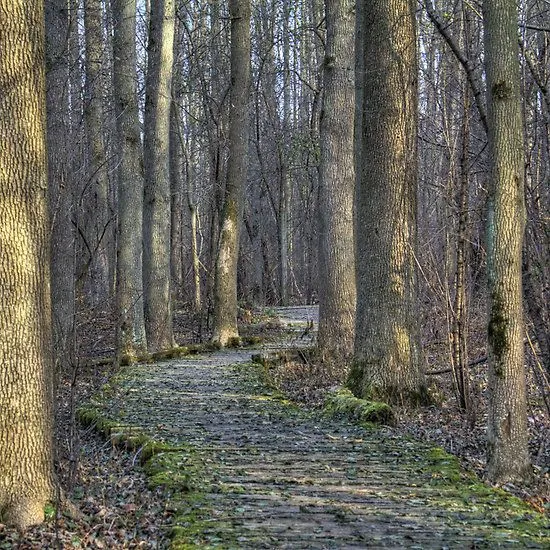

Existing Natural Pathway Through Forest

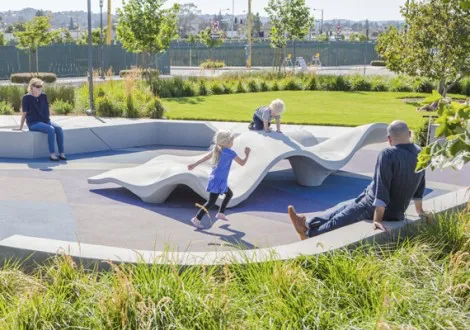

Open Lawn & Play Area

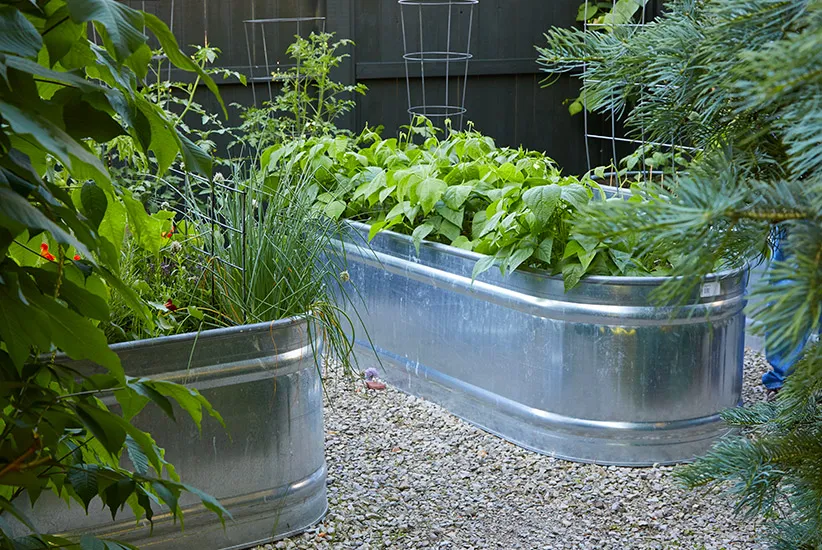

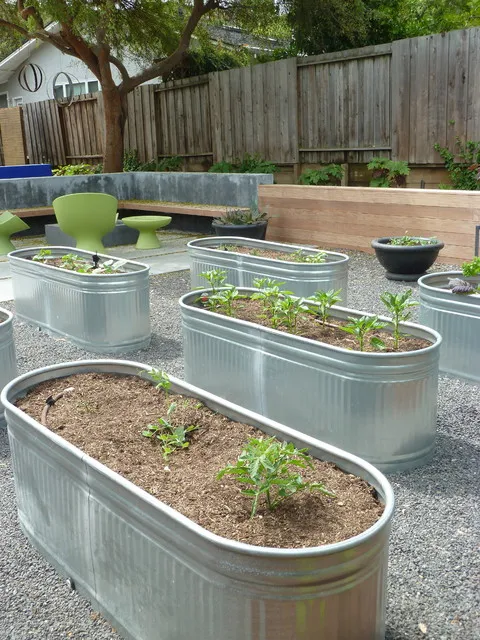

Resident Gardening Corner

2' x 2' x 4' & 2' x 2' x 6' aluminum horse trough containers set on crush gravel surface over parking slab. Chain link fence surround for fall & deer protection.

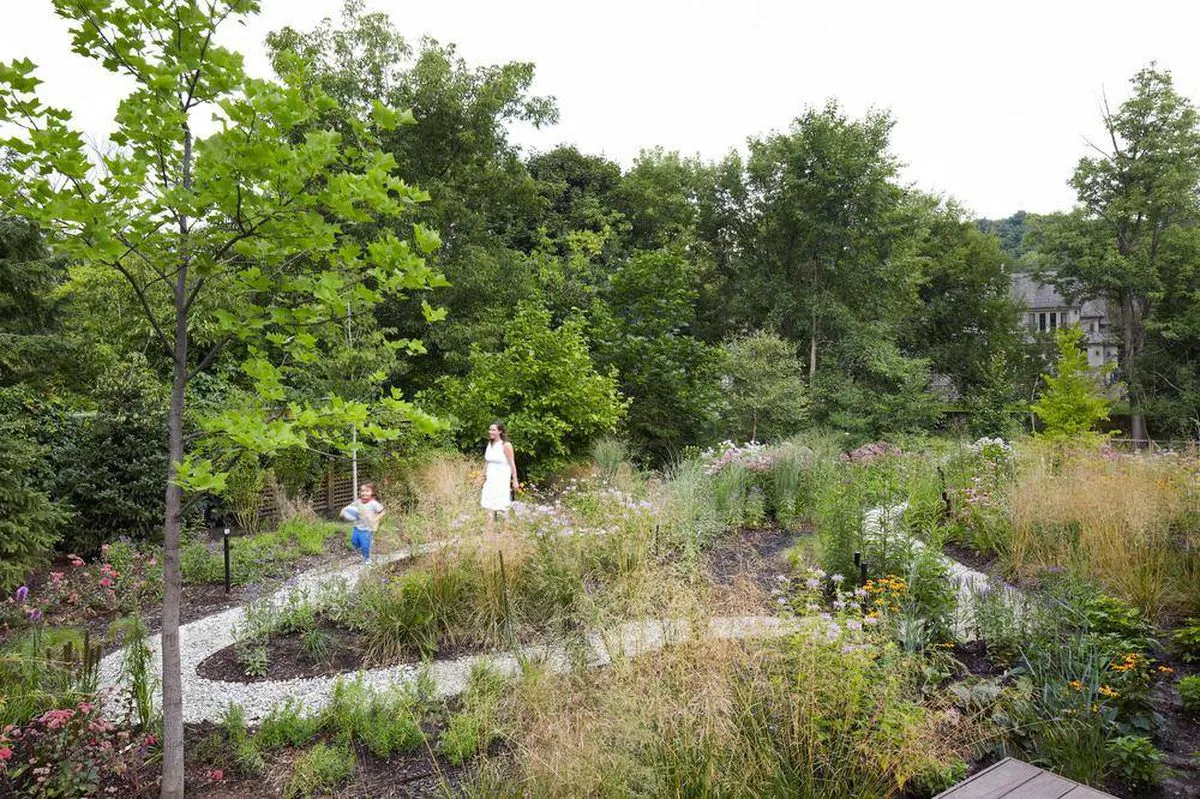

Discovery Nature Walk

(This idea could be incorporated into both sites) Potential gravel surface walking trail winding through forest - to be site fit with aims to create accessible access to natural forested area. To be undertaken with arborist supervision ensuring no damage is done to trees - will provide access for exploration play & discovery.

General Notes

NOTE: ALL WORK AND MATERIALS SHALL BE TO BCSLA / CNLA STANDARDS
