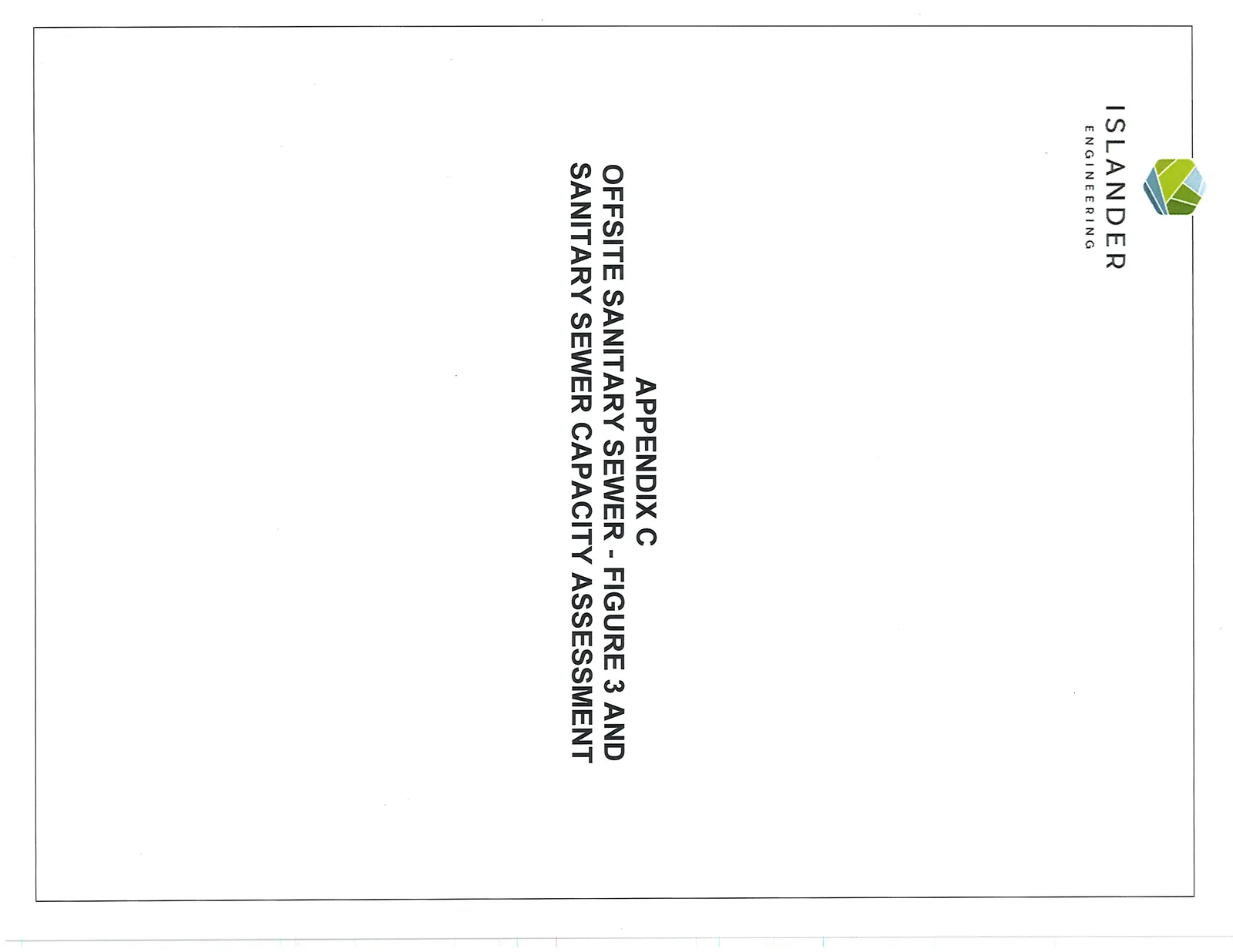

APPENDIX C
OFFSITE SANITARY SEWER - FIGURE 3 AND SANITARY SEWER CAPACITY ASSESSMENT
9 ERSKINE LANE OFFSITE SANITARY SEWER - FIGURE 3
TOWN OF VIEW ROYAL
[Map: Offsite sanitary sewer plan for 9 Erskine Lane. The map shows the proposed development site with four buildings: BLDG A (79 units), BLDG B (79 units), BLDG C (107 units), and BLDG D (107 units). A red line indicates the offsite sanitary sewer route starting from Erskine Lane (manhole 531), crossing the Galloping Goose Trail, then the Trans Canada Highway (manholes 528, 527), and following Vickery Road and Viewcrest Drive (manholes 67A, 67, 66, 65A, 65, 64) toward the Helmicken Park Pump Station (manhole 63).]
CIVIC ADDRESS: 9 ERSKINE LANE, LOT B, TOWN OF VIEW ROYAL, PLAN VIP26648
OCTOBER 2, 2019 FOR DISCUSSION PURPOSES ONLY
- IEL PROJECT: 2253
- ISSUED: OCT 09, 2019
- DRAWN BY: KK
- CHECKED BY: MJA
- SCALE: 1:2000
Page 114–117
TABLE 1 - SANITARY SYSTEM EXISTING CAPACITY ASSESSMENT
- PROJECT: 9 Erskine Lane
- JOB No.: 2253
- DATE: 10/31/2019
- ENG.: MJA
- DESIGN: RBJ
- FILE: G:\My Drive\Civil\Civil Projects\2253 - 9 Erskine Lane\9 Calculations & Estimates\9.3 Design Spreadsheet Information[2253- Table 1 - Existing System Assessment - Oct 29 2019.xlsx]A
- SINGLE-FAMILY CAPITA: 2.75 Per Unit
- REFERENCE: View Royal Sanitary Master Plan January 2019
- MULTI-FAMILY (HIGH) CAPITA: 1.85 Per Unit
- BASED ON: 0.67 x SFC
- RESIDENTIAL FLOW: 213 L/Capita/Day
- INFILTRATION: 32500 L/ha/Day (100 yr)
- PEAKING FACTOR: Harmon Formula
| LINE | LENGTH & SLOPE (m) | @ % | SF Units Incr. | SF Units Sum | MF Units Incr. | MF Units Sum | Catchment (ha) Area | Catchment (ha) Sum | Total Capita | Infiltration (L/s) | Average DWF (L/s) | Peaking Factor | Peak DWF (L/s) | Total Flow Qa (L/s) | Total Flow Qa (m³/s) | PIPE Ø (mm) | SLOPE % | Qf (m³/s) | Vf (m/s) | Tf (min) | Qa/Qf | d/D | Va/Vf | Va |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NewSMH 1 - SMH 2 | 35.00 | 2.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.86 | 0.86 | 0.00 | 0.323 | 0.000 | 4.500 | 0.000 | 0.32 | 0.00032 | 200 | 2.00 | 0.046 | 1.48 | 0.40 | 0.0070 | 0.13 | 0.48 | 0.71 |
| SMH 2 - SCO531 | 51.60 | 6.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.86 | 0.00 | 0.000 | 0.000 | 4.500 | 0.000 | 0.32 | 0.00032 | 200 | 6.00 | 0.080 | 2.56 | 0.34 | 0.0040 | 0.18 | 0.60 | 1.53 |
| SCO531-SMH530 | 62.00 | 14.40 | 3.00 | 3.00 | 0.00 | 0.00 | 0.17 | 1.03 | 8.25 | 0.064 | 0.020 | 4.422 | 0.090 | 0.48 | 0.00048 | 200 | 14.40 | 0.124 | 3.96 | 0.26 | 0.0038 | 0.24 | 0.68 | 2.69 |
| SMH530-SMH529 | 31.00 | 1.73 | 0.00 | 3.00 | 65.00 | 65.00 | 2.13 | 3.16 | 120.25 | 0.801 | 0.296 | 4.221 | 1.251 | 2.53 | 0.00253 | 200 | 1.73 | 0.043 | 1.37 | 0.38 | 0.0586 | 0.13 | 0.48 | 0.66 |
| New Service-SMH529 | 10.00 | 2.00 | 0.00 | 3.00 | 0.00 | 65.00 | 1.60 | 4.76 | 0.00 | 0.602 | 0.000 | 4.500 | 0.000 | 3.13 | 0.00313 | 200 | 2.00 | 0.046 | 1.48 | 0.11 | 0.0675 | 0.13 | 0.48 | 0.71 |
| SMH529-SMH528 | 48.00 | 1.90 | 2.00 | 5.00 | 0.00 | 65.00 | 0.53 | 5.29 | 5.50 | 0.199 | 0.014 | 4.436 | 0.060 | 3.39 | 0.00339 | 200 | 1.90 | 0.045 | 1.44 | 0.56 | 0.0750 | 0.13 | 0.48 | 0.69 |
| SMH528-SMH527 | 88.00 | 2.86 | 0.00 | 5.00 | 70.00 | 135.00 | 0.53 | 5.82 | 129.50 | 0.199 | 0.319 | 4.211 | 1.344 | 4.93 | 0.00493 | 200 | 2.86 | 0.055 | 1.77 | 0.83 | 0.0890 | 0.15 | 0.54 | 0.95 |
| SMH527-SMH67A | 49.00 | 2.78 | 0.00 | 5.00 | 0.00 | 135.00 | 0.00 | 5.82 | 0.00 | 0.000 | 0.000 | 4.500 | 0.000 | 4.93 | 0.00493 | 200 | 2.78 | 0.055 | 1.74 | 0.47 | 0.0902 | 0.15 | 0.54 | 0.94 |
| SMH67A-SMH67 | 40.00 | 3.54 | 7.00 | 12.00 | 0.00 | 135.00 | 0.00 | 5.82 | 19.25 | 0.000 | 0.047 | 4.383 | 0.208 | 5.14 | 0.00514 | 200 | 3.54 | 0.062 | 1.96 | 0.34 | 0.0833 | 0.16 | 0.58 | 1.14 |
| SMH67-SMH66 | 40.00 | 3.58 | 2.00 | 14.00 | 0.00 | 135.00 | 0.17 | 5.99 | 5.50 | 0.064 | 0.014 | 4.436 | 0.060 | 5.27 | 0.00527 | 200 | 3.58 | 0.062 | 1.98 | 0.34 | 0.0849 | 0.16 | 0.58 | 1.15 |
| SMH66-SMH65A | 26.50 | 0.92 | 2.00 | 16.00 | 0.00 | 135.00 | 0.17 | 6.16 | 5.50 | 0.064 | 0.014 | 4.436 | 0.060 | 5.39 | 0.00539 | 200 | 0.92 | 0.031 | 1.00 | 0.44 | 0.1714 | 0.12 | 0.43 | 0.43 |
| SMH65A-SMH65 | 100.60 | 0.92 | 5.00 | 21.00 | 0.00 | 135.00 | 0.51 | 6.67 | 13.75 | 0.192 | 0.034 | 4.400 | 0.149 | 5.73 | 0.00573 | 200 | 0.92 | 0.031 | 1.00 | 1.67 | 0.1822 | 0.12 | 0.43 | 0.43 |
| SMH65-SMH64 | 94.40 | 1.04 | 4.00 | 25.00 | 0.00 | 135.00 | 0.41 | 7.08 | 11.00 | 0.154 | 0.027 | 4.411 | 0.120 | 6.01 | 0.00601 | 200 | 1.04 | 0.033 | 1.06 | 1.48 | 0.1796 | 0.12 | 0.43 | 0.46 |
| Southwest to SMH 64 | 315.00 | 3.80 | 44.00 | 69.00 | 0.00 | 135.00 | 3.94 | 11.02 | 121.00 | 1.482 | 0.298 | 4.220 | 1.259 | 8.75 | 0.00875 | 200 | 3.80 | 0.064 | 2.04 | 2.58 | 0.1368 | 0.16 | 0.58 | 1.18 |
| SMH64-SMH63 | 23.00 | 1.74 | 0.00 | 69.00 | 0.00 | 135.00 | 0.29 | 11.31 | 0.00 | 0.109 | 0.000 | 4.500 | 0.000 | 8.86 | 0.00886 | 200 | 1.74 | 0.043 | 1.38 | 0.28 | 0.2047 | 0.13 | 0.48 | 0.66 |
| Southeast to SMH 63 | 315.00 | 3.80 | 37.00 | 106.00 | 0.00 | 135.00 | 4.19 | 15.50 | 101.75 | 1.576 | 0.251 | 4.242 | 1.064 | 11.39 | 0.01139 | 200 | 3.80 | 0.064 | 2.04 | 2.58 | 0.1781 | 0.16 | 0.58 | 1.18 |
| Existing from North to P.S. | 1000.00 | 2.00 | 215.00 | 321.00 | 21.00 | 156.00 | 27.00 | 42.50 | 630.10 | 10.156 | 1.553 | 3.920 | 6.090 | 25.10 | 0.02510 | 200 | 2.00 | 0.046 | 1.48 | 11.29 | 0.5412 | 0.13 | 0.48 | 0.71 |
Page 114–117
TABLE 2 - SANITARY SYSTEM PROPOSED CAPACITY ASSESSMENT
- PROJECT: 9 Erskine Lane
- JOB No.: 2253
- DATE: 10/31/2019
- ENG.: MJA
- DESIGN: RBJ
- FILE: G:\My Drive\Civil\Civil Projects\2253 - 9 Erskine Lane\9 Calculations & Estimates\9.3 Design Spreadsheet Information[2253- Table 1 - Proposed System Assessment - Oct 29 2019.xlsx]A
- SINGLE-FAMILY CAPITA: 2.75 Per Unit
- REFERENCE: View Royal Sanitary Master Plan January 2019
- MULTI-FAMILY (HIGH) CAPITA: 1.85 Per Unit
- BASED ON: 0.67 x SFC
- RESIDENTIAL FLOW: 213 L/Capita/Day
- INFILTRATION: 32500 L/ha/Day (100 yr)
- PEAKING FACTOR: Harmon Formula
| LINE | LENGTH & SLOPE (m) | @ % | SF Units Incr. | SF Units Sum | MF Units Incr. | MF Units Sum | Catchment (ha) Area | Catchment (ha) Sum | Total Capita | Infiltration (L/s) | Average DWF (L/s) | Peaking Factor | Peak DWF (L/s) | Total Flow Qa (L/s) | Total Flow Qa (m³/s) | PIPE Ø (mm) | SLOPE % | Qf (m³/s) | Vf (m/s) | Tf (min) | Qa/Qf | d/D | Va/Vf | Va |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NewSMH 1 - SMH 2 | 35.00 | 2.00 | 0.00 | 0.00 | 158.00 | 158.00 | 0.86 | 0.86 | 292.30 | 0.323 | 0.721 | 4.083 | 2.942 | 3.27 | 0.00327 | 200 | 2.00 | 0.046 | 1.48 | 0.40 | 0.0704 | 0.13 | 0.48 | 0.71 |
| SMH 2 - SCO531 | 51.60 | 6.00 | 0.00 | 0.00 | 0.00 | 158.00 | 0.00 | 0.86 | 0.00 | 0.000 | 0.000 | 4.500 | 0.000 | 3.27 | 0.00327 | 200 | 6.00 | 0.080 | 2.56 | 0.34 | 0.0407 | 0.18 | 0.60 | 1.53 |
| SCO531-SMH530 | 62.00 | 14.40 | 3.00 | 3.00 | 0.00 | 158.00 | 0.17 | 1.03 | 8.25 | 0.064 | 0.020 | 4.422 | 0.090 | 3.42 | 0.00342 | 200 | 14.40 | 0.124 | 3.96 | 0.26 | 0.0275 | 0.24 | 0.68 | 2.69 |
| SMH530-SMH529 | 31.00 | 1.73 | 0.00 | 3.00 | 65.00 | 223.00 | 2.13 | 3.16 | 120.25 | 0.801 | 0.296 | 4.221 | 1.251 | 5.47 | 0.00547 | 200 | 1.73 | 0.043 | 1.37 | 0.38 | 0.1268 | 0.13 | 0.48 | 0.66 |
| New Service-SMH529 | 10.00 | 2.00 | 0.00 | 3.00 | 214.00 | 437.00 | 1.60 | 4.76 | 395.90 | 0.602 | 0.976 | 4.024 | 3.928 | 10.00 | 0.01000 | 200 | 2.00 | 0.046 | 1.48 | 0.11 | 0.2156 | 0.13 | 0.48 | 0.71 |
| SMH529-SMH528 | 48.00 | 1.90 | 2.00 | 5.00 | 0.00 | 437.00 | 0.53 | 5.29 | 5.50 | 0.199 | 0.014 | 4.436 | 0.060 | 10.26 | 0.01026 | 200 | 1.90 | 0.045 | 1.44 | 0.56 | 0.2270 | 0.13 | 0.48 | 0.69 |
| SMH528-SMH527 | 88.00 | 2.86 | 0.00 | 5.00 | 70.00 | 507.00 | 0.53 | 5.82 | 129.50 | 0.199 | 0.319 | 4.211 | 1.344 | 11.81 | 0.01181 | 200 | 2.86 | 0.055 | 1.77 | 0.83 | 0.2128 | 0.15 | 0.54 | 0.95 |
| SMH527-SMH67A | 49.00 | 2.78 | 0.00 | 5.00 | 0.00 | 507.00 | 0.00 | 5.82 | 0.00 | 0.000 | 0.000 | 4.500 | 0.000 | 11.81 | 0.01181 | 200 | 2.78 | 0.055 | 1.74 | 0.47 | 0.2159 | 0.15 | 0.54 | 0.94 |
| SMH67A-SMH67 | 40.00 | 3.54 | 7.00 | 12.00 | 0.00 | 507.00 | 0.00 | 5.82 | 19.25 | 0.000 | 0.047 | 4.383 | 0.208 | 12.01 | 0.01201 | 200 | 3.54 | 0.062 | 1.96 | 0.34 | 0.1947 | 0.16 | 0.58 | 1.14 |
| SMH67-SMH66 | 40.00 | 3.58 | 2.00 | 14.00 | 0.00 | 507.00 | 0.17 | 5.99 | 5.50 | 0.064 | 0.014 | 4.436 | 0.060 | 12.14 | 0.01214 | 200 | 3.58 | 0.062 | 1.98 | 0.34 | 0.1956 | 0.16 | 0.58 | 1.15 |
| SMH66-SMH65A | 26.50 | 0.92 | 2.00 | 16.00 | 0.00 | 507.00 | 0.17 | 6.16 | 5.50 | 0.064 | 0.014 | 4.436 | 0.060 | 12.26 | 0.01226 | 200 | 0.92 | 0.031 | 1.00 | 0.44 | 0.3898 | 0.12 | 0.43 | 0.43 |
| SMH65A-SMH65 | 100.60 | 0.92 | 5.00 | 21.00 | 0.00 | 507.00 | 0.51 | 6.67 | 13.75 | 0.192 | 0.034 | 4.400 | 0.149 | 12.60 | 0.01260 | 200 | 0.92 | 0.031 | 1.00 | 1.67 | 0.4006 | 0.12 | 0.43 | 0.43 |
| SMH65-SMH64 | 94.40 | 1.04 | 4.00 | 25.00 | 0.00 | 507.00 | 0.41 | 7.08 | 11.00 | 0.154 | 0.027 | 4.411 | 0.120 | 12.88 | 0.01288 | 200 | 1.04 | 0.033 | 1.06 | 1.48 | 0.3850 | 0.12 | 0.43 | 0.46 |
| Southwest to SMH 64 | 315.00 | 3.80 | 44.00 | 69.00 | 0.00 | 507.00 | 3.94 | 11.02 | 121.00 | 1.482 | 0.298 | 4.220 | 1.259 | 15.62 | 0.01562 | 200 | 3.80 | 0.064 | 2.04 | 2.58 | 0.2443 | 0.16 | 0.58 | 1.18 |
| SMH64-SMH63 | 23.00 | 1.74 | 0.00 | 69.00 | 0.00 | 507.00 | 0.29 | 11.31 | 0.00 | 0.109 | 0.000 | 4.500 | 0.000 | 15.73 | 0.01573 | 200 | 1.74 | 0.043 | 1.38 | 0.28 | 0.3635 | 0.13 | 0.48 | 0.66 |
| Southeast to SMH 63 | 315.00 | 3.80 | 37.00 | 106.00 | 0.00 | 507.00 | 4.19 | 15.50 | 101.75 | 1.576 | 0.251 | 4.242 | 1.064 | 18.26 | 0.01826 | 200 | 3.80 | 0.064 | 2.04 | 2.58 | 0.2856 | 0.16 | 0.58 | 1.18 |
| Existing from North to P.S. | 1000.00 | 2.00 | 215.00 | 321.00 | 21.00 | 528.00 | 27.00 | 42.50 | 630.10 | 10.156 | 1.553 | 3.920 | 6.090 | 31.97 | 0.03197 | 200 | 2.00 | 0.046 | 1.48 | 11.29 | 0.6893 | 0.13 | 0.48 | 0.71 |
