Site Analysis Diagram

June 16, 2020Page 601 section

Diagram showing the project site location relative to Eagle Creek Village and neighboring developments.

1 CALL TO ORDER
Helmcken RoadBurnside Road WestEagle's Nest location

Site Analysis Diagram

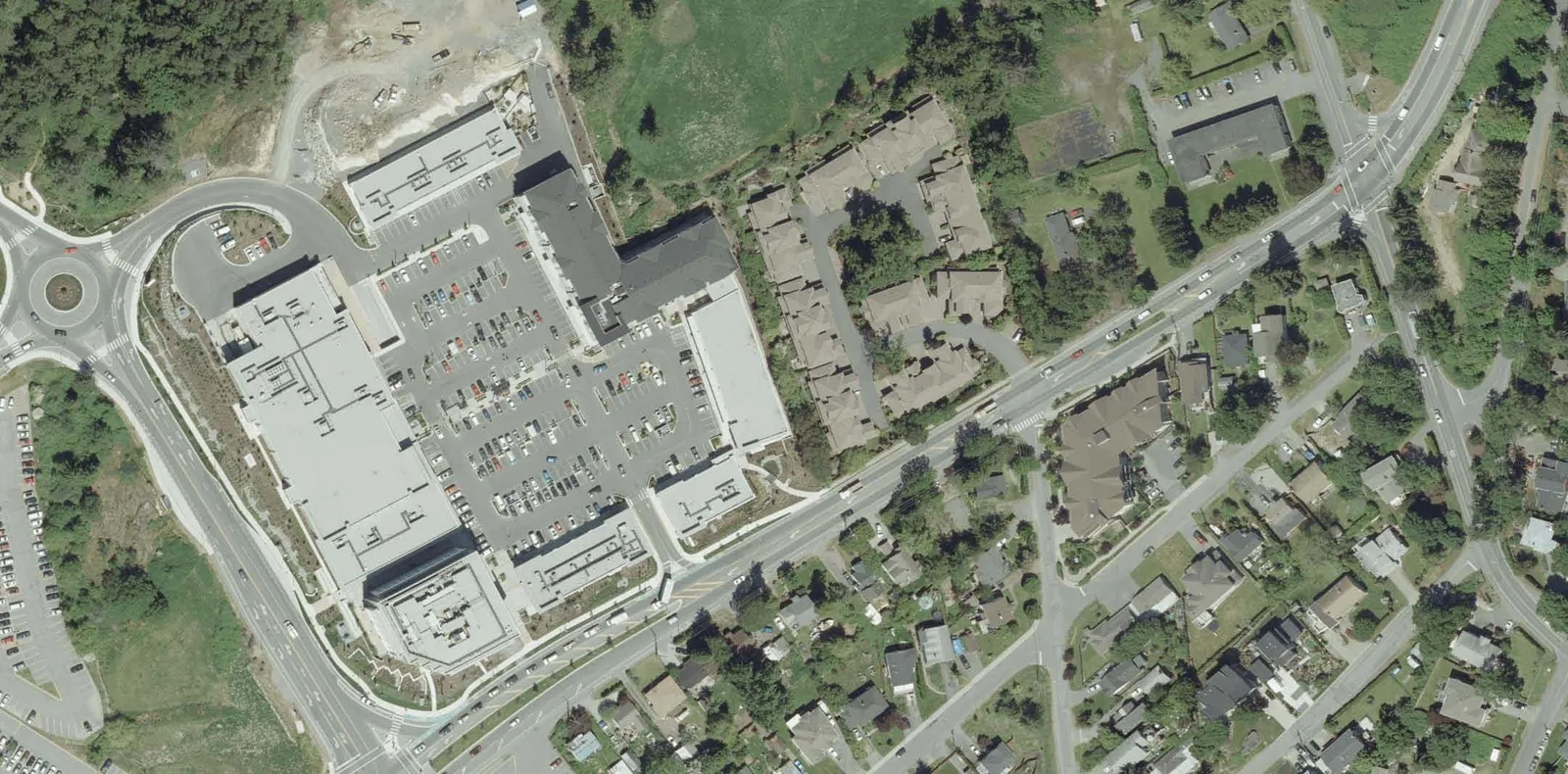

Wide aerial overview showing the project site and surrounding neighborhood context
Wide aerial overview showing the project site and surrounding neighborhood context

Site Landmarks and Labels

  • EAGLE CREEK
  • EAGLE CREEK VILLAGE
  • HIDDEN OAKS
  • EAGLE'S NEST
  • PROPERTY LINE
  • BURNSIDE ROAD WEST
  • HELMCKEN ROAD

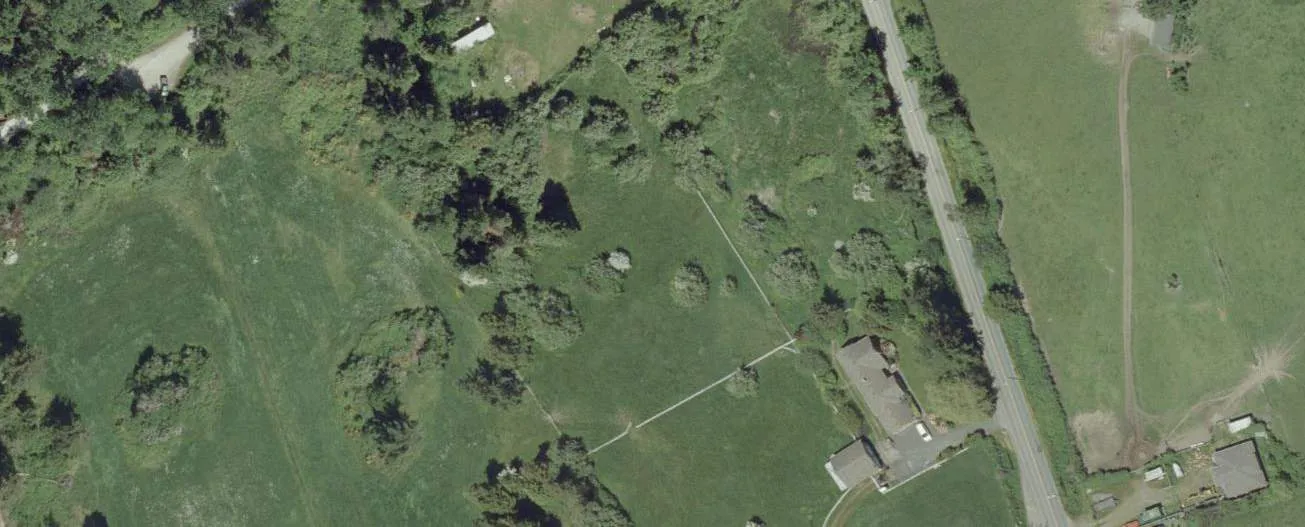

Aerial view of undeveloped green space and wooded areas on the northern portion of the site
Aerial view of undeveloped green space and wooded areas on the northern portion of the site

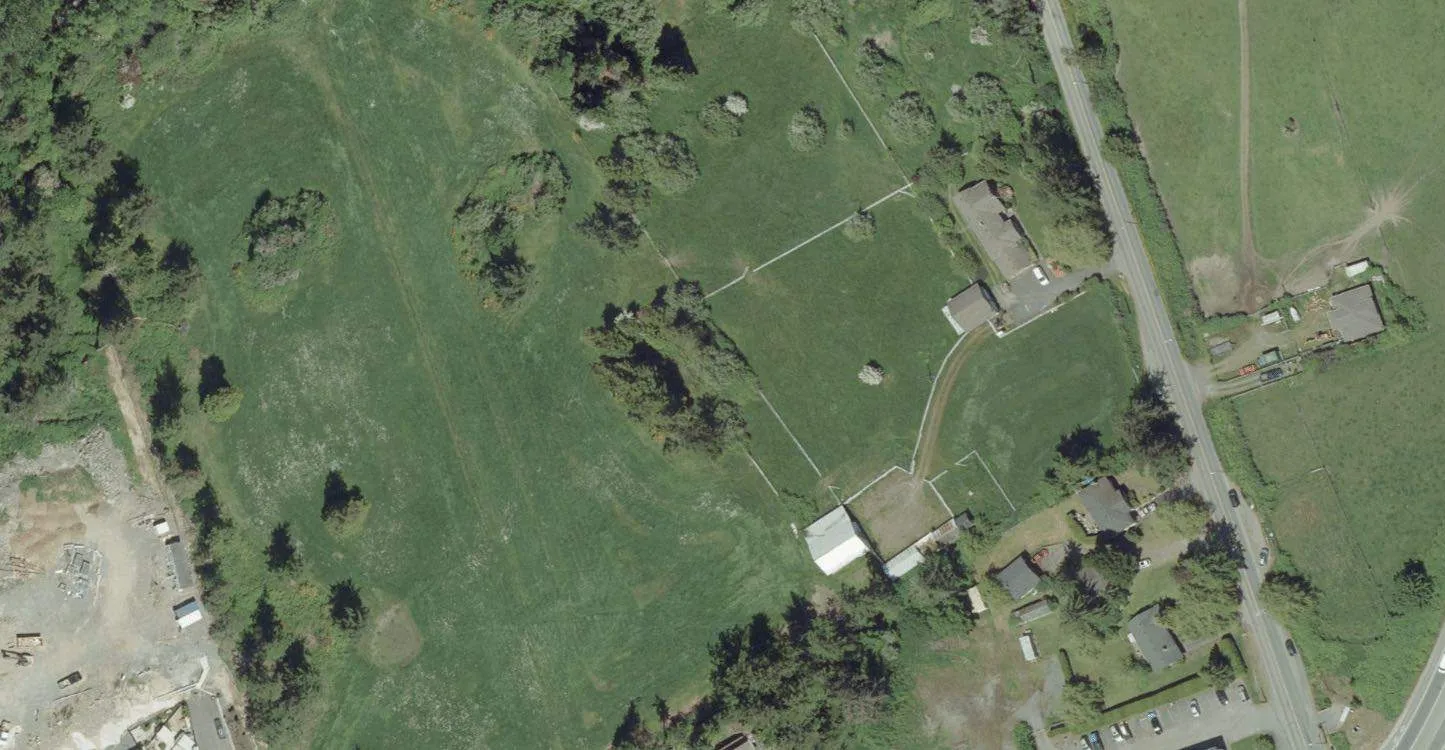

Aerial view of the central site area featuring open fields and paths
Aerial view of the central site area featuring open fields and paths

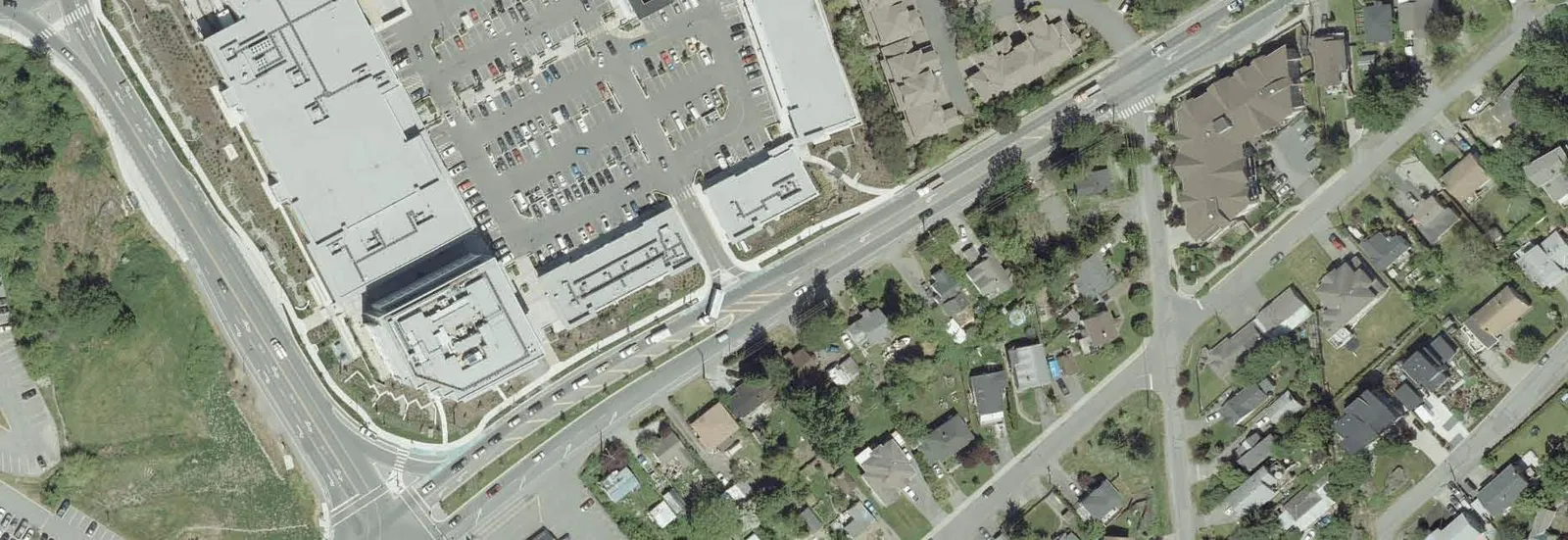

Aerial view of the Eagle Creek Village commercial center and parking facilities
Aerial view of the Eagle Creek Village commercial center and parking facilities

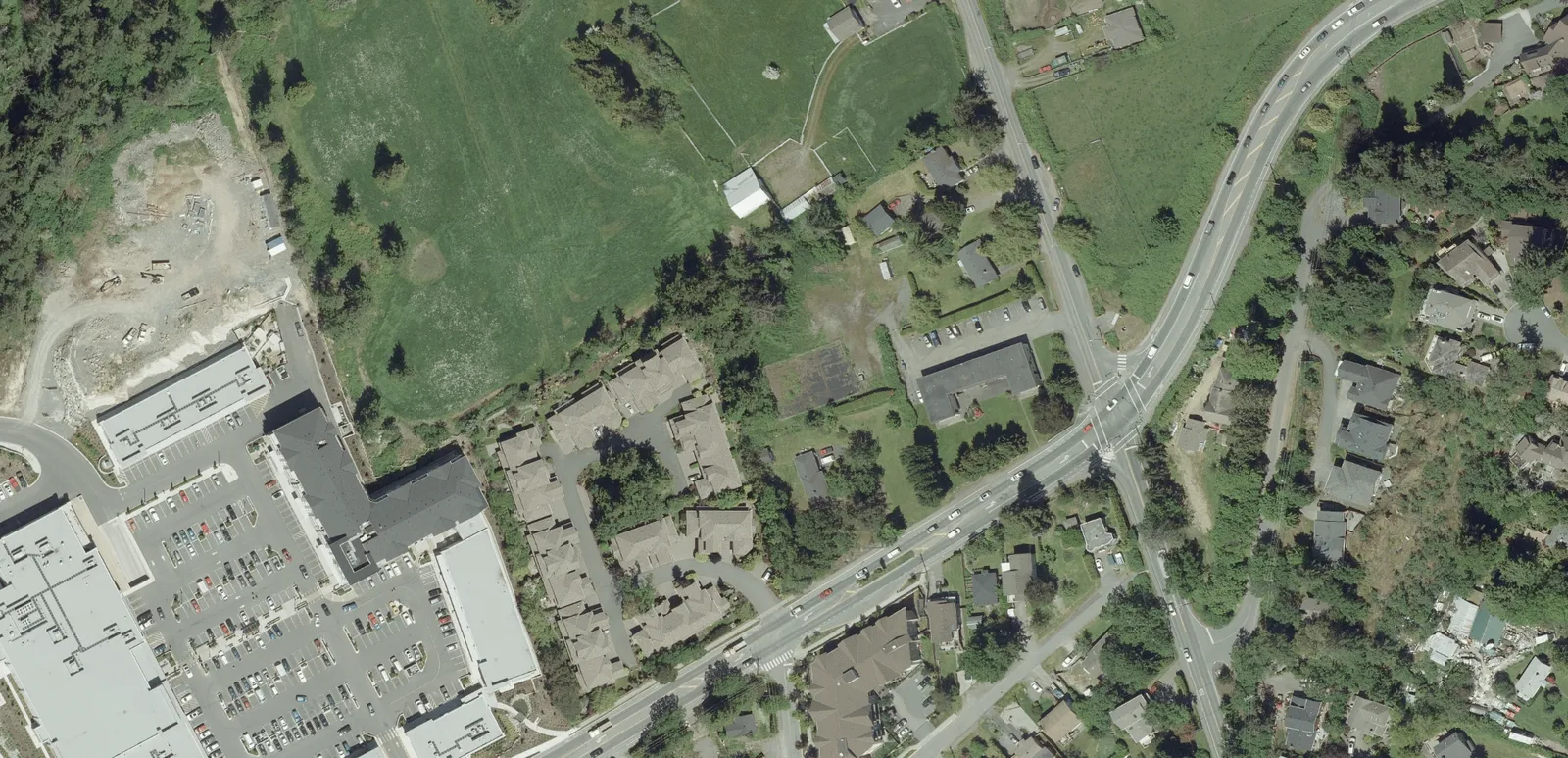

Aerial view of the road network and residential properties adjacent to Helmcken Road
Aerial view of the road network and residential properties adjacent to Helmcken Road

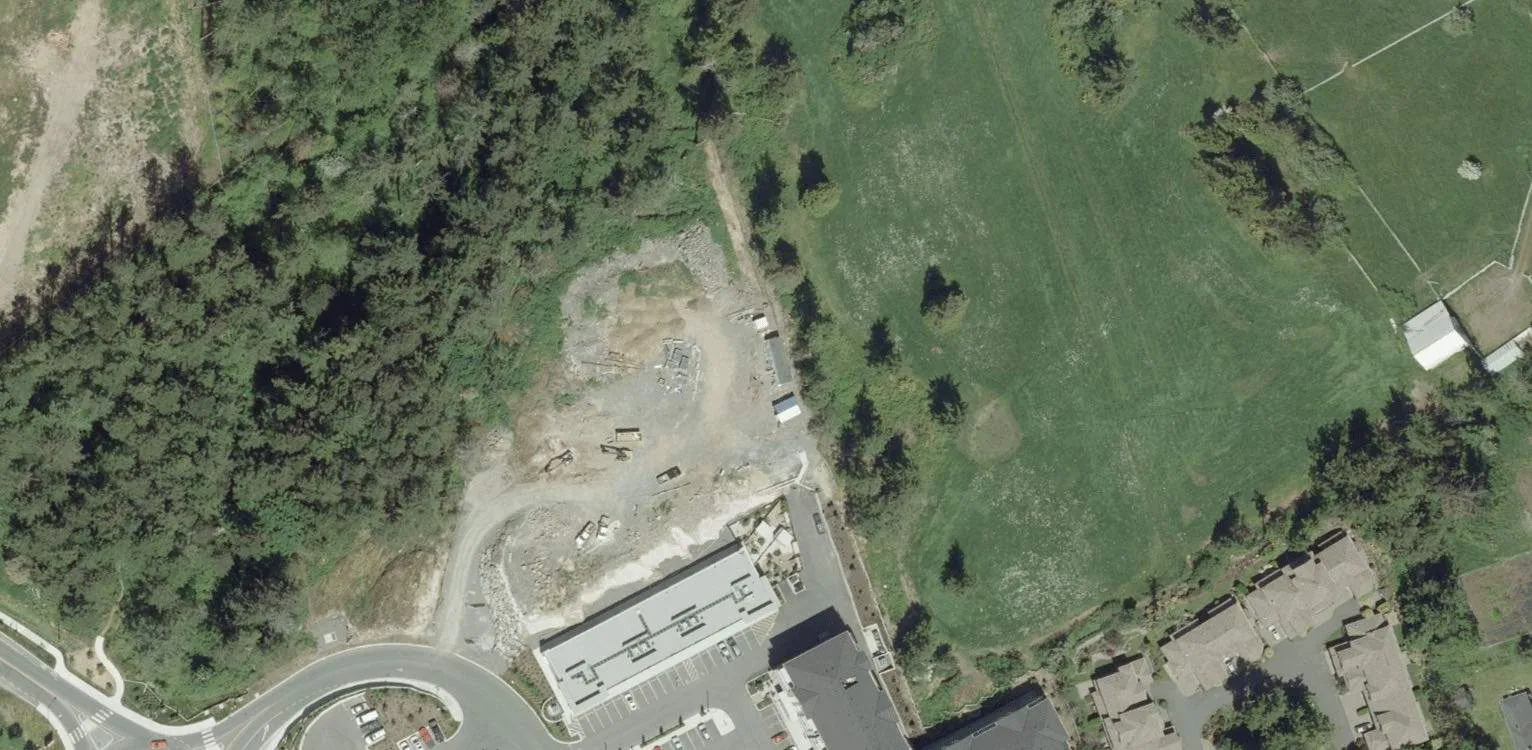

Aerial view of a cleared area and construction staging near the site perimeter
Aerial view of a cleared area and construction staging near the site perimeter

Project Information

Field Detail
Project Name Eagle Nest Residences
Address 3 Helmcken Road, Victoria, BC
Drawing Title Site Analysis Diagram
Project Number 1827
Drawing Number A601
Revision Number 2
Scale 1:600
Drawn By EDS
Checked By RAW
Plot Date 27 FEB 2020
Drawing File 1827 A100 Site Plan.vwx

Revision History

No. Date Description
1 17 SEP 2018 ISSUED FOR REZONING
2 22 JAN 2020 ISSUED FOR REZONING
2 27 FEB 2020 ISSUED FOR REZONING

ISSUED FOR REZONING

Architectural Firm: dHKarchitects Victoria Office: 977 Fort Street, Victoria BC V8V 3K3 | T 1 250 658 3367 Nanaimo Office: 102 - 5190 Dublin Way, Nanaimo BC V9T 0H2 | T 1 250 585 5810

Notes:

  • All dimensions are shown in millimeters.
  • Diagram Scale: 1:600 (at A601)
Page 60
