Tree Protection Fencing Detail

June 16, 2020Page 1371 section

Technical design drawing specifying the construction requirements for protective tree fencing on the development site.

1 CALL TO ORDER
1.20m fence height2.4m maximum spanDrawing E105

TREE PROTECTION FENCING

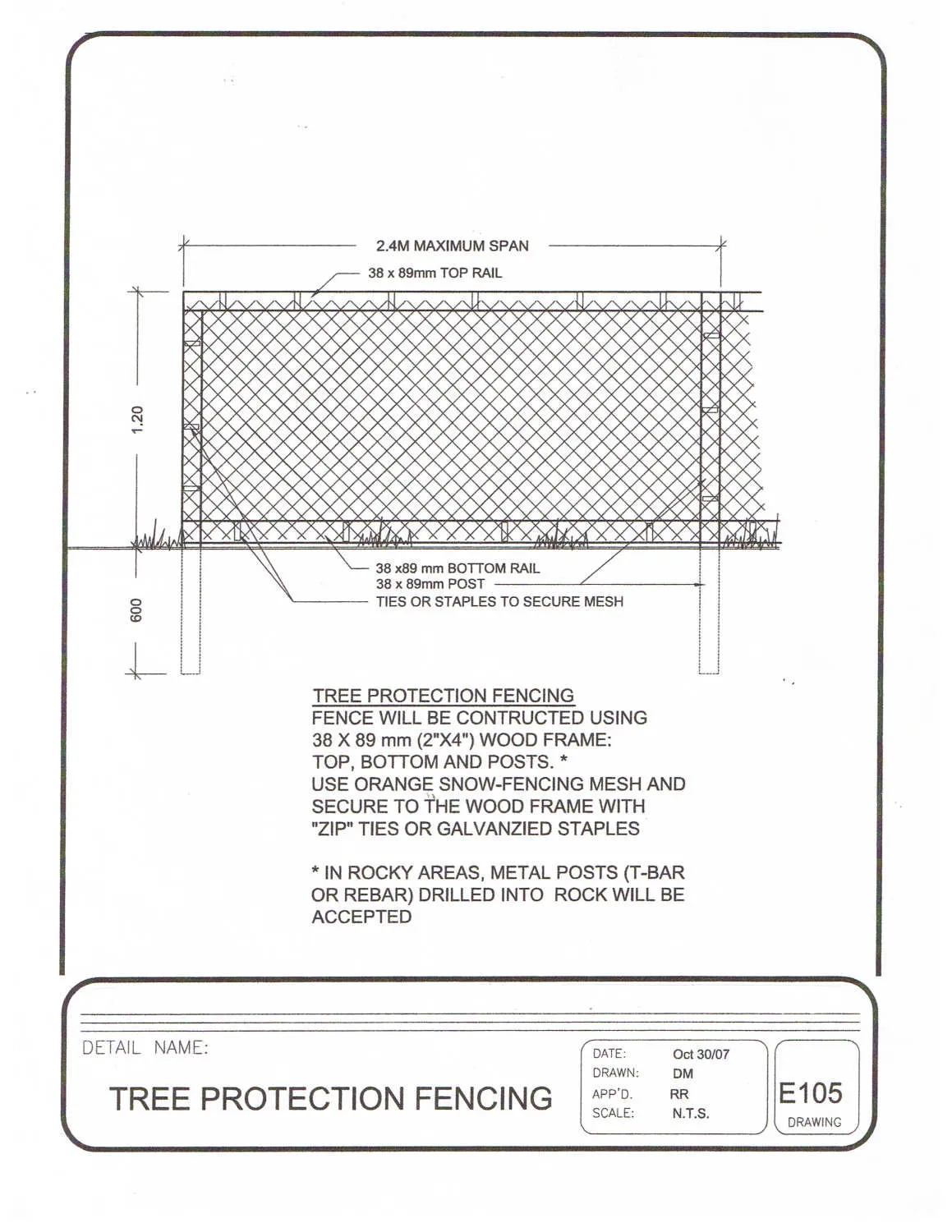

Technical drawing of tree protection fencing detail showing a 2.4M maximum span, 1.20m height above ground, 600mm post depth, and specifications for top and bottom rails.
Technical drawing of tree protection fencing detail showing a 2.4M maximum span, 1.20m height above ground, 600mm post depth, and specifications for top and bottom rails.

Construction Specifications

  • TREE PROTECTION FENCING FENCE WILL BE CONTRUCTED USING 38 X 89 mm (2"X4") WOOD FRAME: TOP, BOTTOM AND POSTS. *
  • USE ORANGE SNOW-FENCING MESH AND SECURE TO THE WOOD FRAME WITH "ZIP" TIES OR GALVANZIED STAPLES
    • IN ROCKY AREAS, METAL POSTS (T-BAR OR REBAR) DRILLED INTO ROCK WILL BE ACCEPTED
Detail Name TREE PROTECTION FENCING
DATE Oct 30/07
DRAWN DM
APP'D RR
SCALE N.T.S.
DRAWING E105
