Appendix A: Select Site Photographs

Appendix A

Select Site Photographs

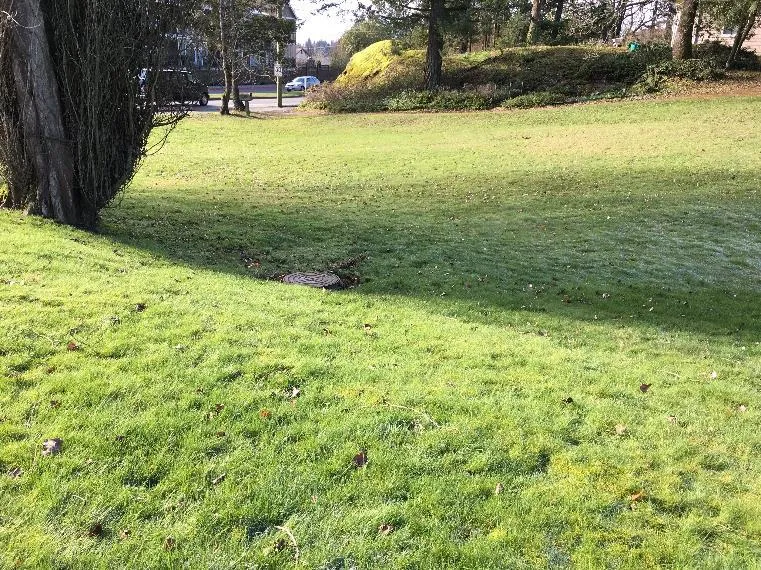

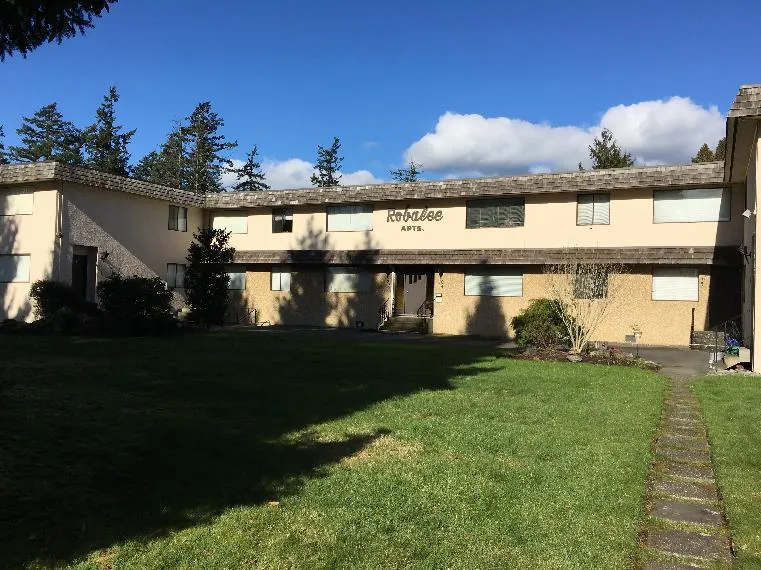

**Photograph No.1:** The Robalee Apartment Building at #3 Helmcken Rd, lawn in front of building former septic field.

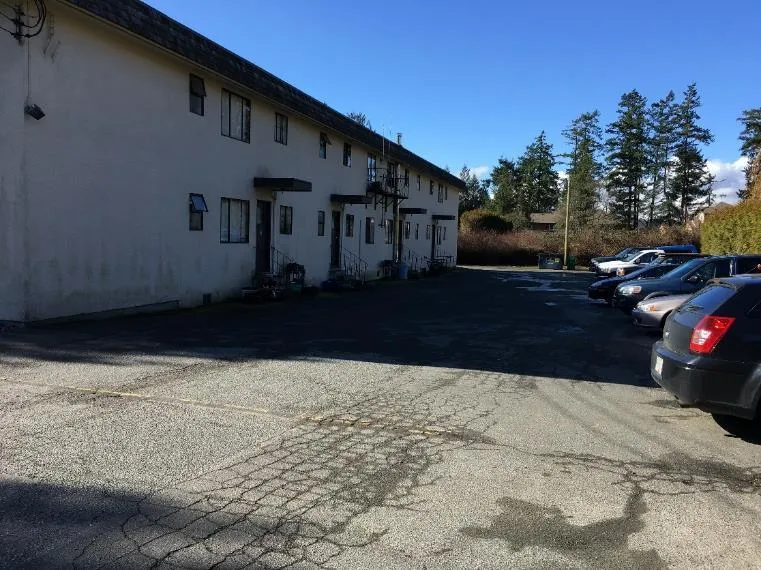

**Photograph No.2:** The parking lot on the north side of the Robalee Apartment Building at #3 Helmcken Rd.

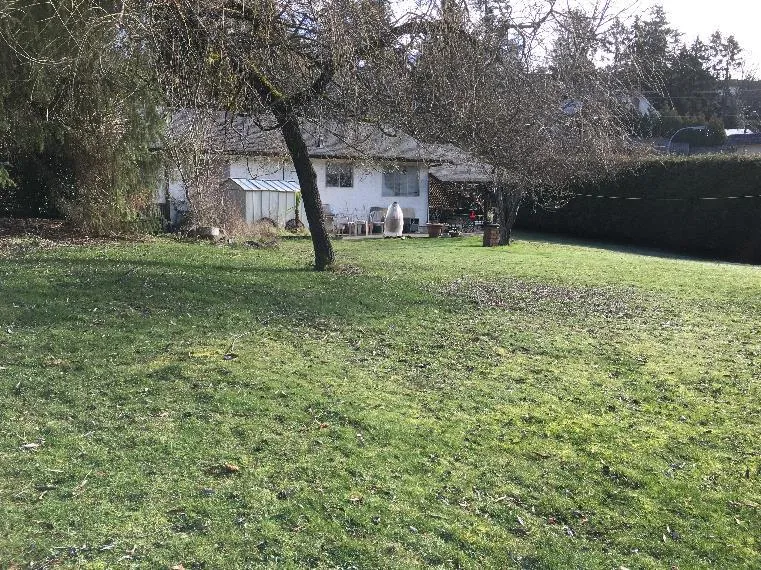

**Photograph No.3:** View looking east of back yard and house at 1445 Burnside Rd W

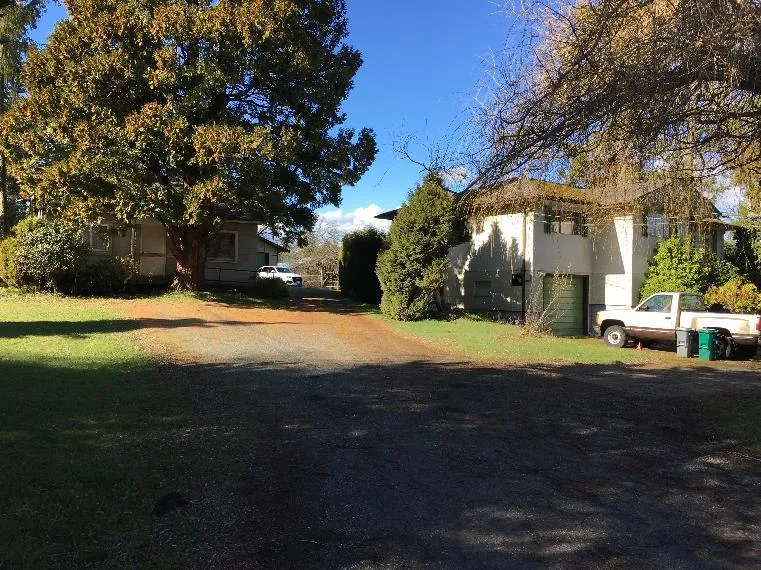

**Photograph No.4:** View west of 1447 Burnside Rd W (left side of photo) and 1449 Burnside Rd W (right side)

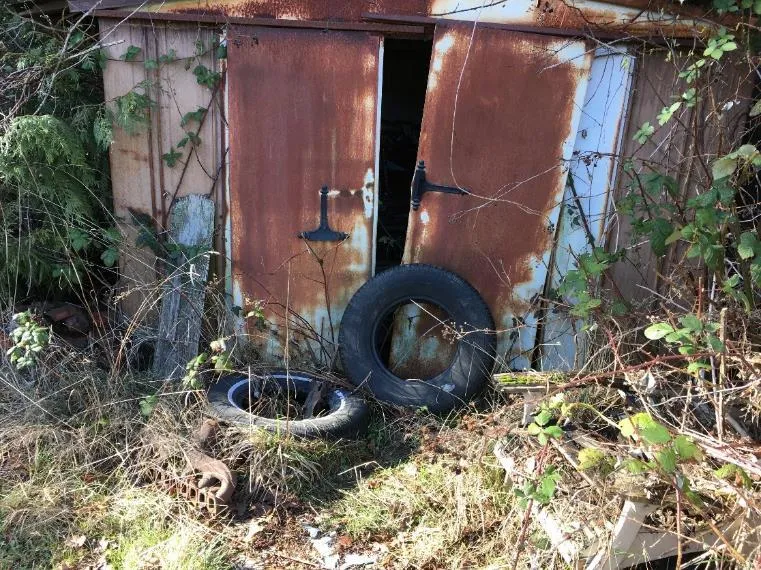

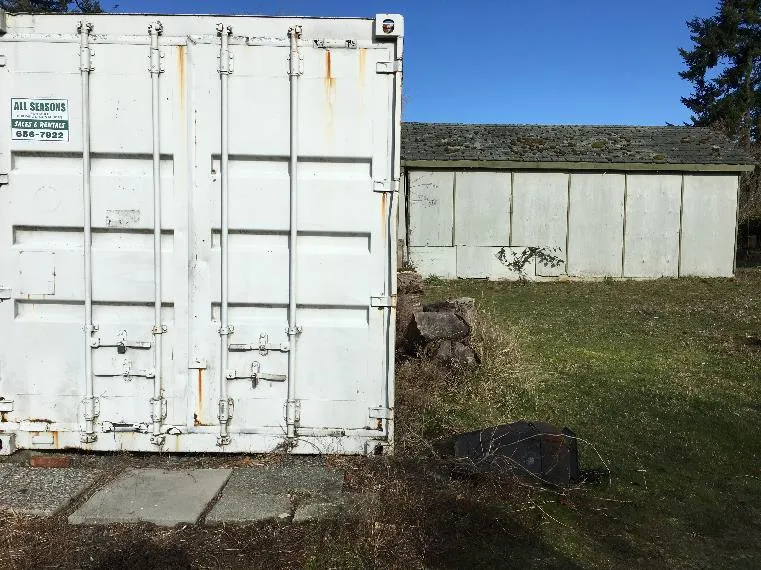

**Photograph No.5:** Storage shed and container to the west of 1447 Burnside Rd W

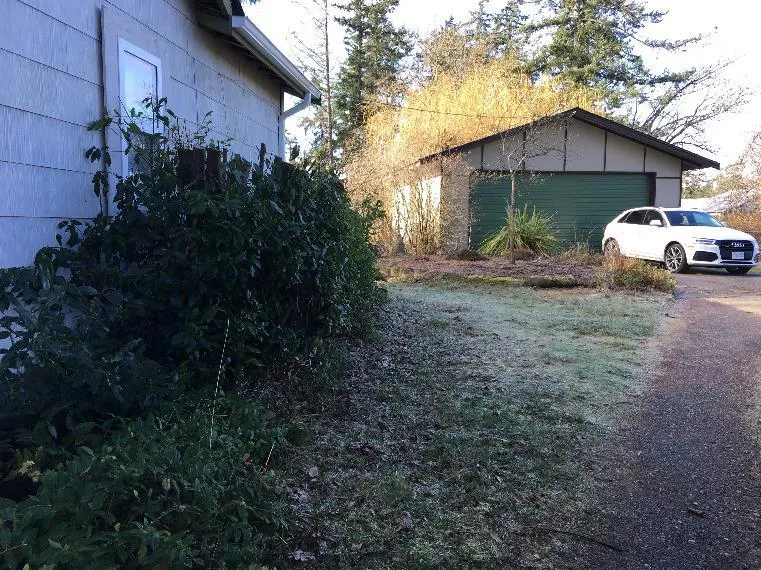

**Photograph No.6:** The detached garaged on the north boundary of the Site at 1449 Burnside Rd W

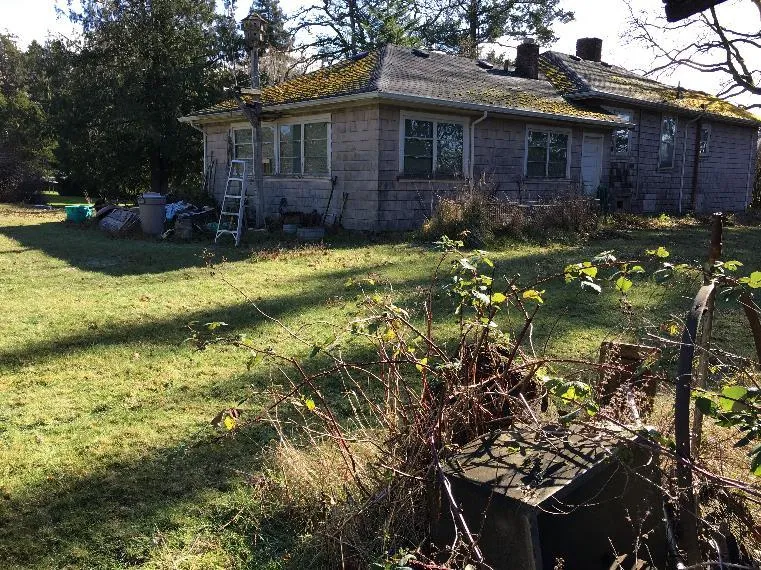

**Photograph No.7:** View northwest of house on southwest corner of the Site at #5 Helmcken Rd

**Photograph No.8:** Detached garage/shed along the western boundary of the Site for # 5 Helmcken Rd

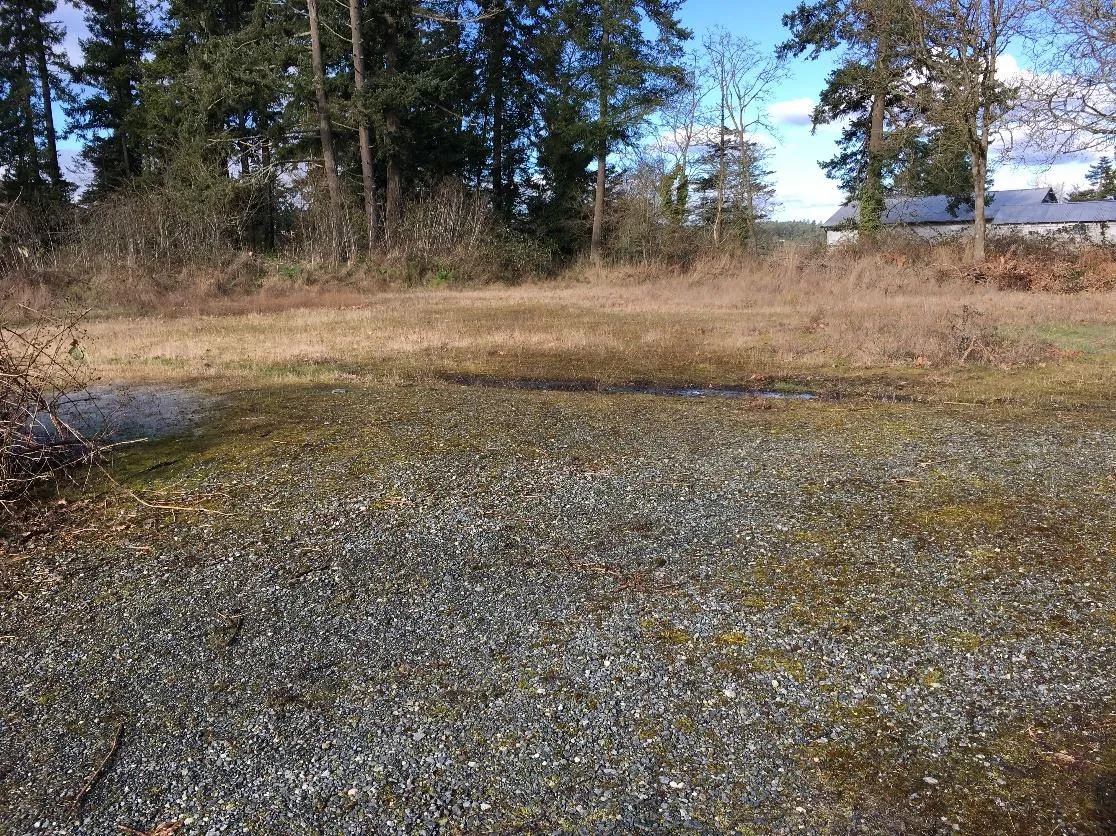

**Photograph No.9:** View from center of Site looking west at former plant nursery and soil sorting area

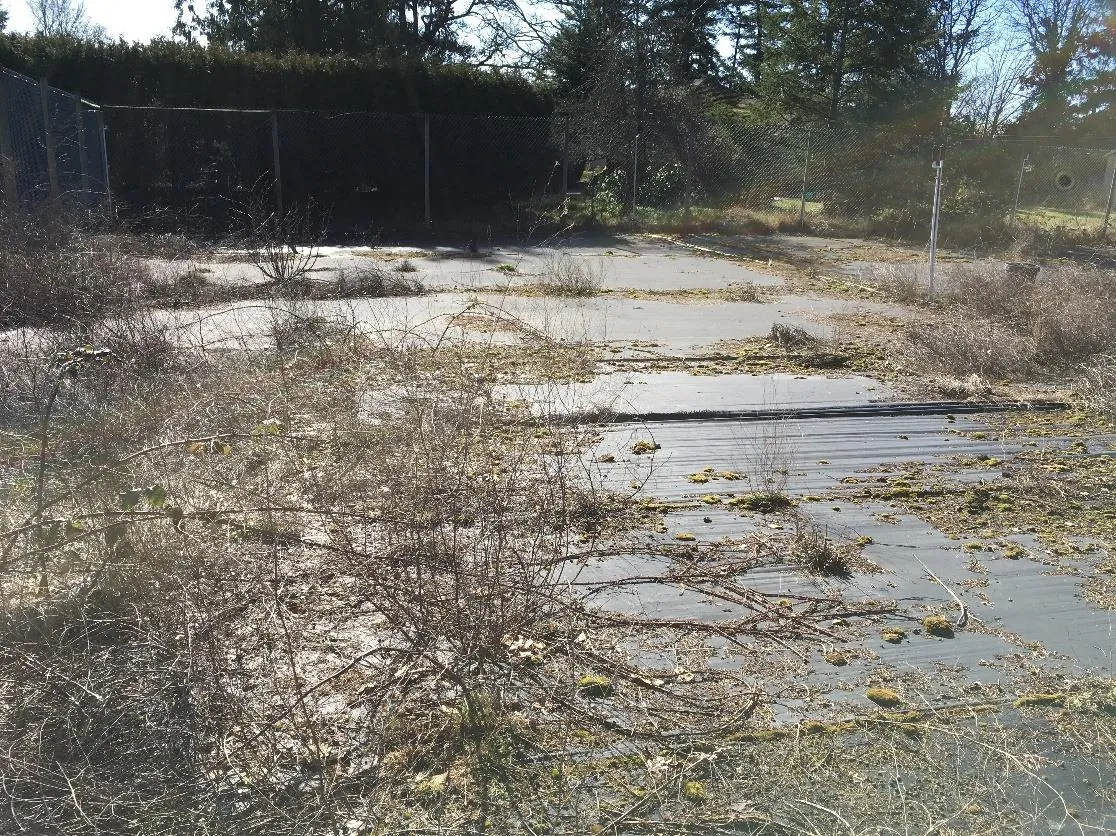

**Photograph No.10:** Geosynthetic fabric lining the ground surface of the former plant nursery

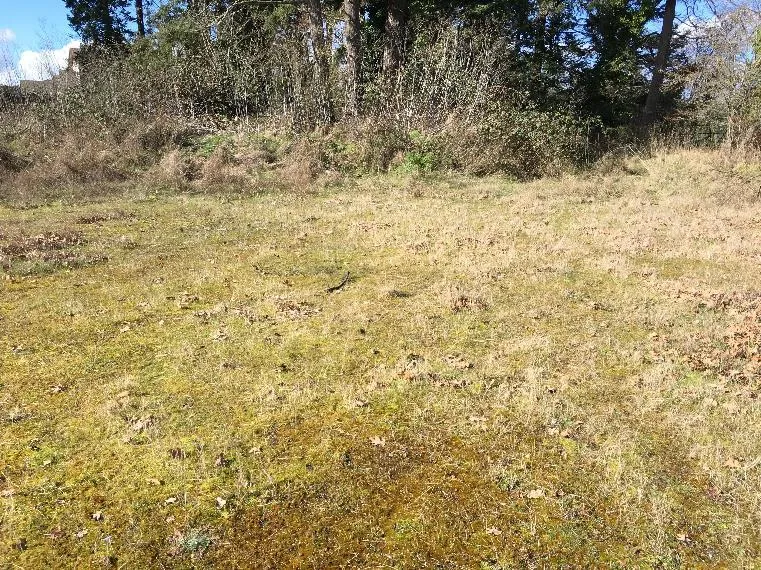

**Photograph No.11:** Lawn area along Helmcken Rd, undulating topography with a rocky outcrop in the background

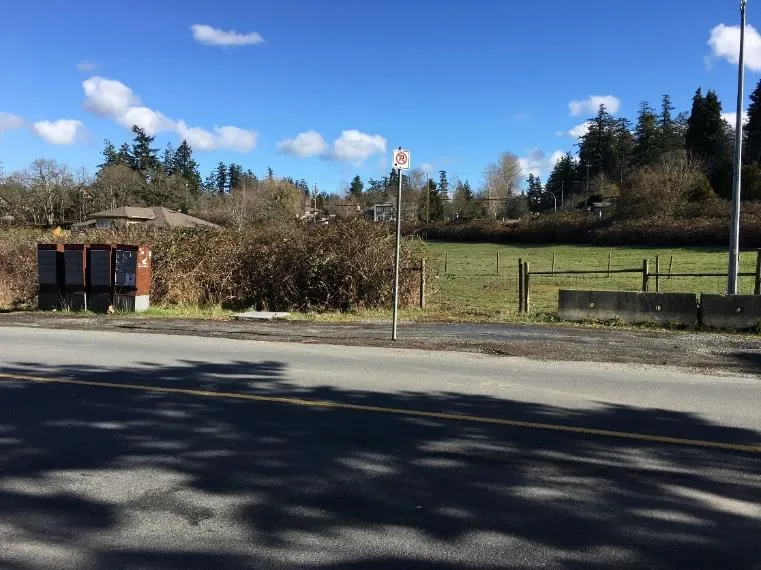

**Photograph No.12:** Neighbouring cattle pasture and rural residential home to the east

**Photograph No.13:** Helmcken Road and residential area to the south, view looking east

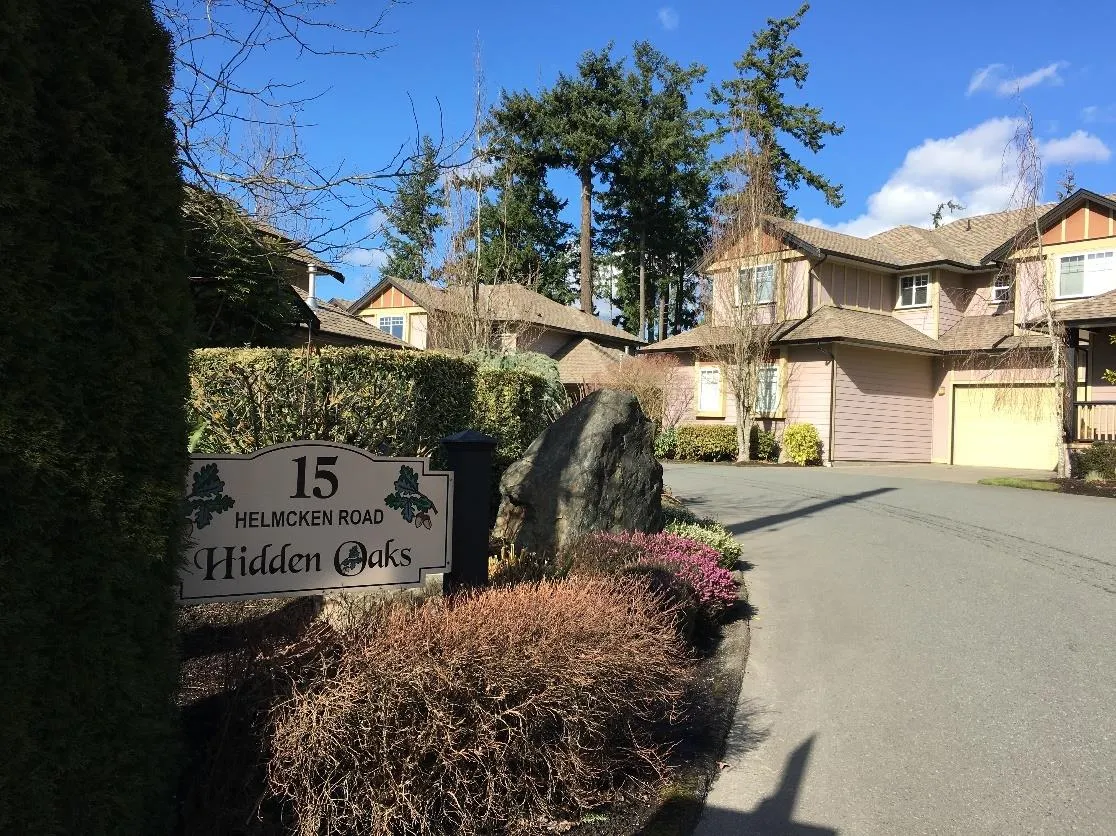

**Photograph No.14:** Newly constructed townhouses to the west of the Site

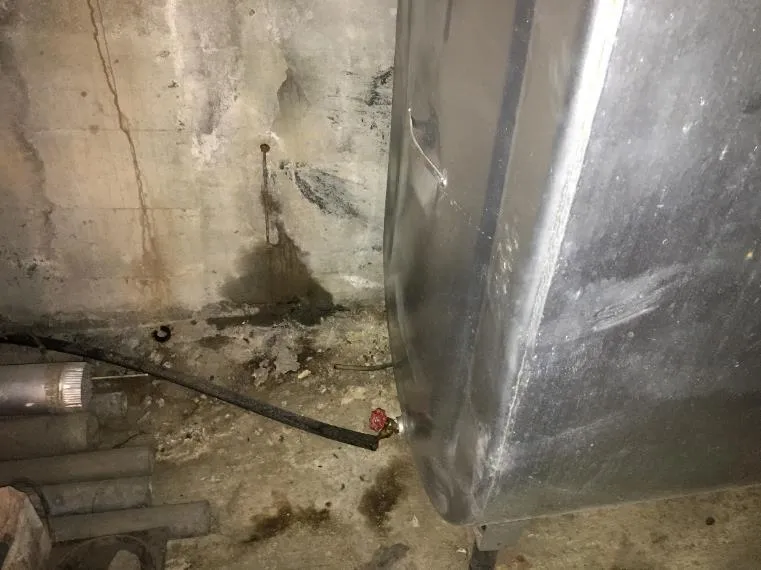

**Photograph No.15:** Heating oil AST on the ground floor of the apartment building

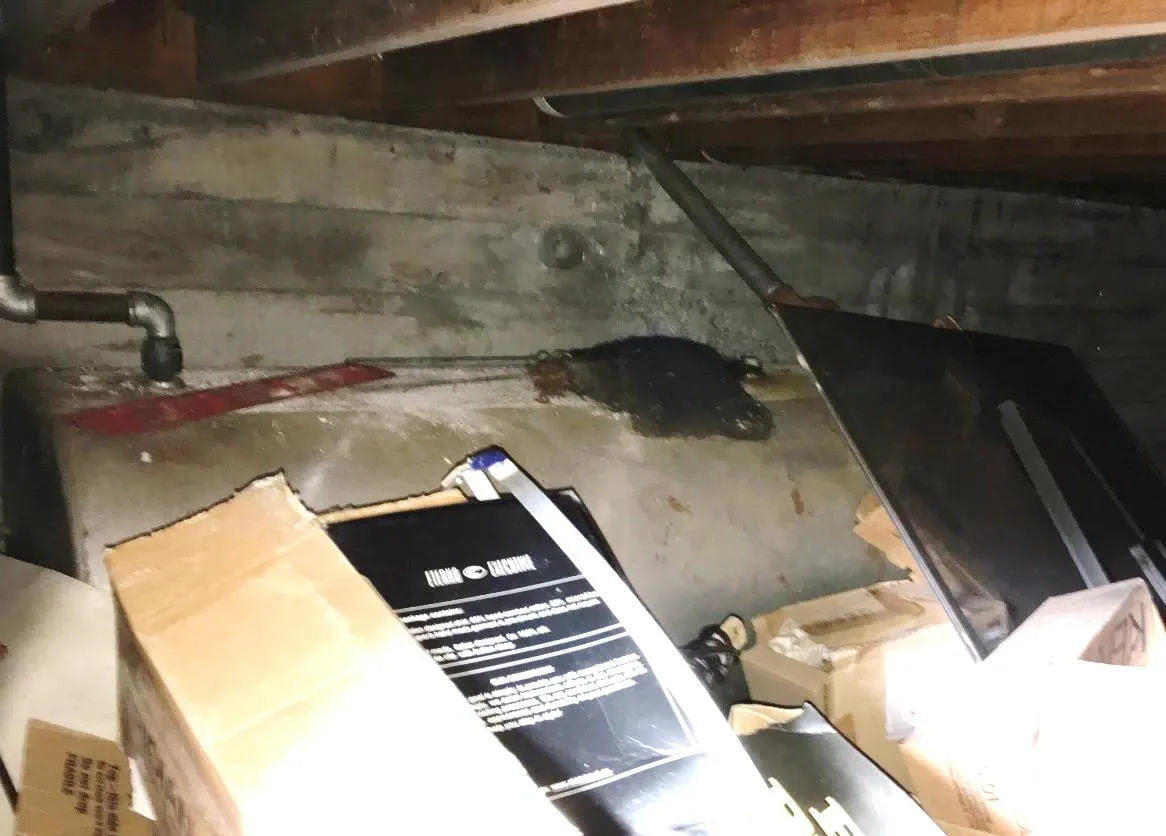

**Photograph No.16:** abandoned heating oil AST in the crawl space under the house at 1445 Burnside Rd W

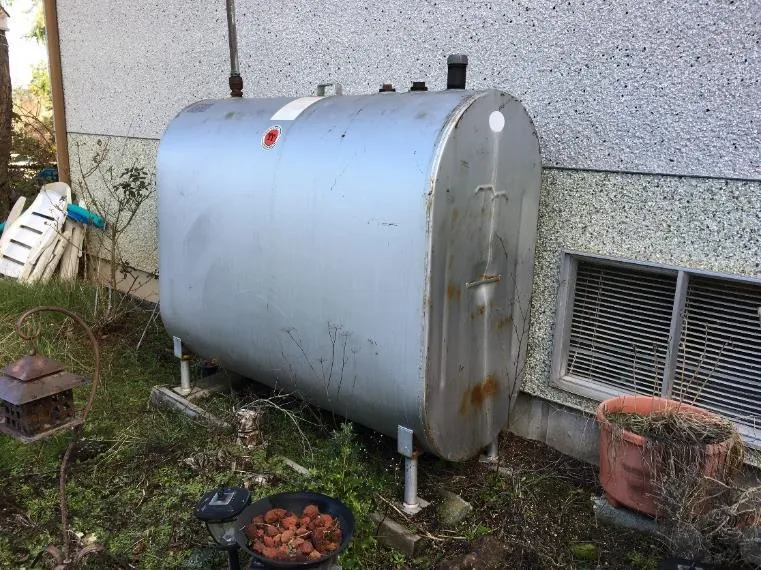

**Photograph No.17:** Heating oil AST on the west side of the house at 1449 Burnside Rd W

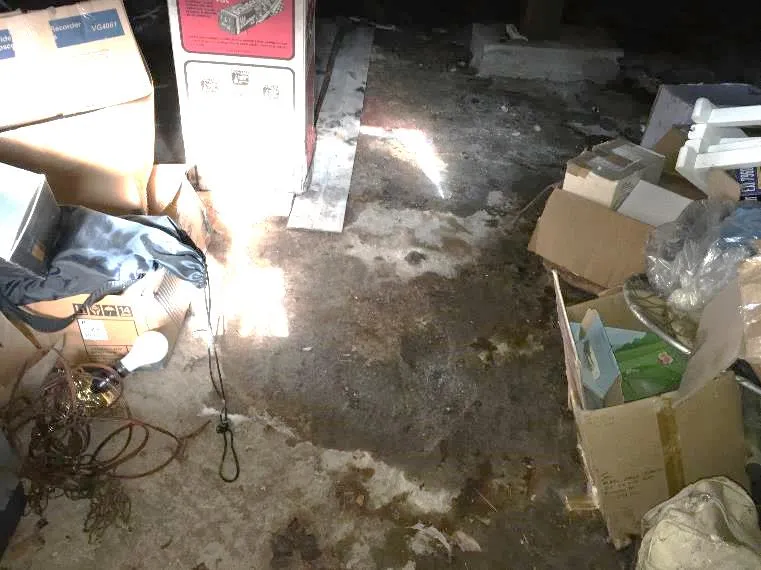

**Photograph No.18:** Staining on the floor of the crawl space under 1445 Burnside Rd W

**Photograph No.19:** Staining under the valve of the AST at #3 Helmcken Rd

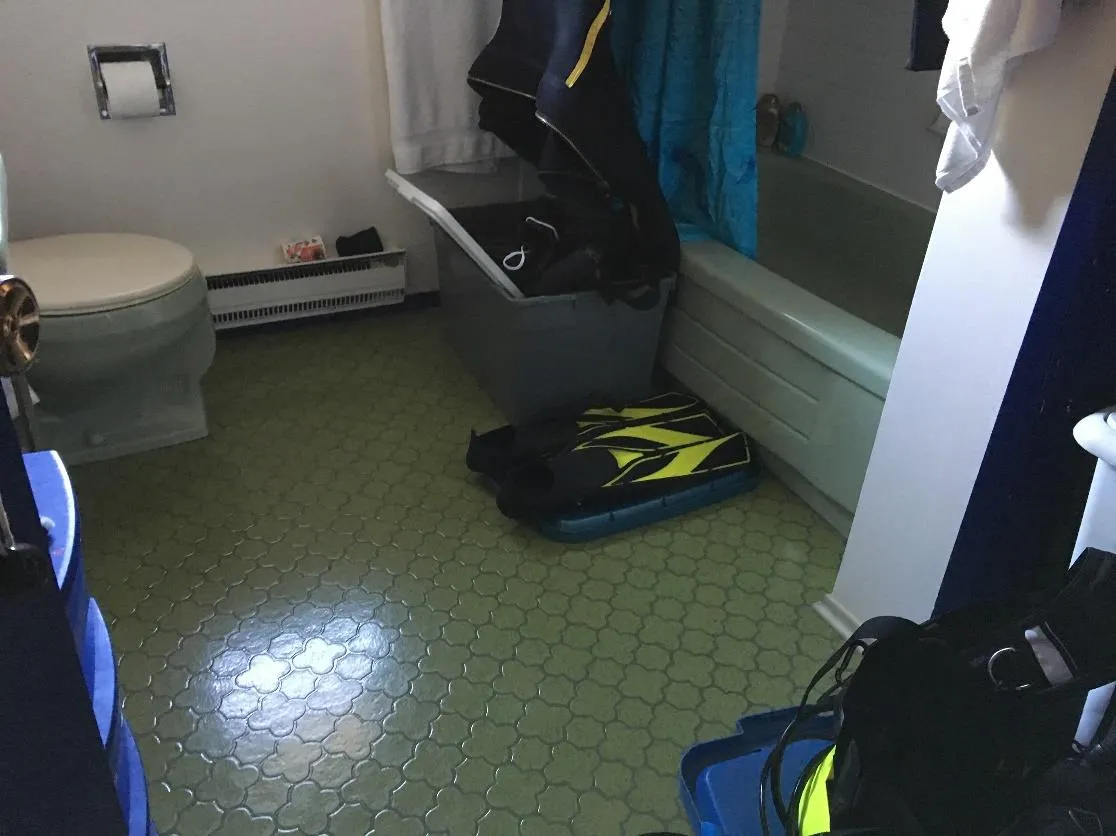

**Photograph No.20:** Example of linoleum that is suspect for containing asbestos

**Photograph No.21:** Example of ceiling tile that is suspect for containing asbestos

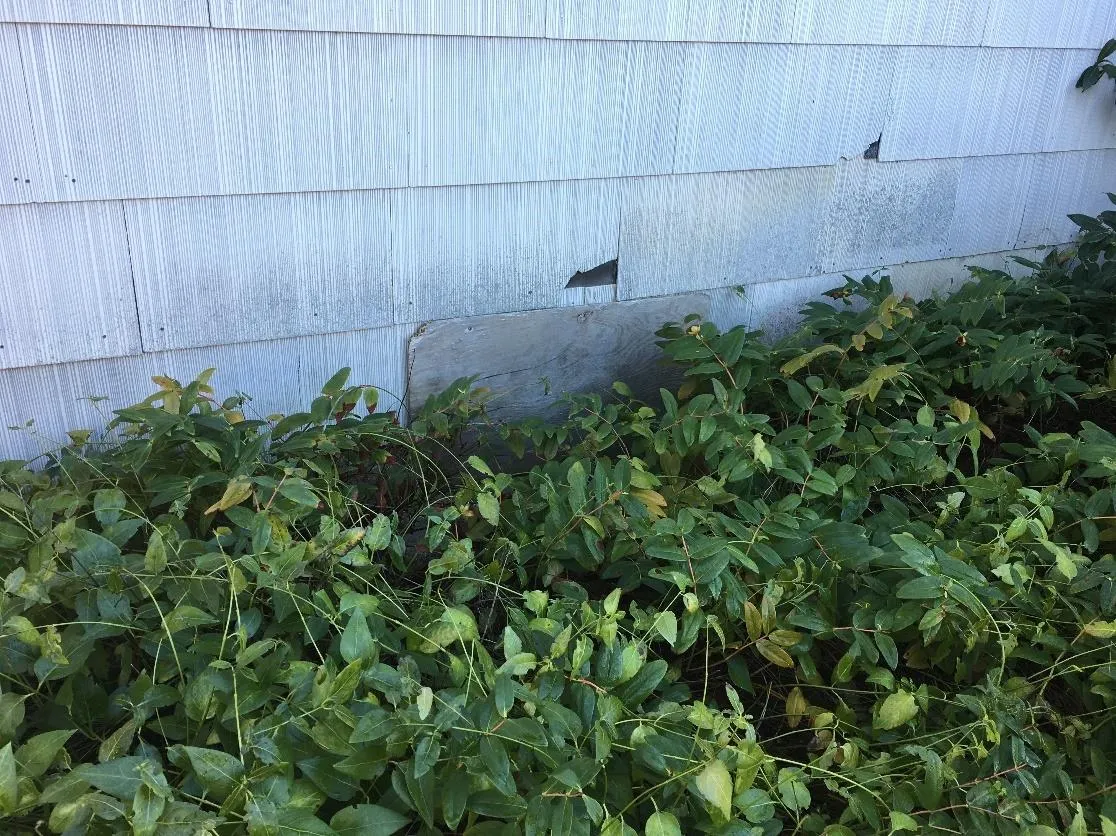

**Photograph No.22:** Asbestos cement siding on the house at 1447 Burnside Rd W

**Photograph No.23:** APEC for inappropriately discarded waste containers in the backyard at #5 Helmcken Rd

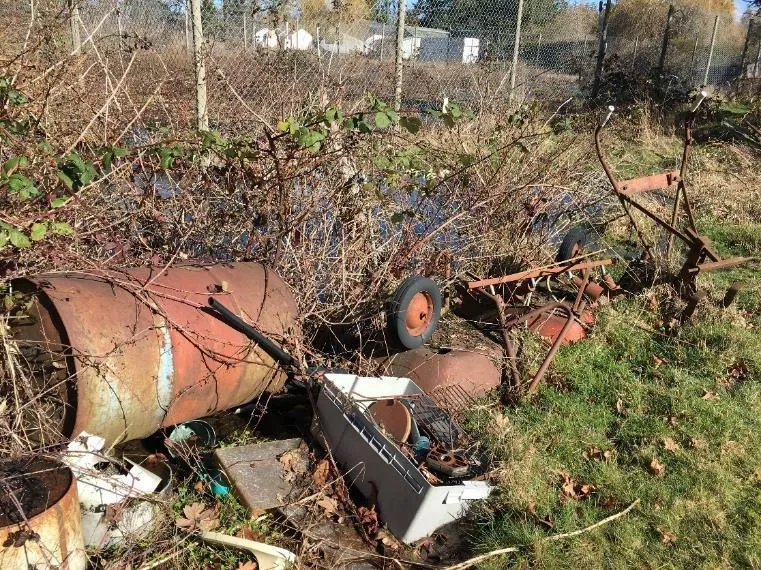

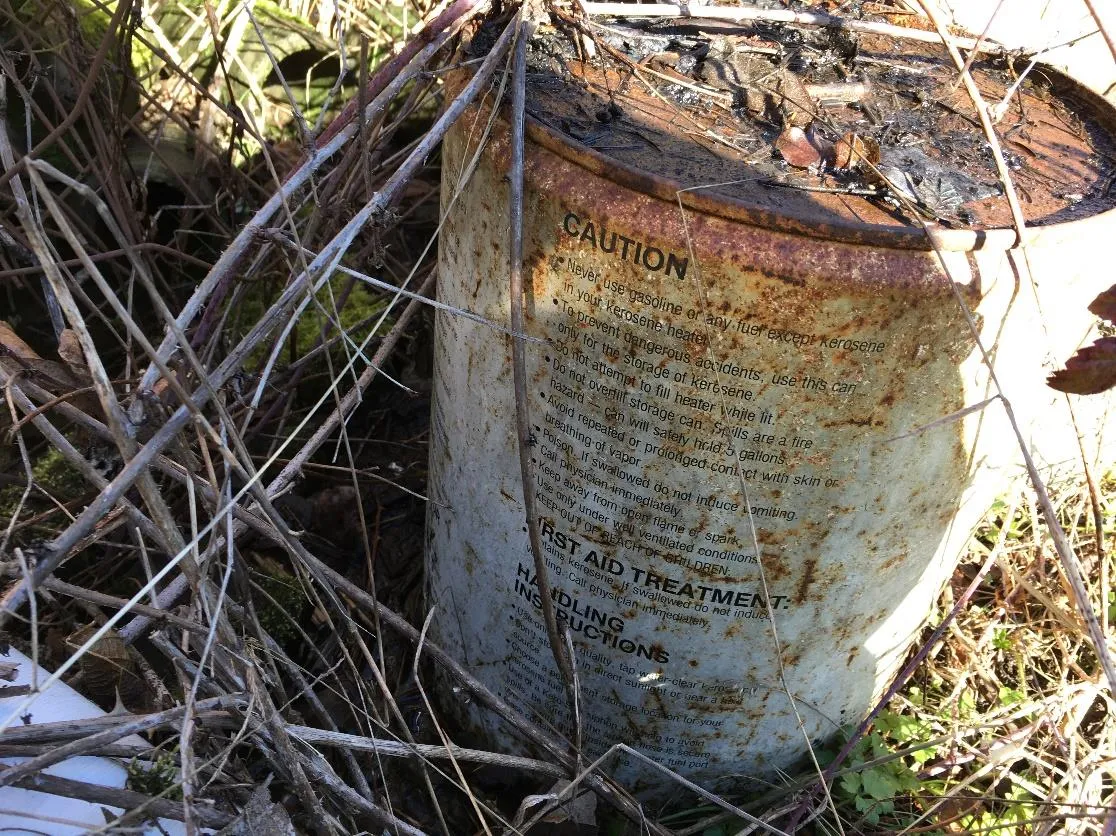

**Photograph No.24:** Rusted kerosene container in the scrap pile at #5 Helmcken Rd

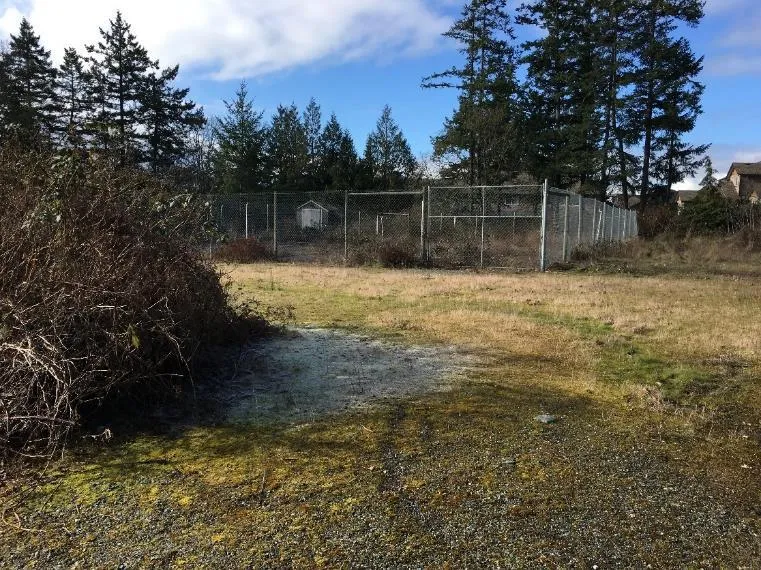

**Photograph No.25:** Northwest corner of the Site formerly used to sort soil materials, some revegetated mounds of soil visible.

**Photograph No.26:** Road grade fill placed in the central northern portion of the Site adjacent to the former plant nursery and in the area where soil segregation formerly occured
