Attachment 2: Block A Elevations - Eric Barker Architect inc.
March 4, 2014Page 161 section

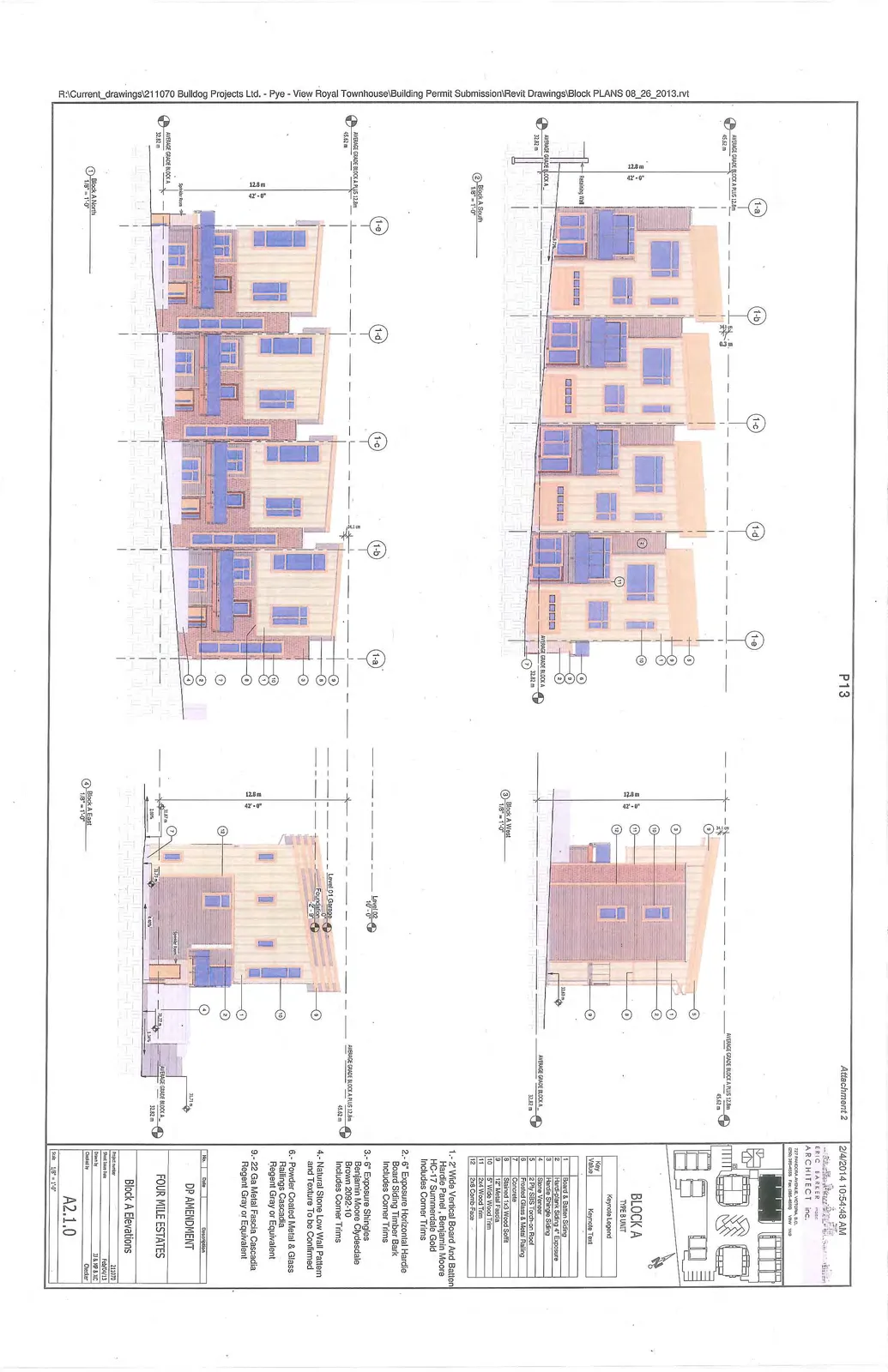

Architectural elevation drawings for Block A showing proposed exterior changes.
February 4, 2013Eric Barker Architect inc.
FOUR MILE ESTATES
Block A Elevations
Project Information
- Project Number: 211070
- Sheet Issue Date: Feb/04/13
- Date: 2/4/2014 10:54:48 AM
- Scale: 1/8" = 1'-0"
- Sheet Number: A2.1.0
Keynote Legend - Block A (Type B Unit)
| Key Value | Keynote Text |
|---|---|
| 1 | Board & Batten Siding |
| 2 | Hardi-plank Siding 4" Exposure |
| 3 | Hardie Shingle Siding |
| 4 | Stone Veneer |
| 5 | 2 Ply SBS Torch-on Roof |
| 6 | Frosted Glass & Metal Railing |
| 7 | Concrete |
| 8 | Stained 1x3 Wood Soffit |
| 9 | 22" Metal Fascia |
| 10 | 5" Wide Wood Trim |
| 11 | 2x4 Wood Trim |
| 12 | 2x6 Comb Face |
Material Descriptions
- 2' Wide Vertical Board And Batten Hardie Panel, Benjamin Moore HC-17 Summerdale Gold Includes Corner Trims
- 6" Exposure Horizontal Hardie Board Siding Timber Bark Includes Corner Trims
- 6" Exposure Shingles Benjamin Moore Clydesdale Brown 2092-10 Includes Corner Trims
- Natural Stone Low Wall Pattern and Texture To Be Confirmed
- Powder Coated Metal & Glass Railings Cascadia Regent Gray or Equivalent
- 22 Ga Metal Fascia Cascadia Regent Gray or Equivalent
DP AMENDMENT
| No. | Date | Description |
|---|---|---|
| DP AMENDMENT |
Elevation Specifications
- Average Grade Block A Plus 12.8m: 45.62 m
- Average Grade Block A: 32.82 m
- Level 02: 10'-0"
- Level 01 Garage: 0'
- Foundation: -2'-9"
Address Information: 727 PANDORA AVENUE, VICTORIA, B.C.
Page 16
