Council Meeting/Documents/Attachment 4: Block B Elevations - Eric Barker Architect inc.
Appendix

Attachment 4: Block B Elevations - Eric Barker Architect inc.

March 4, 2014Page 181 section

Architectural elevation drawings for Block B showing proposed exterior changes.

1 CALL TO ORDER
May 1, 2013Eric Barker Architect inc.

BLOCK B

TYPE B UNIT

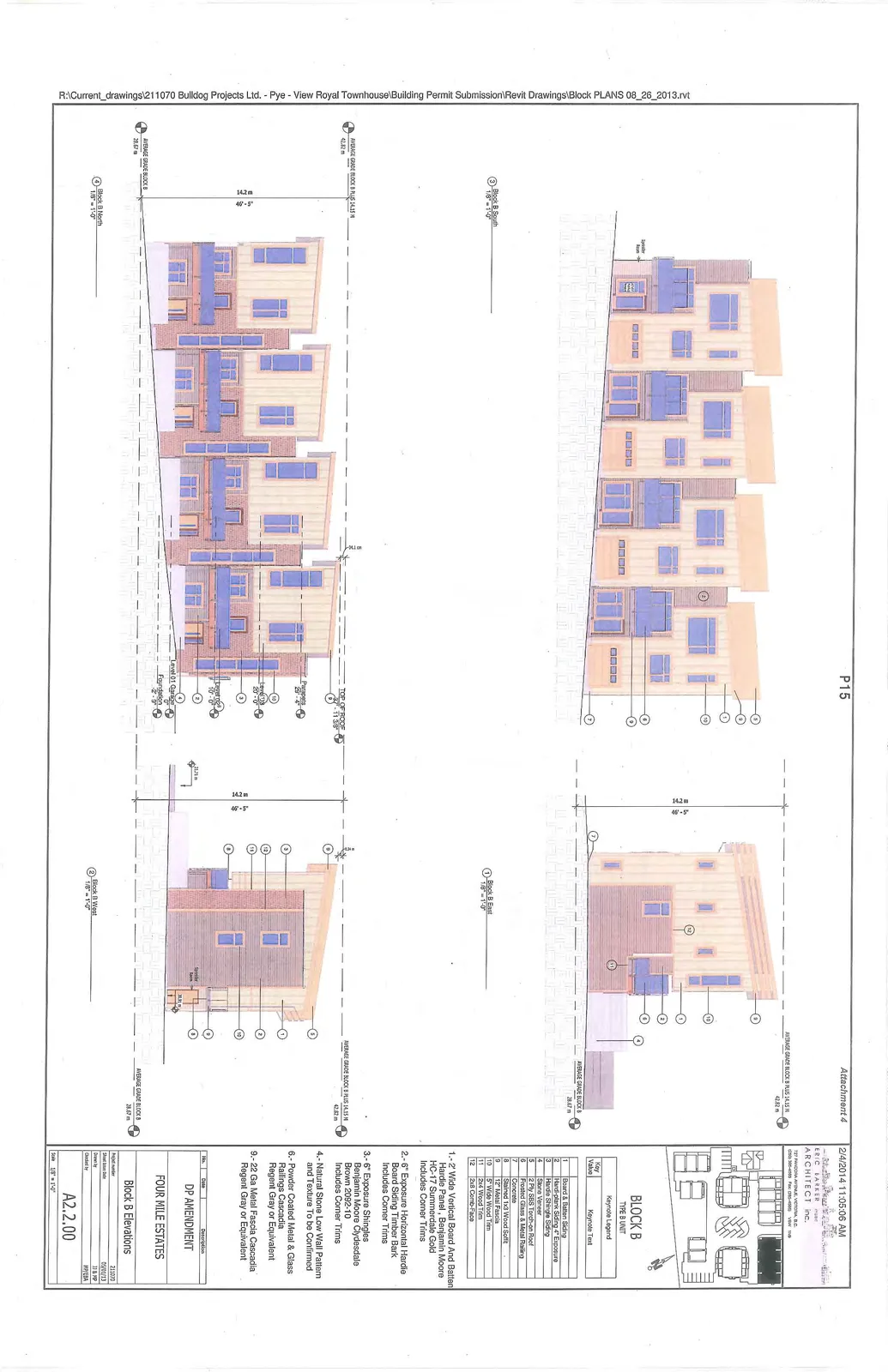

Architectural elevation drawings for Block B of Four Mile Estates, featuring South, East, North, and West views. The sheet includes height markers, grade lines, a material keynote legend, and a small site plan diagram highlighting the location of Block B.
Architectural elevation drawings for Block B of Four Mile Estates, featuring South, East, North, and West views. The sheet includes height markers, grade lines, a material keynote legend, and a small site plan diagram highlighting the location of Block B.

Keynote Legend

Key Value Keynote Text
1 Board & Batten Siding
2 Hardi-plank Siding 4" Exposure
3 Hardie Shingle Siding
4 Stone Veneer
5 2 Ply SBS Torch-on Roof
6 Frosted Glass & Metal Railing
7 Concrete
8 Stained 1x3 Wood Soffit
9 12" Metal Fascia
10 5" Wide Wood Trim
11 2x4 Wood Trim
12 2x8 Comb-Face

Keynote Text

  1. 2" Wide Vertical Board And Batten Hardie Panel, Benjamin Moore HC-17 Summerside Gold Includes Corner Trims
  2. 6" Exposure Horizontal Hardie Board Siding Timber Bark Includes Corner Trims
  3. 6" Exposure Shingles Benjamin Moore Clydesdale Brown 2092-10 Includes Corner Trims
  4. Natural Stone Low Wall Pattern and Texture To be Confirmed
  5. Powder Coated Metal & Glass Railings Cascadia Regent Gray or Equivalent
  6. 22 Ga Metal Fascia Cascadia Regent Gray or Equivalent

Project Information

ERIC BARKER ARCHITECT INC.
727 PANORAMA AVENUE, VICTORIA, B.C.
(250) 388-4089 Fax: (250) 388-4085 V8W 1N9

DP AMENDMENT

FOUR MILE ESTATES

Block B Elevations

Field Details
Project number 211070
Sheet Issue Date 03/01/13
Drawn by LL & RP
Checked by MP/EBA
Sheet Number A2.2.00
Scale 1/8" = 1'-0"

Elevation Details

Elevation Views

  • Block B South (Scale: 1/8" = 1'-0")
  • Block B East (Scale: 1/8" = 1'-0")
  • Block B North (Scale: 1/8" = 1'-0")
  • Block B West (Scale: 1/8" = 1'-0")

Height Markers and Grades

  • TOP OF ROOF: 29' - 11 3/8"
  • Parapets: 25' - 4"
  • Level 02: 20' - 0"
  • Level 01: 10' - 0"
  • Level 01 Garden: 0' - 0"
  • Foundation: -2' - 9"
  • Overall Height: 14.2 m / 46' - 7"
  • AVERAGE GRADE BLOCK B PLUS 14.15 M: 42.82 m
  • AVERAGE GRADE BLOCK B: 28.67 m
Page 18
