Site Plan Of: Lot A, Section 98, Esquimalt District, Plan VIP86689 (Attachment 5)

May 6, 2014Pages 80–811 section

Detailed site plan including parking layouts and grades for 280 Wilfert Road. Page 81 is blank.

1 CALL TO ORDER
November 28, 2013

Site Plan Of: Lot A, Section 98, Esquimalt District. Plan VIP86689.

Scale: 1 : 200

Dated: this 28th day of November, 2013.

Notes:

  • Elevations are based upon geodetic datum.
  • Elevations & distances shown are in metres.

Parking Stall Requirements:

  • Northwest side requires cut of 0.15m at front of stalls and 0.10m at back (north) to maintain 6% slope from centre of drive aisles.
  • Southwest side requires removal of sidewalk, steps, and deck and cut to 23.5m at base of remaining deck to maintain 6% slope across the parking stalls.

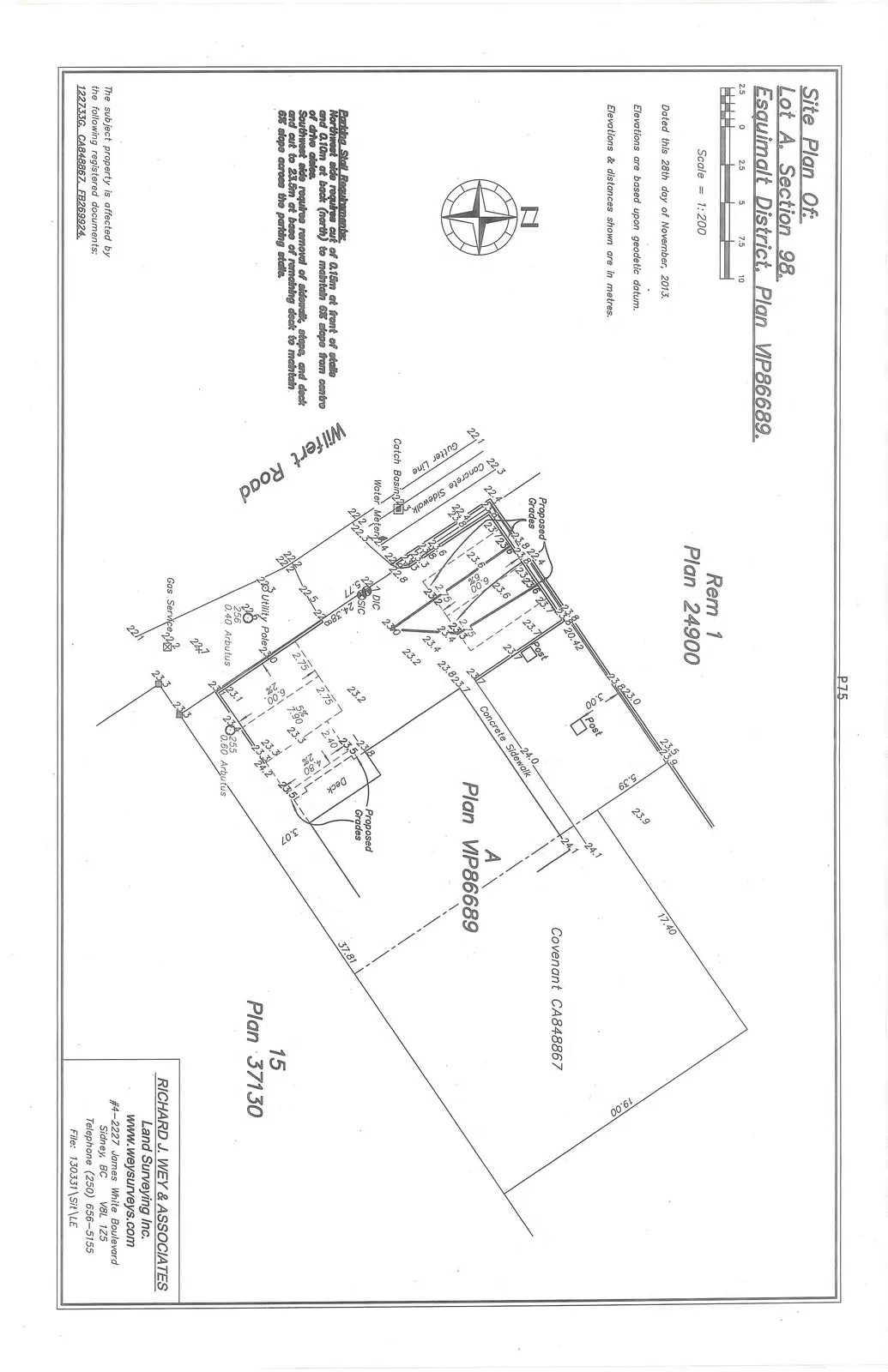

Detailed site plan showing Lot A property boundaries, proposed grades, elevations, and site features including Wilfert Road, concrete sidewalk, deck, utility poles, and adjacent properties.
Detailed site plan showing Lot A property boundaries, proposed grades, elevations, and site features including Wilfert Road, concrete sidewalk, deck, utility poles, and adjacent properties.

The subject property is affected by the following registered documents: 122733G, CA848867, FB269924.

Land Surveyor Information:

RICHARD J. WEY & ASSOCIATES Land Surveying Inc. www.weysurveys.com #4-2227 James White Boulevard Sidney, BC V8L 1Z5 Telephone (250) 656-5155 File: 130331\Sit\LE
